- Size:5.5 inch
- Resolution:1440×2560
- Panel Interface:MIPI

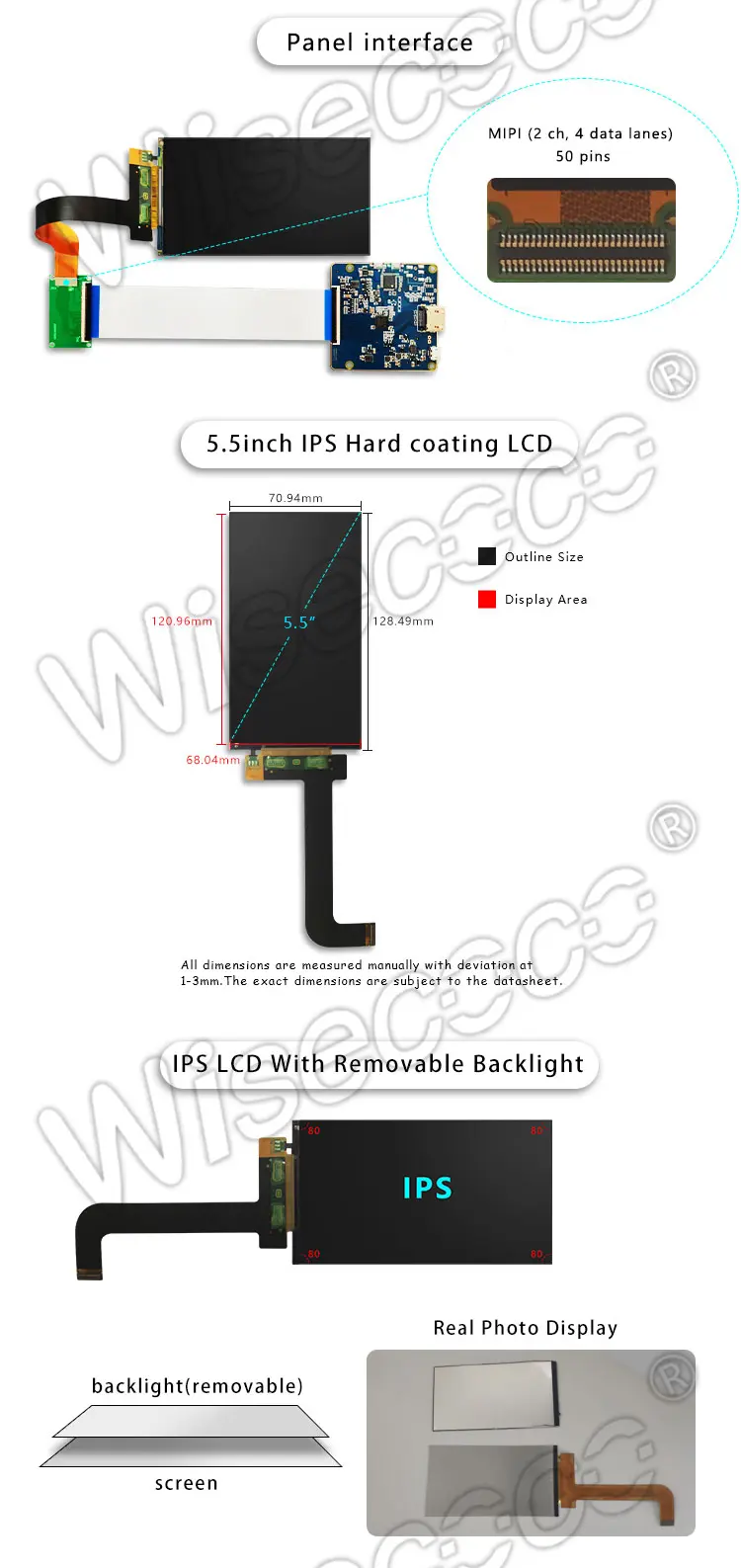

- Active Area:68.04(H)*120.96(V) mm
- Outline Dimension:70.94(H)*128.49(V)*1.45(D) mm
- Viewing Angle:80/80/80/80 (Typ.)(CR≥10)
- Brightness:450cd/m²(Typ.)
- Operation / Storage Temp:-20~60°C / -30~70°C

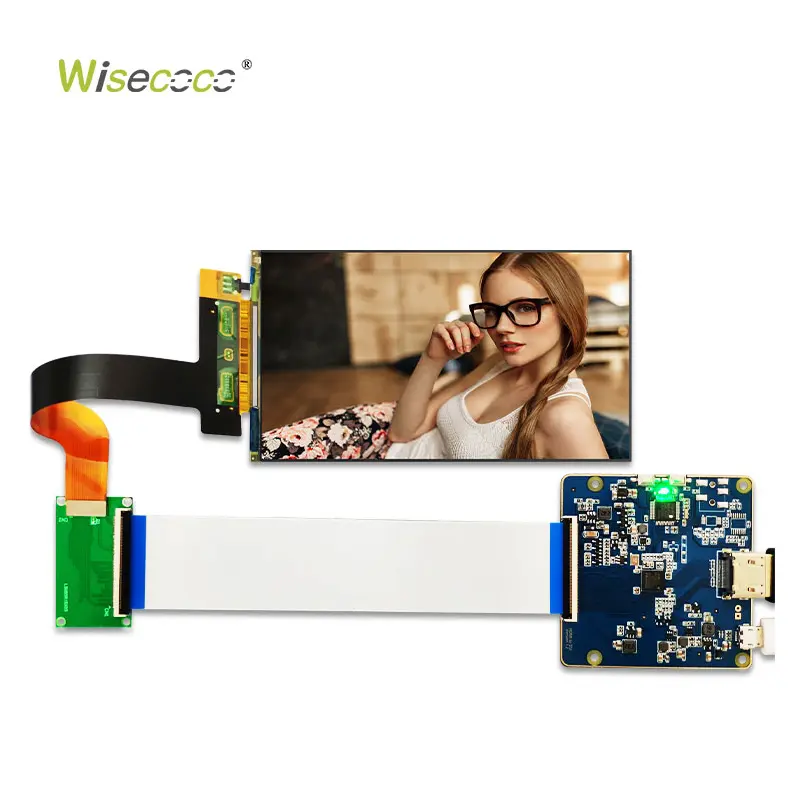

5.5 Inch 1440P LCD Panel 2K 2560*1440 Resolution MIPI DSI Interface TFT LCD Display Module with Connector
$88.00

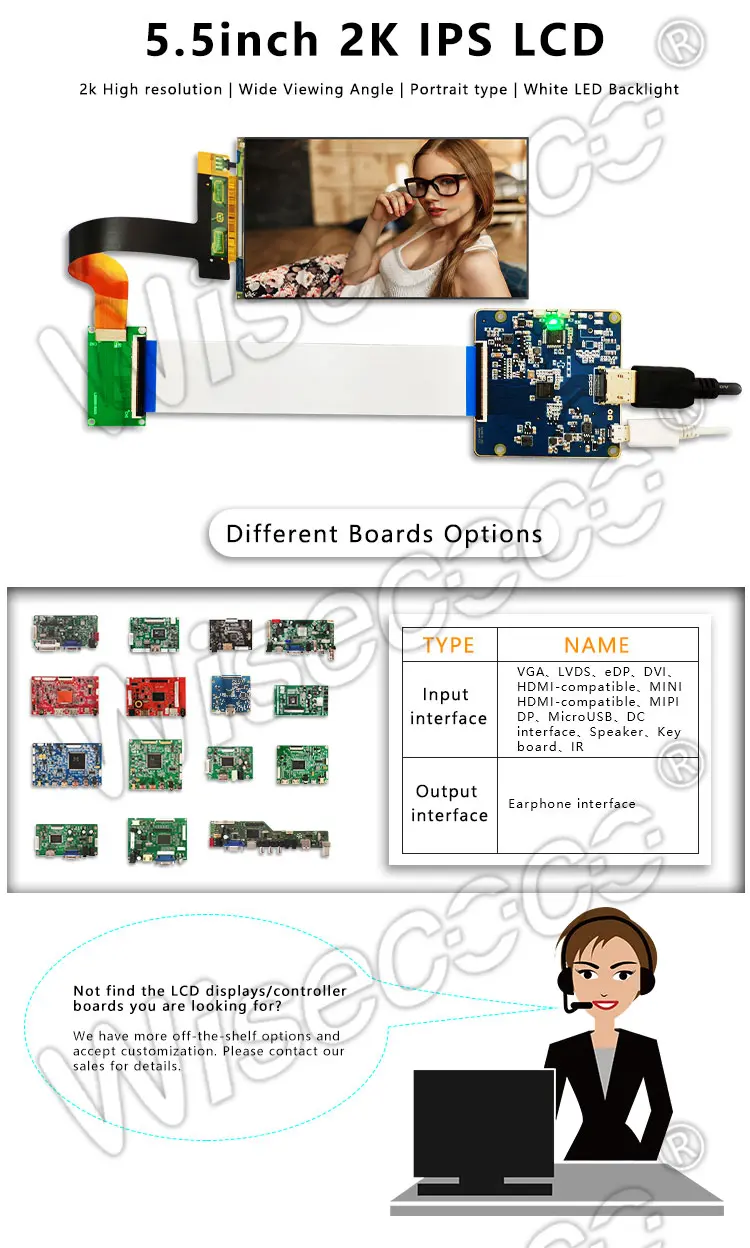

5.5 Inch 2K IPS LCD Panel — High Resolution | Wide Viewing Angle | Portrait Type

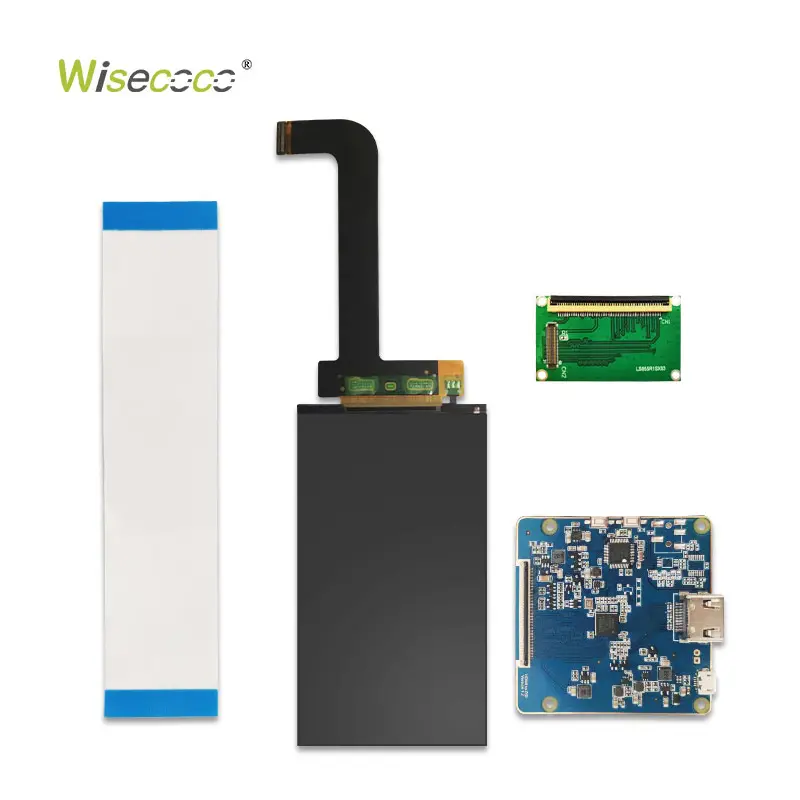

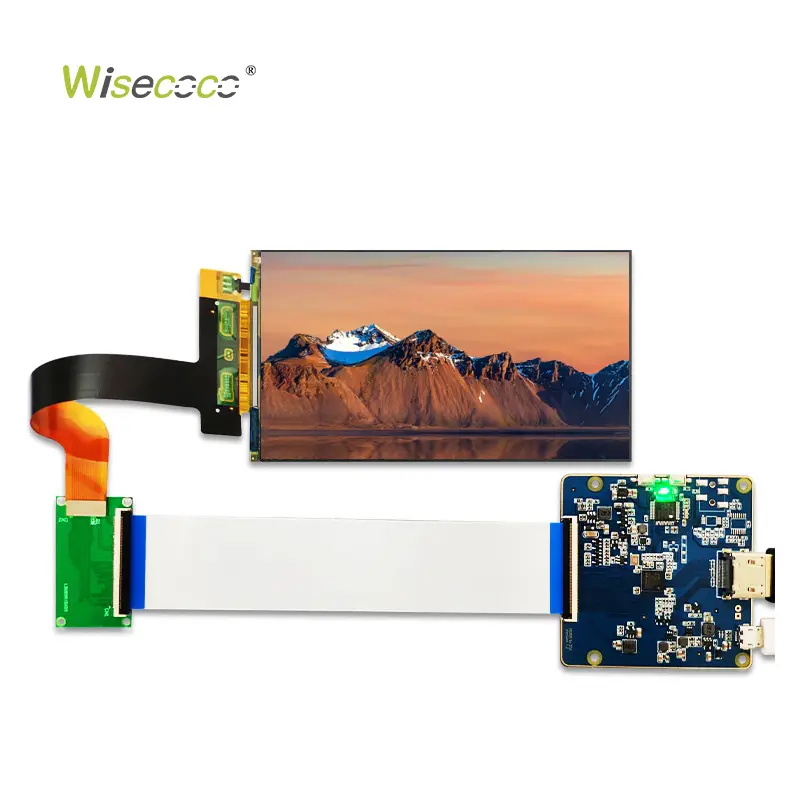

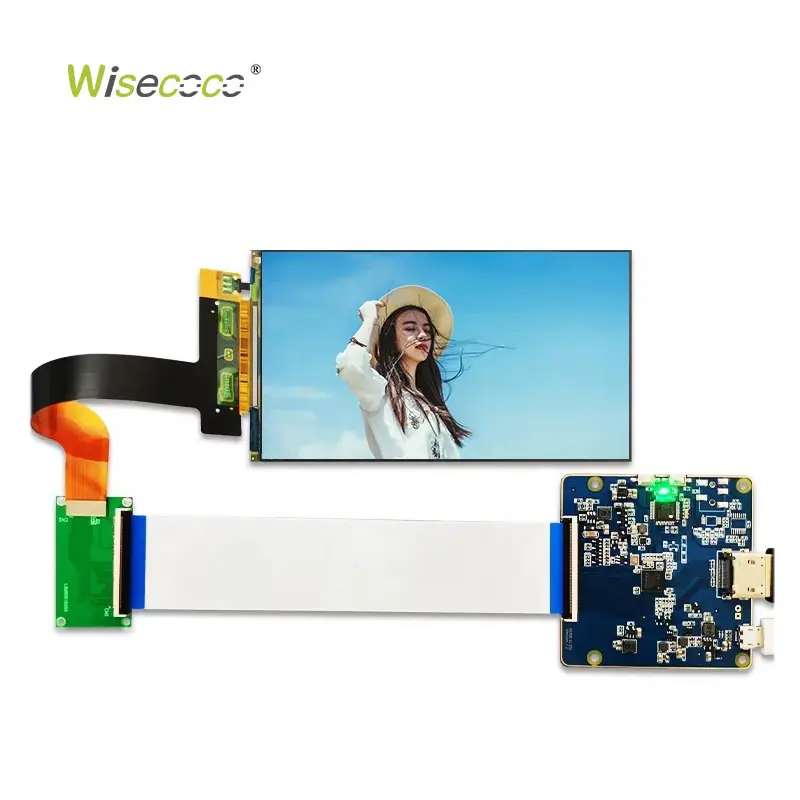

5.5-inch 2K IPS LCD panel delivering high-resolution imagery with wide viewing angle technology and white LED backlight. This portrait-type panel comes with a full HDMI + USB driver board and multiple board options with flexible interfaces, making it a versatile choice for DIY builds and embedded projects.
|
General Features
|
|||
|
Screen Size
|
5.5 inch
|
Type
|
CG-Silicon, LCM
|
|
Pixel Number
|
1440(RGB)*2560 [Quad-HD]
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area(mm)
|
68.04(H)*120.96(V) mm
|
Outline(mm)
|
70.94(H)*128.49(V)*1.45(D) mm
|
|
Luminance
|
450 Cd/m² (Typ.)
|
Contrast Ratio
|
1300 : 1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
35 (Max.)(Tr+Td)
|
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥10)
|
Light Source
|
WLED [8S2P] , W/O Driver
|
|
Support Color
|
16.7M 72% (CIE1931)
|
Used for
|
VR / 3D Printer
|
|
Refresh Rate
|
60Hz
|
Touch screen
|
Without
|
|
Operating Mode
|
New Mode2, Normally Black, Transmissive
|
||
|
Voltage Supply
|
1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)
|
||
|
Signal Type
|
50 pins MIPI (2 ch, 4 data lanes) , Connector
|
||
|
Environment
|
Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C
|
||
Features:
- 2K High Resolution — Sharp, detailed imagery for icons, video, and graphical interfaces.
- IPS Wide Viewing Angle — Genuine IPS panel technology ensures consistent color and brightness from virtually any angle, avoiding the color shift common in lower-cost panels.
- White LED Backlight — Even, reliable illumination for clear visibility across the display.

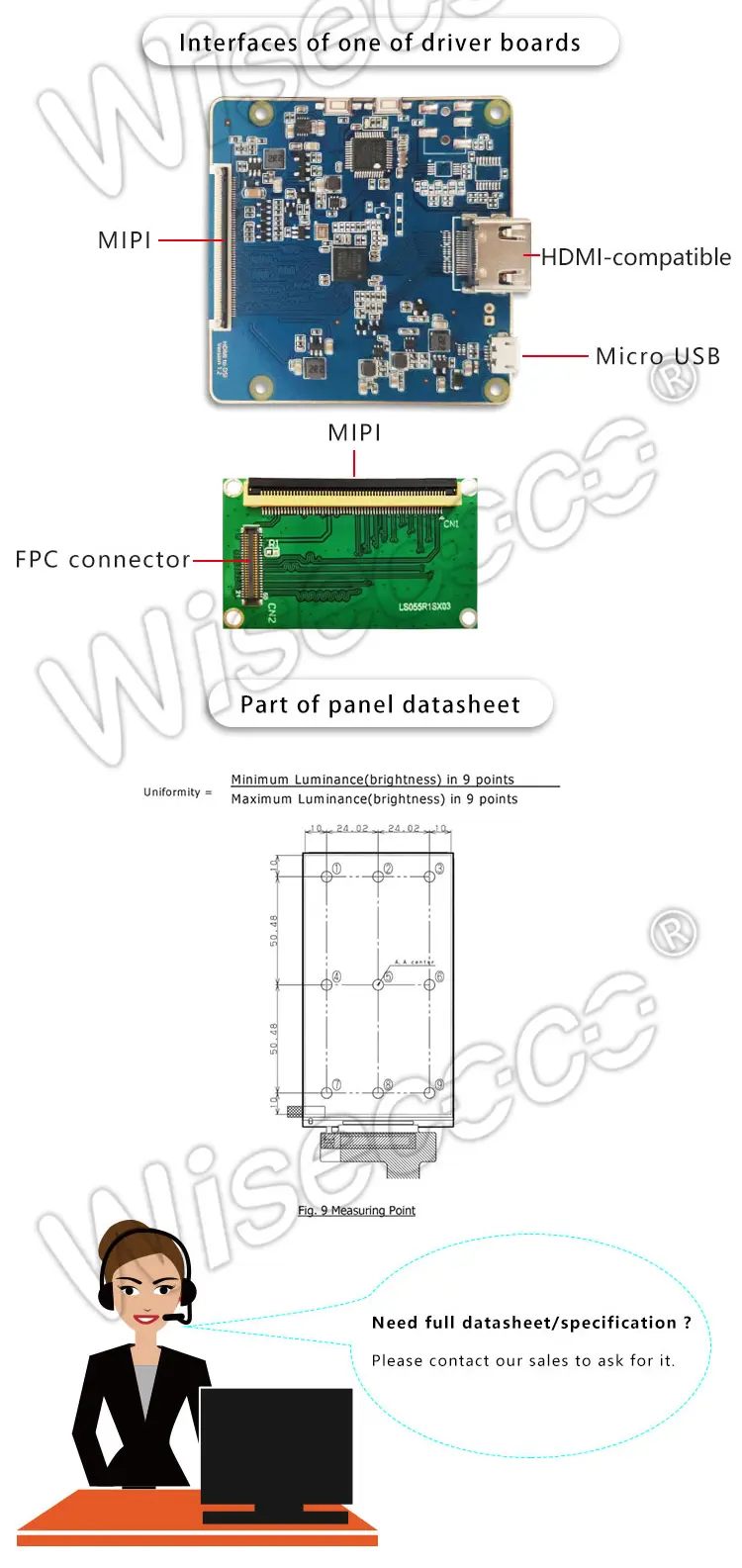

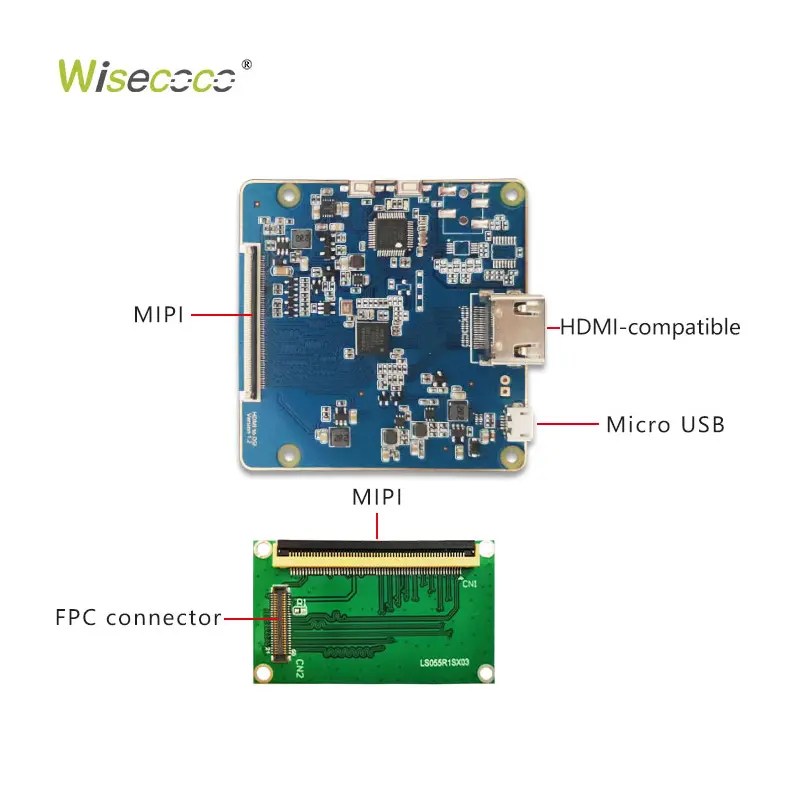

- HDMI + USB Driver Board — Plug-and-play connectivity for straightforward integration into projects and prototypes.
Ideal for: Handheld device builds · Portable monitor projects · Raspberry Pi & mini-PC displays · Maker & prototyping projects · Custom embedded display integration
Wisecoco offers One-step customized LCD display solutions.
