- Size:5.5 inch
- Resolution:2560×1440
- Panel Interface:MIPI

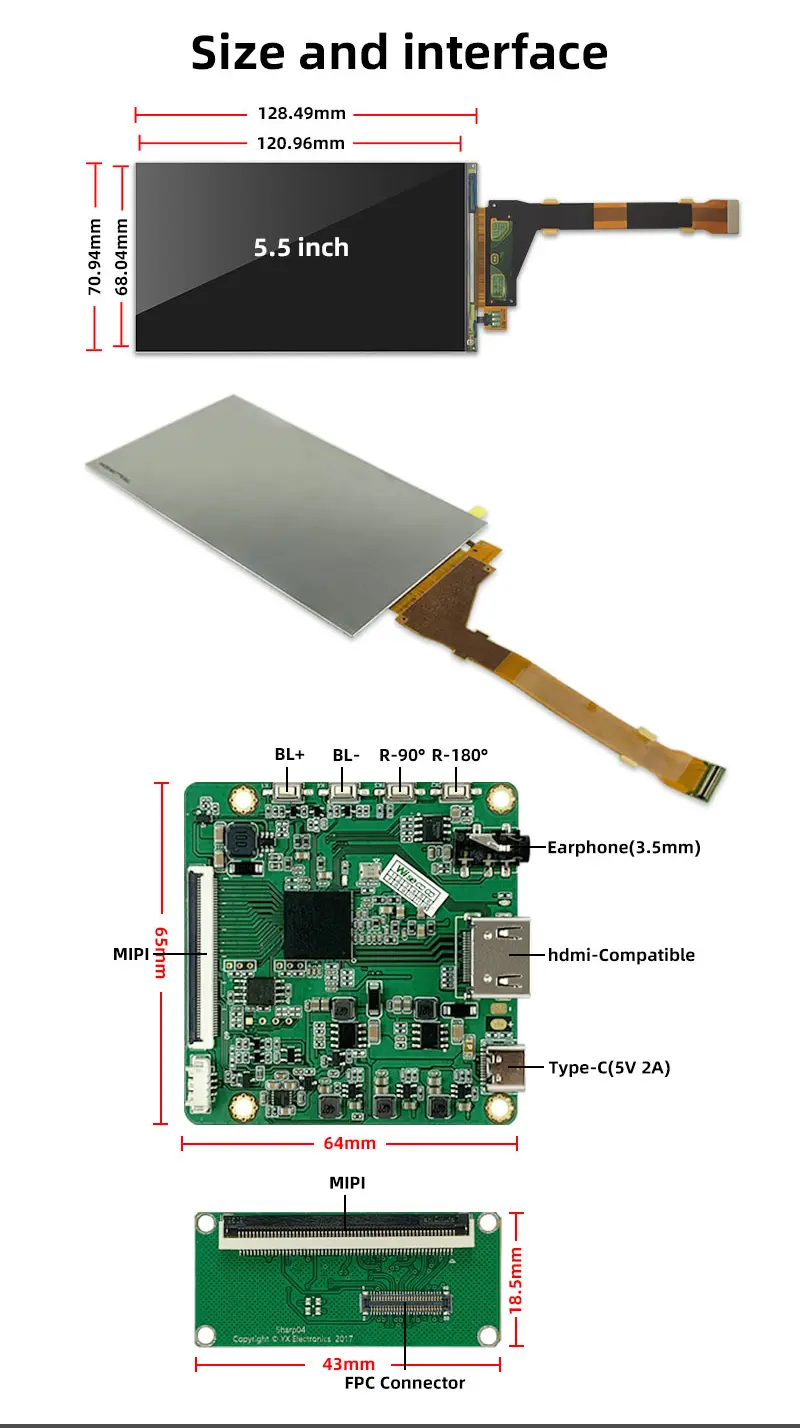

- Active Area:68.04(W)×120.96(H) mm
- Outline Dimension:69.84(W)×128.76(H) mm
- Viewing Angle:80/80/80/80 (Min.)(CR≥10)
- Brightness:450cd/m²(Typ.)
- Operation / Storage Temp:-20~70°C / -30~70°C
Custom 5.5 Inch 2560×1440 2K LCD Screen 60Hz 450Nits Brightness Full Viewing Angle TFT LCD Display for Innovative Product
$88.00
5.5″ IPS 2K Landscape LCD Screen — 2560×1440 | 60Hz | 95% RGB Color Gamut

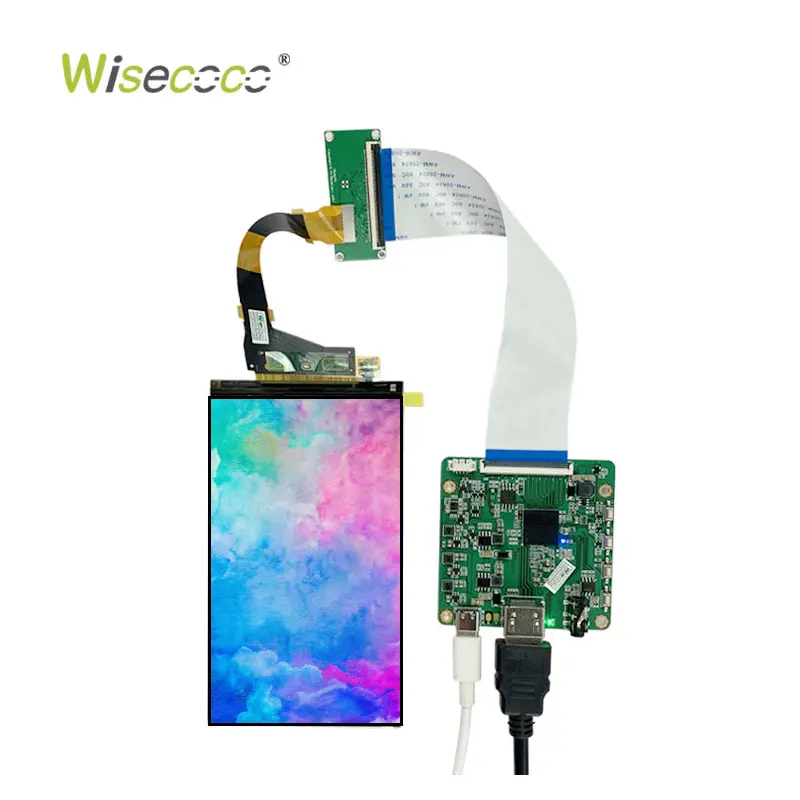

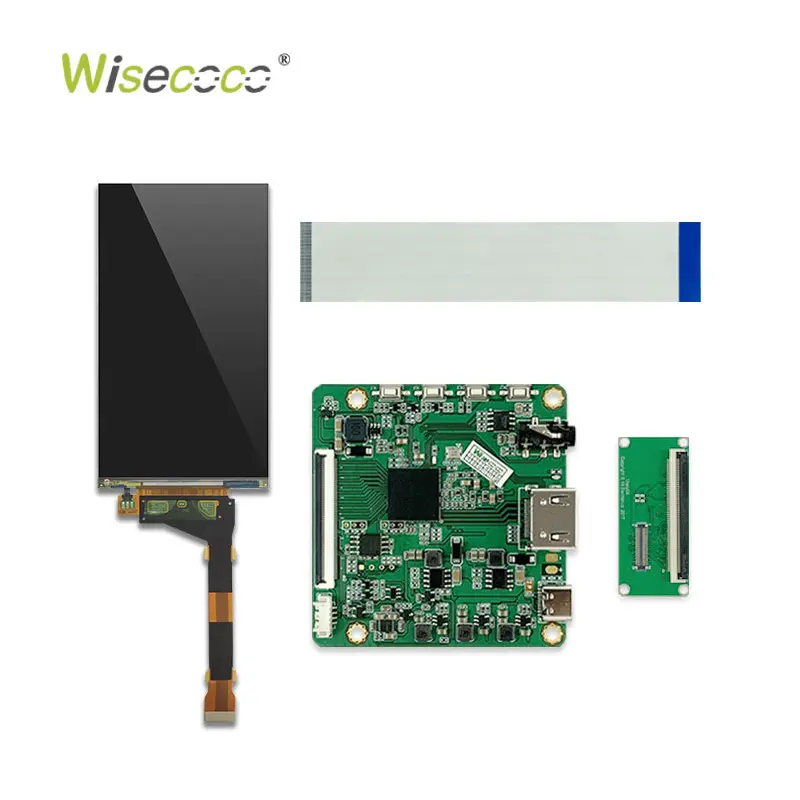

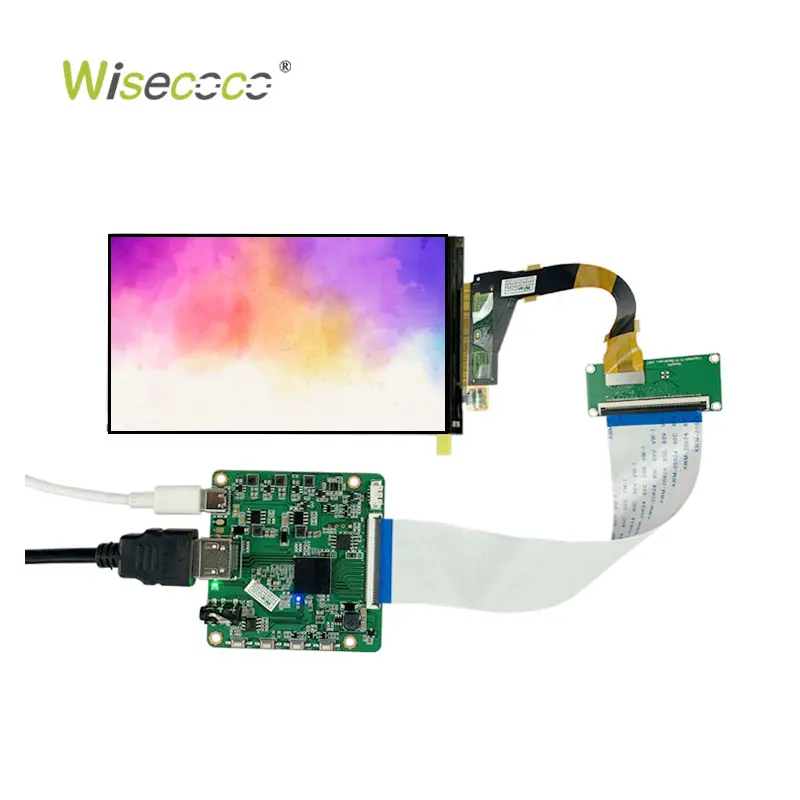

5.5-inch IPS 2K landscape lcd screen delivering sharp 2560×1440 resolution with a smooth 60Hz refresh rate and full IPS viewing angle. Featuring 95% RGB color gamut and a driver board with manual brightness and rotation adjustment, this display gives builders precise control for custom orientation and lighting setups.
|
General Features |
|||
|
Diagonal Size |
5.5 inch |
Type |
CG-Silicon, LCM |
|
Pixel Format |
2560*1440 |
Configuration |
RGB Vertical Stripe |
|
Active Area |
68.04(W)×120.96(H) mm |
Outline Dim. |
69.84(W)×128.76(H) mm |
|
Bezel Area |
– |
Treatment |
Glare (Haze 0%) |
|
Luminance |
450 cd/m² (Typ.) |
Contrast Ratio |
1200:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
Response Time |
30 (Typ.)(Tr+Td) |
|
Viewing Angle |
80/80/80/80 (Min.)(CR≥10) |
Operating Mode |
New Mode2, Normally Black, Transmissive |
|
Support Color |
16.7M 90% (CIE1931) |
Light Source |
6S3P WLED , Without Driver |
|
Weight |
– |
Designed For |
HMD AR,VR |
|
Frame Rate |
60Hz |
Touch Panel |
Without |
|
Interface Type |

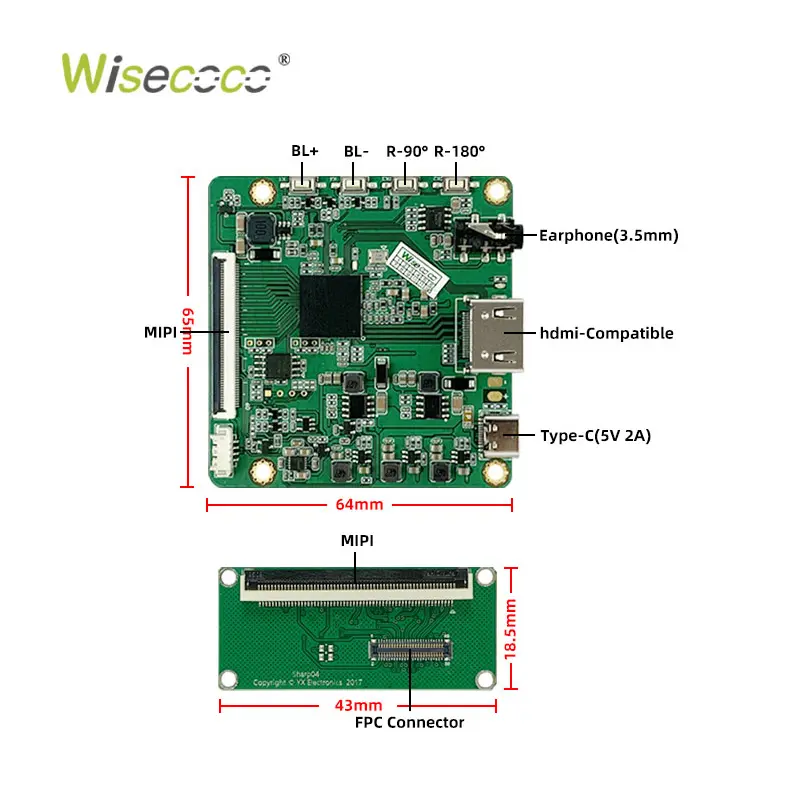

MIPI (2 ch, 4 data lanes) , 60 pins , Connector |
||
|
Power Supply |
1.36/1.85/5.8/-5.6V (Typ.)(DVDD/VDD/VSP/VSN) |
||
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 70 °C |
||
Features:
- 2560×1440 2K Resolution — Sharp, high-resolution IPS panel delivering crisp detail for icons, video, and graphical interfaces.
- 60Hz Refresh Rate — Smooth, fluid visuals with seamless transitions for a responsive viewing experience.
- IPS Full Viewing Angle — Genuine IPS panel technology ensures consistent color and brightness from virtually any angle, avoiding color shift and contrast loss.
- 95% RGB Color Gamut — Rich, accurate color reproduction for vivid, true-to-life visuals.

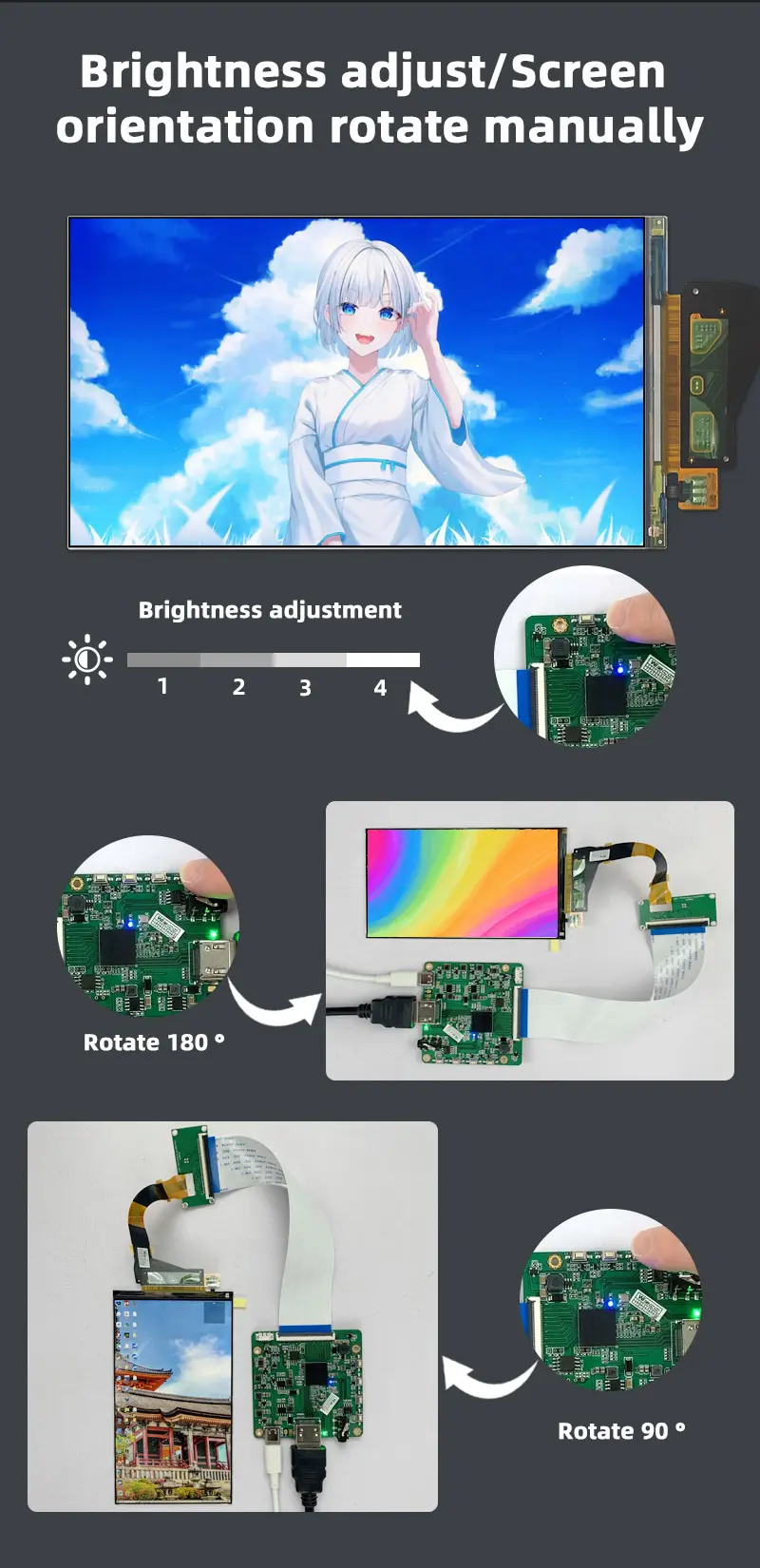

- Manually Adjustable Brightness — Driver board allows on-the-fly brightness control to match ambient lighting conditions.
- Manually Adjustable Rotation — Driver board supports manual image orientation adjustment, ideal for landscape/portrait switching in custom builds.
Ideal for: Portable monitor builds · Raspberry Pi & mini-PC displays · DIY handheld & gimbal monitors · Maker & prototyping projects · Custom embedded display integration
Wisecoco offers One-step customized LCD display solutions.
