15.6 Inch 1366*768 Slim Thin Ips Tft LCD Panel 30 Pin EDP LED Backlight Lcd Screen Module for Advertising Panel

$95.00

  • Size:15.6 inch
  • Resolution:1366×768
  • Panel Interface:eDP (1 Lane)
  • Active Area:344.16(H)*193.59(V) mm
  • Outline Dimension:359.5(H)*224.3(V)*3.2(D) mm
  • Viewing Angle:45/45/20/45 (Typ.)(CR≥10)
  • Brightness :220 Cd/m² (Typ.)
  • Operation / Storage Temp:0~50°C / -20~60°C

>Get a Quote

15.6″ TN LCD Panel — 1366×768 | 220 cd/m² | eDP Interface

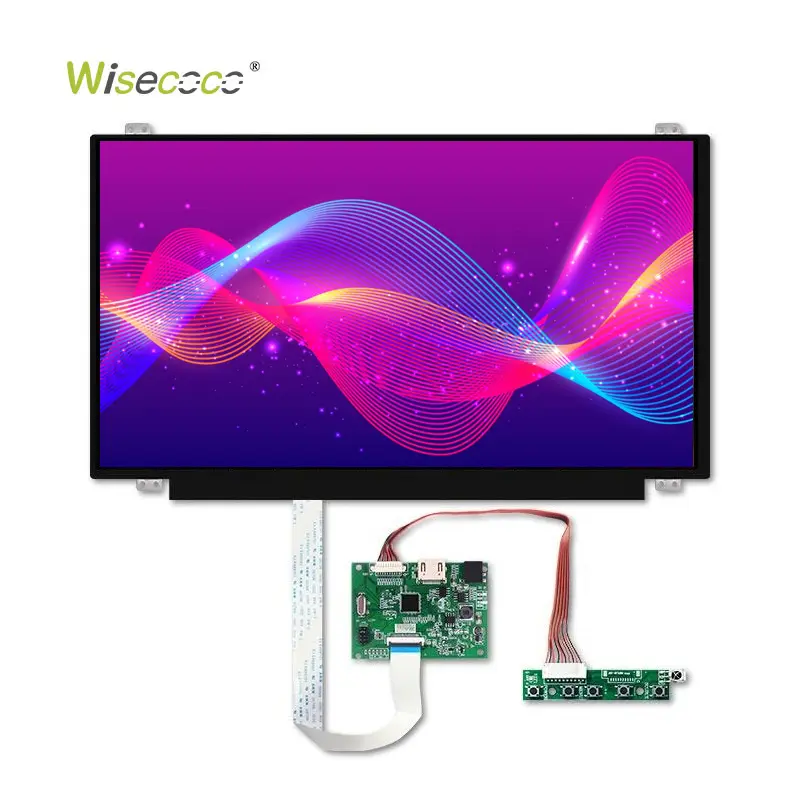

15.6 inch TN LCD Panel is a WXGA laptop-grade display featuring 1366×768 resolution, 220 cd/m² brightness, and a slim 3.2mm profile. The panel uses an eDP 1-lane 30-pin interface with a WLED backlight and integrated LED driver, making it a direct fit for laptop and notebook applications.

Panel Size
15.6 inch
Panel Type
a-Si TFT-LCD , LCM
Resolution
1366(RGB)*768, WXGA
Pixel Format
RGB Vertical Stripe
Display Area
344.232(W)*193.536(H) mm
Bezel Opening
—
Outline Size
359.5(H)*223.8(V)*3.2(D) mm
Surface
Glare (Haze 0%), Hard coating (3H)
Brightness
220 Cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (TM)
Viewing Angle
45/45/15/35 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 O’clock
Response Time
8 (Typ.)(Tr+Td)
Display Colors
262K 45% (CIE1931)
Lamp Type
WLED , 15K hours , With LED Driver
Frequency
60 Hz
Touch Screen
Without
Shape Style
Slim (PCBA Flat, Depth ≤3.2mm)
Application
Laptop
Signal Interface
eDP (1 Lane) , 30 pins , Connector
Input Voltage
3.3V(Typ.)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Features:

  • 1366×768 WXGA Resolution — Standard laptop-class resolution for clear text and general-purpose display use.
  • Slim 3.2mm Profile — Flat PCBA design fits thin notebook and panel enclosures.
  • eDP Interface (1 Lane, 30 Pins) — Standard laptop display connection for straightforward replacement and integration.
  • 60Hz Frame Rate — Supports smooth UI navigation and video playback.
  • Hard-Coated (3H) Glare Surface — 0% haze treatment with scratch-resistant hard coating.
  • WLED Backlight with LED Driver — 15,000-hour rated backlight with the driver already integrated.

Ideal for: Laptop & notebook displays · Panel replacement builds · Embedded landscape displays

Contact Wisecoco for One-step OEM/ODM LCD panel solutions.
