- Size:17 inch
- Resolution:1440×900
- Panel Interface:LVDS (2 ch, 6-bit)
- Active Area:367.2(W)×229.5(H) mm
- Outline Dimension:382.2(W)×244.5(H) ×6.8(D) mm
- Viewing Angle:45/45/20/35 (Typ.)(CR≥10)
- Brightness:200 Cd/m² (Typ.)
- Operation / Storage Temp:0~50°C / -20~60°C

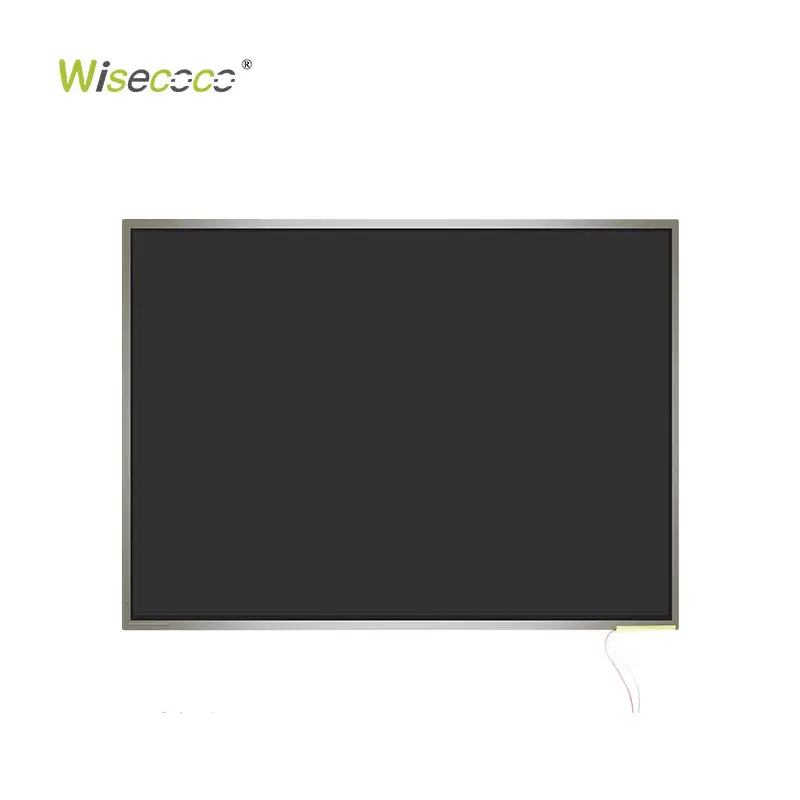

17 Inch 1440×900 WXGA TFT-LCD Display 60Hz Refresh Rate LVDS Interface LCD Screen
$165.00
17″ TFT-LCD Display — 1440×900 WXGA+ | 200 cd/m² | 60Hz | LVDS

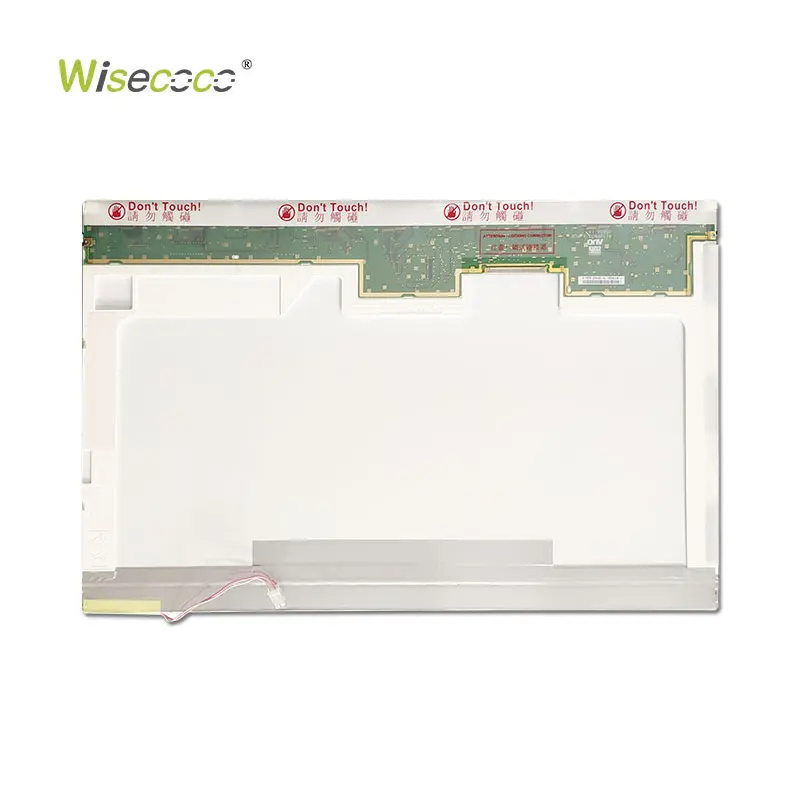

17-inch a-Si TFT-LCD display features 1440×900 WXGA+ resolution in a 16:10 format, making it suitable for digital signage and advertising applications. With a TN display mode, 200 cd/m² typical brightness, a 300:1 contrast ratio, and a 60Hz refresh rate, it provides a display solution for elevator advertising, wall-mounted ads, and indoor or outdoor advertising systems.
|
Panel Size
|
17 inch
|
Panel Type
|
a-Si TFT-LCD, LCM
|
|
Resolution
|
1440(RGB)×900 , WXGA+
|
Pixel Format
|
RGB Vertical Stripe
|
|
Display Area
|
367.2(W)×229.5(H) mm
|
Bezel Opening
|
371.2(W)×233.5(H) mm
|
|
Outline Size
|
382.2(W)×244.5(H) ×6.8(D) mm
|

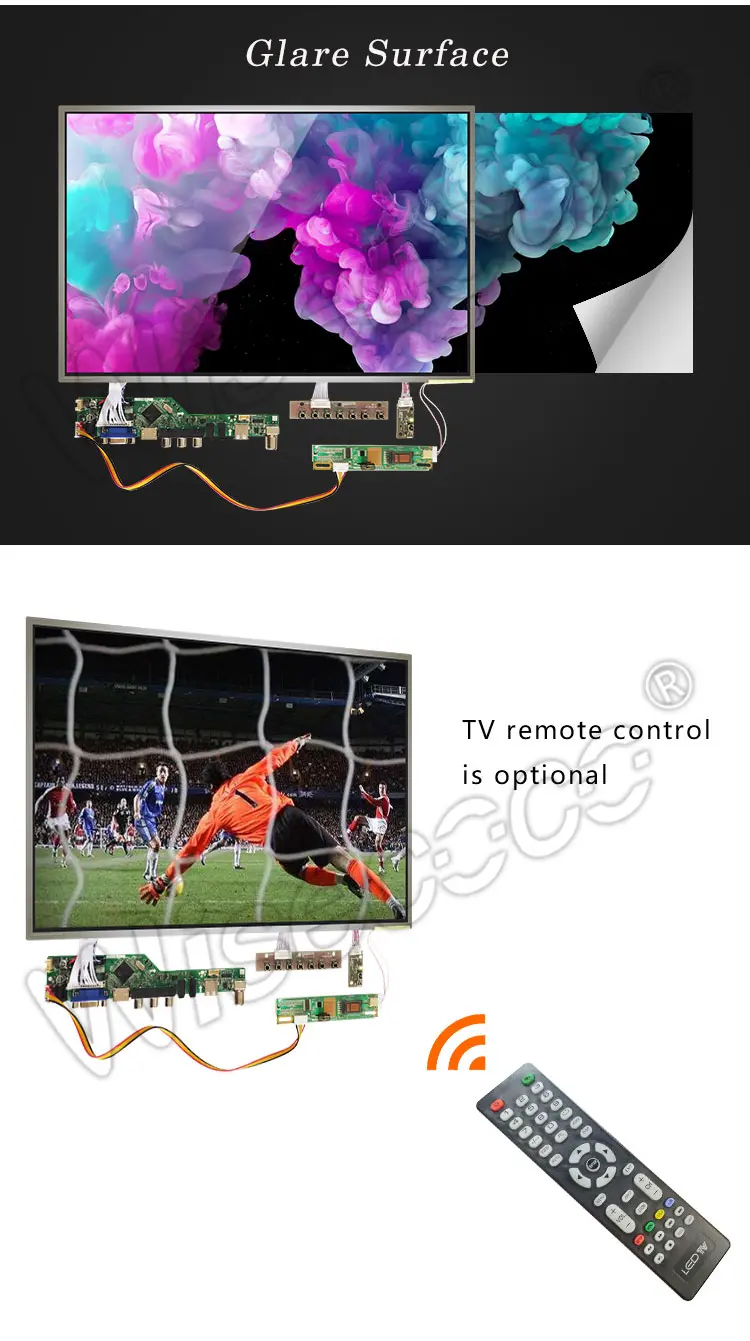

Surface
|
Glare (Haze 0%)
|
|
Brightness
|
200 cd/m² (Typ.)
|
Contrast Ratio
|
300:1 (Typ.) (TM)
|
|
Viewing Angle
|
45/45/20/35 (Typ.)(CR≥10)
|
Display Mode
|
TN, Normally White, Transmissive
|
|
Best View on
|
6 o’clock
|
Response Time
|
12/4 (Typ.)(Tr/Td)
|
|
Display Colors
|
262K
|
Lamp Type
|
1 pcs CCFL , 10K hours , With Driver
|
|
Frequency
|
60 Hz
|
Touch Screen
|
Without
|
|
Shape Style
|
Wedge (PCBA Bent, Depth ≥5.2mm)
|

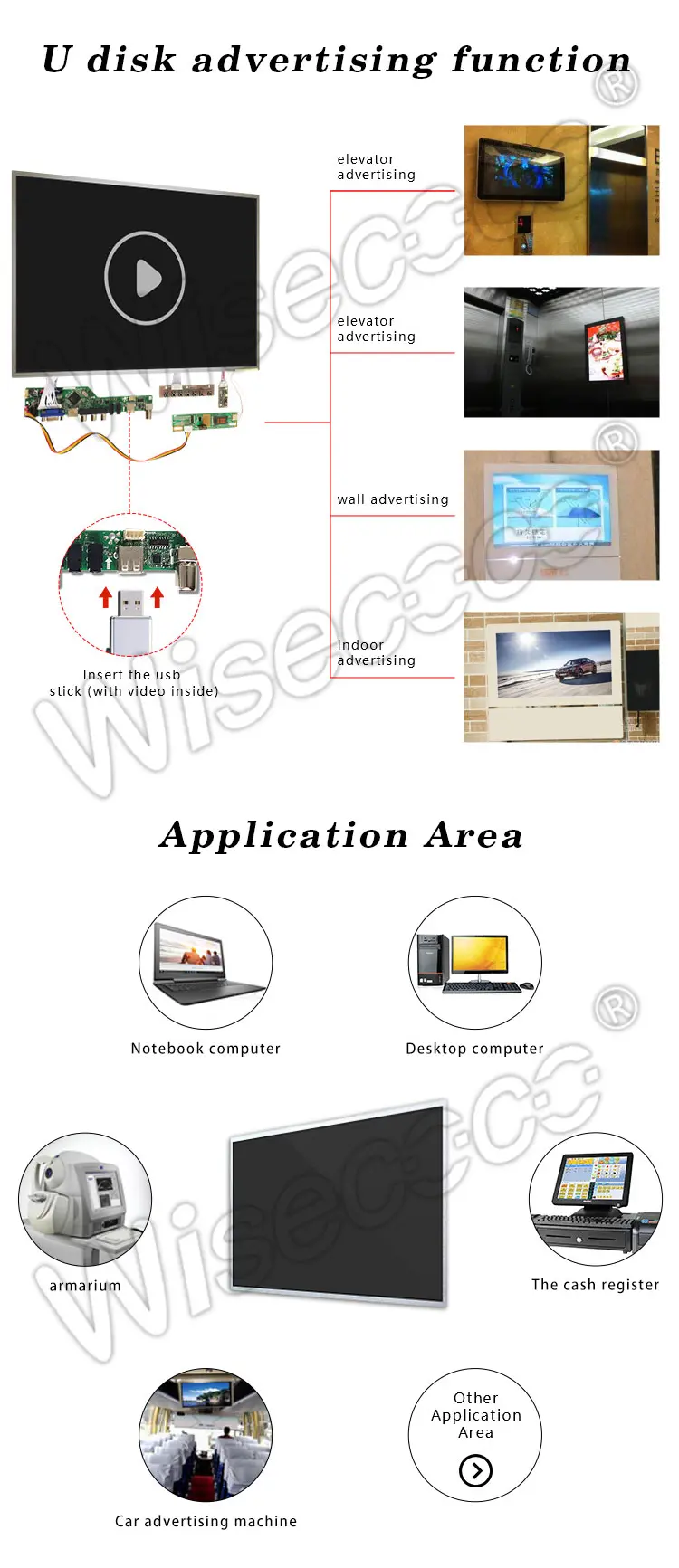

Application
|
Elevator Advertising, Wall Ads, Indoor/Outdoor Ads
|
|

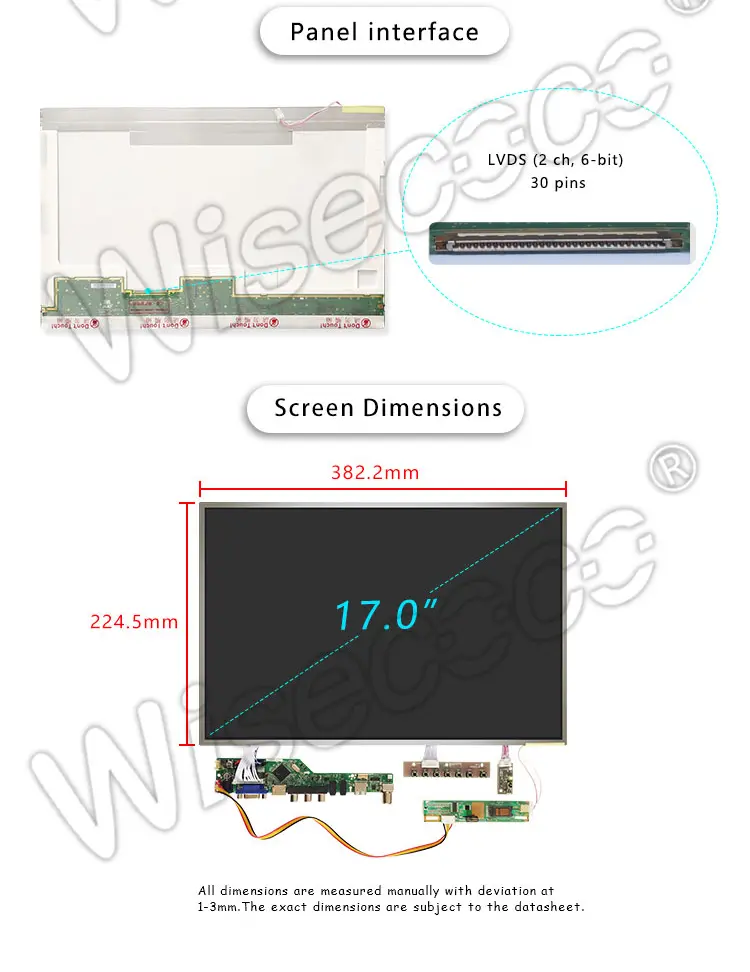

Signal Interface
|
LVDS (2 ch, 6-bit) , 30 pins , Connector
|
||
|
Input Voltage
|
3.3V(Typ.)
|
||
|
Environment
|
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
|
||
Features:
- 1440×900 WXGA+ Resolution — Provides a 16:10 display format for advertising content, images, and text.
- 17-Inch Display Area — Offers a spacious viewing area for elevator advertising and wall-mounted digital signage.
- 60Hz Refresh Rate — Supports standard playback of advertising graphics and visual content.
- TN Display Technology — Uses a normally white, transmissive display mode for the specified applications.
- LVDS Interface — Features a 30-pin, 2-channel, 6-bit LVDS connection for system integration.
Ideal for: Elevator Advertising · Wall-Mounted Ads · Indoor Digital Signage · Outdoor Advertising Systems
Wisecoco offers One-step customized LCD display solutions.
