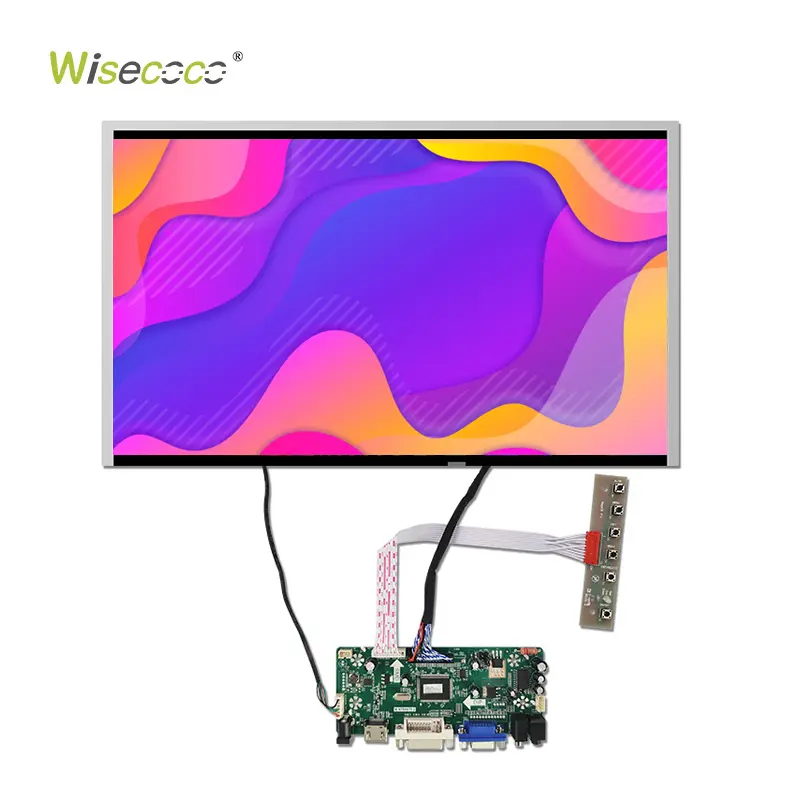

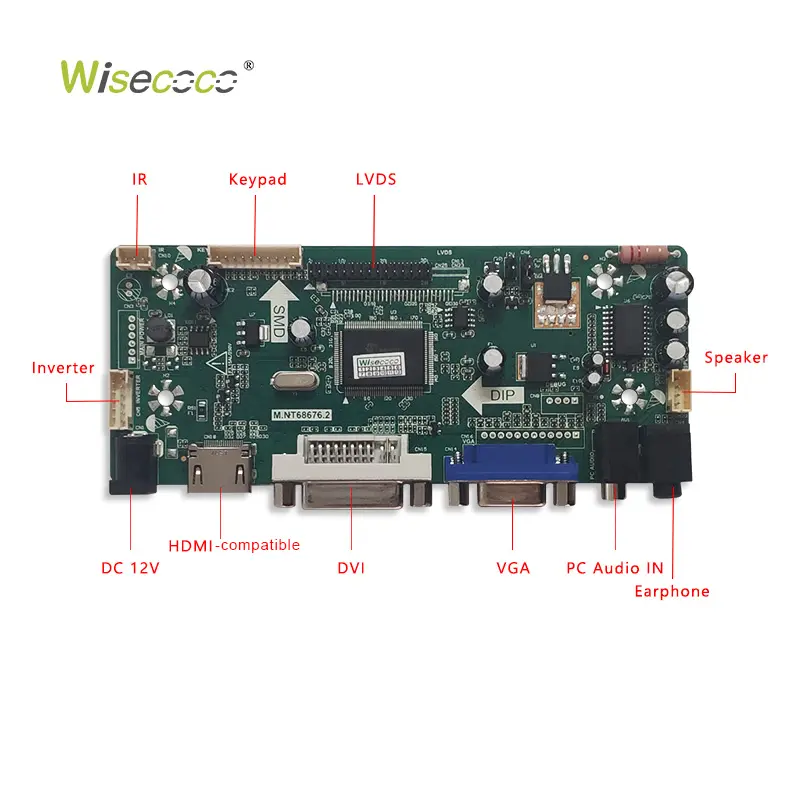

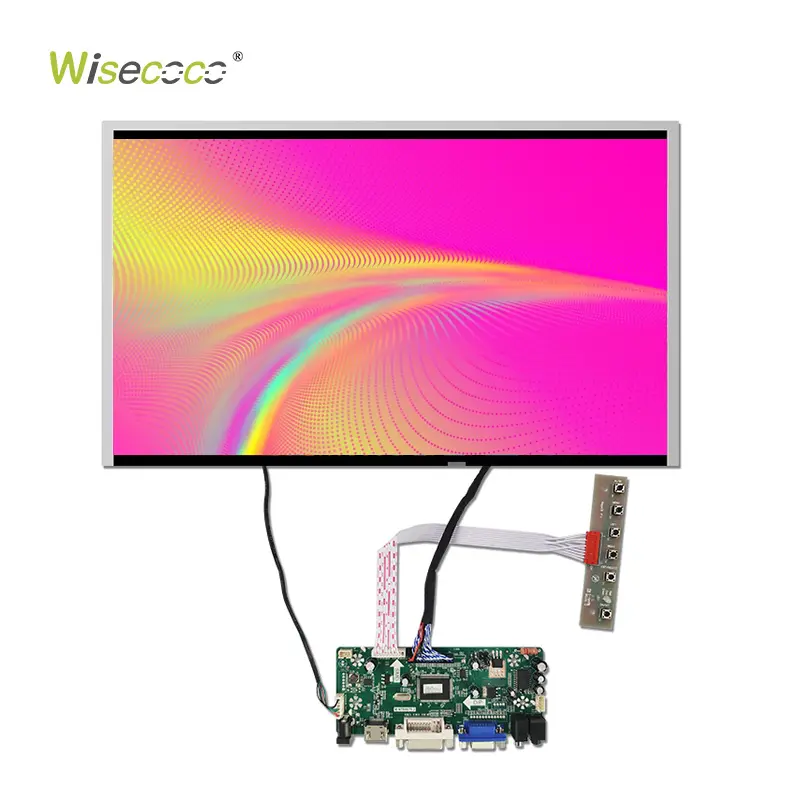

17.3 Inch 1920×1080 FHD Tft LCD Display 30 Pin Lvds LED Backlight Panel Module with Vga Controller Board

$175.00

  • Size:17.3 inch
  • Resolution:1920×1080
  • Panel Interface: LVDS
  • Active Area: 381.888(W)×214.812(H) mm
  • Outline Dimension:403(W)×240(H) ×13(D) mm
  • Viewing Angle:80/80/60/80 (Typ.)(CR≥10)
  • Brightness:400 cd/m2
  • Operation / Storage Temp:0~70°C / -30~70°C

>Request a Quote

17.3″ TFT-LCD Display — 1920×1080 FHD | 400 cd/m² |  LVDS

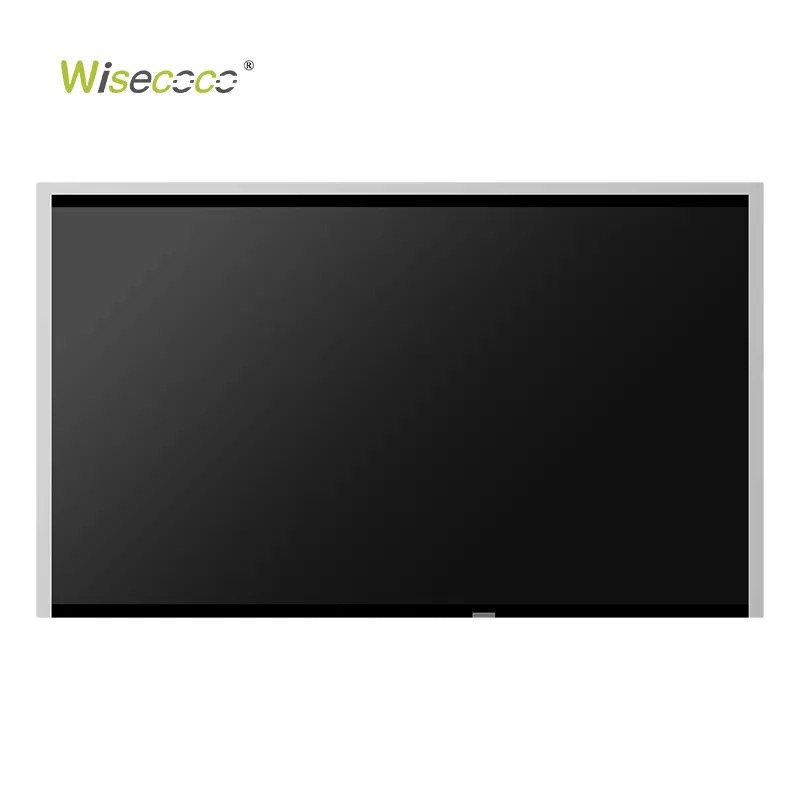

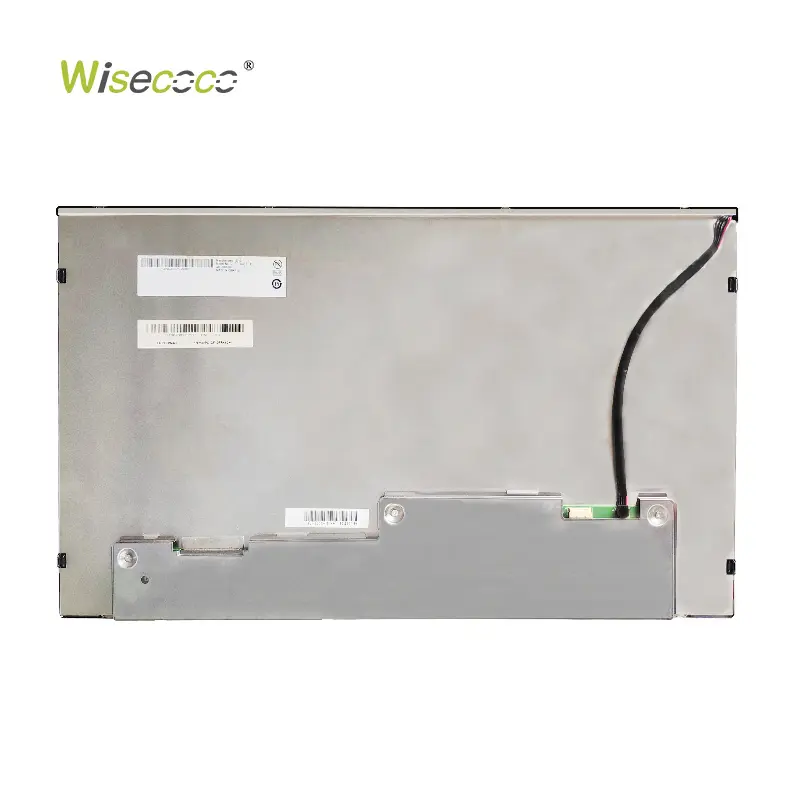

17.3-inch a-Si TFT-LCD display features 1920×1080 Full HD resolution for detailed visual output in industrial applications. With 400 cd/m² typical brightness, a 60Hz refresh rate, and a 2-channel, 8-bit LVDS interface, it provides a practical display solution for industrial equipment and embedded systems. Its 3H hard-coated surface and specified operating temperature range of 0 to 70°C support integration into a range of industrial product designs.

Diagonal Size
17.3 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
1920(RGB)×1080 , FHD
Configuration
RGB Vertical Stripe
Active Area
381.888(W)×214.812(H) mm
Outline Dim.
403(W)×240(H) ×13(D) mm
Bezel Opening
385.09(W)×218.01(H) mm
Treatment
Glare (Haze 0%), Hard coating (3H)
Luminance
400 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (TM)
Power Supply
3.3V (Typ.)
Response Time
37/3 (Typ.)(Tr/Td)
Viewing Angle
80/80/60/80 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Support Color
16.7M 72% (CIE1931)
Light Source
WLED , 50K hours , With LED Driver
Weight
1.08Kgs (Typ.)
Designed For
Industrial
Frame Rate
60Hz
Touch Panel
optional
Interface Type
LVDS (2 ch, 8-bit) , 30 pins , Connector
Environment
Operating Temp.: 0 ~ 70 °C ; Storage Temp.: -30 ~ 75 °C

Features:

  • 1920×1080 Full HD Resolution — Delivers detailed images and clear graphical content for industrial interfaces and equipment displays.
  • 400 cd/m² Typical Brightness — Provides clear visual output for industrial operating environments.
  • 600:1 Contrast Ratio — Supports differentiation between dark and bright image elements.
  • 80/80/60/80 Viewing Angle — Provides the specified viewing performance for display integration and device layout planning.
  • 3H Hard-Coated Surface — Adds a hard coating to the display surface for compatible industrial applications.

Ideal for: Industrial Equipment · Industrial HMI · Embedded Systems · Control Panels · Industrial Monitors

Wisecoco offers One-step customized LCD display solutions.

17.3 Inch 1920*1080 30 Pin Lvds Asi Tft LCD Display17.3 Inch FDD 1920*1080 30 Pin LVDS TFT LCD Display17.3 Inch FDD 1920*1080 TFT LCD Display17.3 Inch FDD 1920*1080 TFT LCD Display
