- Size:15.6 inch
- Resolution:1920×1080
- Panel Interface:eDP (2 Lanes)
- Active Area:344.16*193.59 (H*V)mm
- Outline Dimension:359.5*223.8*3.2 (H*V*D)mm
- Viewing Angle :85/85/85/85 (Typ.)(CR≥10)
- Brightness :250 cd/m² (Typ.)
- Operation / Storage Temp:0~50°C / -20~60°C

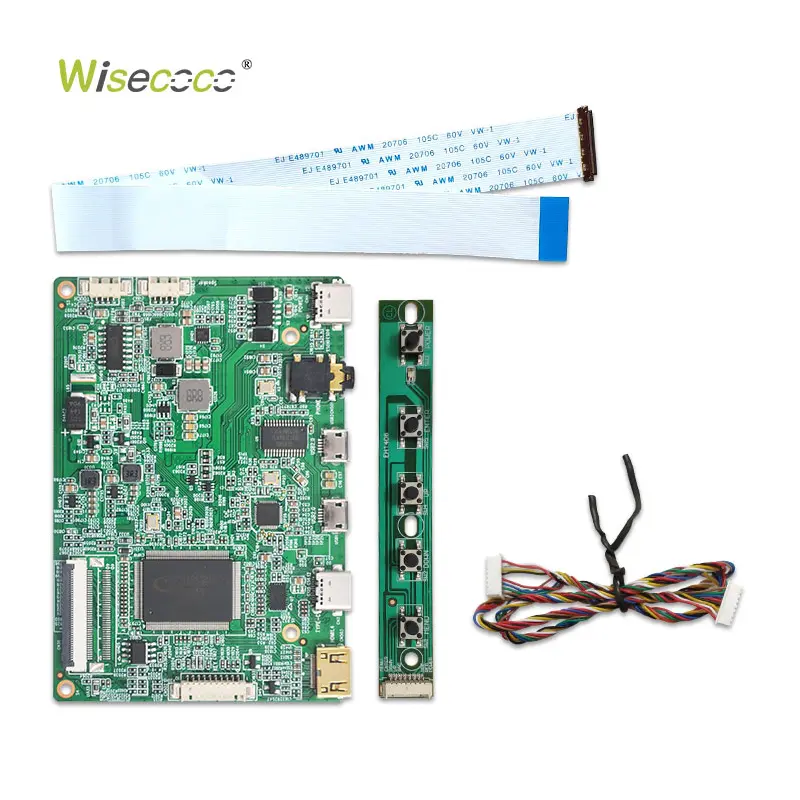

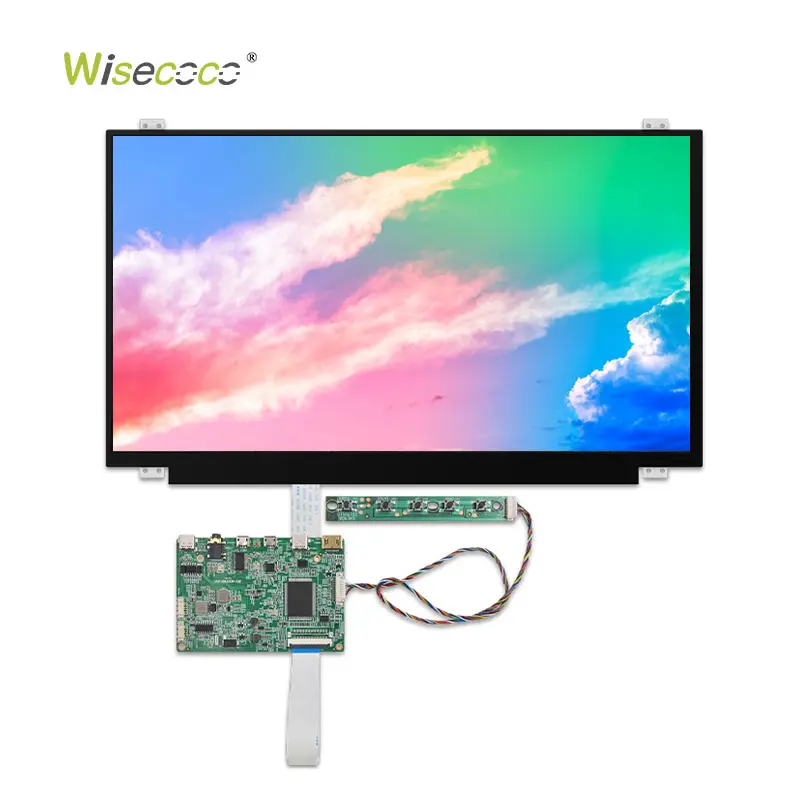

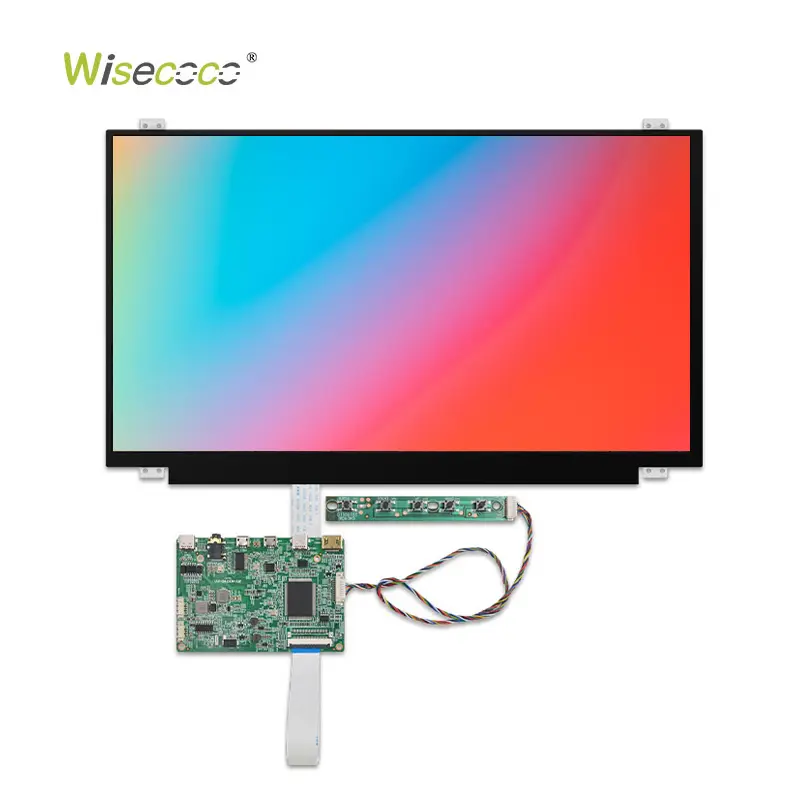

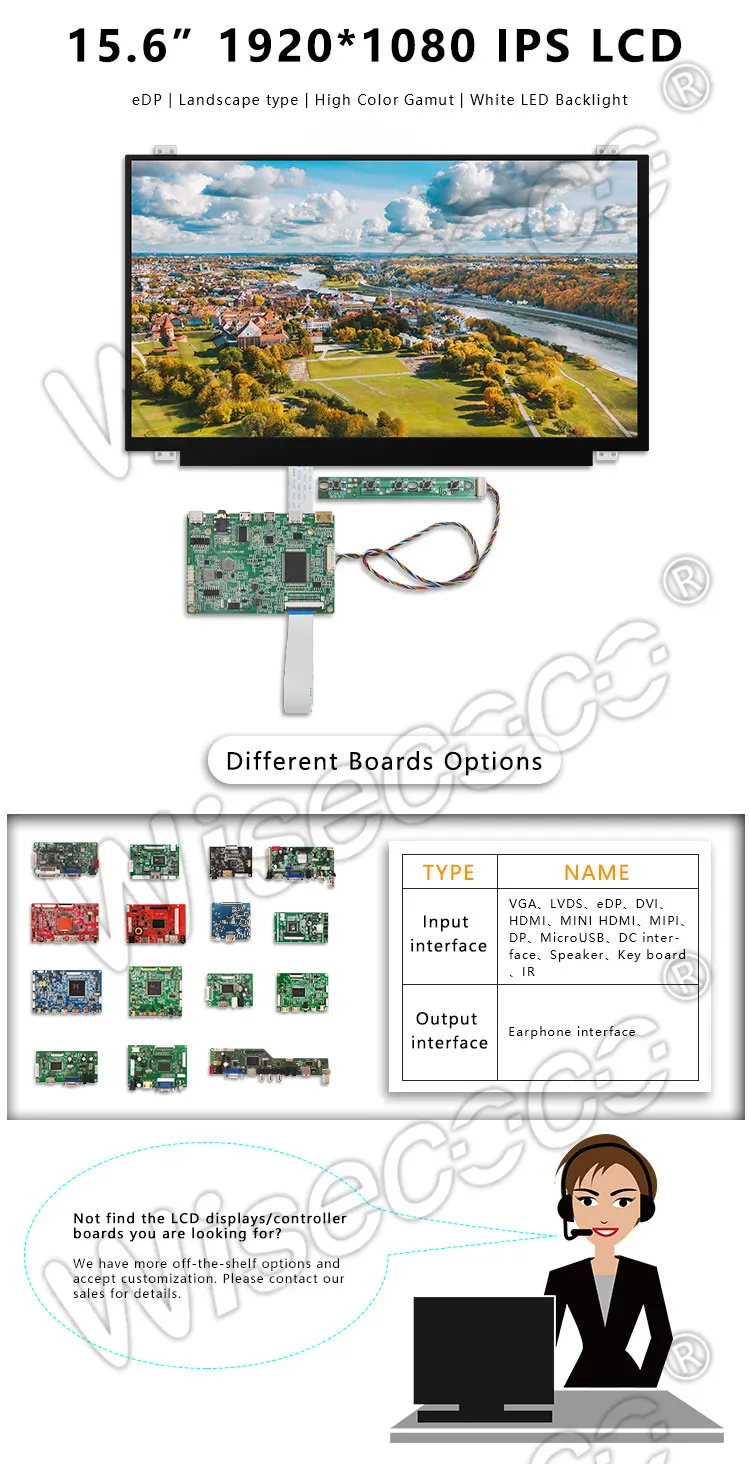

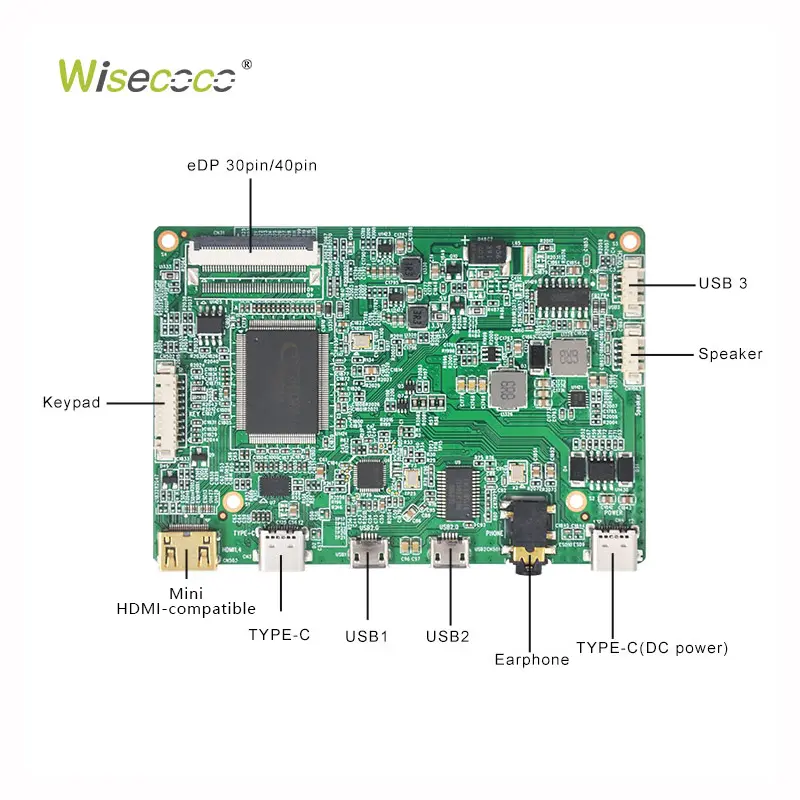

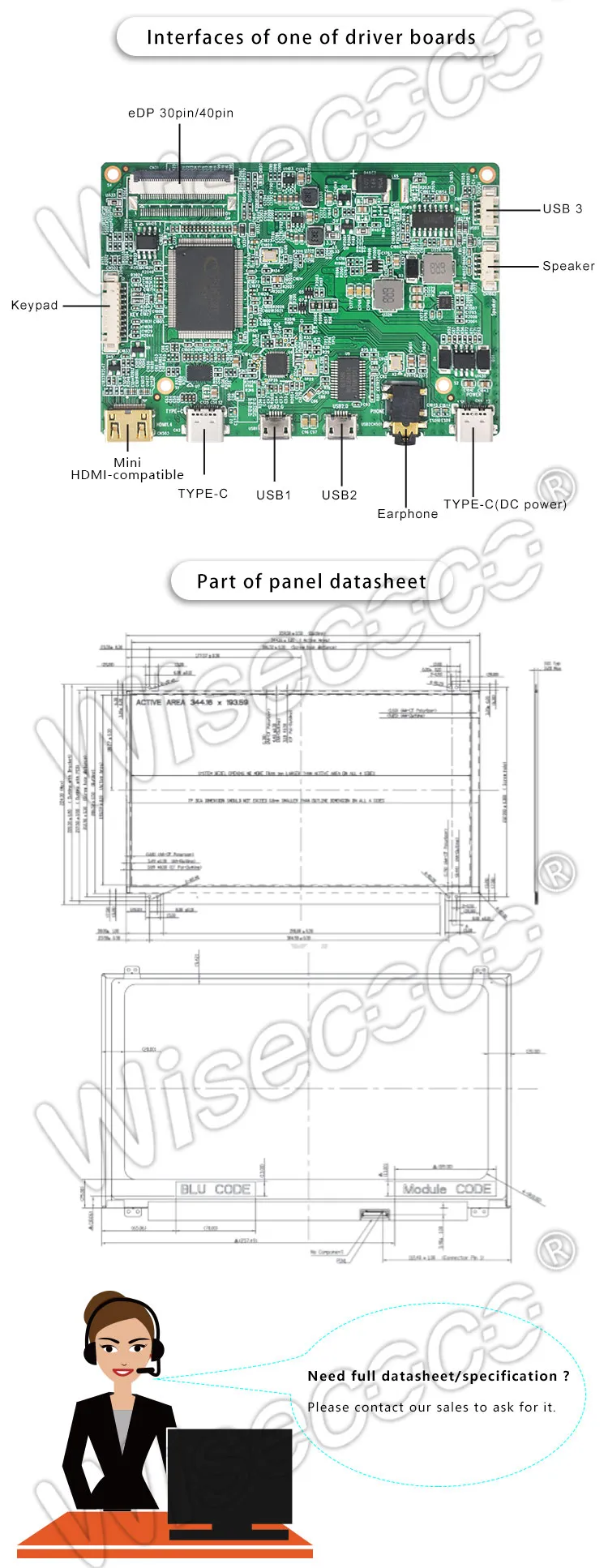

15.6 Inch 1920×1080 FHD IPS TFT LCD Display 30 Pins EDP LCD Panel Module with Controller Board
$99.00
15.6″ IPS LCD Display — 1920×1080 FHD | eDP | Antiglare + Hard Coating (3H)
15.6-inch slim a-Si TFT-LCD display delivering sharp 1920(RGB)×1080 FHD resolution with symmetrical wide viewing angle (85/85/85/85) and antiglare hard coating (3H) surface treatment. Featuring 250cd/m² luminance, an eDP 2-lane 30-pin interface, and a 15,000-hour WLED backlight with integrated LED driver, this laptop-grade panel is built for laptop, industrial panel, and advertising applications.
|
General Features |
|||
|
Diagonal Size |
15.6 inch |
Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
1920(RGB)×1080 [FHD] |
Configuration |
RGB Vertical Stripe |
|
Active Area |
344.16(H)×193.59(V) mm |
Outline Dim. |
359.5(H)×223.8(V) ×3.2(D) mm |
|
Bezel Area |
– |
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
250 cd/m² (Typ.) |
Contrast Ratio |
800:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
Response Time |
30 (Typ.)(Tr+Td) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
Operating Mode |
ADS, Normally Black, Transmissive |
|
Support Color |
262K 45% NTSC |
Light Source |
WLED [10S4P] , 15K hours , With LED Driver |
|
Form Style |
Slim (PCBA Flat, T≤3.2mm) |
Designed For |
Laptop&Industrial panel&advertising |
|
Frame Rate |
60Hz |
Touch Panel |
Optional |
|

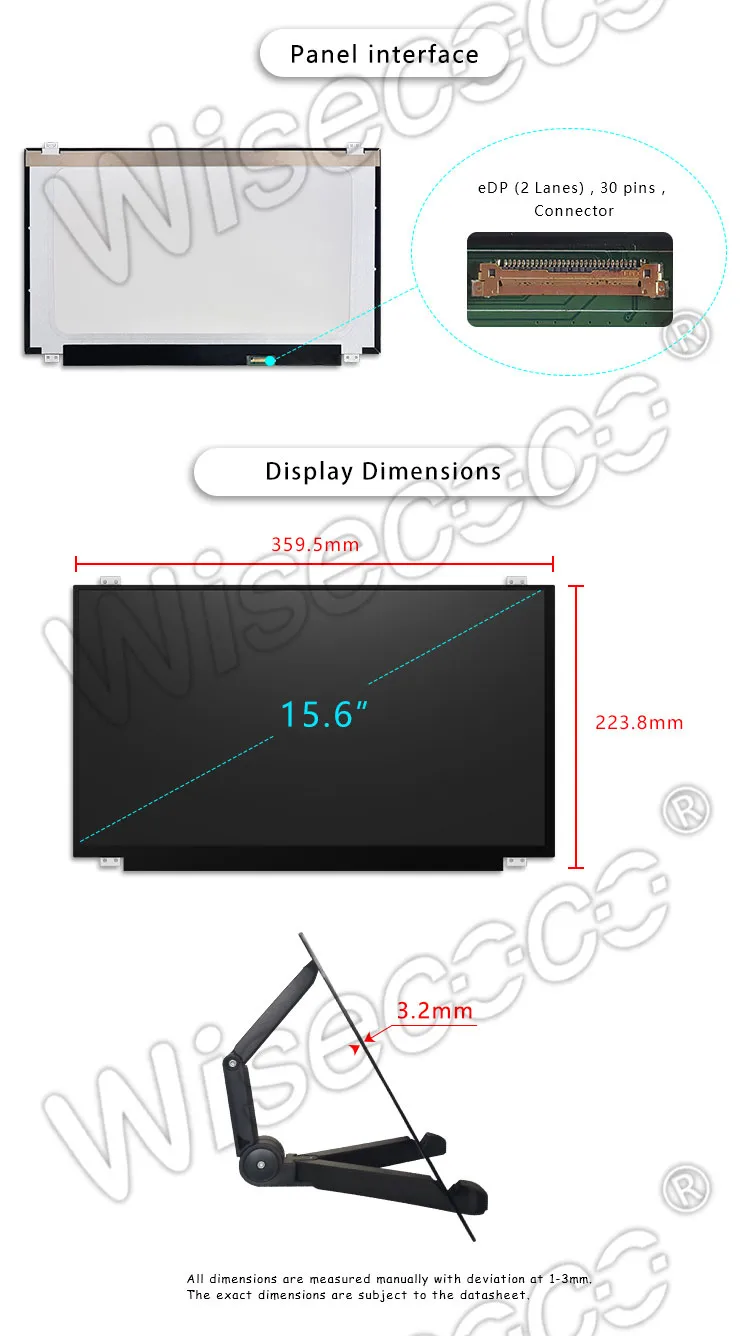

Interface Type |
30 pins eDP (2 Lanes) , Connector |
||
|
Power Supply |
3.3V (Typ.) |
||
|
Environment |
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
||
Features:
- 1920×1080 FHD Resolution — Sharp, high-definition IPS imagery suited for laptop, industrial, and advertising display use.
- IPS Wide Viewing Angle (85/85/85/85) — Consistent color and brightness maintained from virtually any angle, avoiding shift and contrast loss.
- Antiglare + Hard Coating (3H) Surface — Reduced glare combined with scratch-resistant treatment for enhanced durability.
- 800:1 Contrast Ratio — Reliable dynamic range for clear, well-defined imagery.
- 262K Colors, 45% NTSC — Accurate color reproduction suited for standard computing and signage applications.
- 250cd/m² Luminance — Consistent brightness across varied ambient lighting conditions.
Ideal for: Laptop & notebook displays · Industrial control panels · Advertising & digital signage · Replacement laptop screens · Custom embedded computing projects
Wisecoco offers One-step customized display module solutions.
