- Size:6.2 inch
- Resolution:800×480
- Panel Interface:TTL(1ch, 6/8 bit)
- Active Area:137.52(H)*77.2322(V) mm
- Outline Dimension:155.2(H)*88.2(V)*5.3(D) mm
- Viewing Angle:75/75/70/70 (Typ.)(CR≥10)
- Brightness:400 cd/m² (Typ.)
- Operation / Storage Temp:-20~70°C / -30~80°C
6.2 Inch TFT-LCM Modules 800*480 Pixel Brightness 400nits FPC TTL Interface LCD Display
$75.00
6.2 Inch LCD Display — 800×480 | FPC | 400 Nits | 3G Vibration Resistance

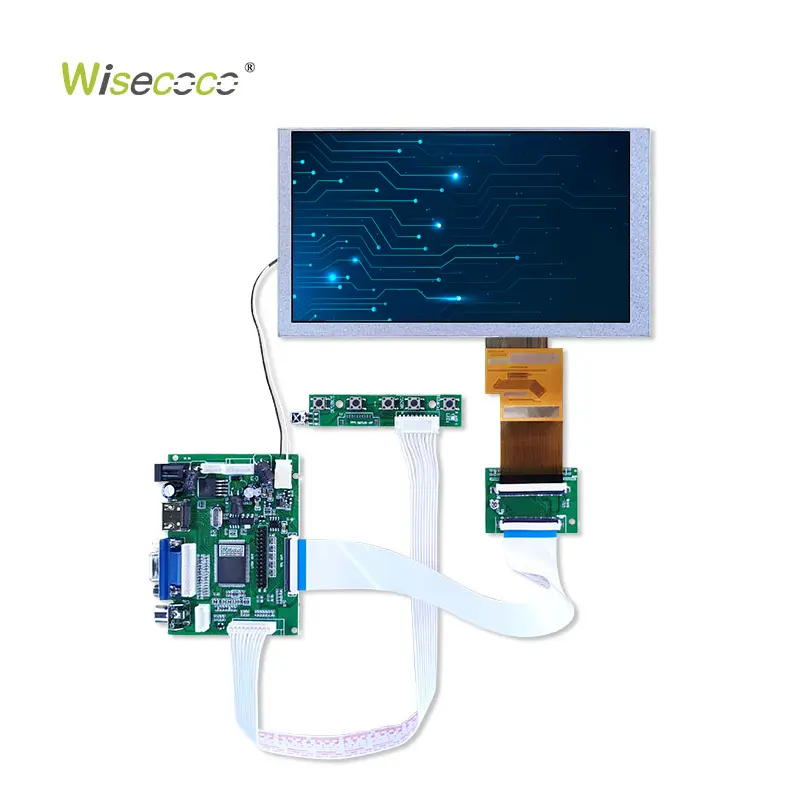

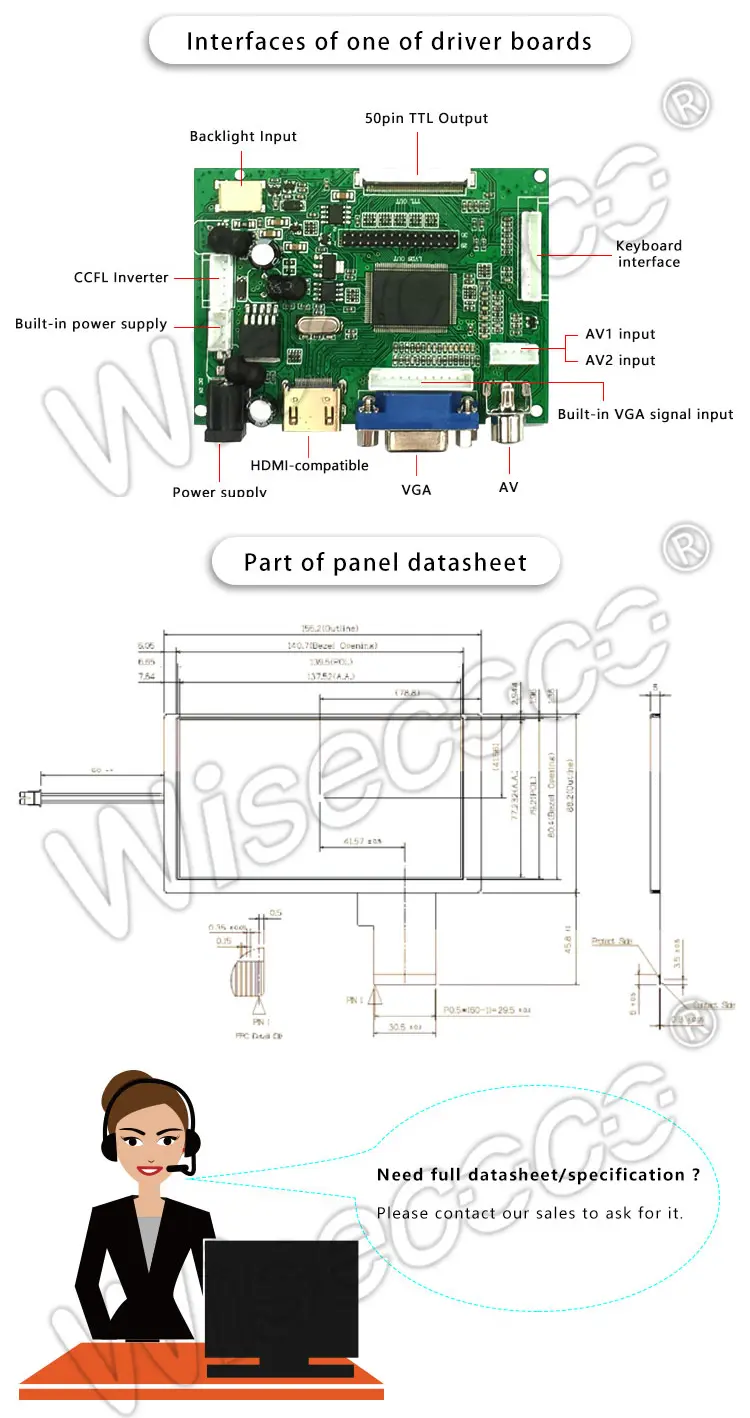

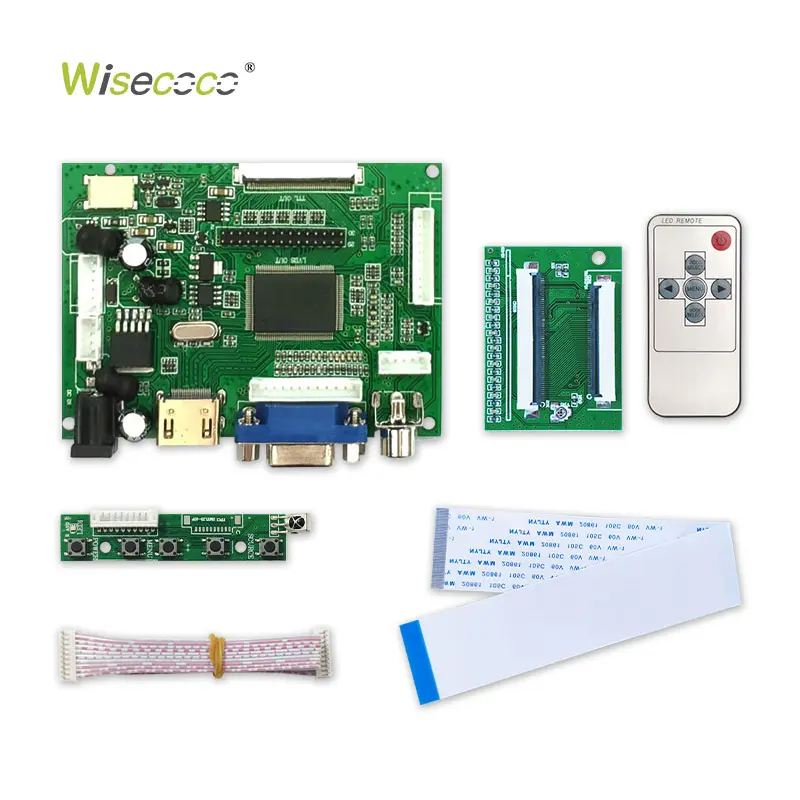

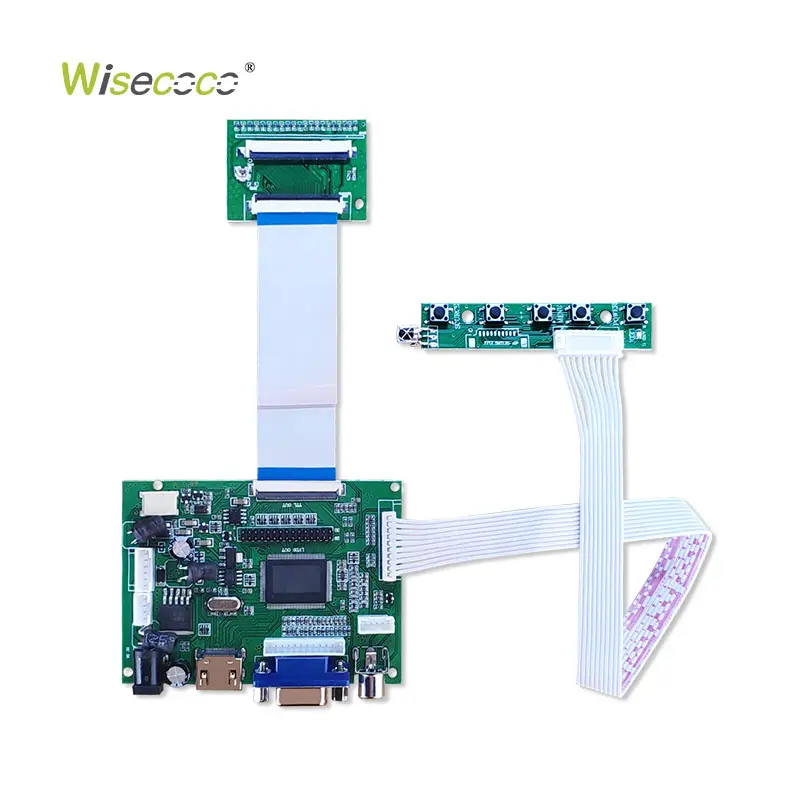

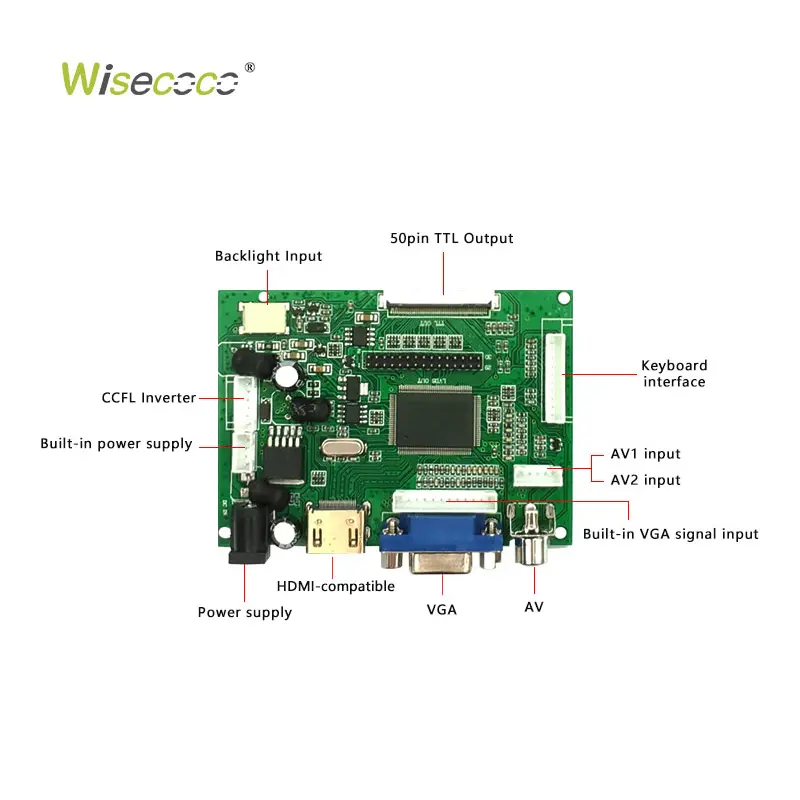

6.2-inch LCD display delivering 800×480 resolution with antiglare surface treatment and reliable 3G vibration resistance for demanding mobile environments. Featuring 400cd/m² high luminance, 60Hz refresh rate, and 16.2M color support at 50% CIE gamut, this display comes with multiple driver board options for flexible integration.
|
Diagonal Size
|
6.2 inch
|
Type
|
a-Si TFT-LCD, LCM
|
|
Pixel Format
|
800(RGB)*480 [WUXGA]
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
137.52(H)*77.2322(V) mm
|
Outline Dim.
|

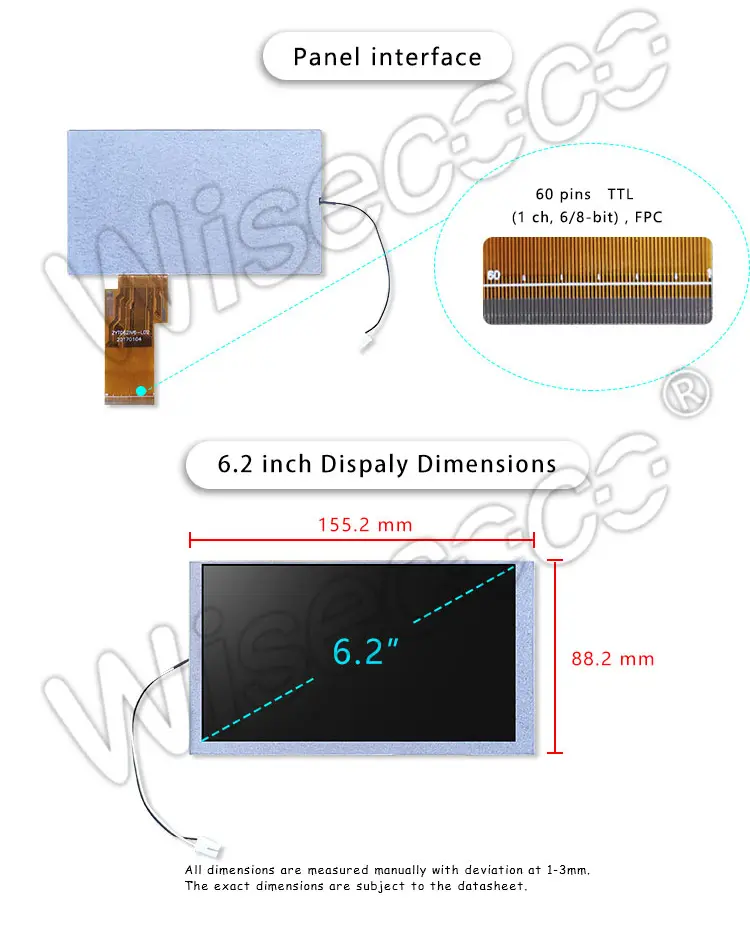

155.2(H)*88.2(V)*5.3(D) mm
|
|
Bezel Area
|
140.7(H)*80.4 (V)mm
|
Treatment
|
Antiglare, Hard coating (3H)
|
|
Luminance
|
400 cd/m² (Typ.)
|
Contrast Ratio
|
600:1 (Typ.) (TM)
|
|
View Direction
|
6 o’clock
|
Response Time
|
2/6 (typ..)(Tr+Td)
|
|
Viewing Angle
|
75/75/70/70 (Typ.)(CR≥10)
|
Operating Mode
|
TN, Normally White, Transmissive
|
|
Support Color
|
262K/ 16.2M 50% (CIE1931)
|
Light Source
|
3S7P WLED , 20K hours, Without Driver
|
|
Weight
|
120g (Typ.)
|
Designed For
|
Automotive Displays, Industrial Equipments
|
|
Frame Rate
|
60Hz
|
Touch screen
|
Without
|
|
Interface Type
|

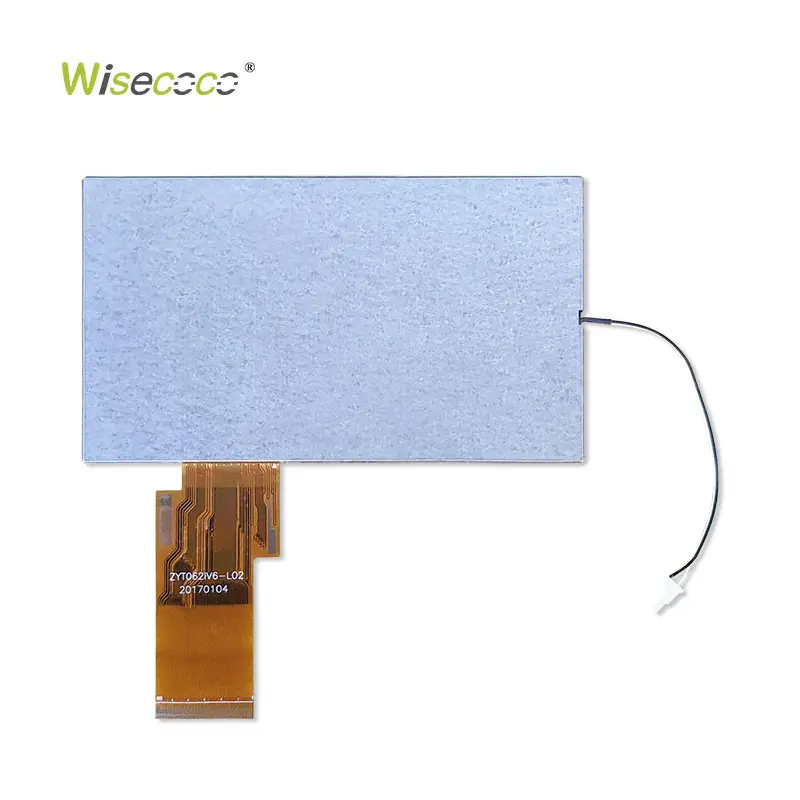

60 pins TTL(1ch, 6/8 bit) , FPC
|
||
|
Power Supply
|
3.3/10.0/15.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
|
||
|
Environment
|
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²)
|
||
Features:
- 800×480 Resolution with Antiglare Surface — Clear, glare-reduced imagery suited for icons, text, and graphical interfaces in varied lighting.
- 3G Vibration Resistance — Rugged FPC construction withstands mechanical stress, ideal for mobile and in-motion applications.
- 400cd/m² High Luminance — Bright, clear display readable across varied ambient lighting conditions.
- 16.2M Colors, 50% CIE Gamut — Rich color reproduction for vivid, accurate visuals.
- 60Hz Refresh Rate — Smooth, fluid visuals with seamless transitions for a responsive viewing experience.
Ideal for: Vehicle-mounted displays · Industrial control panels · Portable instrument screens · Raspberry Pi & DIY builds · Custom embedded display integration
Wisecoco offers One-step customized LCD display solutions.
