- Size:6.2 inch
- Resolution:1280×720
- Panel Interface:MIPI DSI 4-lane
- Active Area:137.088(W) x 71.112(H)mm
- Outline Dimension:149.35(W) x 85.75(H) x 3.0(D)mm
- Viewing Angle:89/89/89/89 (Typ.)(CR 10)
- Brightness:380 cd/m² (Typ.)
- Operation / Storage Temp:-25~70°C /

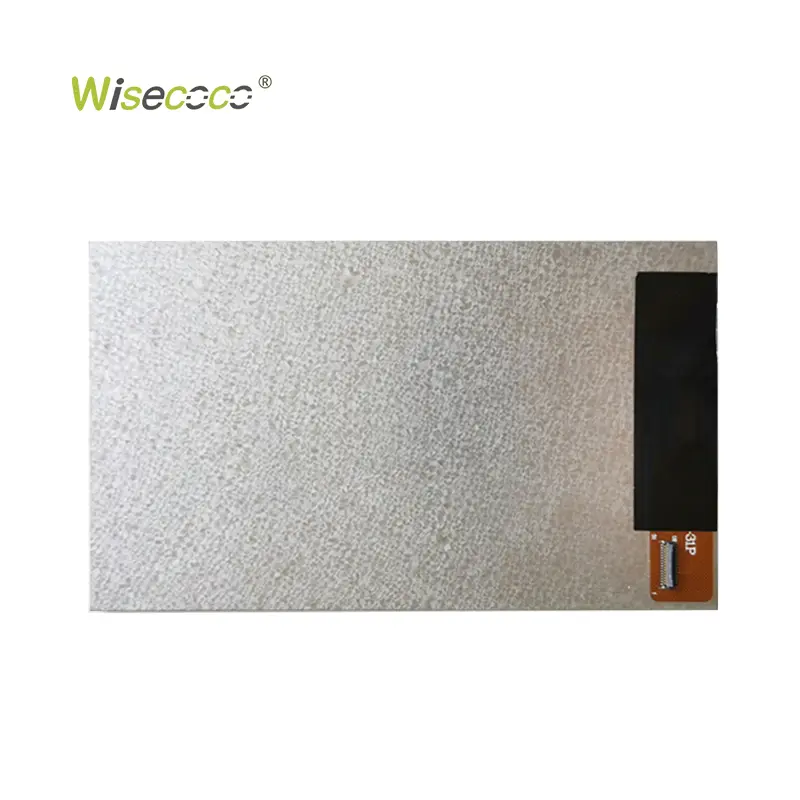

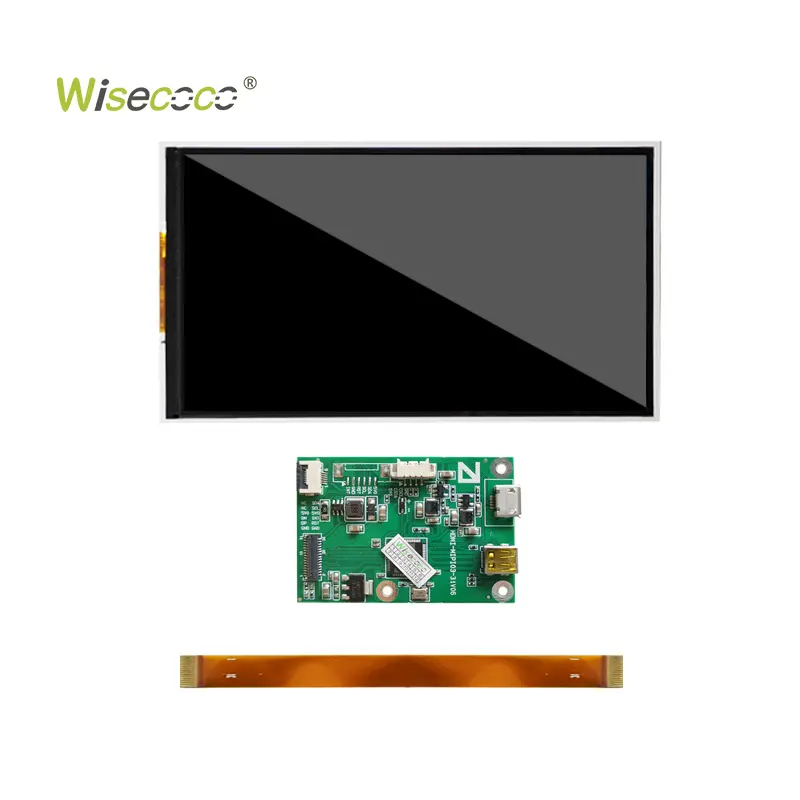

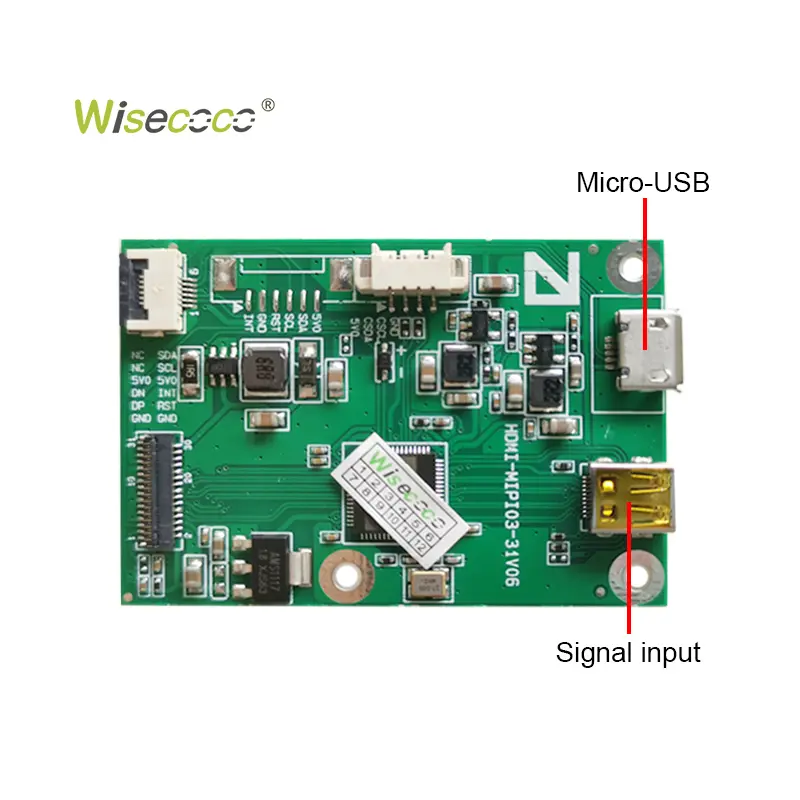

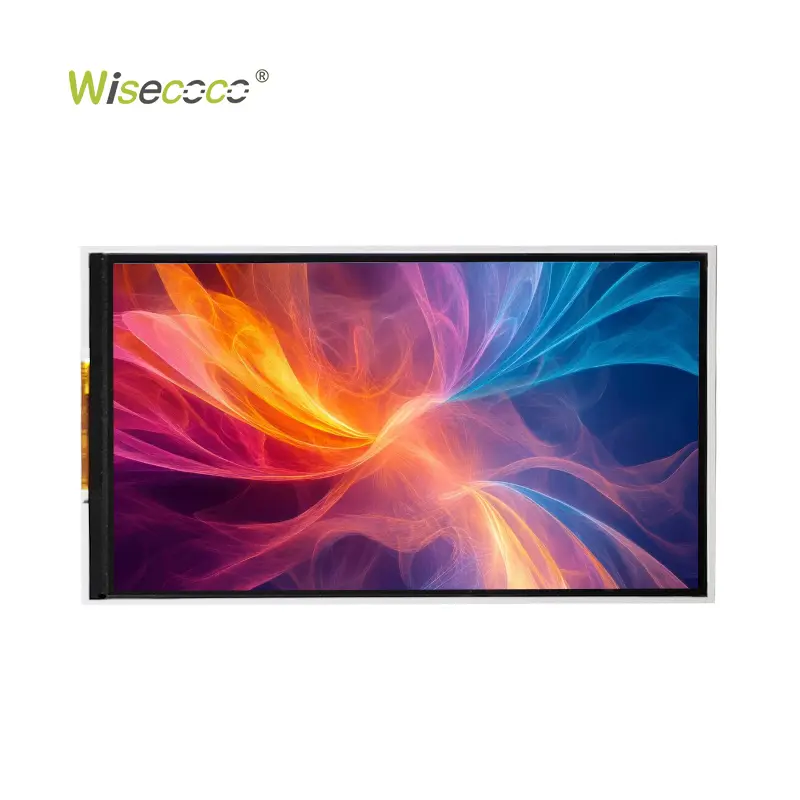

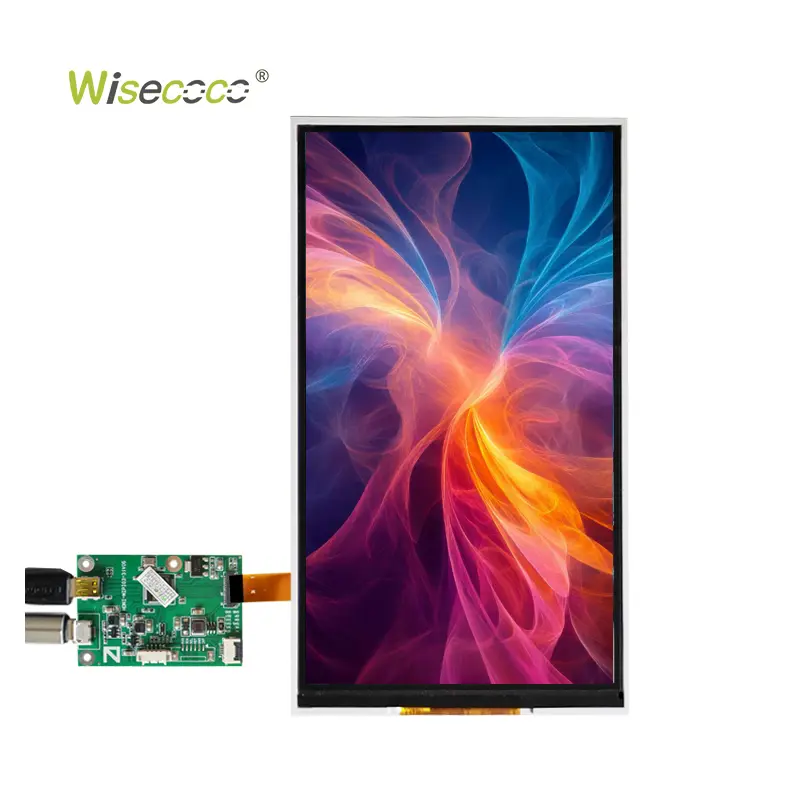

Manufacturer 6.2 Inch 1280×720 Resolution MIPI Interface TFT LCD Display Module IPS LCD Panel with Driver Board
$85.00
6.2″ TFT-LCD Display — 1280×720 HD | MIPI DSI | Portrait/Landscape | AG/3H
6.2-inch TFT-LCD display delivering sharp 1280×720 HD resolution with symmetrical wide viewing angle (89/89/89/89) and flexible portrait/landscape orientation support. Featuring 380cd/m² brightness, AG/3H scratch-resistant surface treatment, and MIPI DSI interface, this display is purpose-built for smart home, POS, and kiosk applications.
|
Screen Size
|
6.2 inch
|
Screen Type
|
TFT-LCD
|
|
Resolution
|
1280*720
|
Brightness
|
380 cd/m²
|
|
Contract Ratio
|
1000:1
|
Best View on
|
Symmetry
|
|

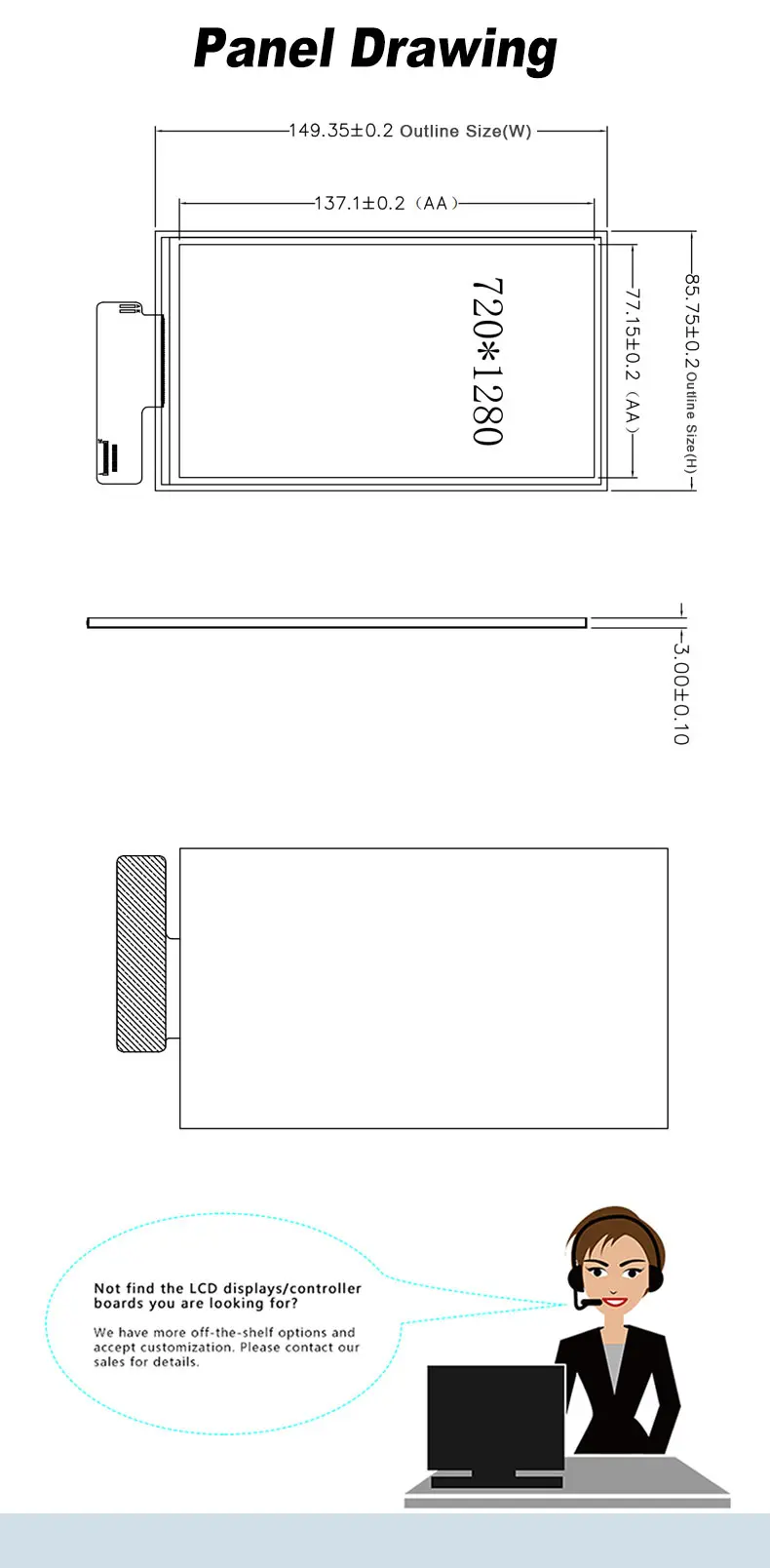

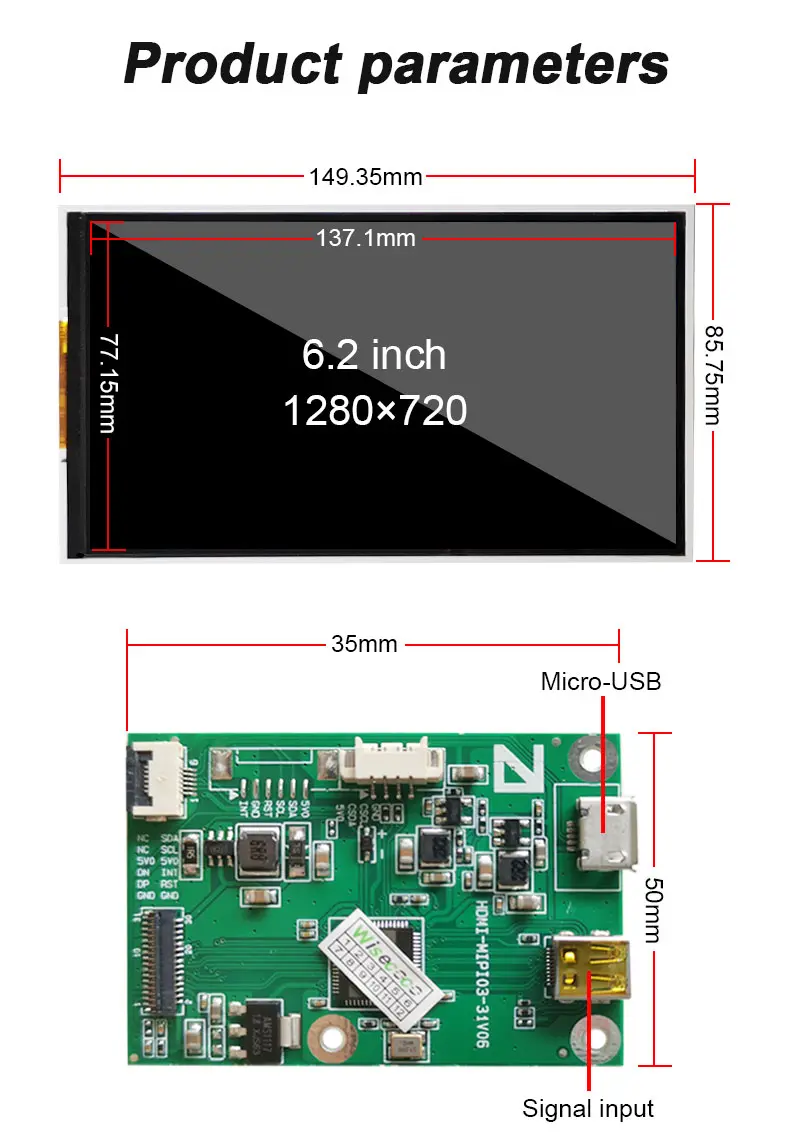

Display Outline Size(mm)
|
149.35(W) x 85.75(H) x 3.0(D)
|
Display Area(mm)
|
137.088(W) x 71.112(H)
|
|
Frame
|
50~60 Hz
|
Support Color
|
16.7M 8bit
|
|
Configuration
|
RGB Vertical Stripe
|
Display Mode
|

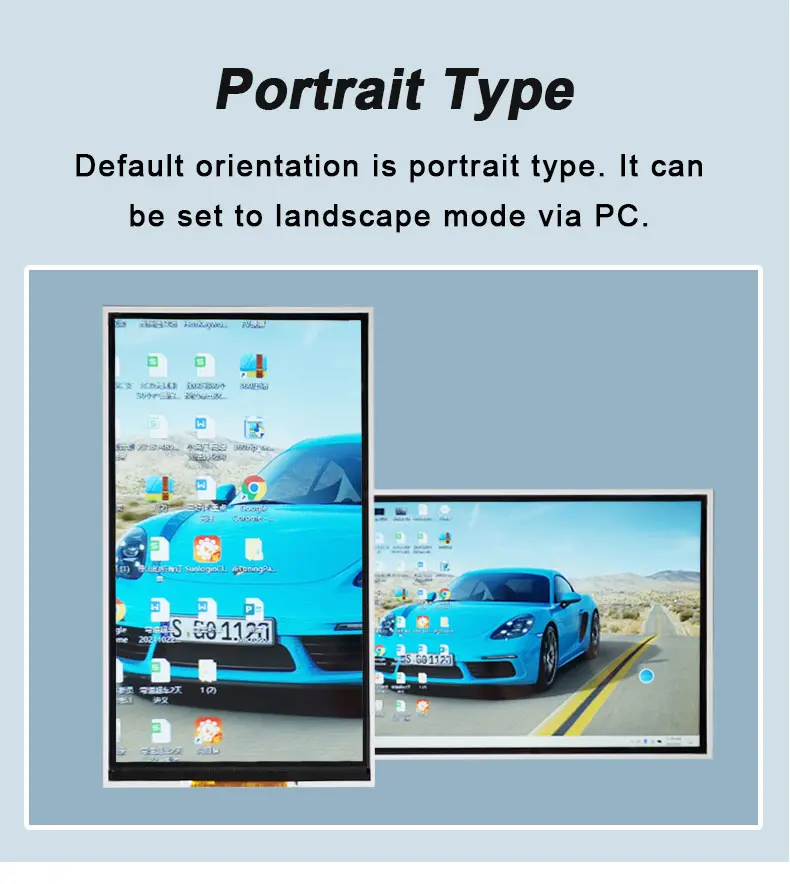

Portrait / Landscape
|
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR 10)
|
Panel Surface Treatment
|
AG/3H
|
|
Interface Type
|
MIPI DSI 4-lane
|
Voltage Supply
|
5V 2A
|
|
Operating Temperature
|
-25 ~ 70 °C
|
Designed For
|
House Application,Smart Home, POS & kiosk terminals
|
Features:
- 1280×720 HD Resolution — Sharp TFT-LCD panel delivers crisp detail for icons, text, and graphical interfaces.
- Wide Viewing Angle (89/89/89/89, CR 10) — Consistent color and brightness maintained from virtually any angle.
- 1000:1 Contrast Ratio — Balanced dynamic range for clear, well-defined imagery.
- 16.7M Colors, 8-Bit Color Depth — Rich, accurate color reproduction for vivid, true-to-life visuals.
- 380cd/m² Brightness — Bright, clear display readable across varied ambient lighting conditions.
- AG/3H Surface Treatment — Anti-glare, scratch-resistant coating for extended durability in public-facing use.
Ideal for: Smart home control panels · POS terminals · Self-service kiosks · Building & house automation displays · Industrial & embedded HMI applications
Wisecoco offers One-step customized LCD display solutions.
