- Size:12.6 inch
- Resolution:1920×515
- Panel Interface:eDP (2 Lanes)
- Active Area:309.312(H)x82.9665(V) mm
- Outline Dimension:315.61(H)x94.02(V)x5.3(D) mm
- Viewing Angle:85/85/85/85 (Typ.)(CR≥10)
- Brightness :250 cd/m² (Typ.)
- Operation / Storage Temp:0 ~ 60 °C/ -20~ 65 °C

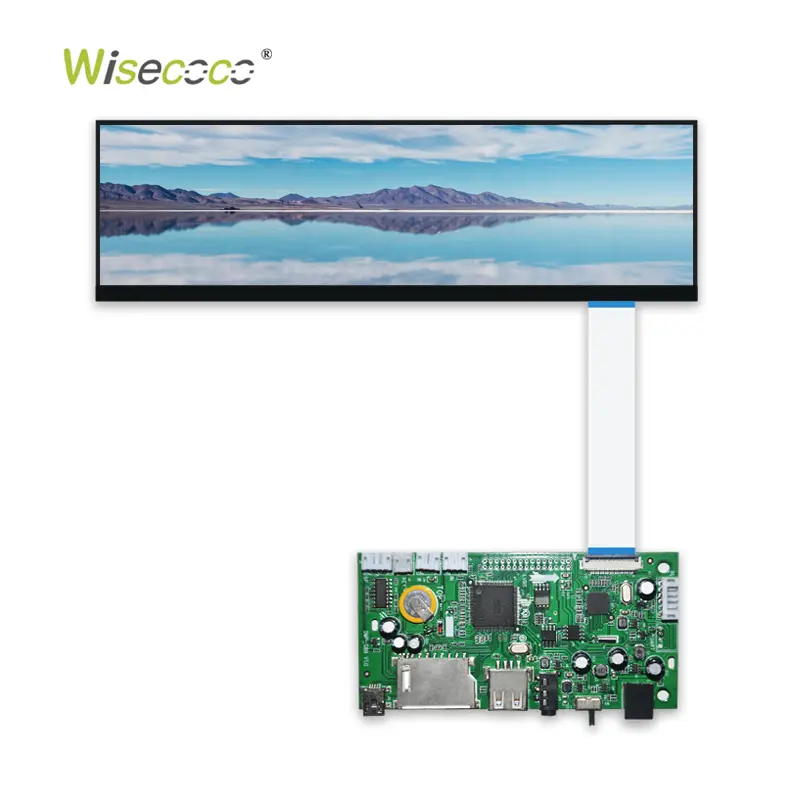

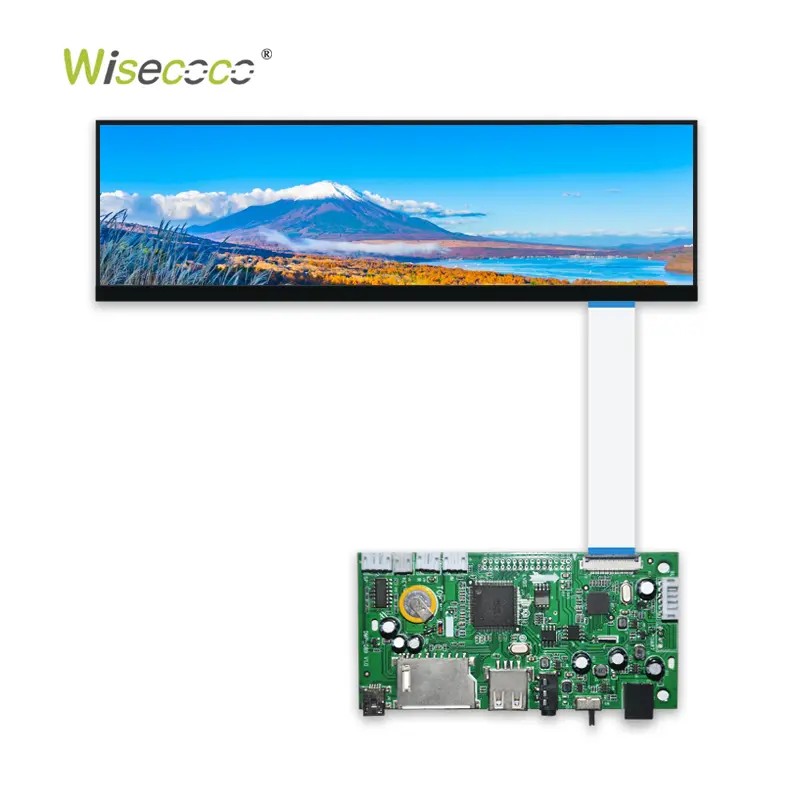

12.6 Inch FHD 1920×515 Stretched Bar LCD Display Panel EDP Interface IPS TFT LCD Screen Panel for Shelf Advertising
$140.00

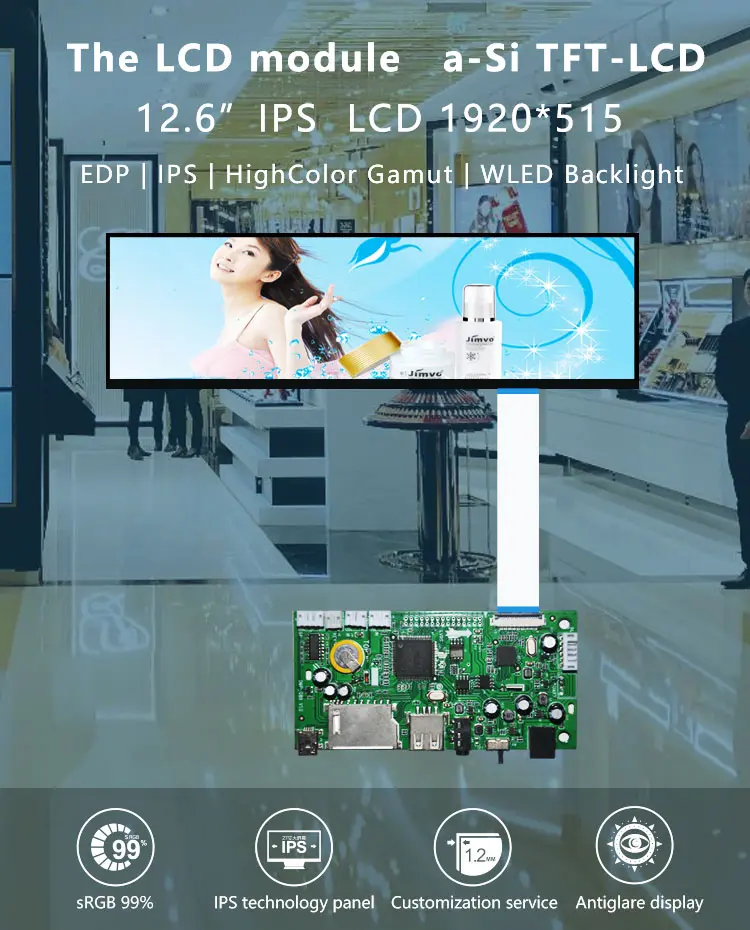

12.6″ IPS Stretched Bar LCD — 1920×515 | 99% sRGB | Antiglare | eDP
12.6-inch ultra-wide stretched bar IPS lcd panel with 99% sRGB high color gamut. Designed for premium retail digital signage, shelf-edge advertising, and narrow-bezel commercial display installations where color fidelity and ultra-thin form factor are non-negotiable.
|
Screen Size
|
12.6 inch
|
Type
|
a-Si TFT-LCD , LCM
|
|
Pixel Number
|
1920(RGB)×515 157PPI
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area(mm)
|
309.312(H)*82.9665(V) mm
|

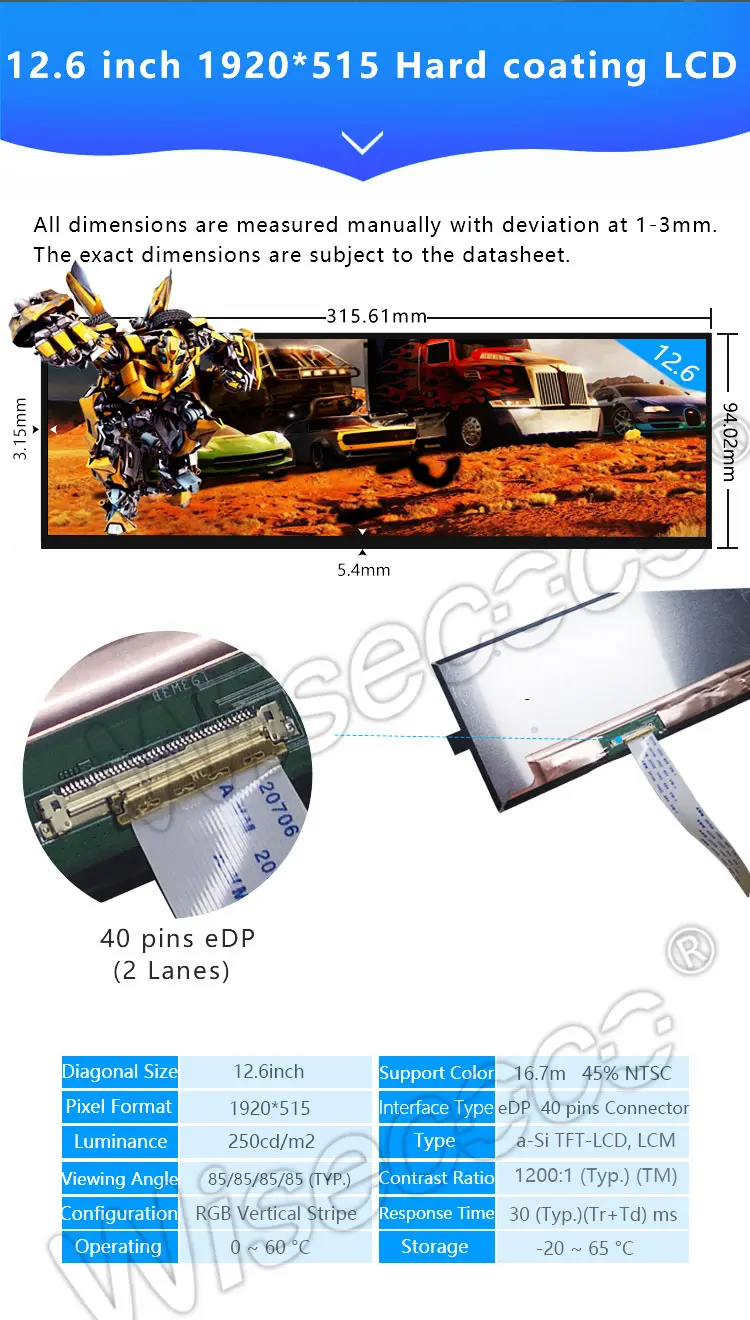

Outline(mm)
|
315.61(H)*94.02(V)*5.3(D) mm
|
|
Bezel Area(mm)
|
–
|
Treatment
|
Antiglare (Haze 40%), Hard coating
|
|
Luminance
|
250 cd/m² (Typ.)
|
Contrast Ratio
|
1200:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
30 (Typ.)(Tr+Td)
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR≥10)
|
Operating Mode
|
ADS, Normally Black, Transmissive
|
|
Support Color
|
16.7M 45% NTSC
|
Light Source
|
WLED [8S6P] , 15K hours , With LED Driver
|
|
Form Style
|
–
|
Used for
|
Advertising display, extended display, extended monitor
|
|
Refresh Rate
|
60Hz
|
Touchscreen
|
Optional capacitive touchscreen
|
|
Voltage Supply
|
3.3V (Typ.)
|
Signal Type
|

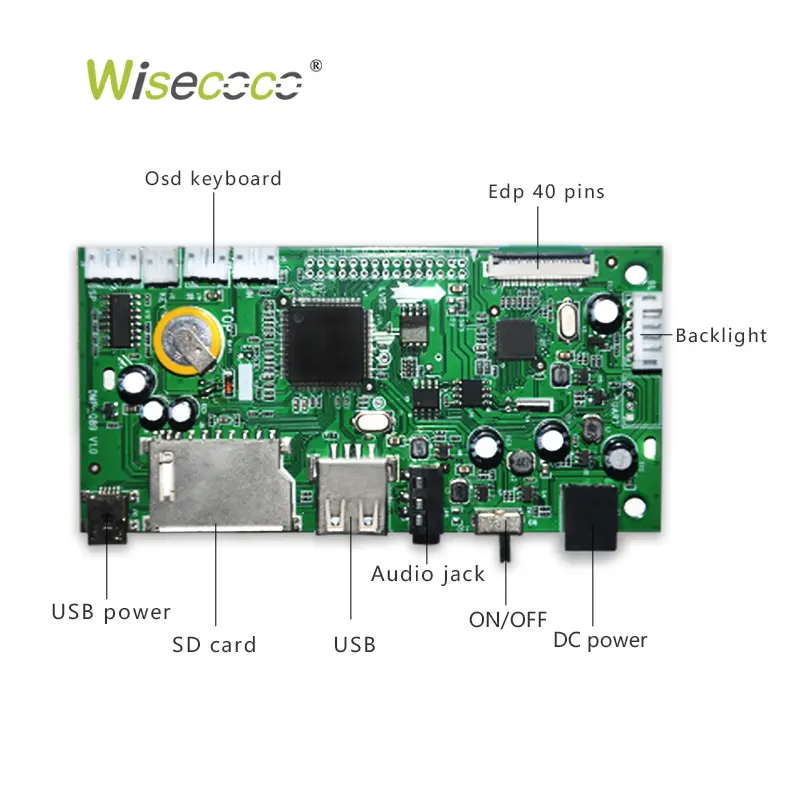

eDP (2 Lanes) , 40 pins Connector
|
|
Environment
|
Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 65 °C
|
||
Features:
- 99% sRGB High Color Gamut — Near-complete sRGB coverage delivers strikingly accurate, vibrant color reproduction for advertising imagery, product photography, and brand-critical visual content — far exceeding the 72–74% of standard bar displays
- 1.2mm Ultra-Thin Panel — Exceptionally slim construction enables flush-mount and near-invisible bezel installations in retail shelves, display cases, and architectural signage applications
- 1920×515 Stretched Bar Resolution — Unique ultra-wide format with sharp 1920-pixel horizontal resolution for crisp advertising text, product visuals, and motion content across the full strip width
- Antiglare Display — Matte surface treatment minimizes reflections in brightly lit retail, showroom, and commercial environments
- IPS Wide Viewing Angle (85/85/85/85°) — Consistent, accurate color from all four directions — shoppers viewing from any angle see the same vivid image
- 1200:1 Contrast Ratio — Strong contrast for bold, attention-grabbing advertising visuals with well-defined highlights and shadows
Ideal for: Retail shelf-edge advertising · Display case & showcase signage · Supermarket promotional strips · Museum & gallery information bars · Architectural narrow-bezel installations · Premium commercial digital signage

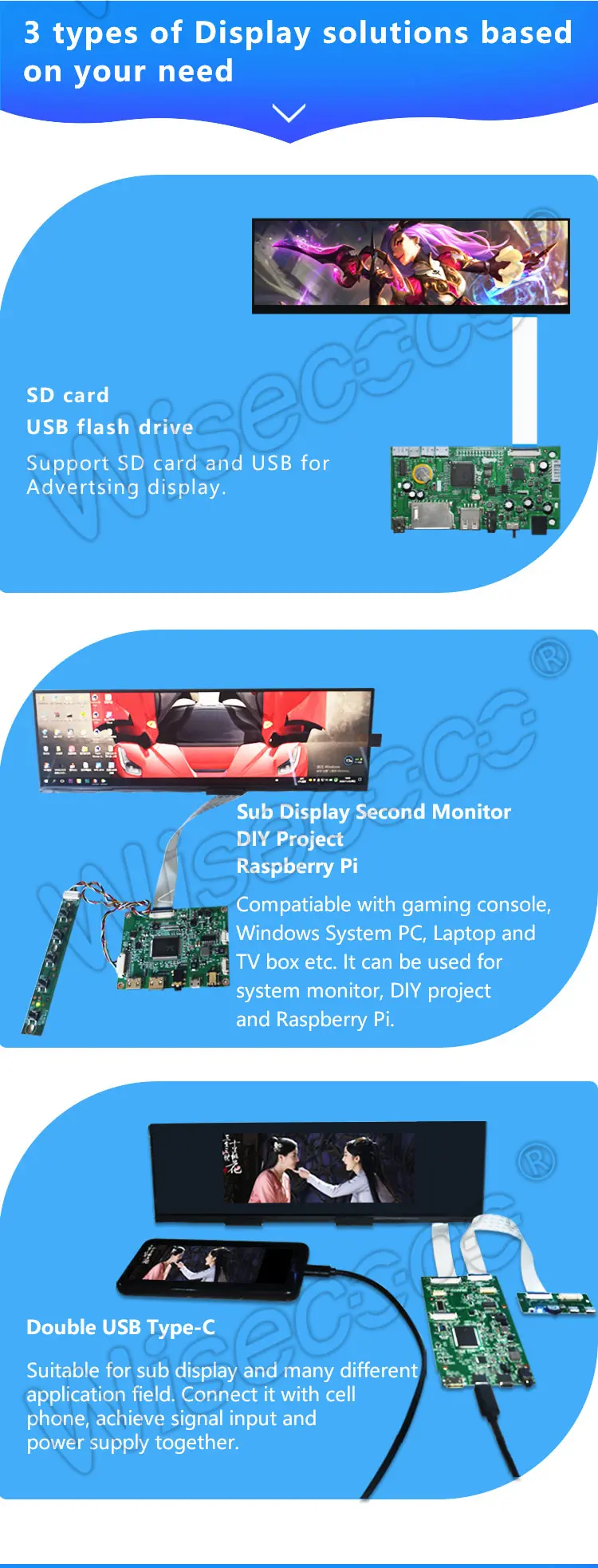

Wisecoco offers One-step customized display solutions.
