- Size:12.5 inch
- Resolution:3840×2160
- Panel Interface: eDP (4 Lanes)
- Active Area:276.48(H)*155.52(V) mm
- Outline Dimension:282.08(H)*178.76(V)*2.2(D) mm
- Viewing Angle:88/88/88/88 (Typ.)(CR≥10)
- Brightness:400 cd/m² (Typ.)
- Operation / Storage Temp:0 ~ 50 °C / -20 ~ 60 °C

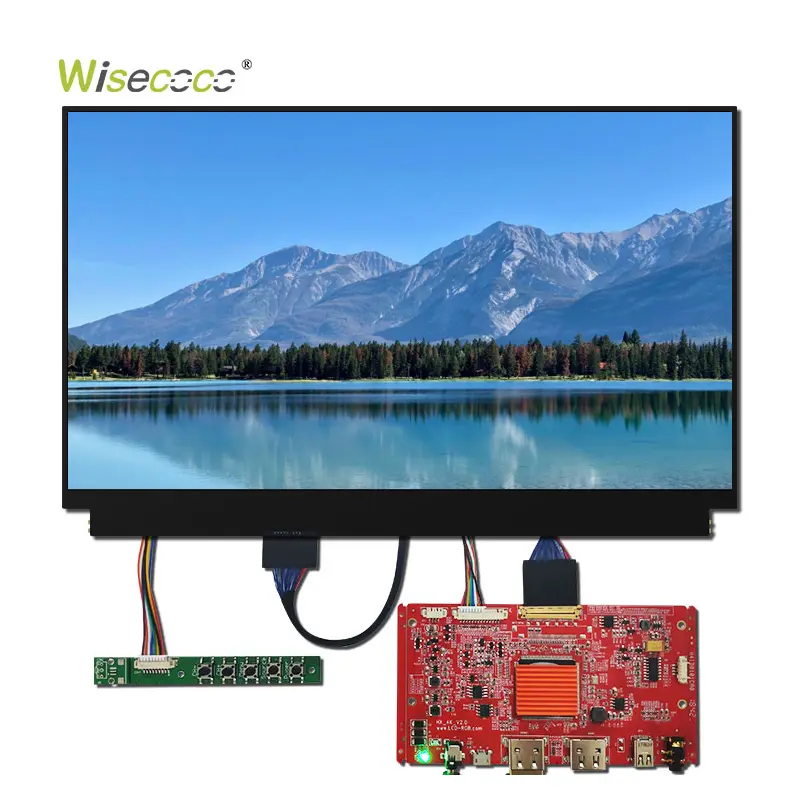

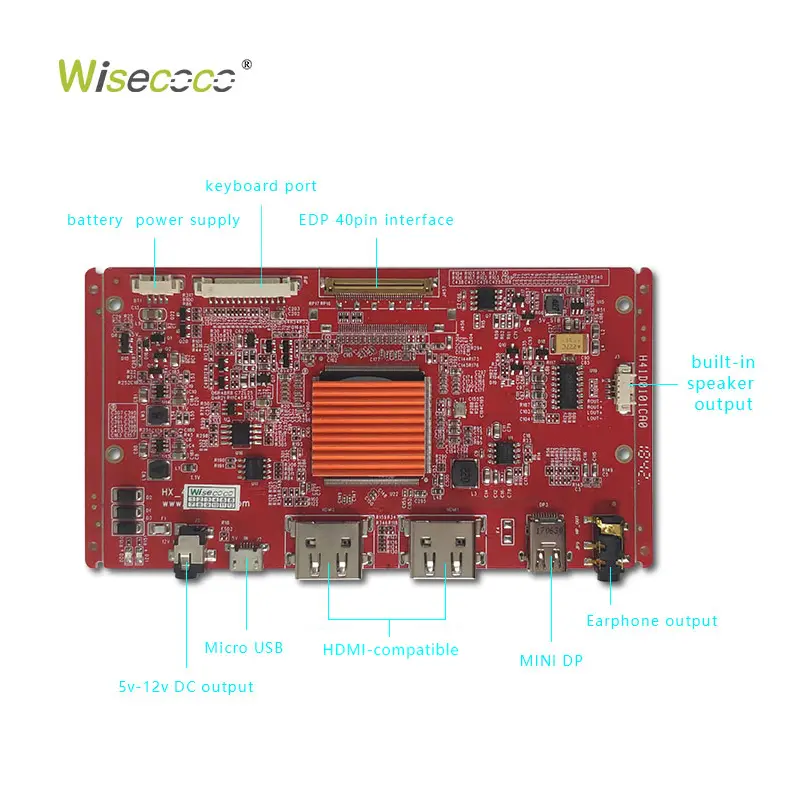

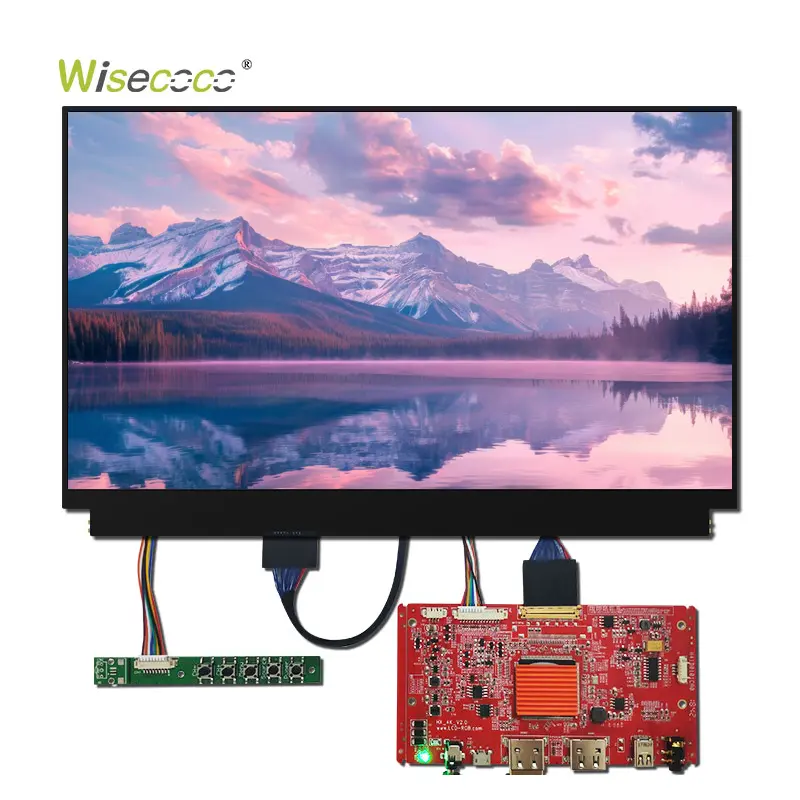

12.5 Inch IPS TFT LCD Display 3840×2160 4K EDP Interface Laptop LCD Screen Module with Driver Board
$199.00
12.5″ IPS 4K UHD LCD — High Color Gamut | 400 cd/m² | eDP
12.5-inch IPS panel delivering true 4K UHD resolution with high color gamut coverage and White LED backlight. A premium display module for portable 4K monitors, professional laptop builds, and high-resolution embedded systems where maximum pixel density and color accuracy.
|
Diagonal Size
|
12.5 inch
|
Type
|
IGZO TFT-LCD, LCM
|
|
Pixel Format
|
3840(RGB)*2160[UHD]
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
276.48(H)*155.52(V) mm
|
Outline Dim.
|
282.08(H)*178.76(V)*2.2(D) mm
|
|
Bezel Area
|
–
|
Treatment
|
Glare (Haze 0%)
|
|
Luminance
|
400 Cd/m² (Typ.)
|
Contrast Ratio
|
1000:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
30 (Typ.)(Tr+Td)
|
|
Viewing Angle
|
88/88/88/88 (Typ.)(CR≥10)
|
Operating Mode
|
IPS, Normally Black, Transmissive
|
|
Support Color
|
16.2M
|
Light Source
|
WLED , 15K hours , With LED Driver
|
|
Weight
|
–
|
Designed For
|
Laptop;3D priter and so on
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
Available
|
|
Interface Type
|

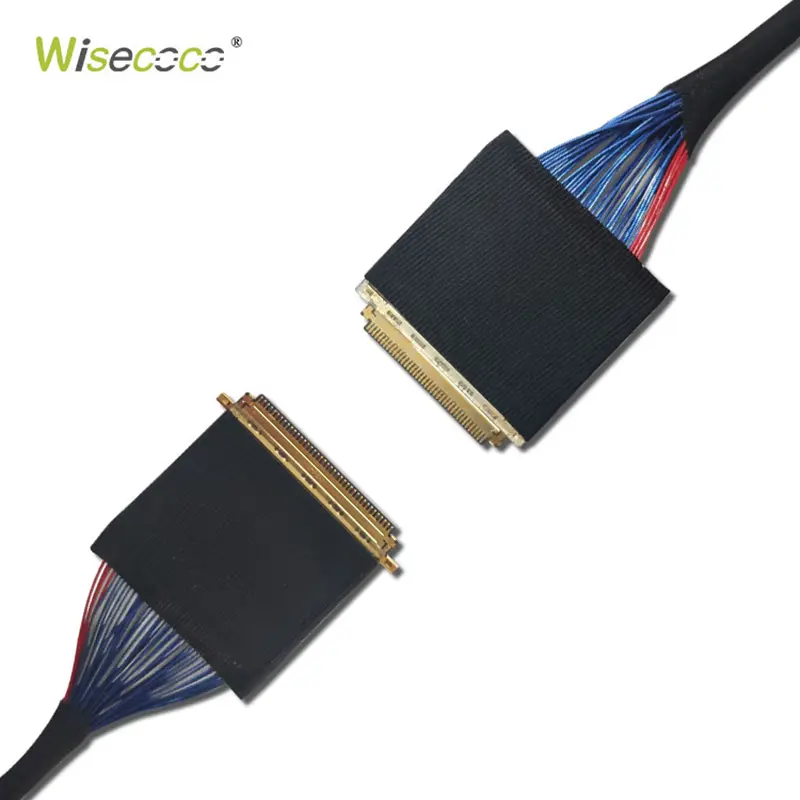

40 pins eDP (4 Lanes) , Connector
|
||
|
Power Supply
|
3.3V (Typ.)
|
||
|
Environment
|
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
|
||
Featurer:

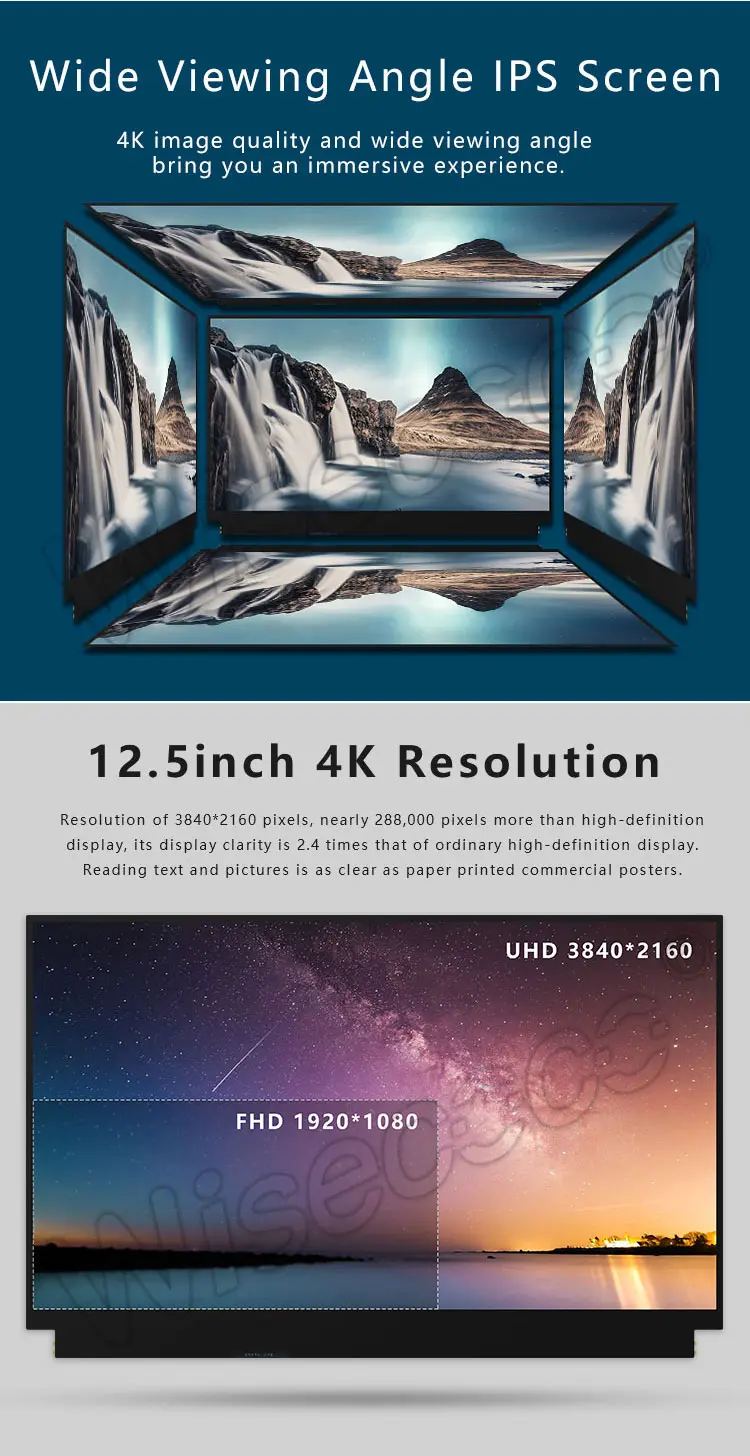

- 4K UHD Resolution — Maximum pixel density in a 12.5-inch panel, delivering exceptionally sharp text, fine image detail, and professional-grade visual clarity — ideal for content creation, photo editing, and high-resolution UI work
- IPS High Color Gamut — Wide sRGB color coverage with IPS accuracy ensures faithful color reproduction for creative professionals and color-critical applications
- 400 cd/m² High Brightness — Above-average luminance for comfortable use in bright office, studio, and well-lit indoor environments
- White LED Backlight — Efficient, uniform backlighting with long operational lifespan, supporting always-on professional monitor applications
Ideal for: Portable 4K monitor builds · Professional laptop screen replacement · High-resolution embedded monitors · Creative workstation secondary displays · Photography & design review panels
Wisecoco offers One-step customized display solutions.
