- Size:12.3 inch
- Resolution:1920×720
- Panel Interface:LVDS (2 ch, 8-bit)
- Active Area:292.032 × 109.512 (H×V) mm
- Outline Dimension:308.1 × 130 × 15.6 (H×V×D) mm
- Viewing Angle:85/85/85/85 (Typ.)(CR≥10)
- Brightness:850 cd/m² (Typ.)
- Operation / Storage Temp:-30 ~ 85 °C / -30 ~ 85 °C
-28%
12.3 Inch Stretch LCD Display 1920*720 Car Navigation Automotive Bar Type TFT LCD Screen with Lvds Interface Usb Type-C
Original price was: $200.00.$145.00Current price is: $145.00.

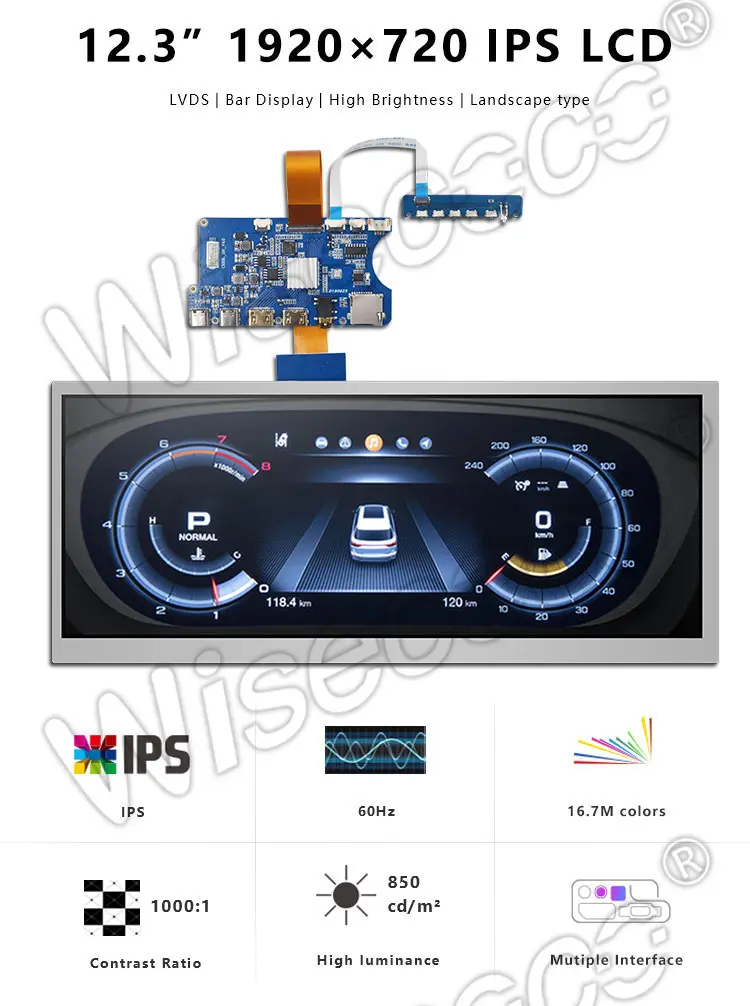

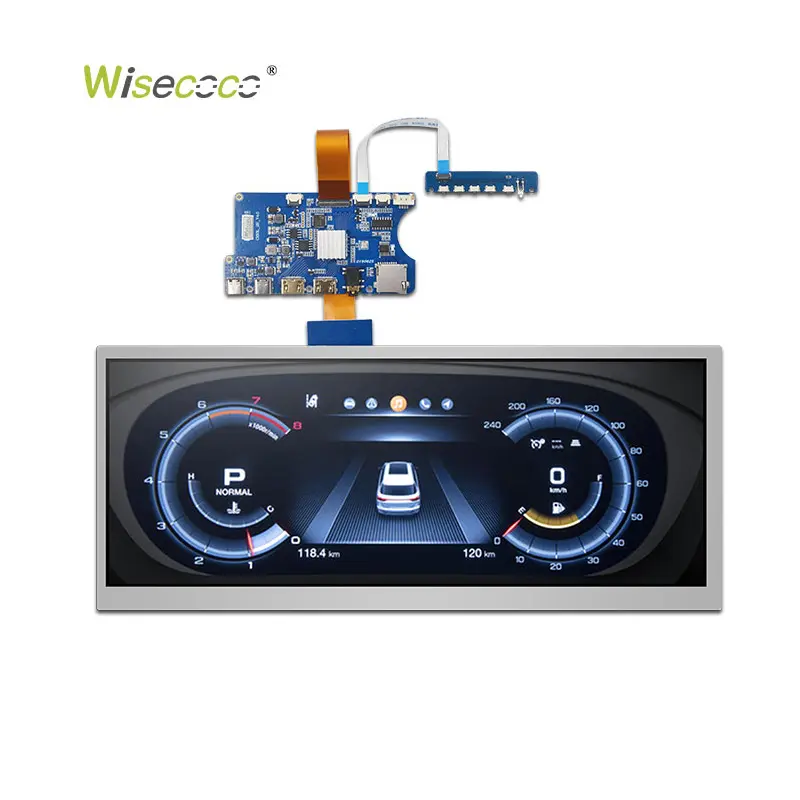

12.3″ IPS Bar Type TFT LCD Screen — 1920×720 | 850 cd/m² | LVDS

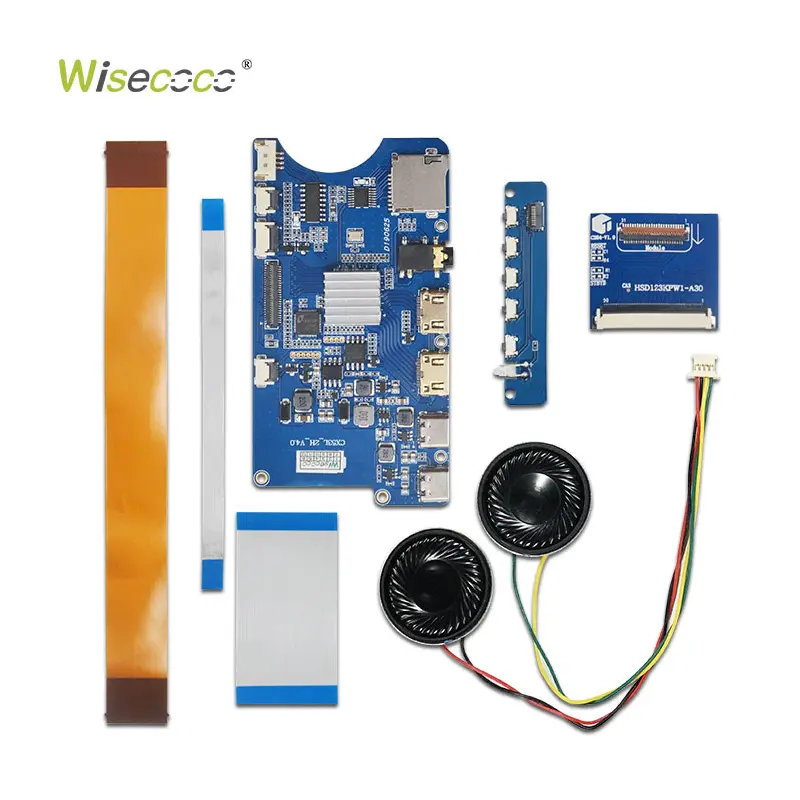

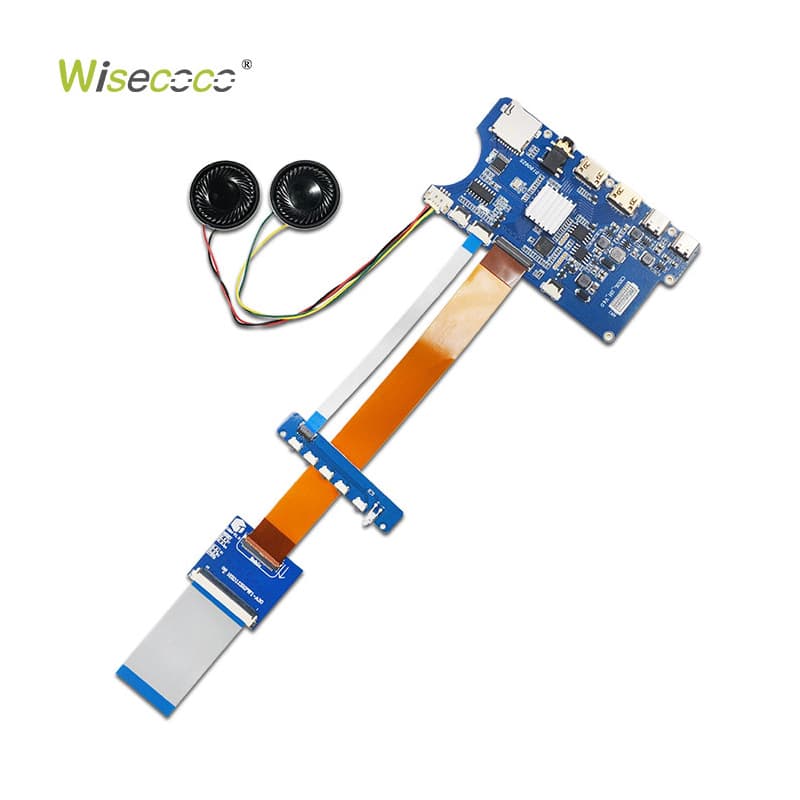

12.3-inch stretched bar display engineered specifically for automotive digital instrument clusters and dashboard applications. With 850 cd/m² high brightness, 1000:1 contrast ratio, and a compact LVDS driver board, this panel delivers sharp, vivid gauge and navigation visuals in a slim, integration-ready form factor.
|
General Features
|
|||
|
Diagonal Size
|
12.3 inch
|
Type
|
LCM, a-Si TFT-LCD
|
|
Pixel Format
|
1920(RGB)×720
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
292.032 × 109.512 (H×V) mm
|
Outline Dim.
|
308.1 × 130 × 15.6 (H×V×D) mm
|
|
Bezel Area
|
294.8 × 112.1 (H×V) mm
|
Treatment
|
Antiglare
|
|
Luminance
|
1000 cd/m² (Typ.)
|
Contrast Ratio
|
1000 : 1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
17/18 (Typ.)(Tr/Td) ms
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR≥10)
|
Operating Mode
|
IPS Pro, Normally Black, Transmissive
|
|
Support Color
|
16.7M 71% NTSC
|
Light Source
|
11S4P WLED , 30K hours , No Driver
|
|
Weight
|
–
|
Designed For
|
Automotive display;Outdoor Advertising
|
|
Refresh Rate
|
60Hz
|
Touch Panel
|
Optinal
|
|
Interface Type
|

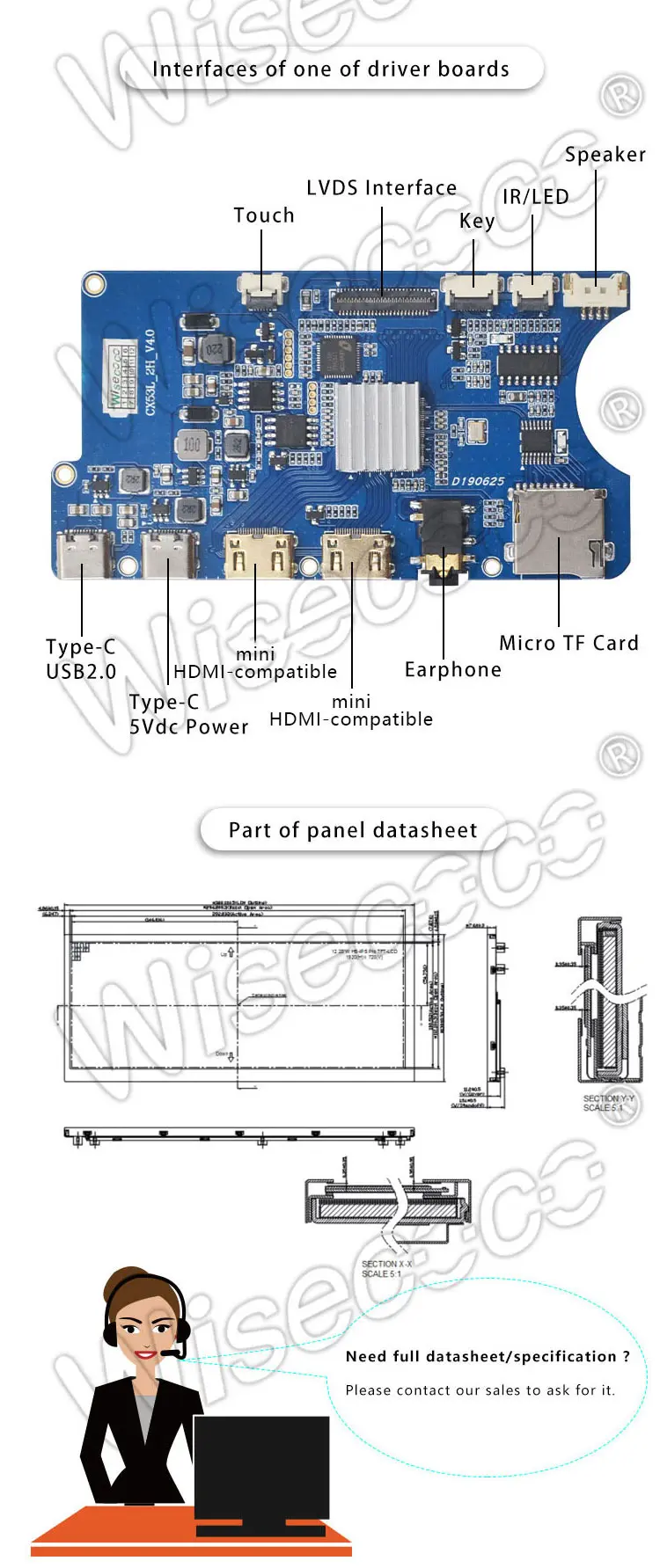

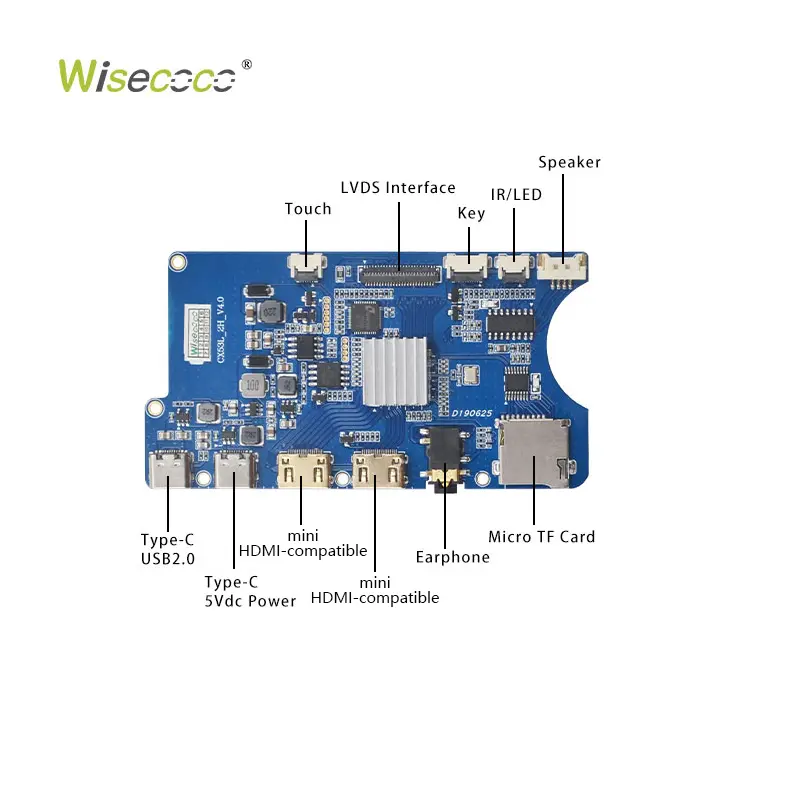

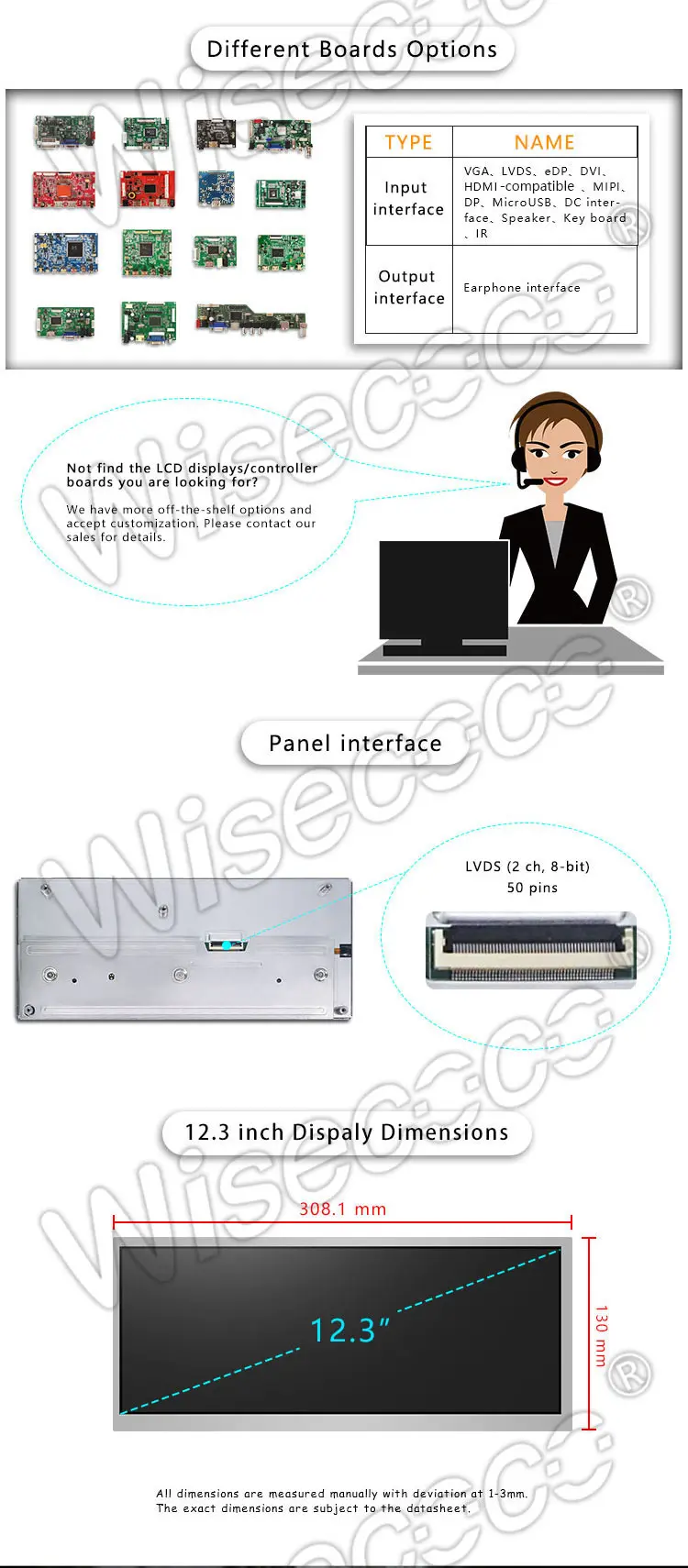

LVDS (2 ch, 8-bit) , Connector , 50 pins
|
||
|
Power Supply
|
3.3V (Typ.)
|
||
|
Environment
|
Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²)
|
||
Features:
- 850 cd/m² High Brightness — Delivers clear, washout-free visibility in bright vehicle cabins and under direct sunlight, ensuring instrument cluster readouts remain legible in all driving conditions
- 1920×720 Automotive Bar Format — Native wide stretched ratio precisely matched to digital instrument cluster and center console proportions — no scaling, no letterboxing, just pixel-perfect dashboard graphics
- 1000:1 Contrast Ratio — Deep blacks alongside vivid highlights bring gauge dials, speed readouts, and navigation overlays to life with sharp visual clarity
- IPS Wide Viewing Angle — Accurate, consistent color from driver and passenger positions alike — no image shift or color cast at off-axis viewing angles

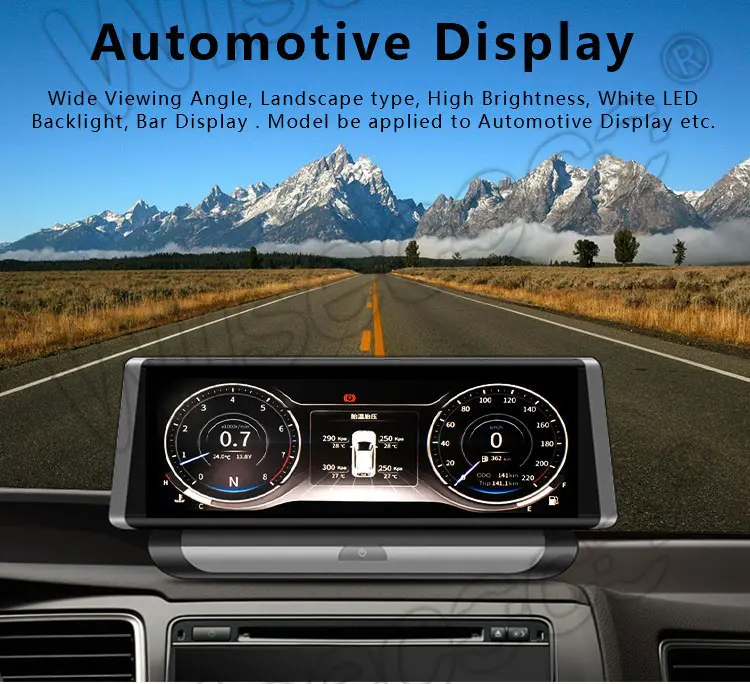

Ideal for: Digital instrument clusters · Automotive dashboard upgrades · EV & motorcycle display systems · Center console bar displays · Commercial vehicle HMI panels
Wisecoco offers One-step customized display module solutions.
