- Size:12.3 inch
- Resolution:1920×720
- Panel Interface:LVDS (2 ch, 8-bit)
- Active Area:292.032×109.512 (HxV) mm
- Outline Dimension:308.1x130x15.6 (HxVxD)mm
- Viewing Angle:85/85/85/85 (Typ.)(CR≥10)
- Brightness:1000 cd/m² (Typ.)
- Operation / Storage Temp:-30 ~ 85 °C / -30 ~ 85 °C
12.3 Inch IPS Stretched Bar LCD Display 1000nits High Brightness LVDS TFT LCD Screen
$215.00
12.3″ IPS Bar Display — 1920×720 | 1000 cd/m² | Android System | LVDS

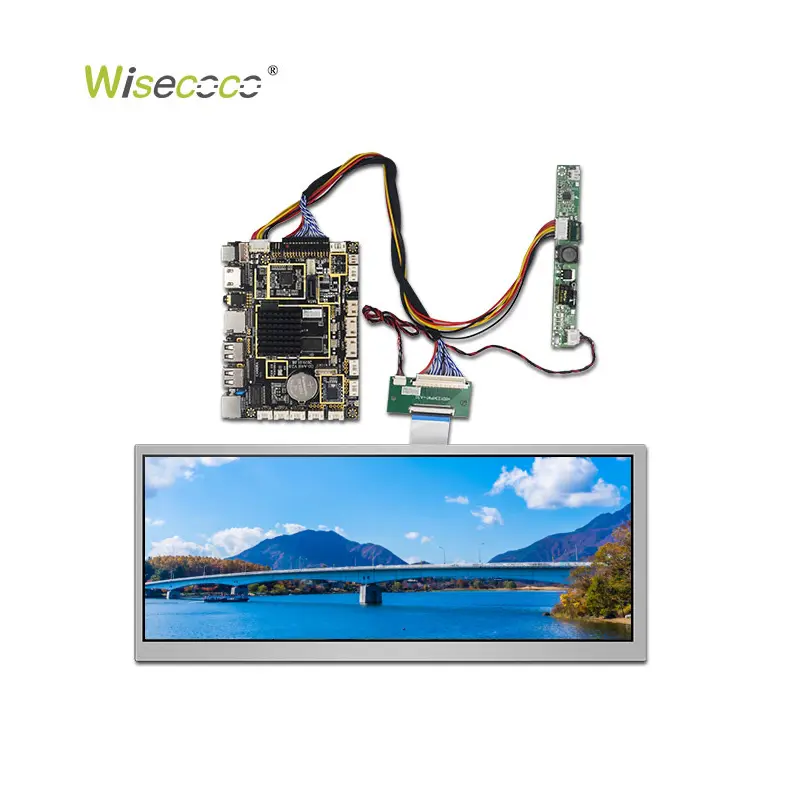

12.3-inch IPS stretched bar display with a high brightness of 1000 cd/m² and an integrated Android system board, providing a fully standalone smart display solution. Designed specifically for digital signage, automotive, and commercial display applications.
|
Diagonal Size
|
12.3 inch
|
Type
|
LCM, a-Si TFT-LCD
|
|
Pixel Format
|
1920(RGB)*720
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
292.032*109.512 (H*V) mm
|
Outline Dim.
|
308.1*130*15.6 (H*V*D)mm
|
|
Bezel Area
|
294.8*112.1 (H*V) mm
|
Treatment
|
Antiglare
|
|
Luminance
|
1000 Cd/m² (Typ.)
|
Contrast Ratio
|
1000 : 1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
17/18 (Typ.)(Tr/Td) ms
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR≥10)
|
Operating Mode
|
IPS Pro, Normally Black, Transmissive
|
|
Support Color
|
16.7M 71% NTSC
|
Light Source
|
11S4P WLED , 30K hours , No Driver
|
|
Weight
|
–
|
Designed For
|
Automotive display;Outdoor Advertising
|
|
Refresh Rate
|
60Hz
|
Touch Panel
|
Optinal
|
|
Interface Type
|
LVDS (2 ch, 8-bit) , Connector , 50 pins
|
||
|
Power Supply
|
3.3V (Typ.)
|
||
|
Environment
|
Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²)
|
||
Features:
- 1000 cd/m² Sunlight-Readable Brightness — Sunlight-readable luminance level ensures clear visibility in vehicle cabins, outdoor-facing equipment, and brightly lit industrial settings without image washout

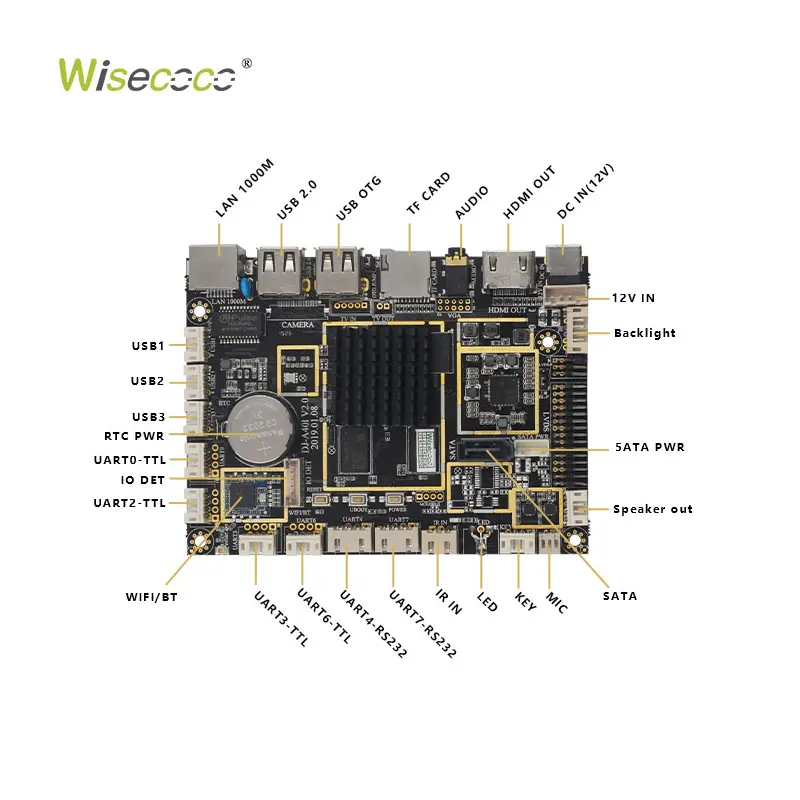

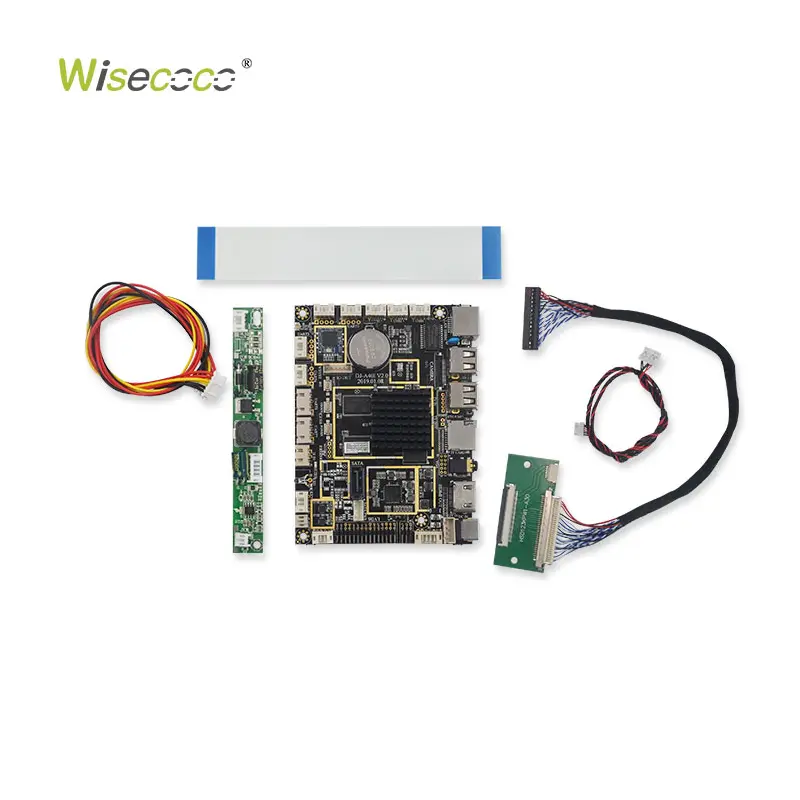

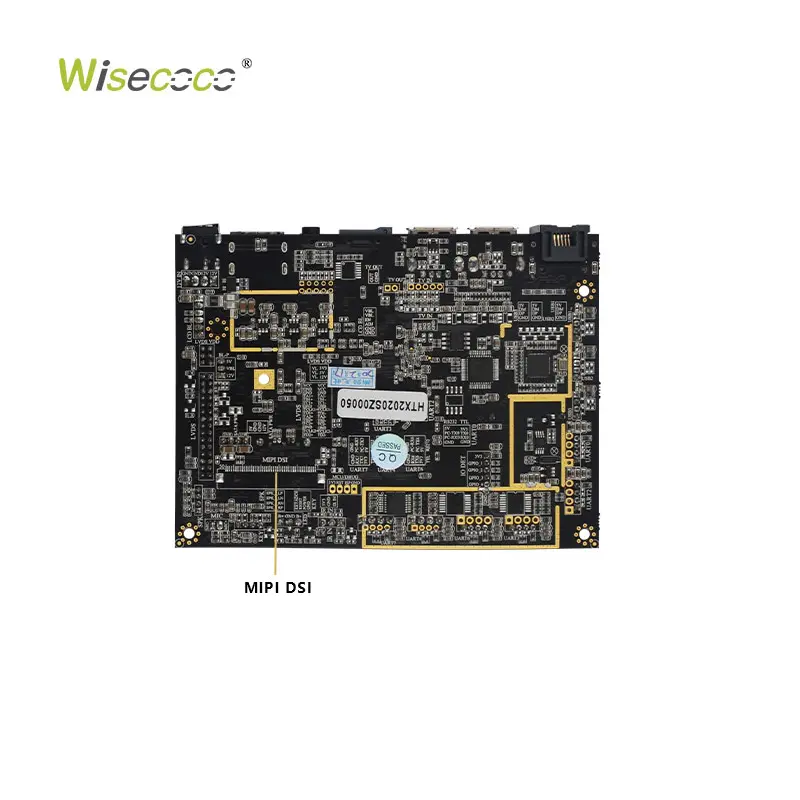

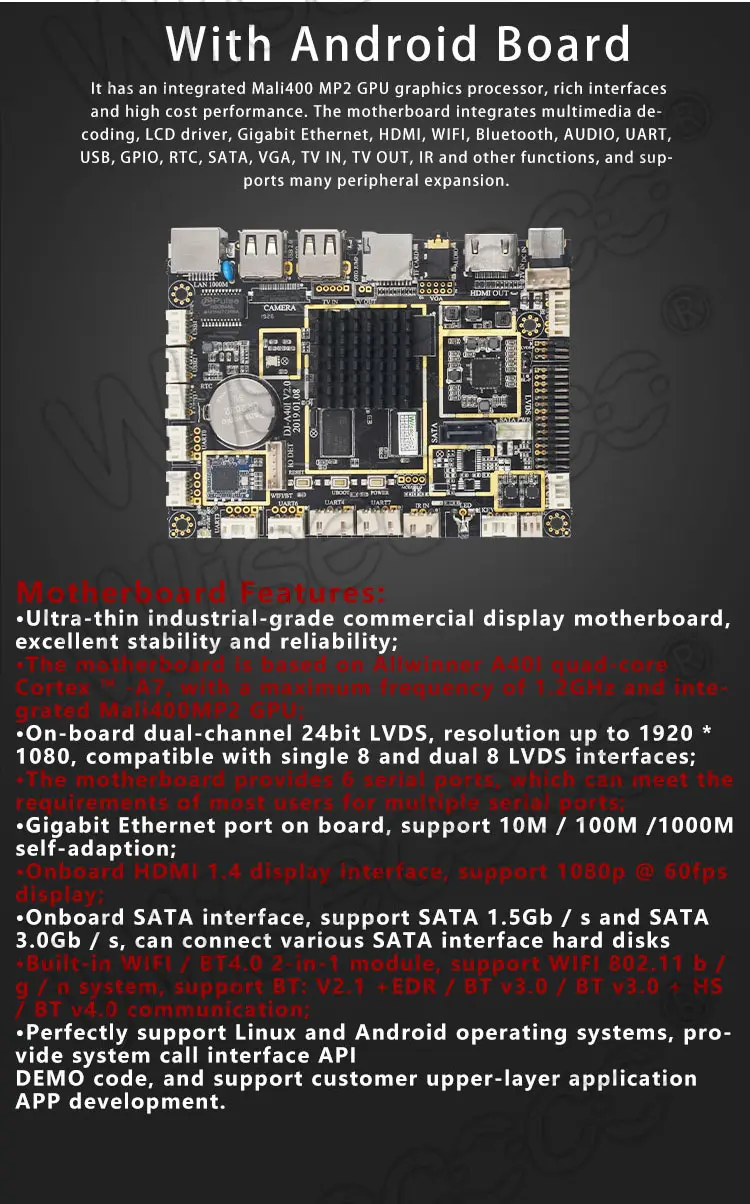

- Integrated Android System — Built-in Android compute board transforms this from a passive display module into a standalone smart display — runs apps, media players, and signage software directly without an external host device
- 1920×720 Ultra-Wide Bar Format — Native stretched landscape ratio ideal for automotive dashboards, retail shelf-edge displays, bus passenger information systems, and panoramic digital signage
- IPS Wide Viewing Angle — Consistent, accurate color across wide horizontal and vertical angles — no shift or washout for side-on viewers in vehicle or retail environments
Ideal for: Android-powered digital signage · Automotive smart displays · Retail shelf & menu boards · Bus & transit passenger info screens · Smart home dashboard panels · Self-contained kiosk displays
Wisecoco offers One-step customized display module solutions.
