- Size:12.3 inch
- Resolution:1920×720
- Panel Interface:LVDS
- Active Area:292.032(W)×109.512(H) mm
- Outline Dimension:308.1(W)×130(H) ×15.6(D) mm
- Viewing Angle :85/85/85/85 (Typ.)(CR≥10)
- Brightness:1000 cd/m² (Typ.)
- Touch:Touch optional
- Operation / Storage Temp:-30~85°C / -30~85°C
-13%

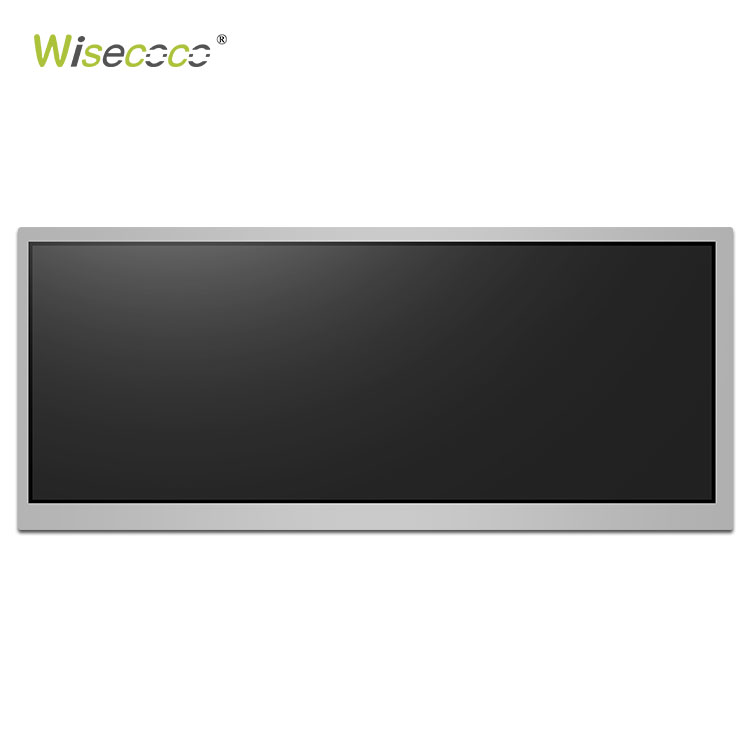

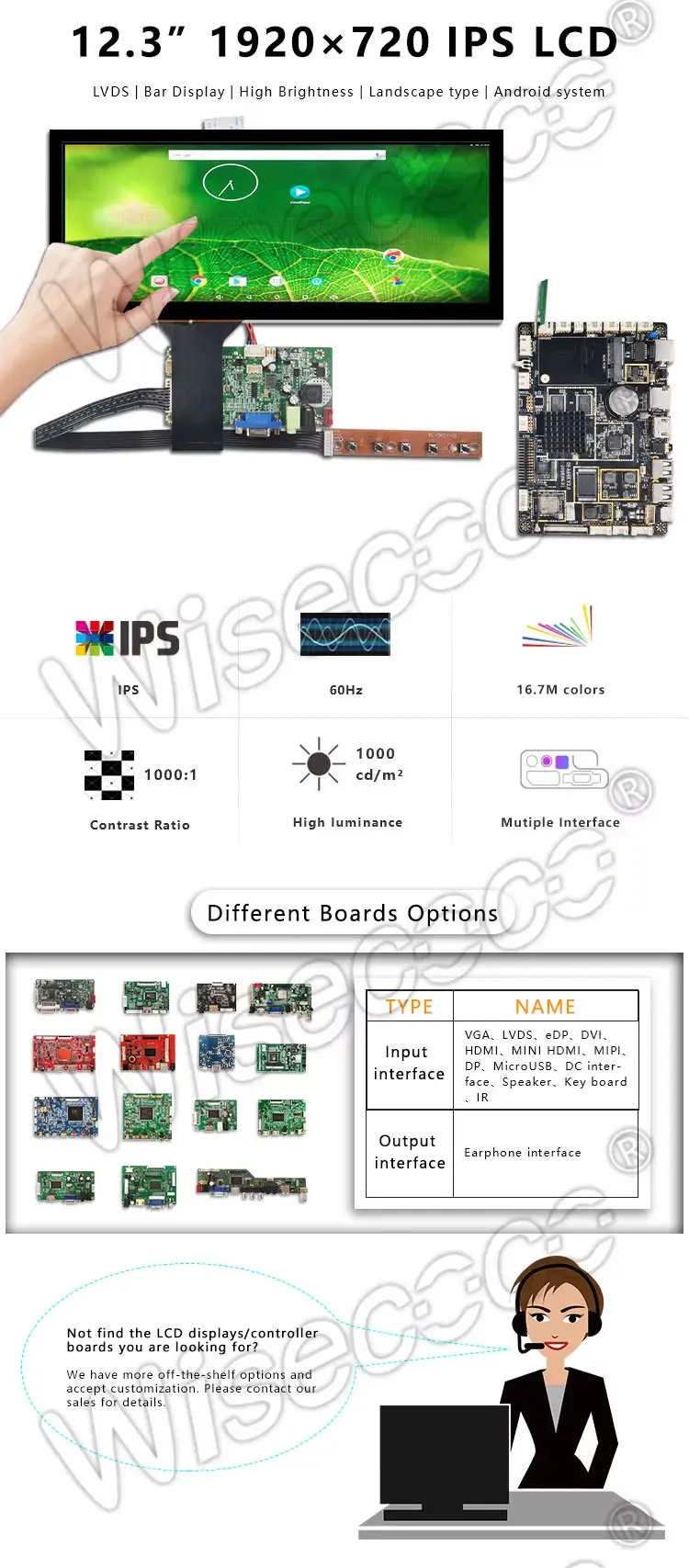

Sunlight Readable Display 12.3 Inch 1920×720 Touch Screen 1000 Nits High Luminance Outdoor Automotive Stretched Bar LCD Display
Original price was: $200.00.$175.00Current price is: $175.00.
12.3″ IPS Stretched Bar LCD Display — 1920×720 | 1000 cd/m² | Touch | LVDS

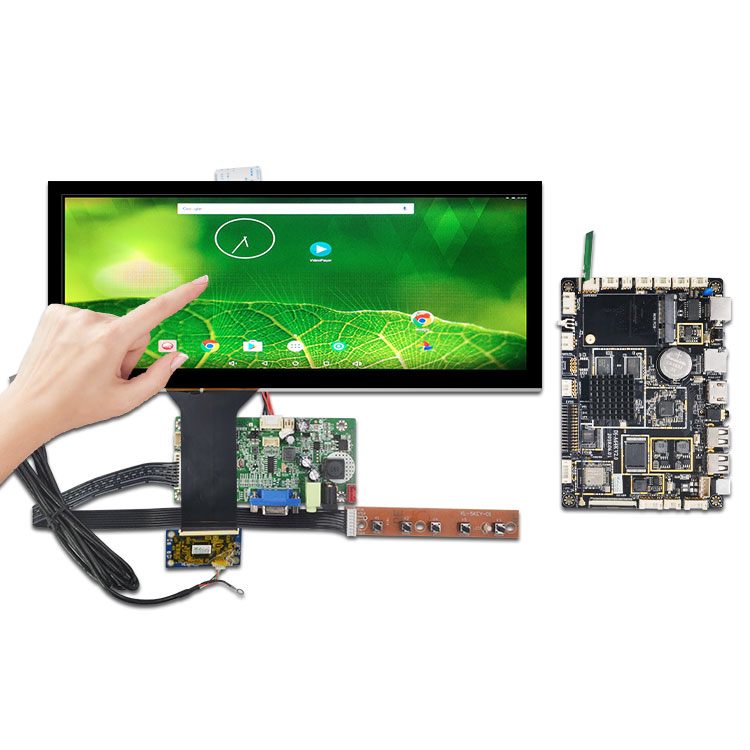

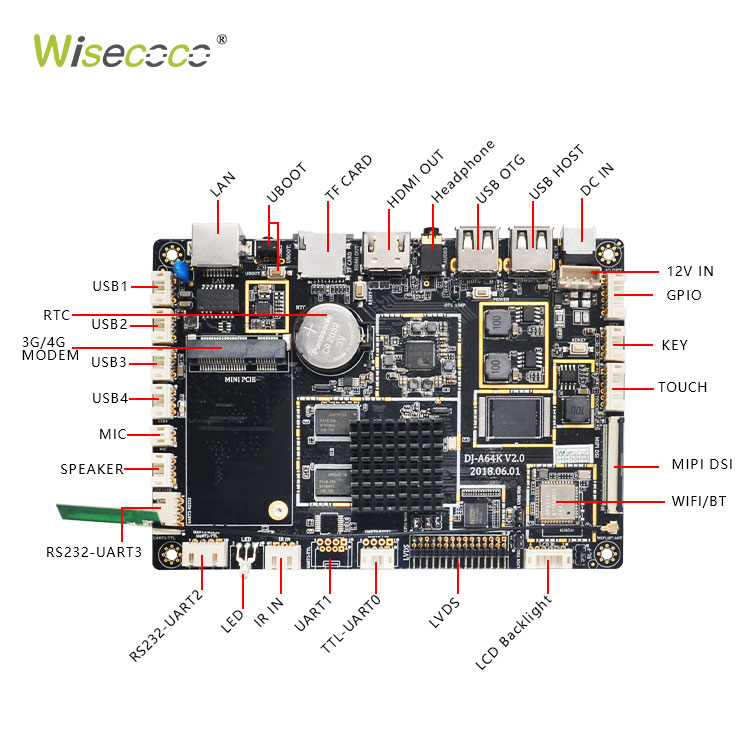

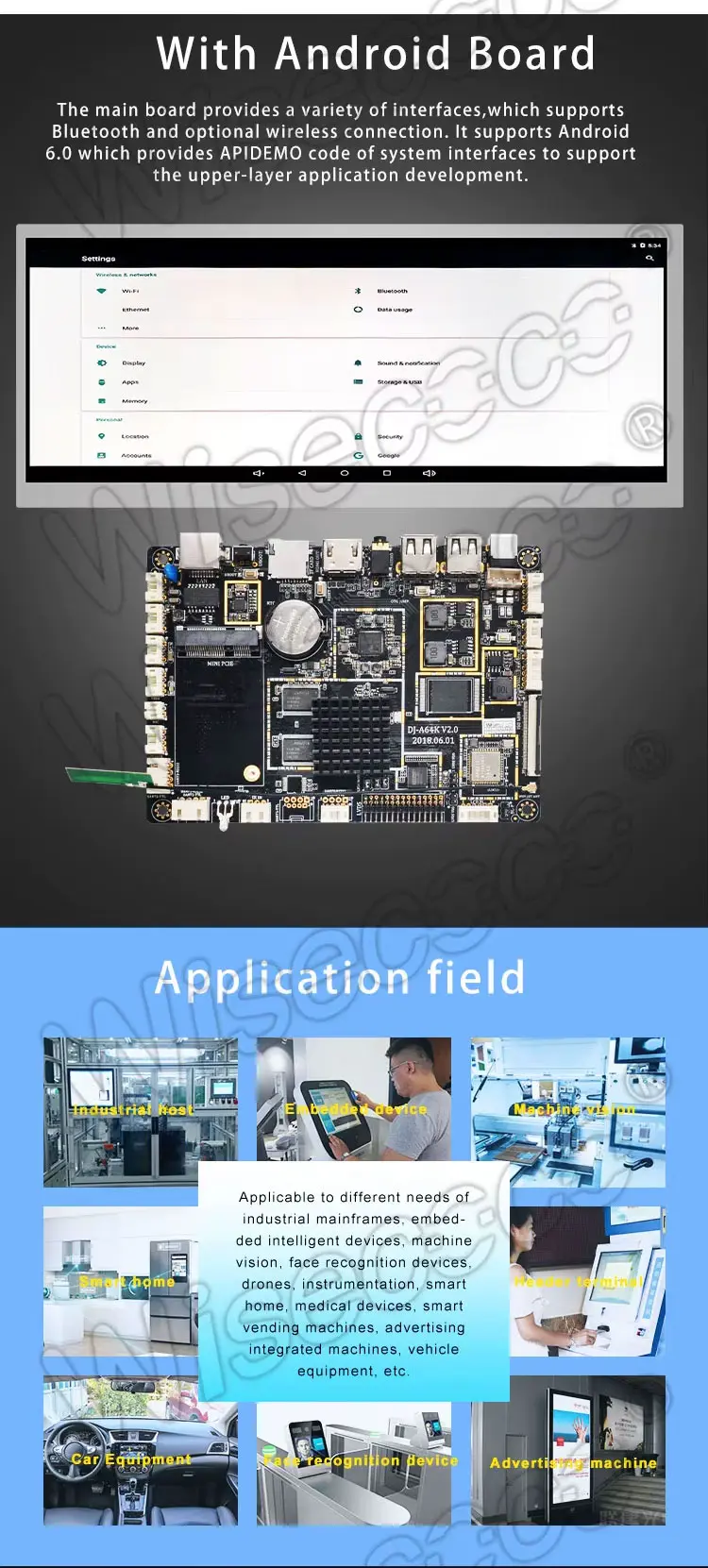

12.3-inch stretched bar IPS lcd display combining 1000 cd/m² sunlight-readable brightness with integrated touch input and an onboard Android system. Runs apps and media independently via the Android compute board, while touch enables direct on-screen interaction, making this a complete standalone smart display solution.
|
General Features |
|||
|
Diagonal Size |
12.3 inch |
Type |
LCM , a-Si TFT-LCD |
|
Pixel Format |
1920(RGB)×720 |
Configuration |
RGB Vertical Stripe |
|
Active Area |
292.032(W)×109.512(H) mm |

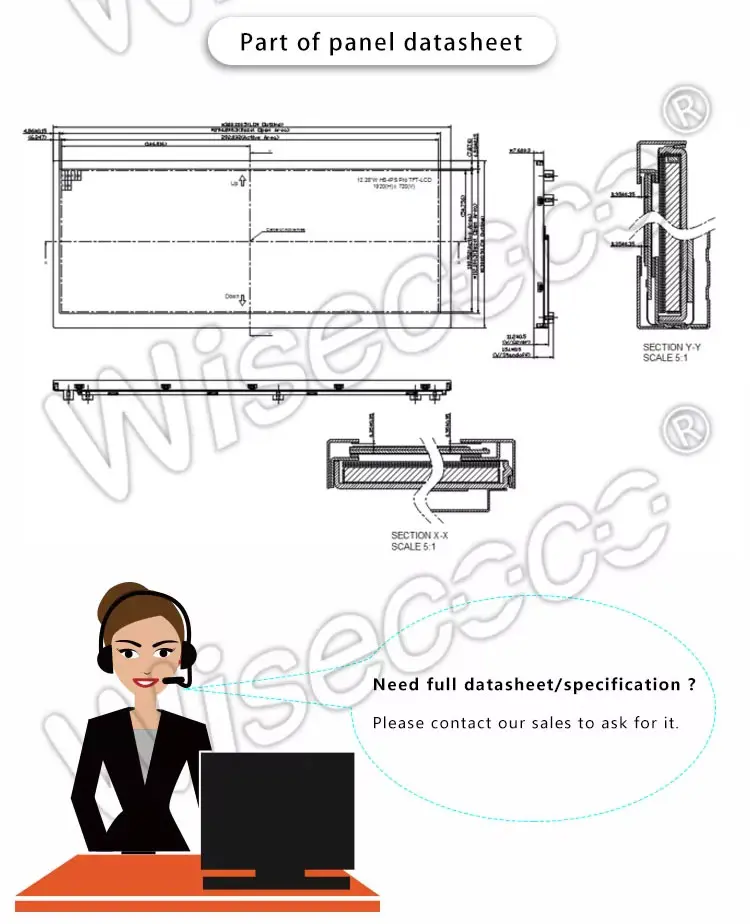

Outline Dim. |
308.1(W)×130(H) ×15.6(D) mm |
|
Bezel Area |
294.8(W)×112.1(H) mm |
Treatment |
Antiglare |
|
Luminance |
1000 cd/m² (Typ.) |
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
Response Time |
17/18 (Typ.)(Tr/Td) ms |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
Operating Mode |
IPS Pro, Normally Black, Transmissive |
|
Support Color |
16.7M 71% NTSC |
Light Source |
WLED [11S4P] , 30K hours , W/O Driver |
|
Weight |
520g (Typ.)
|
Designed For |
Automotive display;Outdoor Advertising |
|
Frame Rate |
60Hz |
Touch Panel |
Available |
|
Interface Type |

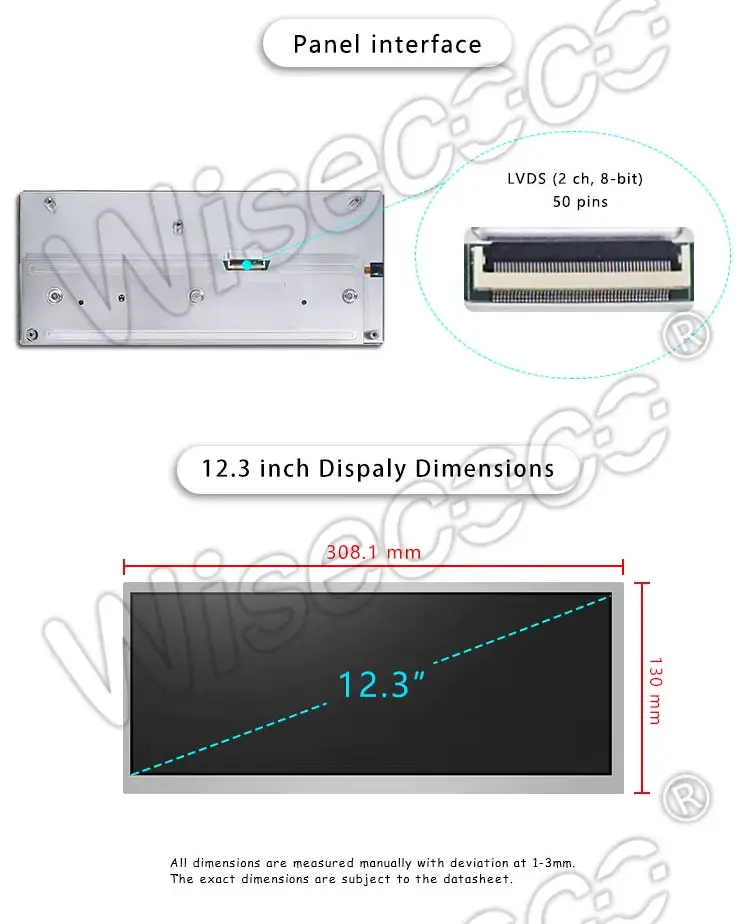

LVDS (2 ch, 8-bit) , 50 pins , Connector |
||
|
Power Supply |
3.3V (Typ.) |
||
|
Environment |
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
||
Features:

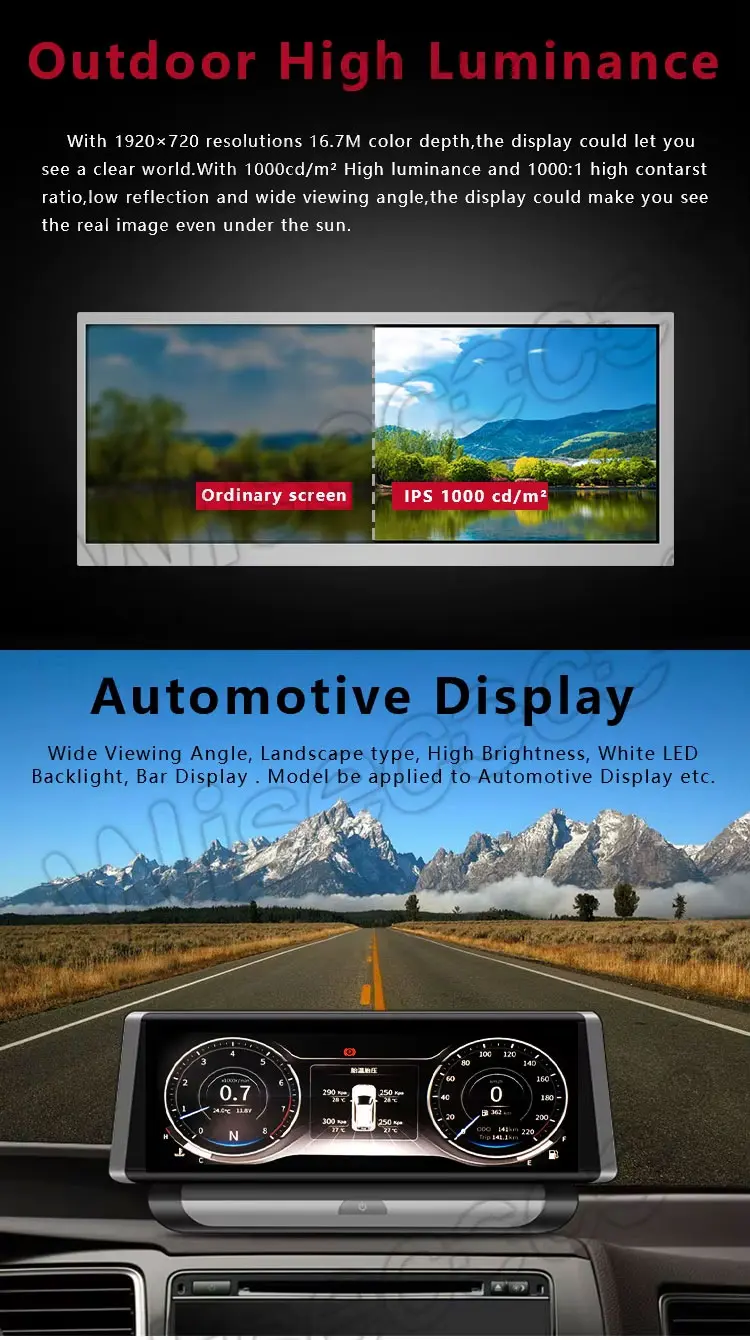

- 1000 cd/m² Sunlight-Readable — Full visibility under direct sunlight and in bright vehicle cabins; no washout in outdoor or high-ambient-light deployments

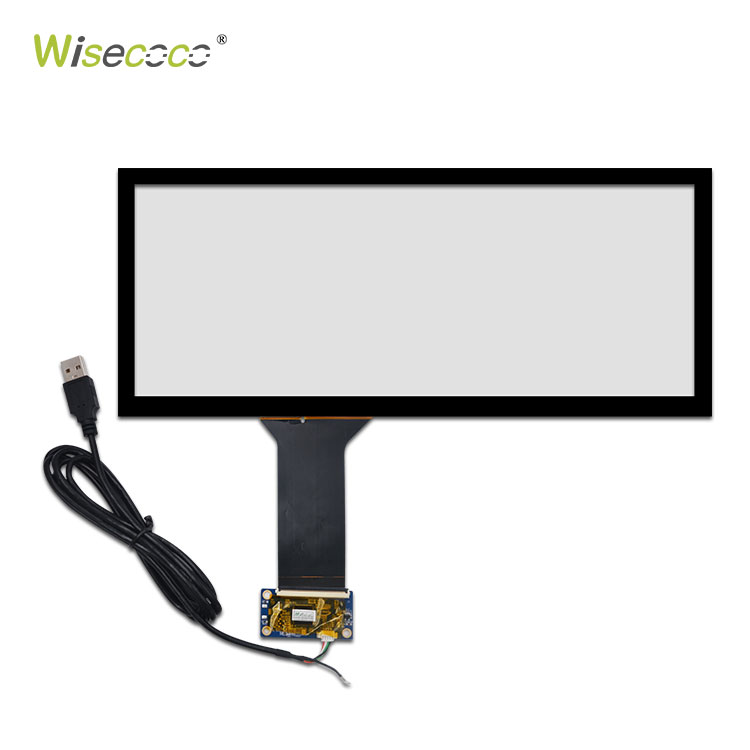

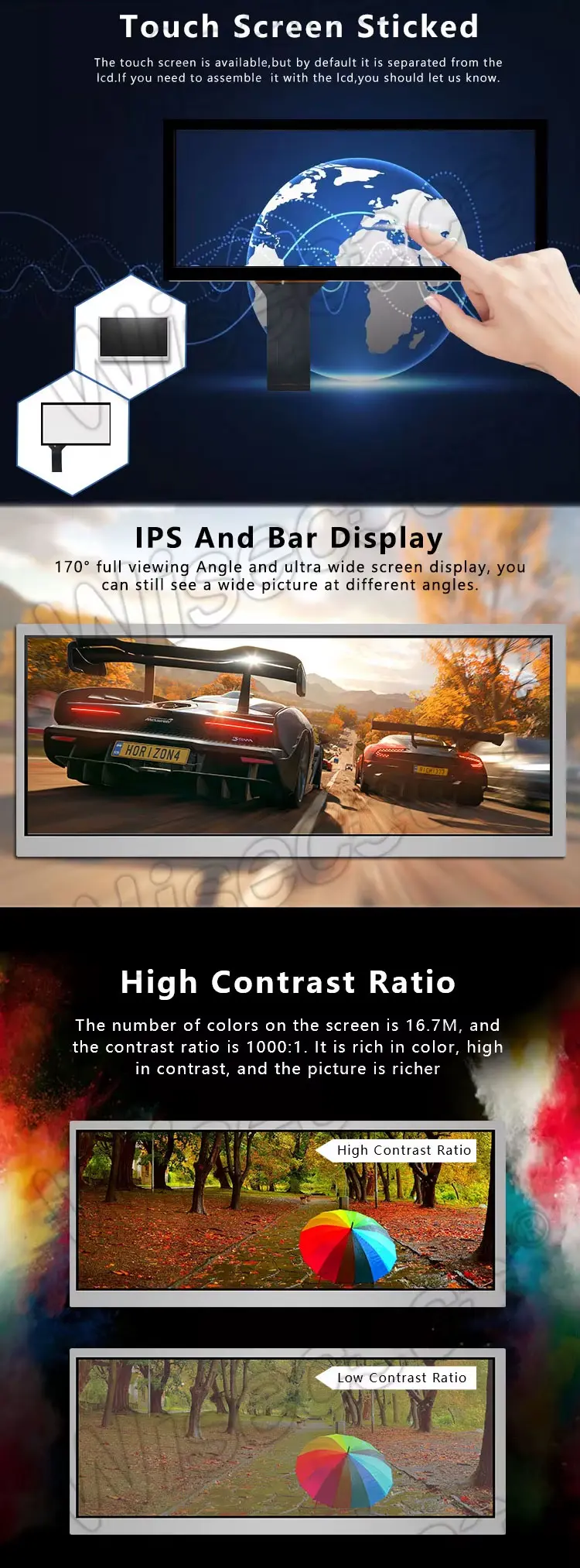

- Touch — On-screen capacitive touch input enables direct interaction with Android apps, navigation, media controls, and custom UI without a separate input device
- 1920×720 Automotive Bar Format — Native wide stretched ratio for digital dashboards, center consoles, and commercial bar display applications
- 1000:1 Contrast Ratio — Sharp, well-defined visuals with deep blacks for instrument graphics, maps, and media overlays
- IPS Wide Viewing Angle — Consistent color and image quality from driver, passenger, and bystander positions
Ideal for: Android-powered automotive center consoles · Touch-enabled digital dashboards · Smart commercial signage · Interactive transit & bus displays · Standalone kiosk displays requiring
Wisecoco offers One-step customized display module solutions.
Add a review
Be the first to review “Sunlight Readable Display 12.3 Inch 1920×720 Touch Screen 1000 Nits High Luminance Outdoor Automotive Stretched Bar LCD Display”

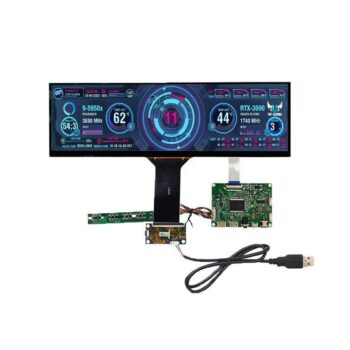

Related products
-
