- Size:10.1 inch
- Resolution:1920×1200
- Panel Interface:MIPI (4 data lanes)
- Active Area:216.576×135.36(HxV) mm
- Outline Dimension:227.926x143x4.4 (HxVxD) mm
- Viewing Angle:80/80/80/80 (Typ.)(CR≥10)
- Brightness:440 cd/m² (Typ.)
- Operation / Storage Temp:-10~60°C / -20~70°C

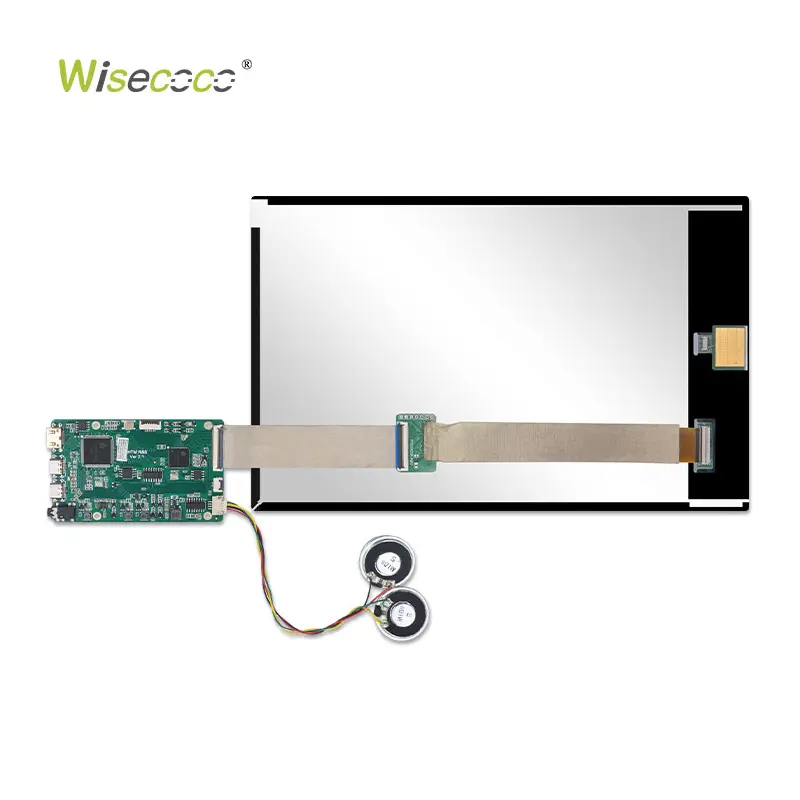

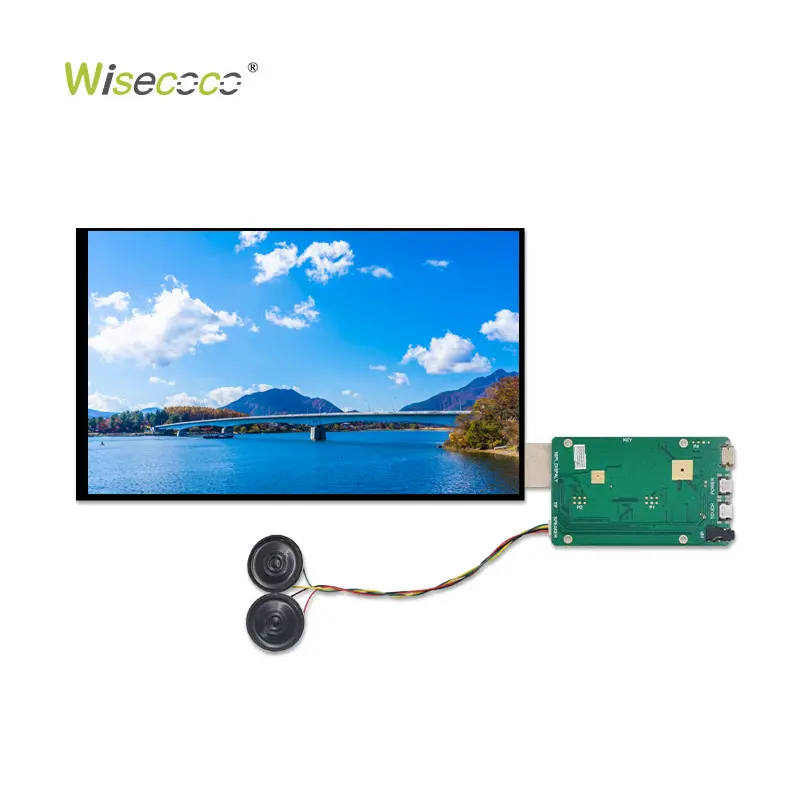

10.1 Inch IPS Tft Lcd Display 1920×1200 Resolution MIPI Interface Landscape Type LCD Modules for Raspberry Pi
$75.00
10.1 Inch IPS LCD Display — 1920×1200 | 440 cd/m² | WLED Backlight
10.1-inch Ips TFT-LCD display delivers 1920×1200 WUXGA resolution with 440 cd/m² typical luminance for detailed and bright visual output.Featuring wide viewing angle, glare treatment with 3H hard coating, and landscape type , and MIPI Interface. Ideal for Pad, Tablet, and Raspberry Pi applications.
General Features:
|
Panel Size
|
10.1 inch
|
Panel Type
|
LCM, a-Si TFT-LCD
|
|
Resolution
|
1920(RGB)*1200 (WUXGA)
|
Pixel Format
|
RGB Vertical Stripe
|
|
Display Area
|
216.576*135.36(H*V) mm
|
Outline Size
|
227.926 *143* 4.4 (H*V*D) mm
|
|
Mass
|
144g (Max.)
|
Treatment
|
Glare (Haze 0%), Hard coating (3H)
|
|
Brightness
|
440 cd/m² (Typ.)
|
Contrast Ratio
|
1000:1 (Typ.) (TM)
|
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥10)
|
Best View on
|
Symmetry
|
|
Display Colors
|
16.7M 70% NTSC
|
Lamp Type
|
4 strings WLED , 15K hours , No Driver
|
|
Response Time
|
25 (Typ.)(Tr+Td) ms
|
Work Mode
|
AAS, Normally Black, Transmissive
|
|
Refresh Rate
|
60Hz
|
Touch Screen
|
Optional
|
|
Application
|
Pad, Tablet
|
||
|

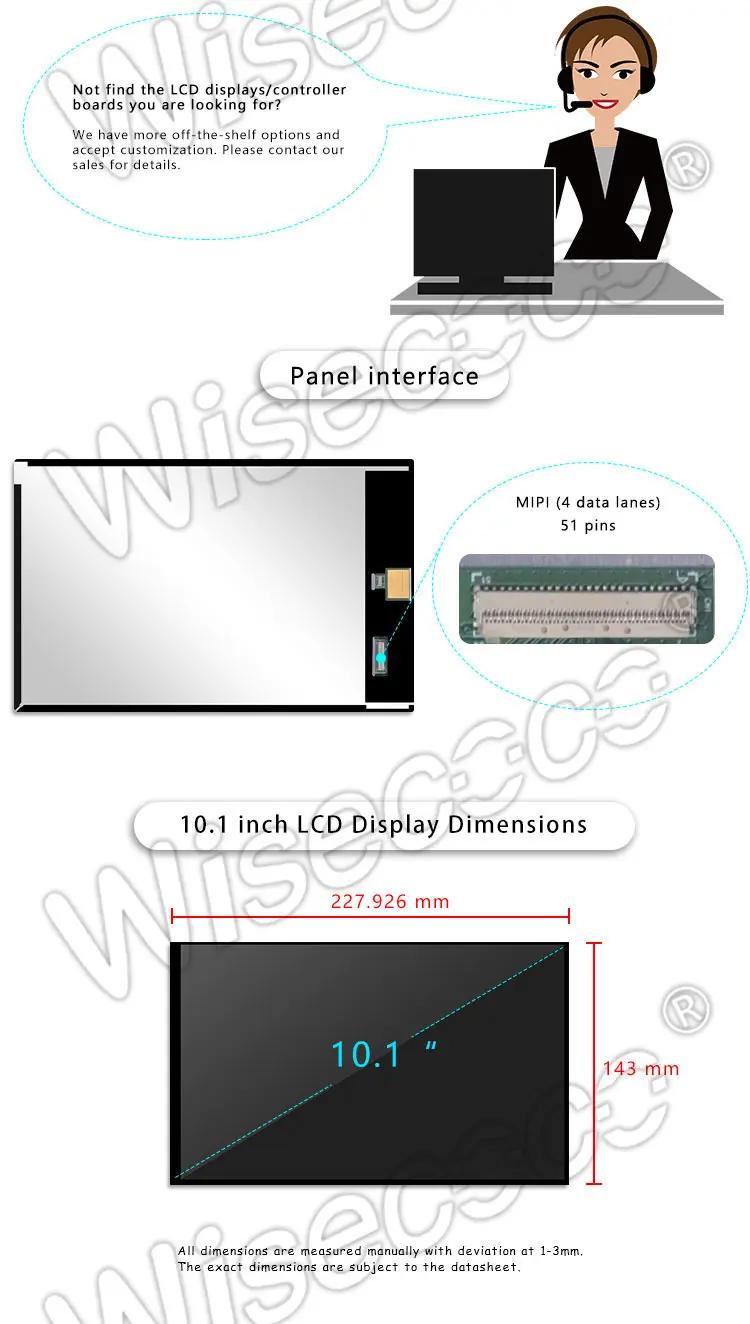

Signal Interface
|
MIPI (4 data lanes) , Connector 51 pins
|
||
|
Input Voltage
|
3.3V (Typ.)
|
||
|
Environment
|
Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C
|
||
Features:
- 1920×1200 WUXGA Resolution — Provides detailed visual content for tablet interfaces, industrial applications, and graphical HMI systems.
- IPS TFT LCD Technology — Delivers consistent image presentation across a wide viewing area, making it suitable for applications where screen visibility is important.
- 440 cd/m² Brightness — Adequate for most indoor environments and well-lit rooms
- Glare Treatment with 3H Hard Coating — Helps manage screen surface reflections while providing a hard-coated display surface.

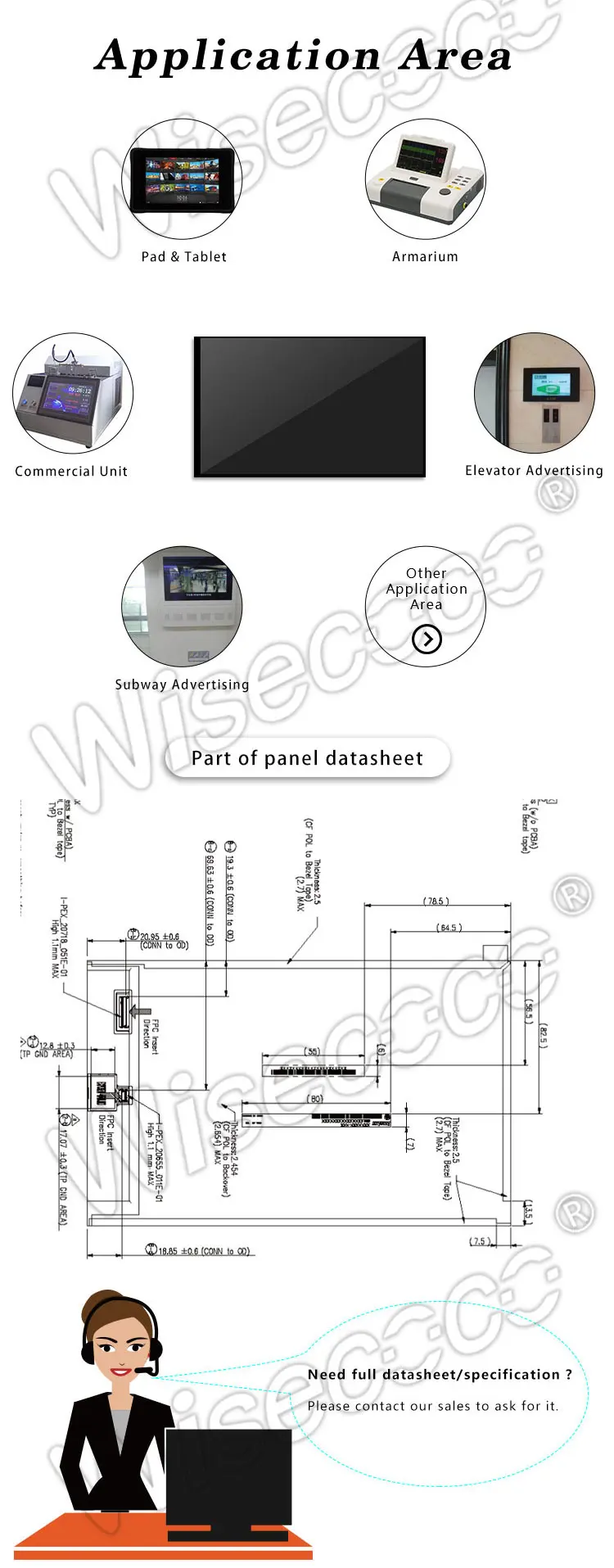

Ideal for: Tablets · Industrial Equipment · Industrial HMI · Embedded Systems · Portable Devices
Contact Wisecoco for One-step OEM/ODM LCD panel solutions.
