- Size:10.1 inch
- Resolution:1920×1200
- Panel Interface:LVDS (2 ch, 8-bit)
- Active Area:216.576 × 135.36 (H×V)mm
- Outline Dimension:229 × 153 × 4.8 (H×V×D)mm
- Viewing Angle:89/89/89/89(Typ.)(CR≥10)
- Brightness:700cd/m²(Typ.)
- Operation / Storage Temp:0~50°C / -25~65°C
- Touchscreen:Optional

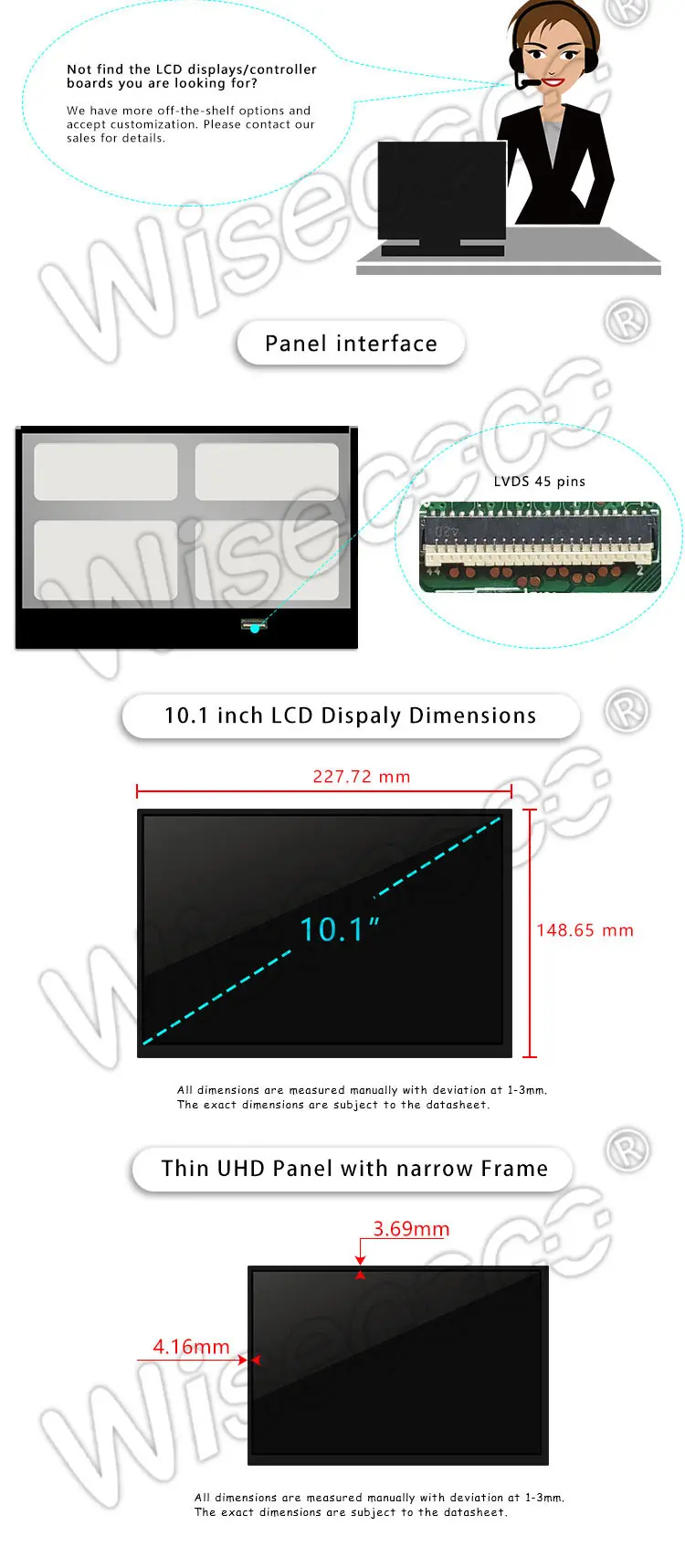

10.1 Inch 1920*1200 High Brightness TFT LCD Display LVDS 45 Pin Full HD Wide Viewing Angle Touch Screen Optional
$75.00

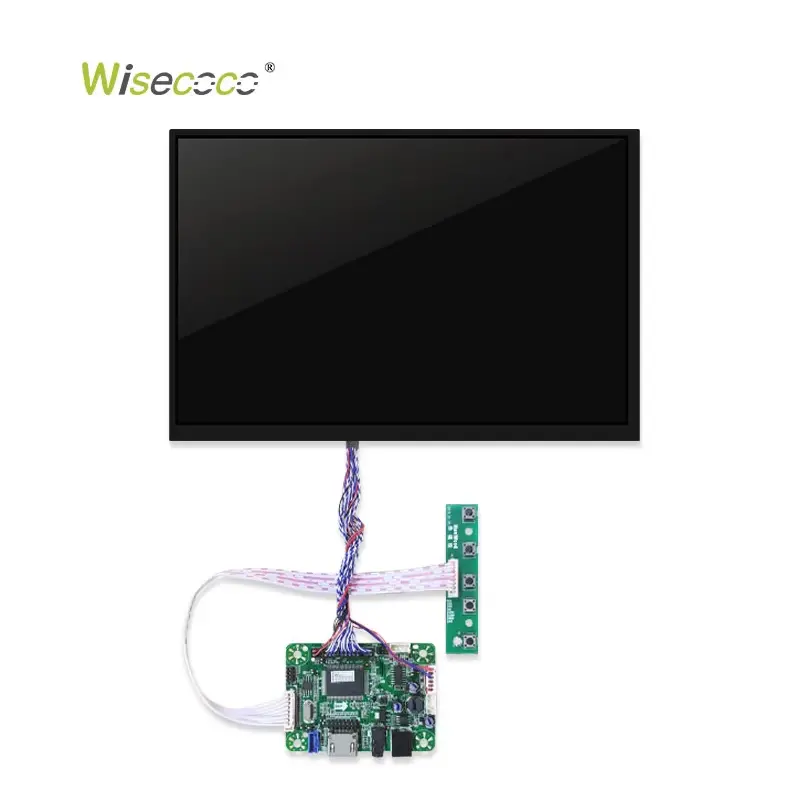

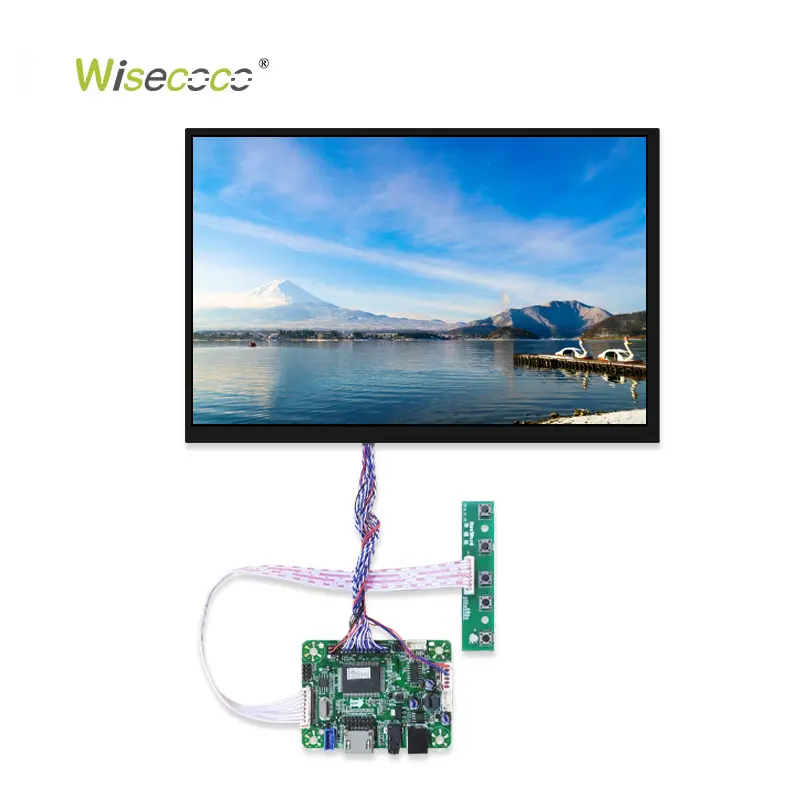

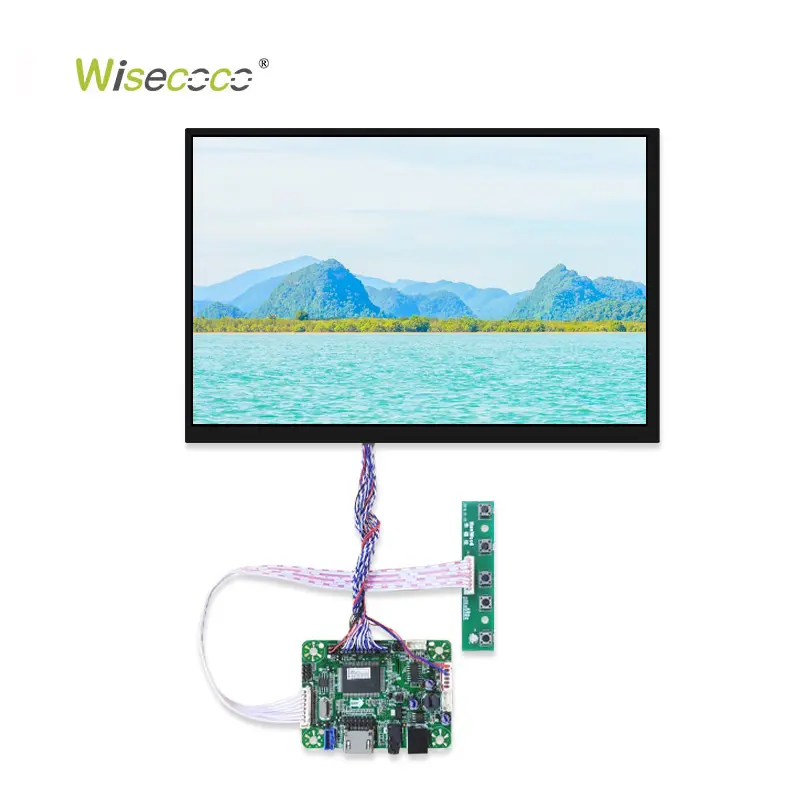

10.1 Inch 1920*1200 High Brightness TFT LCD Display
General Features:
| Screen Size | 10.1 inch | Type | LCM, a-Si TFT-LCD |
| Resolution | 1920(RGB)×1200 (WUXGA) | Configuration | RGB Vertical Stripe |
| Active Area(mm) | 216.576 × 135.36 (H×V)mm | Outline(mm) | 229 × 153 × 4.8 (H×V×D)mm |
| Bezel Area(mm) | – | Treatment | Antiglare,Hard coating |
| Luminance | 700 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 30 (Max.)(Tr+Td) |
| Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Work Mode | HFFS, Normally Black, Transmissive |
| Support Color | 16.7M 50% (CIE1931) | Backlight | WLED , 15K hours , With LED Driver |
| Panel Weight | 150g (Typ.) | Used for | Pad & Table, industrial |
| Refresh Rate | 60Hz | Touchscreen | optional |
| Voltage Supply | 3.3V (Typ.) | Signal Type | LVDS (2 ch, 8-bit) , Connector , 45 pins |
| Environment | Storage Temp.: -25 ~ 65 °C Operating Temp.: 0 ~ 50 °C ; Vibration Level: 2.9G (28.4 m/s²) | ||
