- Size:10.1 inch
- Resolution:1280×720
- Panel Interface:LVDS (1 ch, 6/8-bit)
- Active Area:223.68(H)x125.82(V) mm

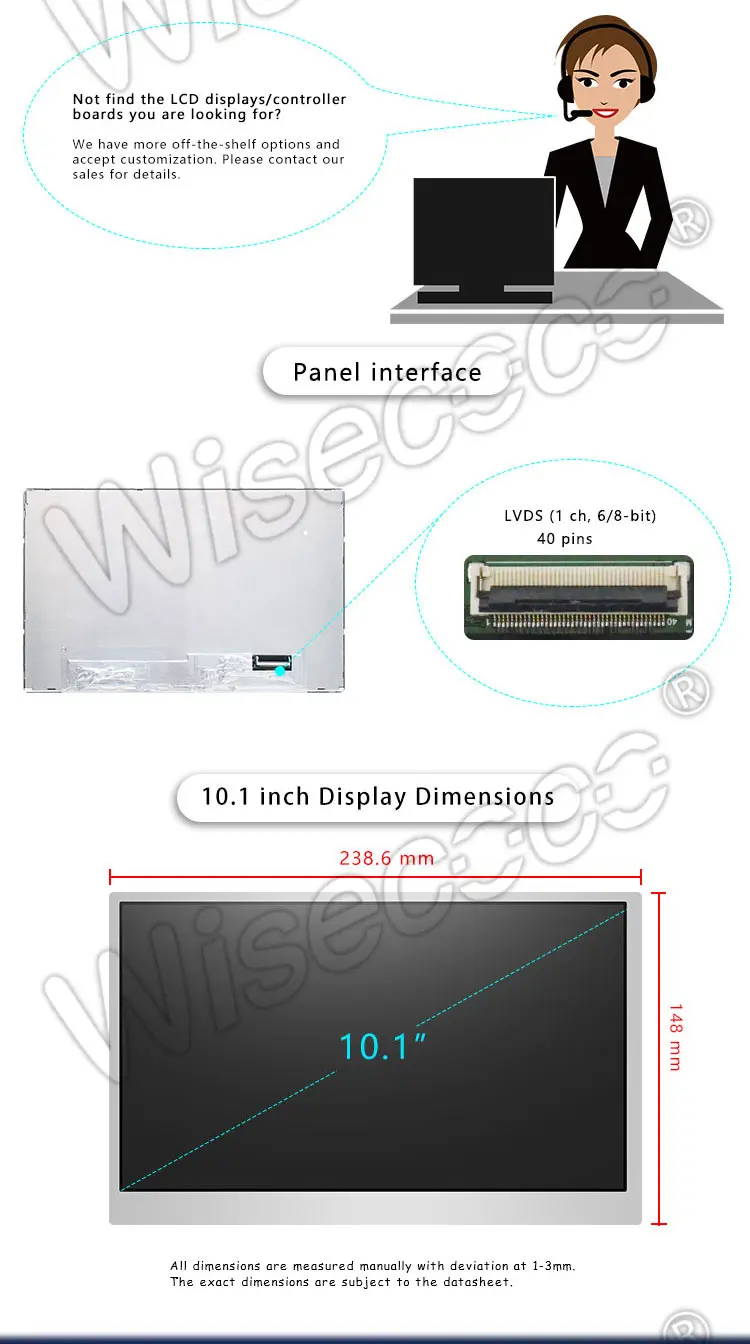

- Outline Dimension:238.6(H)x148(V)x9.7(D) mm
- Viewing Angle:85/85/85/85 (Typ.)(CR≥10)
- Brightness:750cd/m²(Typ.)
- Operation / Storage Temp:-30~85°C / -40~90°C
- Touch Panel:Available

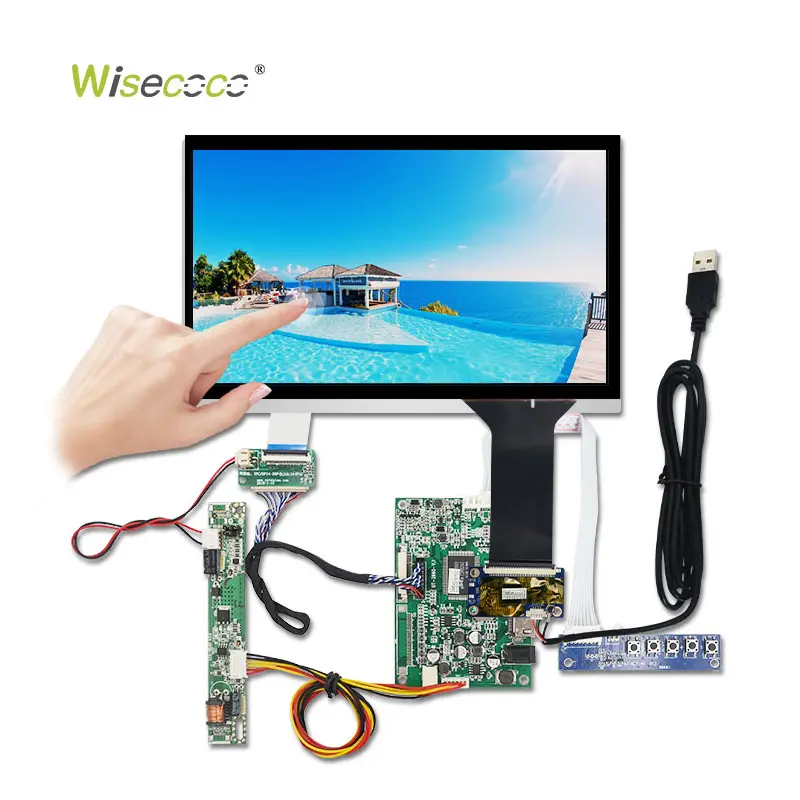

10.1 Inch 1280×720 High Brightness LCD 750 Nits Wide Temperature Industrial Display with Touch
$80.00

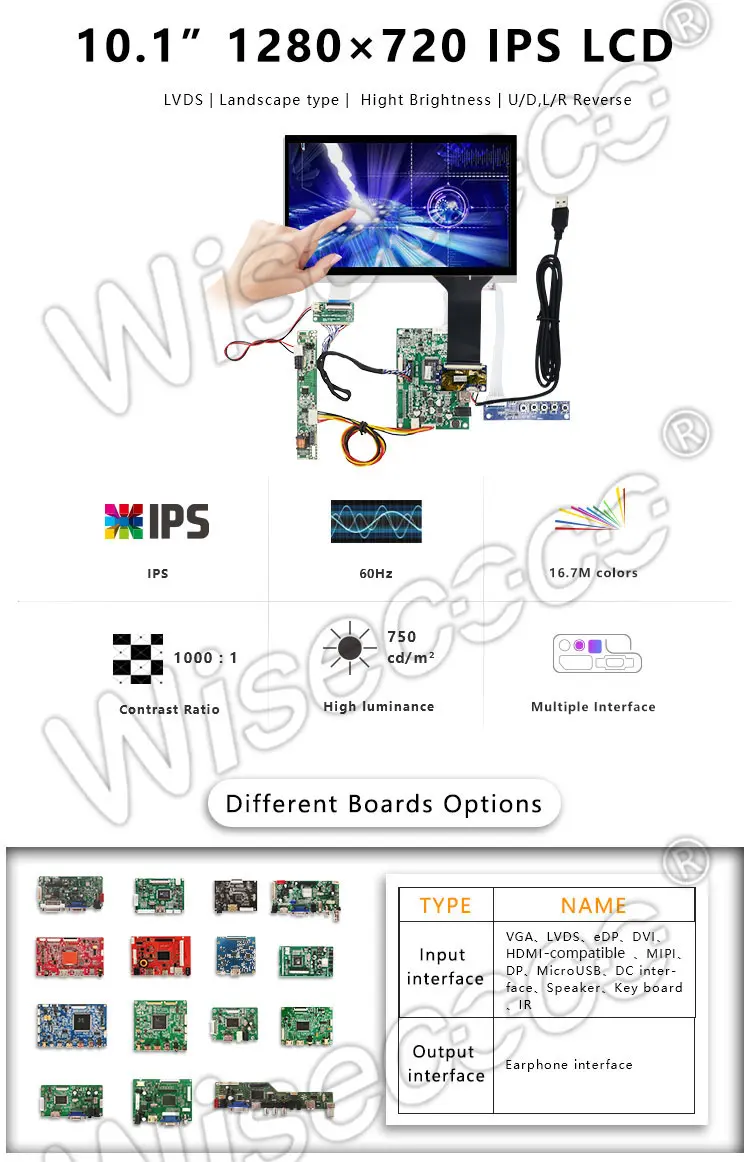

10.1″ IPS LCD Display — 1280×720 | 750 cd/m² | Wide Temperature | LVDS
10.1-inch high-brightness a-Si TFT-LCD display features 1280×720 WXGA resolution and 750 cd/m² typical luminance for clear visual output in automotive, industrial, tablet, and other embedded applications. With a 1000:1 contrast ratio, 85/85/85/85 viewing angle, 60Hz frame rate, and antiglare treatment, it provides a practical display solution for industrial display product designs.
|
General Features
|
|||
|
Diagonal Size
|
10.1 inch
|
Type
|
a-Si TFT-LCD, LCM
|
|
Pixel Format
|
1280(RGB)*720 [WXGA]
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
223.68(H)*125.82(V) mm
|
Outline Dim.
|
238.6(H)*148(V)*9.7(D) mm
|
|
Bezel Area
|
226.68(H)*128.82(V) mm
|
Treatment
|
Antiglare
|
|
Luminance
|
750 Cd/m² (Typ.)
|
Contrast Ratio
|
1000:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
10/15 (Typ.)(Tr/Td)
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR≥10)
|
Operating Mode
|
AAS, Normally Black, Transmissive
|
|
Support Color
|
262K/16.7M 70% NTSC
|
Light Source
|
WLED , 20K hours , W/O Driver
|
|
Weight
|
360g (Max.)
|
Designed For
|
Automotive Display&Industrial&Pad&Tablet
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
Available
|
|
Interface Type
|
LVDS (1 ch, 6/8-bit) , 40 pins , Connector
|
||
|
Power Supply
|
3.3V (Typ.)
|
||
|
Environment
|
Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C
|
||
Features:
- 1280×720 WXGA Resolution — Delivers clear graphical content for automotive interfaces, industrial equipment, tablets, and embedded systems.
- 750 cd/m² High Brightness — Provides enhanced screen visibility for applications that require higher luminance than standard display modules.
- 85/85/85/85 Wide Viewing Angle — Supports consistent image visibility from different viewing directions.
- -30 to 85°C Operating Temperature — Supports a wide specified operating temperature range for automotive and industrial applications.
- 1000:1 Contrast Ratio & Antiglare Treatment — Provides clear image contrast while helping reduce distracting surface reflections.
Ideal for: Automotive Displays · Industrial Equipment · Tablets · Embedded HMI · Portable Devices
