- Size:10.1 inch
- Resolution:1280×800
- Interface:45 pins LVDS
- Active Area:216.96(H)x135.6(V) mm
- Outline Dimension:227.42(H)x147.69(V)x4.85(D) mm
- Viewing Angle :85/85/85/85 (Typ.)(CR≥10)
- High Brightness :350 Cd/m2 (Typ.)
- Operation / Storage Temp:-10~60°C / -20~70°C

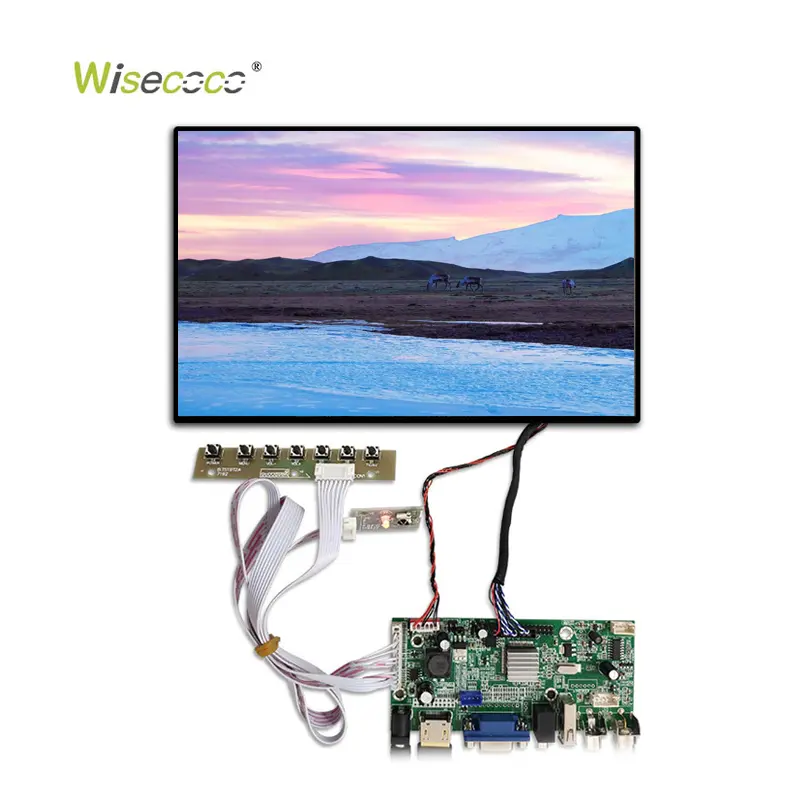

10.1 Inch IPS FHD Landscape Type LCD Display 1280×800 Resolution 45 Pins LVDS LCD Module
$68.00
10.1″ IPS FHD LCD Display — 1280×800 WXGA | 350 cd/m² | Viewing Angle | LVDS
10.1-inch FHD TFT-LCD Display features 1280×800 resolution and normally black, transmissive display mode for detailed visual output. With 350 cd/m² typical luminance, viewing angles, 60Hz operation, and a LVDS interface, it is designed for raspberry pi and computer applications.
|
Diagonal Size
|
10.1 inch
|
Type
|
a-Si TFT-LCD , LCM
|
|
Pixel Format
|
1280(RGB)*800 [WXGA]
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
216.96(H)*135.6(V) mm
|
Outline Dim.
|

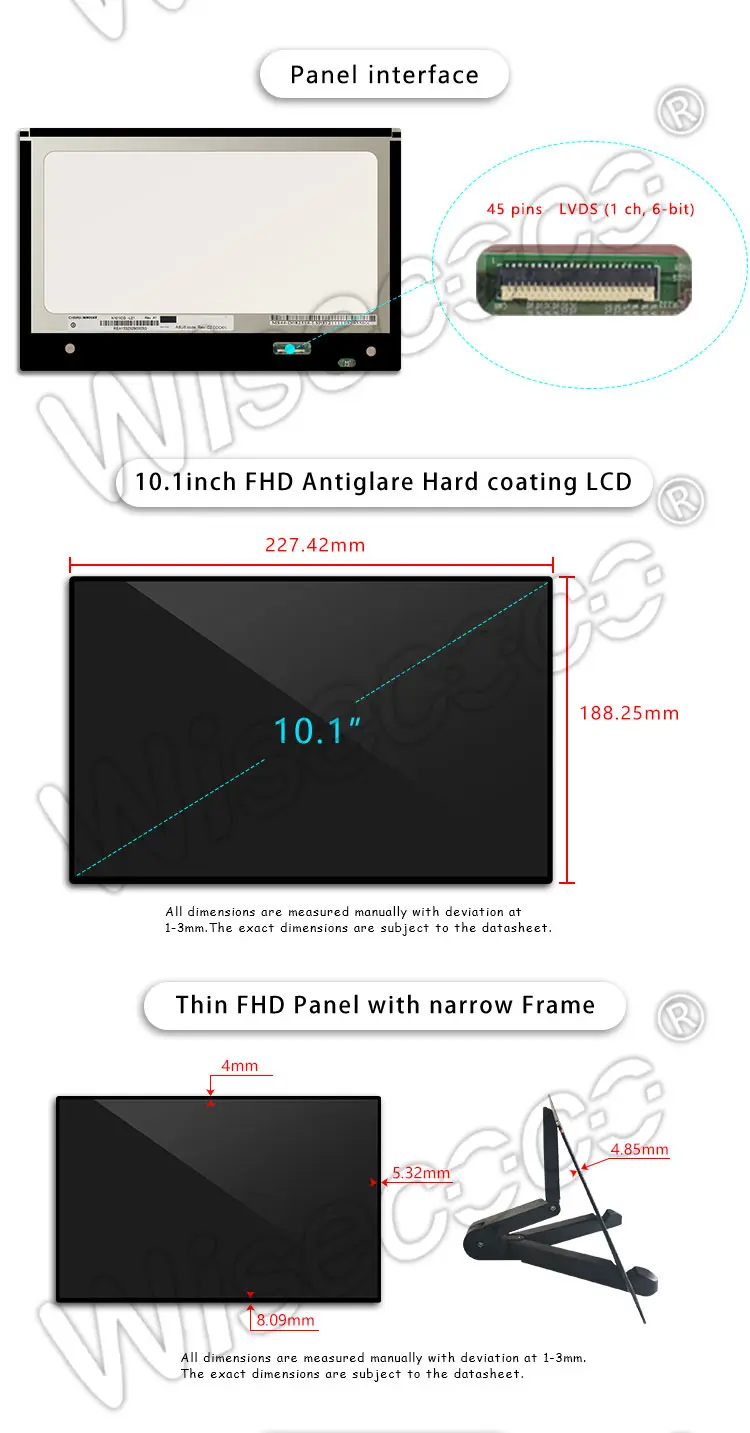

227.42(H)*147.69(V)*4.85(D) mm
|
|
Bezel Area
|
219.31(H)*138.25(V) mm
|
Treatment
|
Glare (Haze 0%), Hard coating (3H)
|
|
Luminance
|
350 Cd/m2 (Typ.)
|
Contrast Ratio
|
800:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
14/11 (Typ.)(Tr/Td)
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR≥10)
|
Operating Mode
|
AAS, Normally Black, Transmissive
|
|
Support Color
|
262K 50% (CIE1931)
|
Light Source
|
WLED , 12K hours , With LED Driver
|
|
Weight
|
120/135g (Typ./Max.)
|
Designed For
|
raspberry pi
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
Optional
|
|
Interface Type
|
45 pins LVDS (1 ch, 6-bit) , Connector
|
||
|
Power Supply
|
3.3V (Typ.)
|
||
|
Environment
|
Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C
|
||
Features
- 1280×800 WXGA Resolution — Provides clear and detailed visual content for Raspberry Pi interfaces, applications, and graphical displays.
- 350 cd/m² Typical Luminance — Delivers practical brightness for the specified embedded display applications.
- 85/85/85/85 Wide Viewing Angle — Supports consistent image visibility from different viewing directions.
- Glare Treatment & 3H Hard Coating — Helps manage surface reflections while providing a durable hard-coated display surface.
- 60Hz Frame Rate — Supports smooth display performance for graphical interfaces and interactive content.

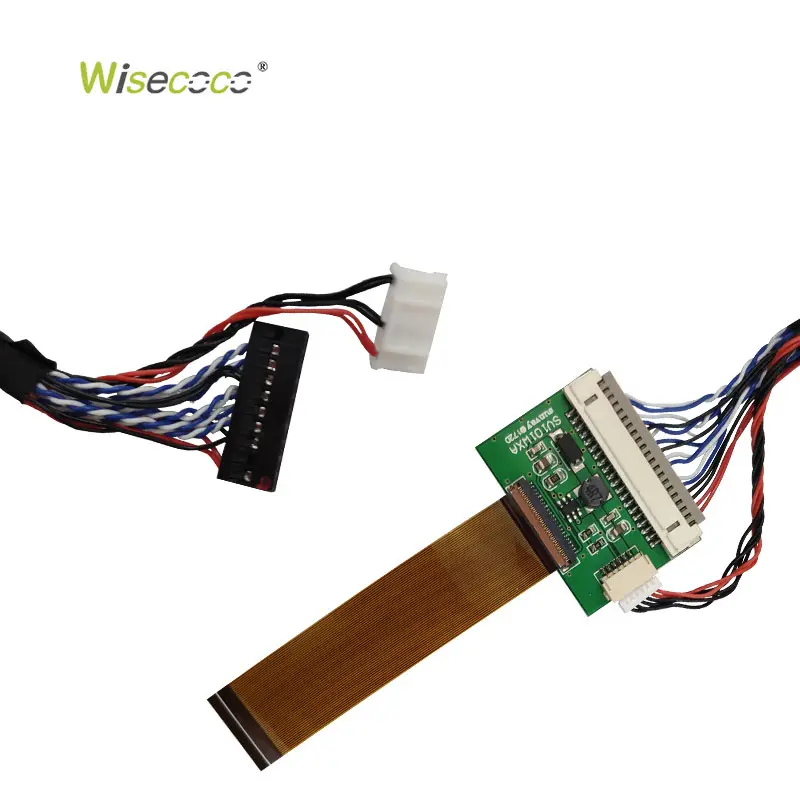

- 45-Pin LVDS Interface & Optional Touch Panel — Provides LVDS connectivity for system integration, while an optional touch panel supports interactive product designs.
Ideal for: Raspberry Pi Projects · Embedded Systems · HMI Applications · DIY Electronics · Interactive Devices
