- Size:15.6 inch
- Resolution:1920×1080
- Panel Interface:eDP (1 Lane)
- Active Area:344.16(H)*193.59(V) mm
- Outline Dimension:359.5(H)*224.3(V)*3.2(D) mm
- Viewing Angle:45/45/20/45 (Typ.)(CR≥10)
- Brightness :220 Cd/m² (Typ.)
- Operation / Storage Temp:0~50°C / -20~60°C

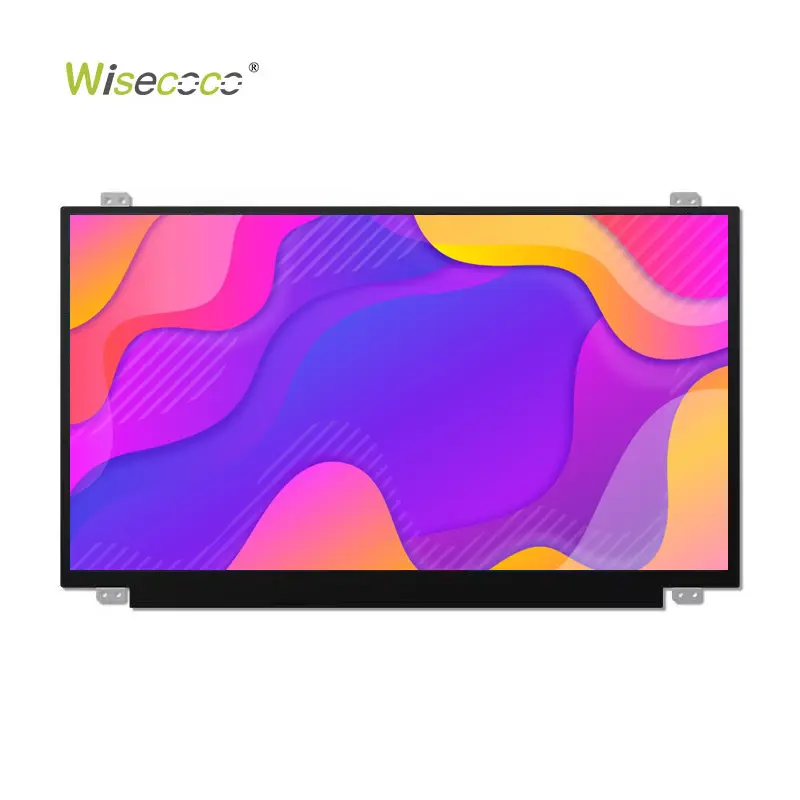

Custom 15.6 Inch 1920X1080 Resolution FHD TFT LCD Display Slim High Color Gamut LCD Module for Laptop
$89.00
15.6″ FHD TFT LCD Display — 1920×1080 | eDP | White LED Backlight
15.6-inch slim TFT LCD display delivering 1920(RGB)×1080 FHD resolution with antiglare and hard coating (3H) surface treatment for enhanced durability and reduced glare. Featuring 200cd/m² luminance, a transflective operating mode for versatile lighting conditions, and an eDP 2-lane 30-pin interface.
|
General Features
|
|||
|
Screen Size
|
15.6 inch
|
Type
|
TFT
|
|
Pixel Number
|
1920(RGB)*1080 , FHD
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area(mm)
|
344.16(W)*193.59(H) mm
|
Outline(mm)
|
359.5(W)*224.3(H) *3.2(D) mm
|
|
Bezel Area(mm)
|
–
|
Treatment
|
Antiglare,Hard coating (3H)
|
|
Luminance
|
200Cd/m² (Typ.)
|
Contrast Ratio
|
500:1 (Typ.) (TM)
|
|
View Direction
|
6 o’clock
|
Response Time
|
3/8 (Typ.)(Tr/Td) ms
|
|
Viewing Angle
|
45/45/20/45 (Typ.)(CR≥10)
|
Operating Mode
|
TN, Normally White, Transflective
|
|
Support Color
|
262K 46% (CIE1931)
|
Backlight
|
WLED , 15K hours , With LED Driver
|
|
Shape Style
|
Slim (PCBA Flat, Depth ≤3.2mm)
|
Used for
|
Laptop
|
|
Refresh Rate
|
60Hz
|
Touchscreen
|
Optional
|
|
Voltage Supply
|
3.3V (Typ.)
|
Signal Type
|

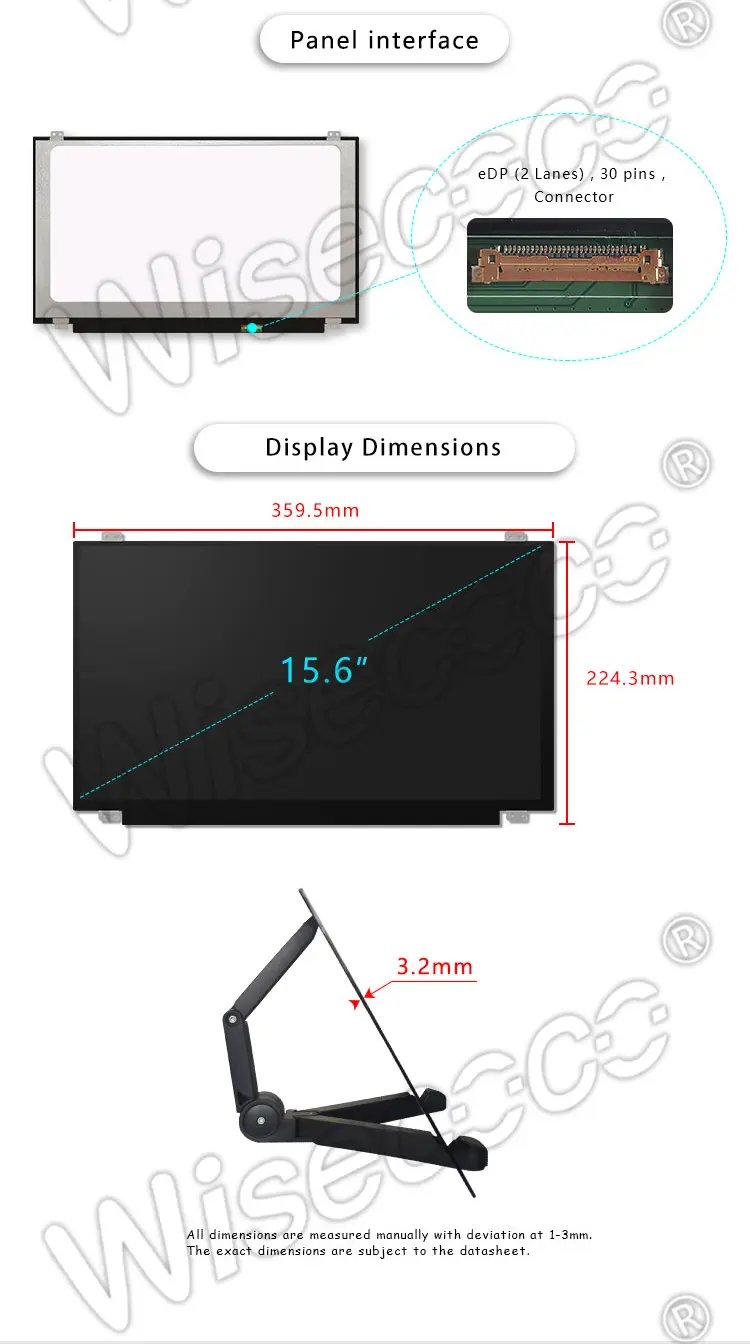

eDP (2 Lanes) , 30 pins , Connector
|
|
Environment
|
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
|
||
Features:
- 1920×1080 FHD Resolution — Sharp, high-definition imagery suited for laptop and everyday computing use.
- Antiglare + Hard Coating (3H) Surface — Reduced glare combined with scratch-resistant treatment for enhanced durability.
- 500:1 Contrast Ratio — Reliable dynamic range for clear, well-defined imagery.
- 220cd/m² Luminance — Consistent brightness across varied ambient lighting conditions.
- Slim Design (≤3.2mm Depth) — Ultra-thin profile ideal for laptop and slim panel integration.
Ideal for: Laptop & notebook displays · Outdoor-readable portable devices · Replacement laptop screens · Business & consumer notebooks · Custom embedded computing projects
Wisecoco offers One-step customized display module solutions.
