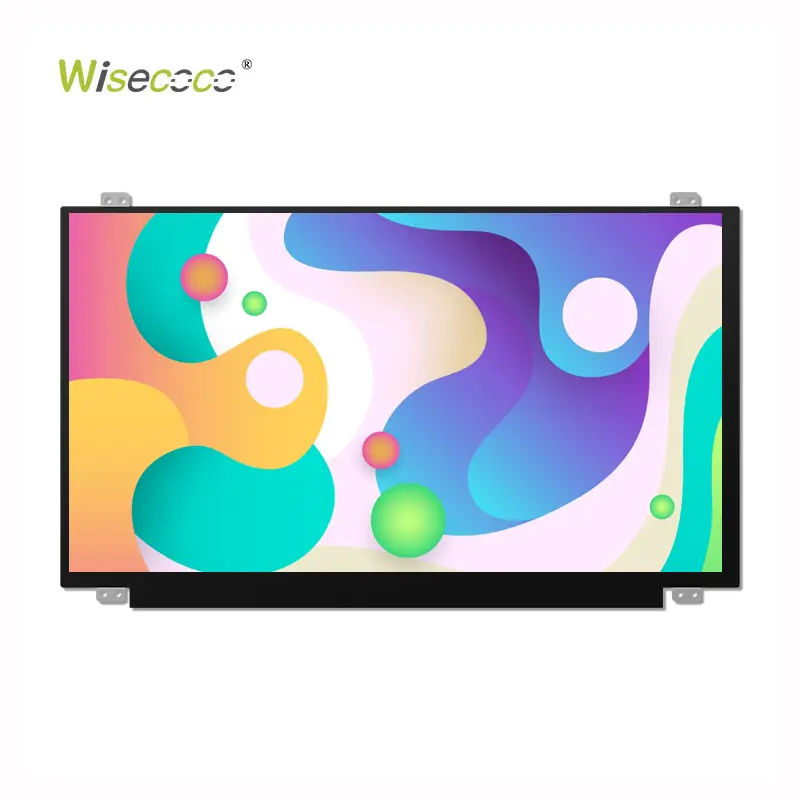

15.6 Inch 1920×1080 Thin FHD TFT LCD Display 30 Pins EDP LCD Digital Module for Industrial HMI

$89.00

  • Size:15.6 inch
  • Resolution:1920×1080
  • Panel Interface:eDP (1 Lane)
  • Active Area:344.16(H)*193.59(V) mm
  • Outline Dimension:359.5(H)*224.3(V)*3.2(D) mm
  • Viewing Angle:45/45/20/45 (Typ.)(CR≥10)
  • Brightness :220 Cd/m² (Typ.)
  • Operation / Storage Temp:0~50°C / -20~60°C

>Get a Quote

15.6″ FHD LCD Display — 1920×1080 | eDP | Antiglare + Hard Coating (3H)

15.6-inch slim fhd a-Si TFT-LCD display delivering 1920(RGB)×1080 FHD resolution with antiglare and hard coating (3H) surface treatment for enhanced durability and reduced glare. Featuring 220cd/m² luminance, an eDP 2-lane 30-pin interface, and a 15,000-hour WLED backlight with integrated LED driver.

General Features
Screen Size
15.6 inch
Type
a-Si TFT-LCD , LCM
Pixel Number
1920(RGB)81080 [FHD]
Configuration
RGB Vertical Stripe
Active Area(mm)
344.16(H)*193.59(V) mm
Outline(mm)
359.5(H)*224.3(V)*3.2(D) mm
Bezel Area(mm)
–
Treatment
Antiglare, Hard coating (3H)
Luminance
220 Cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (TM)
View Direction
6 o’clock
Response Time
3/8 (Typ.)(Tr/Td)
Viewing Angle
45/45/20/45 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Support Color
262K 46% (CIE1931)
Light Source
WLED , 15K hours , With LED Driver
Outline Shape
Slim (PCBA Flat, Depth ≤3.2mm)
Used for
Laptop
Refresh Rate
60Hz
Touchscreen
Optional
Voltage Supply
3.3V (Typ.)
Signal Type
eDP (2 Lanes) , Connector , 30 pins
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Features:

  • 1920×1080 FHD Resolution — Sharp, high-definition imagery suited for laptop and everyday computing use.
  • Antiglare + Hard Coating (3H) Surface — Reduced glare combined with scratch-resistant treatment for enhanced durability.
  • 500:1 Contrast Ratio — Reliable dynamic range for clear, well-defined imagery.
  • 220cd/m² Luminance — Consistent brightness across varied ambient lighting conditions.
  • Slim Design (≤3.2mm Depth) — Ultra-thin profile ideal for laptop and slim panel integration.

Ideal for: Laptop & notebook displays · Replacement laptop screens · Portable computing devices · Business & consumer notebooks · Custom embedded computing projects

Wisecoco offers One-step customized display module solutions.

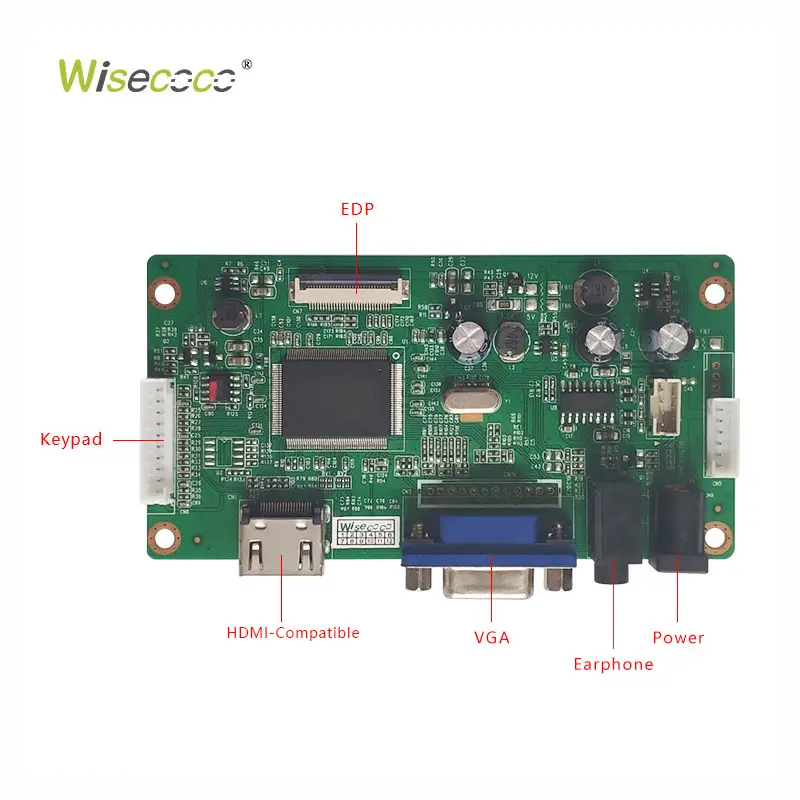

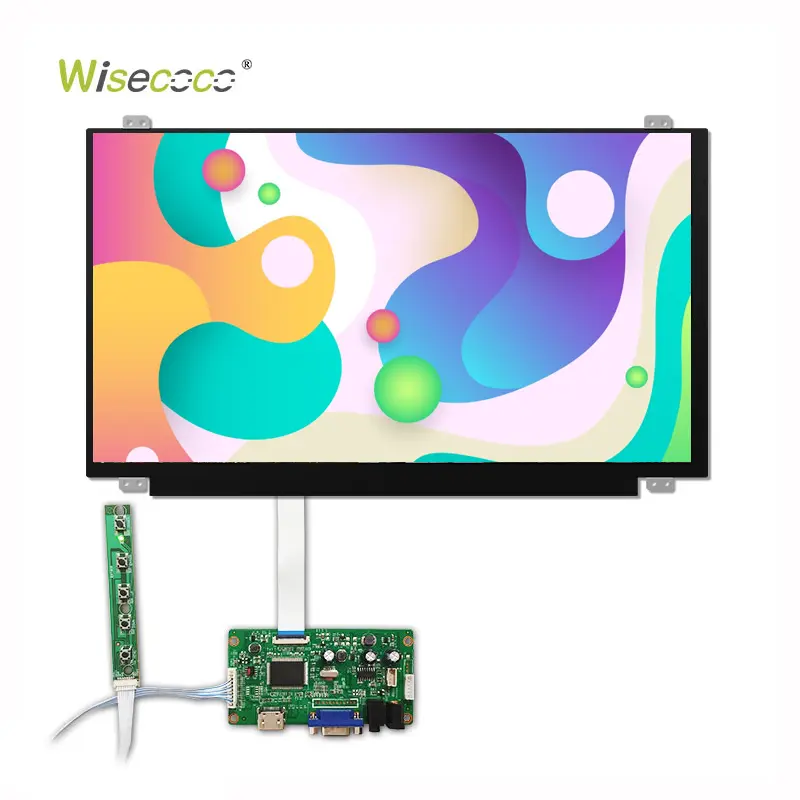

15.6 Inch 1920*1080 Thin FHD Panel TFT LCD Module with 30 Pins EDP Driver Board15.6 Inch 1920*1080 Thin FHD Panel TFT LCD Module with 30 Pins EDP Driver Board15.6 Inch 1920*1080 Thin FHD Panel TFT LCD Module with 30 Pins EDP Driver Board15.6 Inch 1920*1080 Thin FHD Panel TFT LCD Module with 30 Pins EDP Driver Board
