- Size:15.6 inch
- Resolution:1366×768
- Panel Interface:LVDS
- Active Area:344.232(W)*193.536(H) mm
- Outline Dimension:363.8(W)*215.9(H)*17.35(D) mm
- Brightness :400cd/m²(Typ.)
- Operation / Storage Temp:0~60°C / -20~60°C

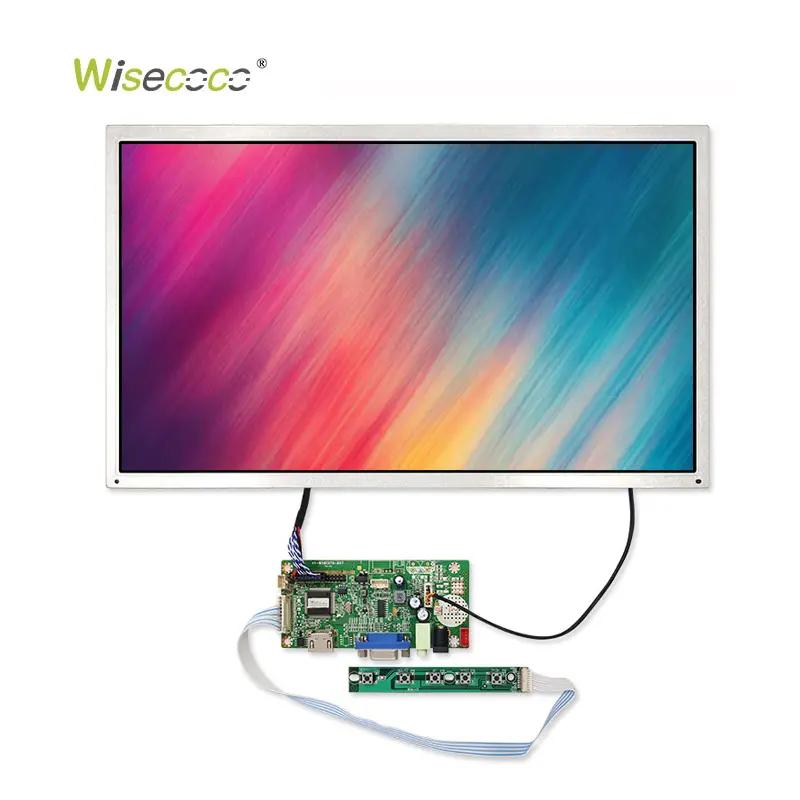

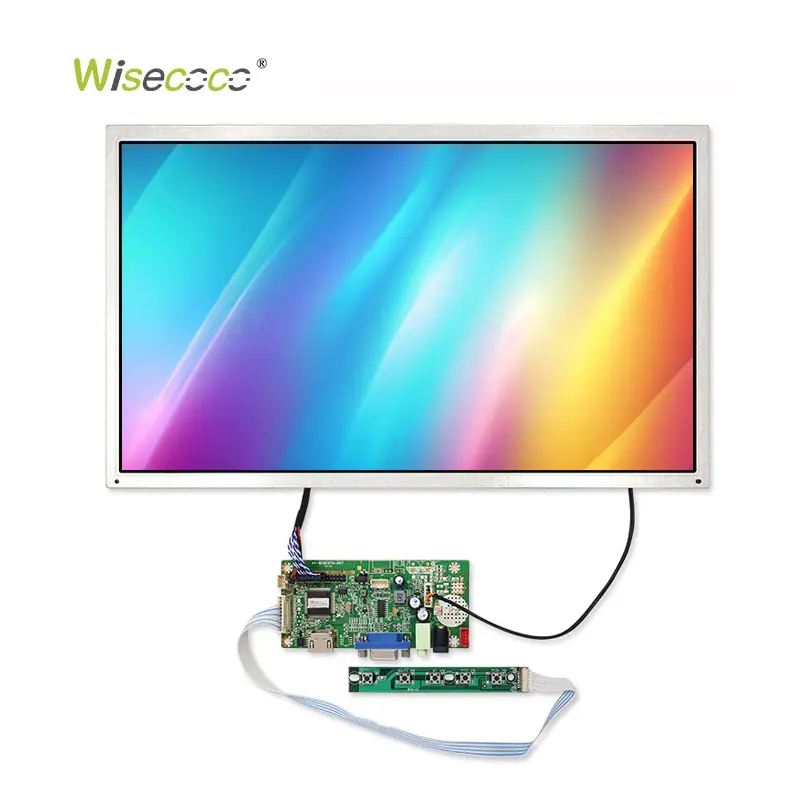

15.6 Inch 1366×768 WXGA LCD Panel 400 Nits 60Hz LVDS 30 Pin LCD Display with Driver Board
$115.00
15.6 Inch LCD Panel — 1366×768 | LVDS | Vibration Resistant 1.5G | WLED Backlight

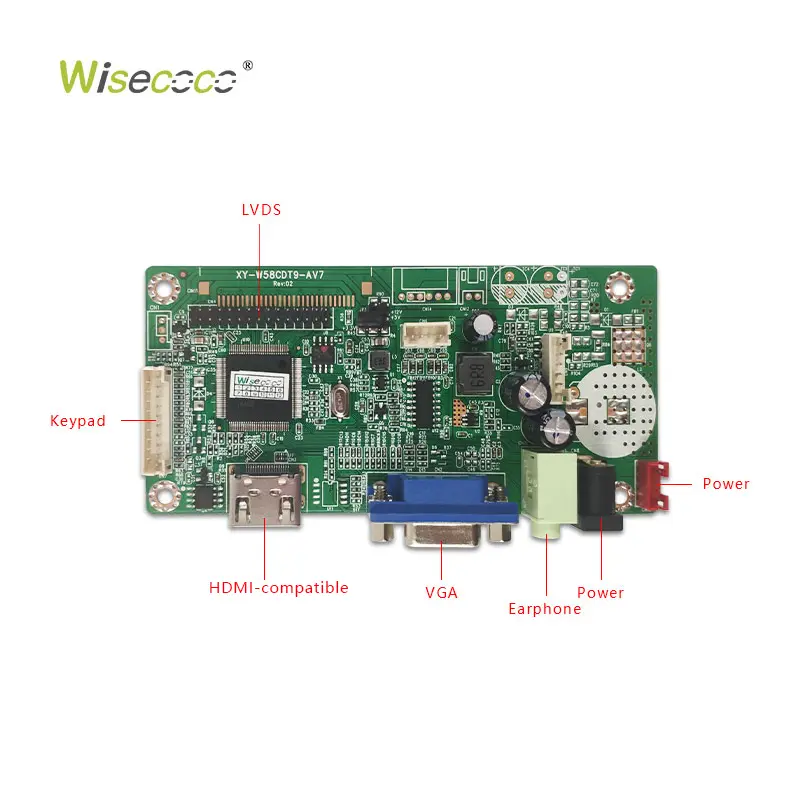

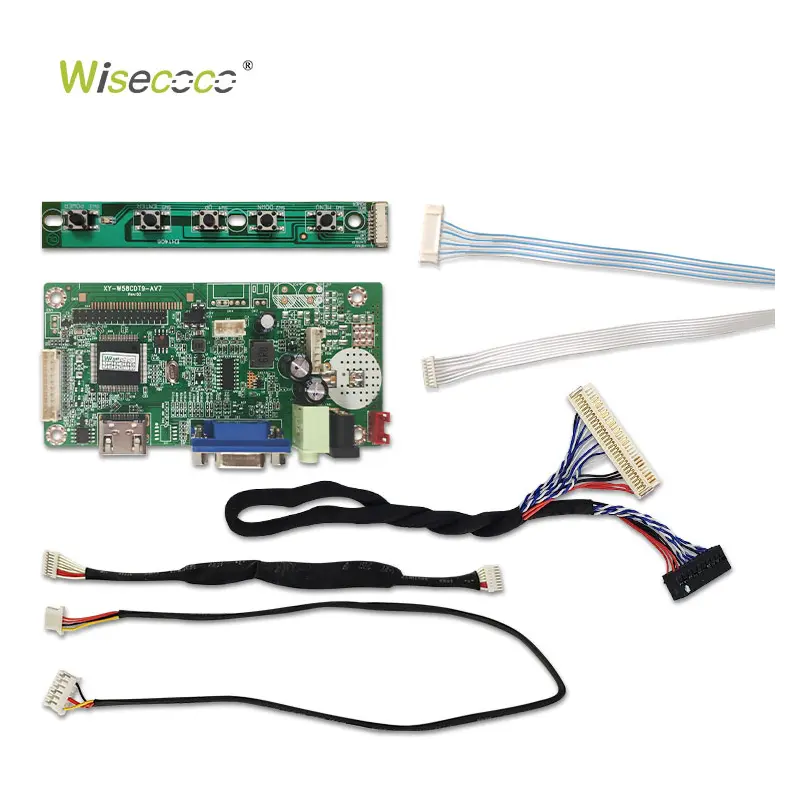

15.6-inch LCD panel delivering 1366×768 resolution with antiglare surface treatment and reliable vibration resistance of 1.5G for demanding mobile and industrial environments. Featuring 400cd/m² luminance, a smooth 60Hz refresh rate, and 70% NTSC color gamut, this landscape-type display comes with multiple driver board options for flexible integration.
|
Diagonal Size
|
15.6 inch
|
Type
|
a-Si TFT-LCD , LCM
|
|
Pixel Format
|
1366(RGB)*768 , WXGA
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
344.232(W)*193.536(H) mm
|
Outline Dim.
|
363.8(W)*215.9(H)*17.35(D) mm
|
|
Bezel Opening
|
347.54(W)*196.83(H) mm
|
Treatment
|
Antiglare, Hard coating (3H)
|
|
Luminance
|
400 Cd/m² (Typ.)
|
Contrast Ratio
|
500:1 (Typ.) (TM)
|
|
View Direction
|
–
|
Response Time
|
6/2 (Typ.)(Tr/Td)
|
|
Viewing Angle
|
85/85/80/80 (Typ.)(CR≥10)
|
Operating Mode
|
TN, Normally White, Transmissive
|
|
Support Color
|
16.2M 70% (CIE1931)
|
Light Source
|
WLED , 50K hours , With LED Driver
|
|
Weight
|
1.25/1.35Kgs (Typ./Max.)
|
Application
|
Laptop:Industrial
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
Without
|
|
Interface Type
|

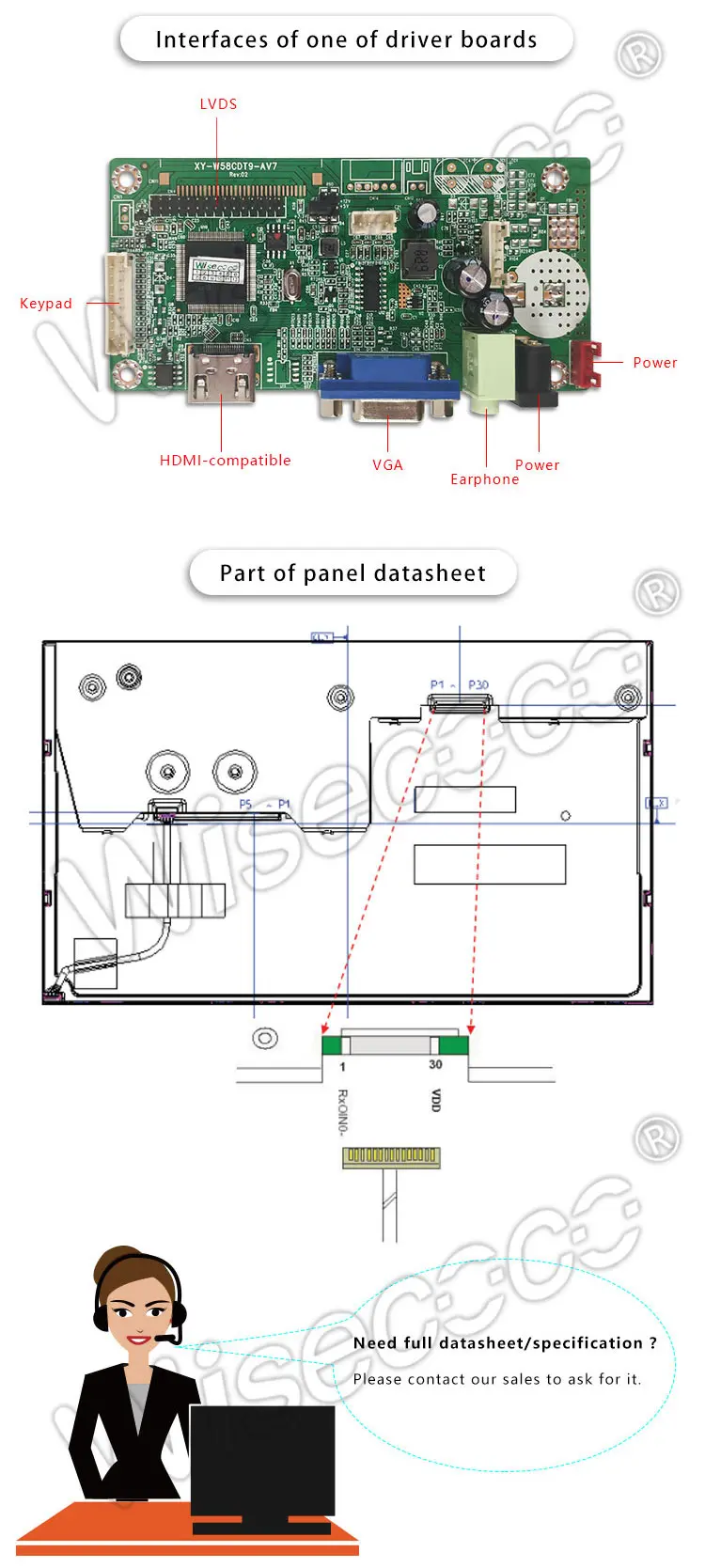

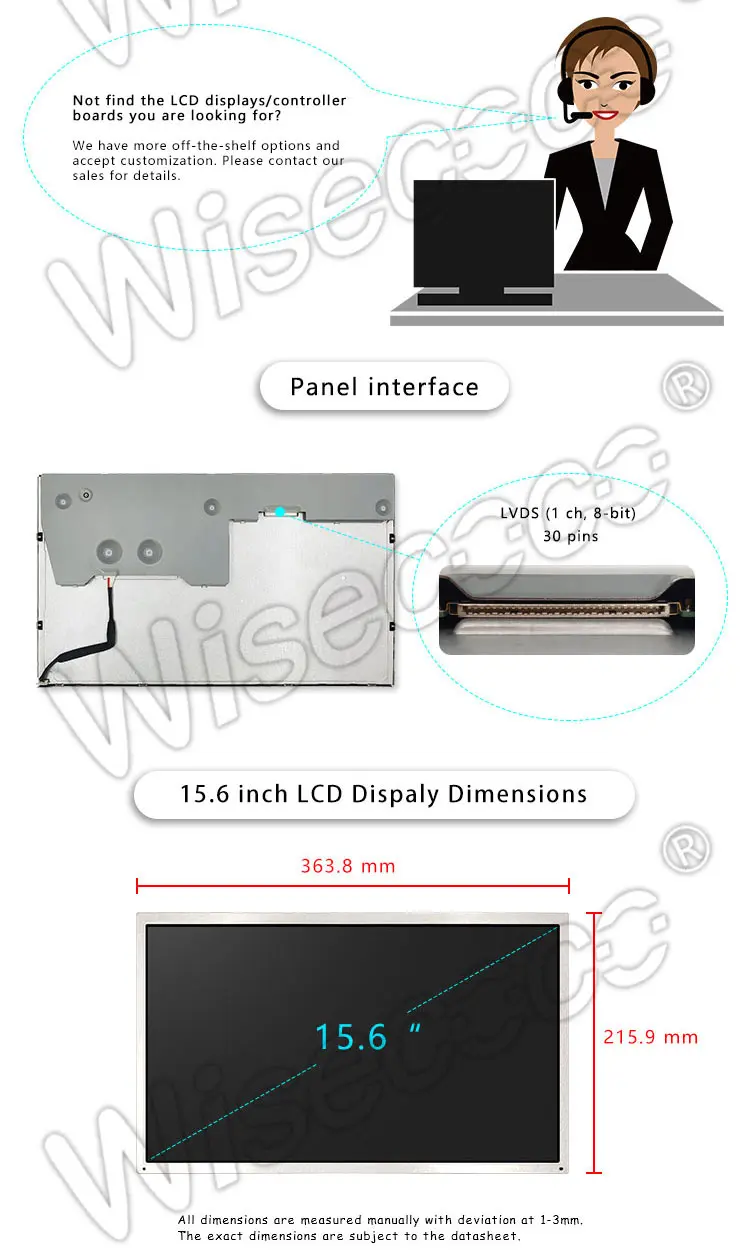

LVDS (1 ch, 8-bit) , 30 pins , Connector
|
||
|
Power Supply
|
5.0V (Typ.)
|
||
|
Environment
|
Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C
|
||
Features:
- 1366×768 Resolution with Antiglare Surface — Clear, glare-reduced imagery suited for icons, text, and video content in varied lighting.
- 1.5G Vibration Resistance — Rugged construction withstands mechanical stress, ideal for mobile, vehicle, and industrial applications.
- 400cd/m² Luminance — Bright, clear display readable across varied ambient lighting conditions.
- 16.2M Colors, 70% NTSC Gamut — Rich, accurate color reproduction for vivid, true-to-life visuals.
- 60Hz Refresh Rate — Smooth, fluid visuals with seamless transitions for a responsive viewing experience.
Ideal for: Industrial control panels · Vehicle-mounted & marine displays · Portable monitor builds · Digital signage · Custom embedded display integration
Wisecoco offers One-step customized display module solutions.
