- Size:13.3 inch
- Resolution:3840×2160
- Panel Interface:eDP (4 Lanes)
- Active Area:293.76(W)x165.24(H) mm
- Outline Dimension:299.46(W)x186.67(H)mm
- Viewing Angle :85/85/85/85 (Typ.)(CR≥10)
- Brightness :340cd/m²(Typ.)
- Operation / Storage Temp:0~50°C / -20~60°C
-8%

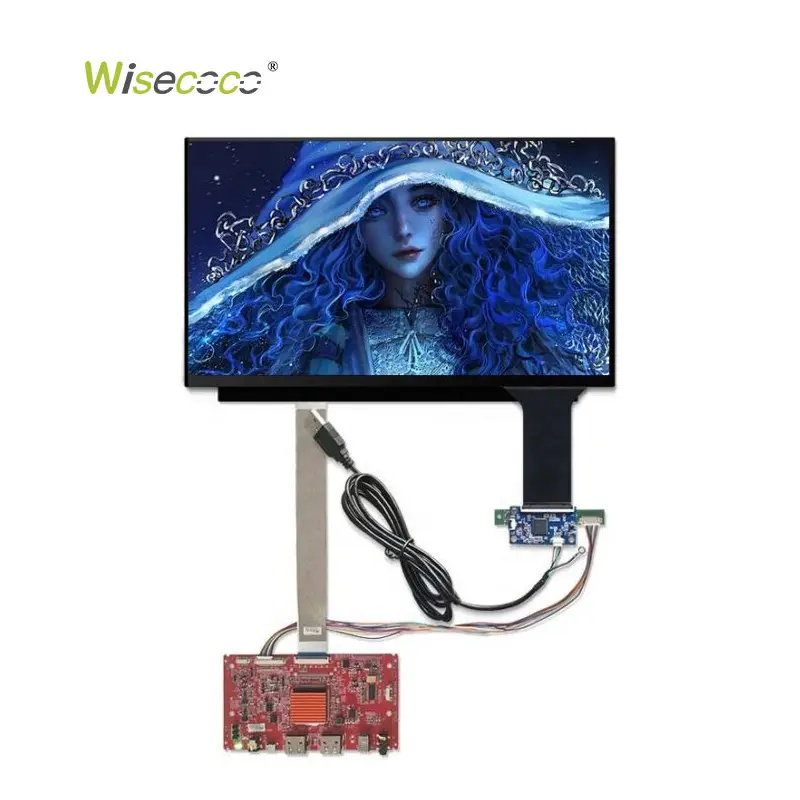

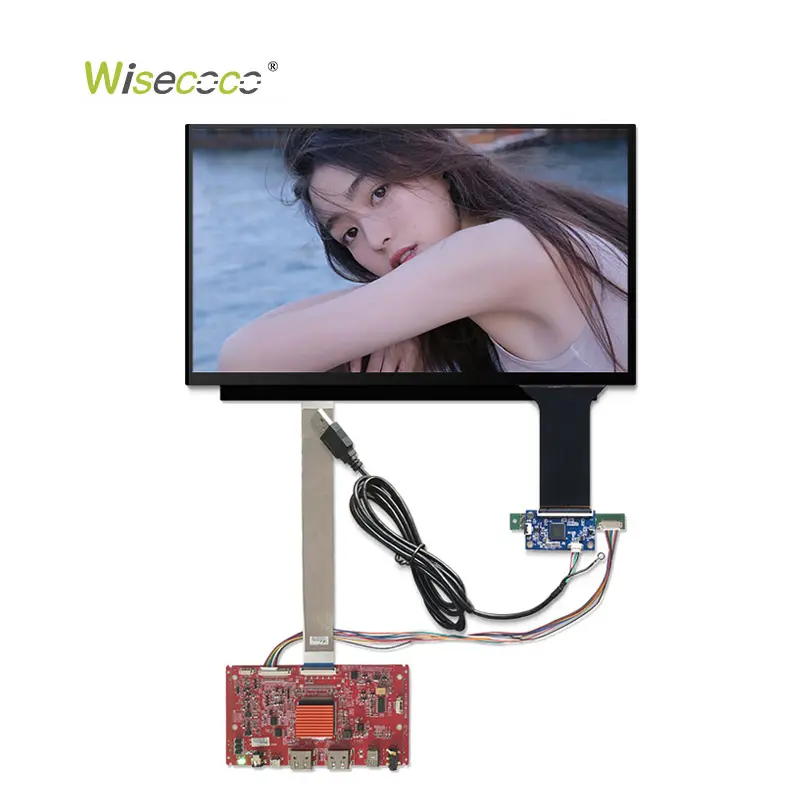

Manufacturer 13.3 Inch 4K Uhd Lcd Display Touch Screen 3840×2160 Edp Lcd Panel for Laptop Screen Replacement
Original price was: $260.00.$240.00Current price is: $240.00.
13.3″ 4K UHD TFT-LCD Display — 3840×2160 | 340 cd/m² | Wide Viewing Angle | 4-Lane eDP
13.3-inch 4K UHD TFT-LCD display delivers 3840×2160 resolution with 340 cd/m² typical luminance and a 1400:1 contrast ratio for detailed, high-quality visual output. With IPS display mode, 85/85/85/85 viewing angles, 60Hz frame rate, and a 4-lane eDP interface, it is designed for laptop applications requiring high-resolution display performance.
|
General Features |
|||
|
Diagonal Size |
13.3 inch |
Type |
IGZO TFT-LCD, LCM |
|
Pixel Format |
3840(RGB)*2160 [UHD] |
Configuration |
RGB Vertical Stripe |
|
Active Area |
293.76(W)*165.24(H) mm
|
Outline Dim. |
296.56(W)*168.16(H) mm
|
|
Bezel Area |
– |
Treatment |
Glare (Haze 0%), Hard coating (3H) |
|
Luminance |
340 Cd/m² (Typ.) |
Contrast Ratio |
1400:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
Response Time |
35 (Typ.)(Tr+Td) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
Operating Mode |
IPS, Normally Black, Transmissive |
|
Support Color |
16.7M 72% (CIE1931) |
Light Source |
WLED , 15K hours , With LED Driver |
|
Weight |
– |
Designed For |
Laptop |
| Frame Rate |
60Hz |
Touch Panel |
Available |
|
Interface Type |
40 pins eDP (4 Lanes) , Connector |
||
|
Power Supply |
3.3V (Typ.) |
||
|
Environment |
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
||
Features:
- 3840×2160 UHD Resolution — Provides highly detailed visual content for high-resolution laptop interfaces and graphical applications.
- IGZO TFT-LCD with IPS Mode — Combines IGZO TFT-LCD technology with a normally black, transmissive IPS display mode for clear visual output.
- 1400:1 Contrast Ratio — Provides strong contrast between dark and bright areas for improved image definition.
- 85/85/85/85 Wide Viewing Angle — Supports consistent viewing performance from different directions.
- 60Hz Frame Rate — Provides standard refresh performance for laptop and computer display applications.
Ideal for: Laptops · High-Resolution Computing Devices · Portable Computers · Embedded Display Systems
Contact Wisecoco for One-step OEM/ODM LCD panel solutions.
