- Size:10.3 inch
- Resolution:7680×4320
- Panel Interface:MIPI
- Active Area:228.096(W)x128.304(H)mm
- Outline Dimension:232.096(W)x138.402(H)mm
- Viewing Angle :80/80/80/80
- Operation / Storage Temp:-20~70°C / -30~80°C
-9%

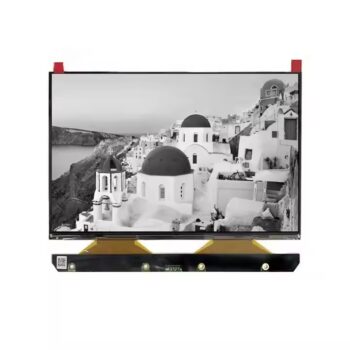

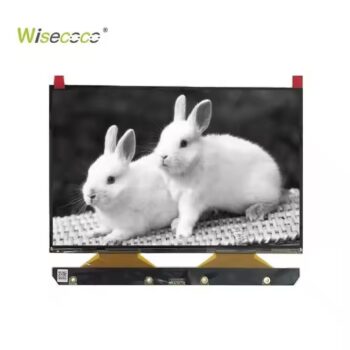

High Quality 10.3 Inch 8K Monochrome LCD Screen Mono Module for 3D Printer Panel
Original price was: $280.00.$255.00Current price is: $255.00.
10.3″ Monochrome LCD Screen — 7680×4320 8K | High Resolution | Backside Glass
10.3-inch monochrome LCD screen delivering ultra-high 7680×4320 8K resolution with precise grayscale rendering, purpose-built for high-density masking and lithography applications. Featuring backside glass construction, wide temperature tolerance, and controlled 5% light transmittance, this display offers exceptional pixel density for specialty industrial use.
|
item
|
value
|
|
Type
|
Lcm
|
|
Display Size
|
10.3 inch
|
|
Supplier Type
|
China factory directly supply
|
|
Place of Origin
|
Guangdong,China
|
|
Brand Name
|
wisecoco
|
|
Resolution
|
7680*4320
|
|
Interface
|
MIPI
|
|
Size
|
10.3 inch
|
|
Application
|
3D Printer LCD
|
|
Product Name
|
8K mono lcd panel
|
|
Brightness
|
0 Cd/m^2
|
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR 10)
|
|
Backlight
|
Without
|
|
Active Area
|
228.096*128.304(W*H)mm
|
|
Outline Dimension
|
238.5*146.5(W*H)mm
|
Features:
- 7680×4320 8K Resolution — Ultra-high pixel density delivers exceptionally fine detail, ideal for precision masking and high-resolution monochrome applications.
- Monochrome LCD Technology — Grayscale-only display optimized for UV curing, lithography, and light-modulation applications.
- Light Transmittance up to 5% — Precisely controlled light passage suited for photopolymer curing and masking processes.
- Backside Glass Construction — Durable glass backing designed to withstand exposure to UV light sources and industrial use.
Ideal for: 3D printer masking (resin/LCD-based SLA/DLP) · UV lithography systems · Industrial exposure equipment · Precision optical masking · Custom high-resolution imaging projects
