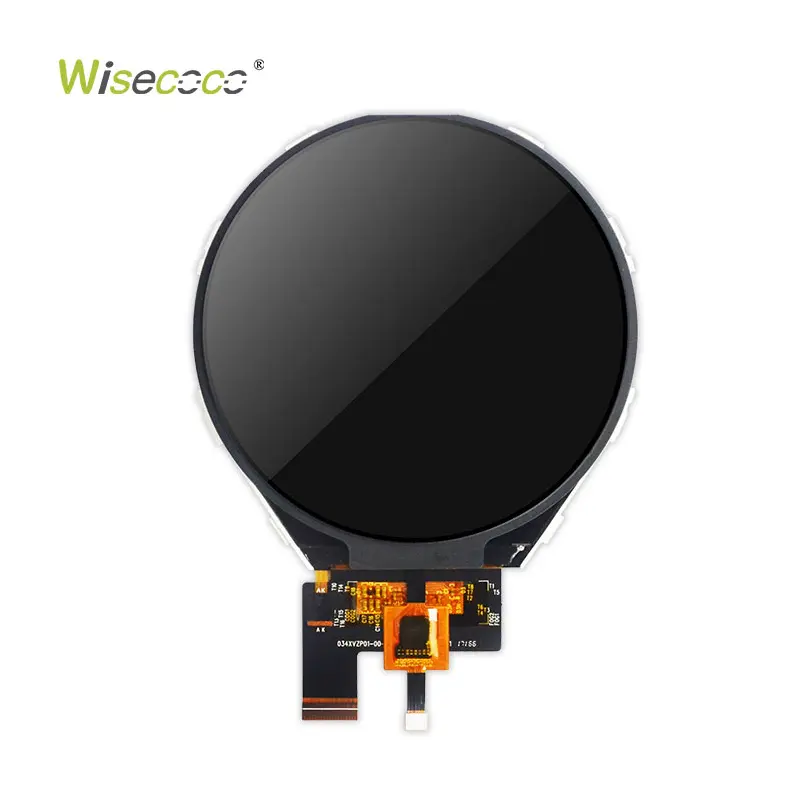

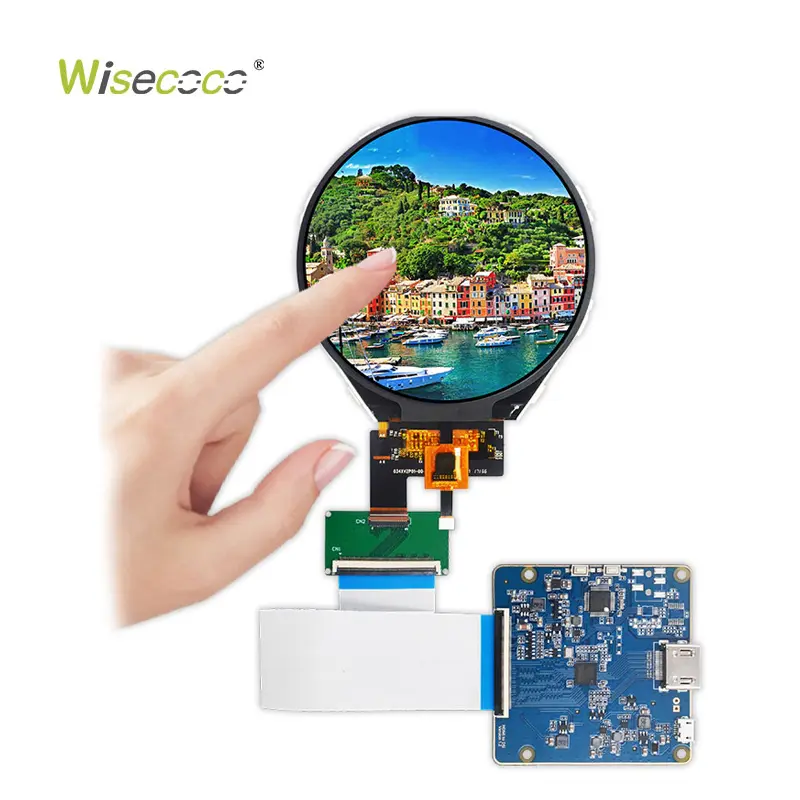

3.4″ IPS Round LCD Display — 800×800 | 350 cd/m² | Hard Coating | PCAP Touch
3.4-inch square IPS TFT-LCD panel with 7H ultra-hard coating, PCAP capacitive touch, and 30,000-hour WLED backlight. Designed for industrial instruments, meters, and Raspberry Pi applications requiring a square display with premium surface durability and reliable long-term operation. Customisation service available.
|
General Features
|
|
Diagonal Size
|
3.4 inch
|
Type
|
a-Si TFT-LCD, LCM
|
|
Pixel Format
|
800(RGB)*800
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
87.6(W)*87.6(H) mm
|

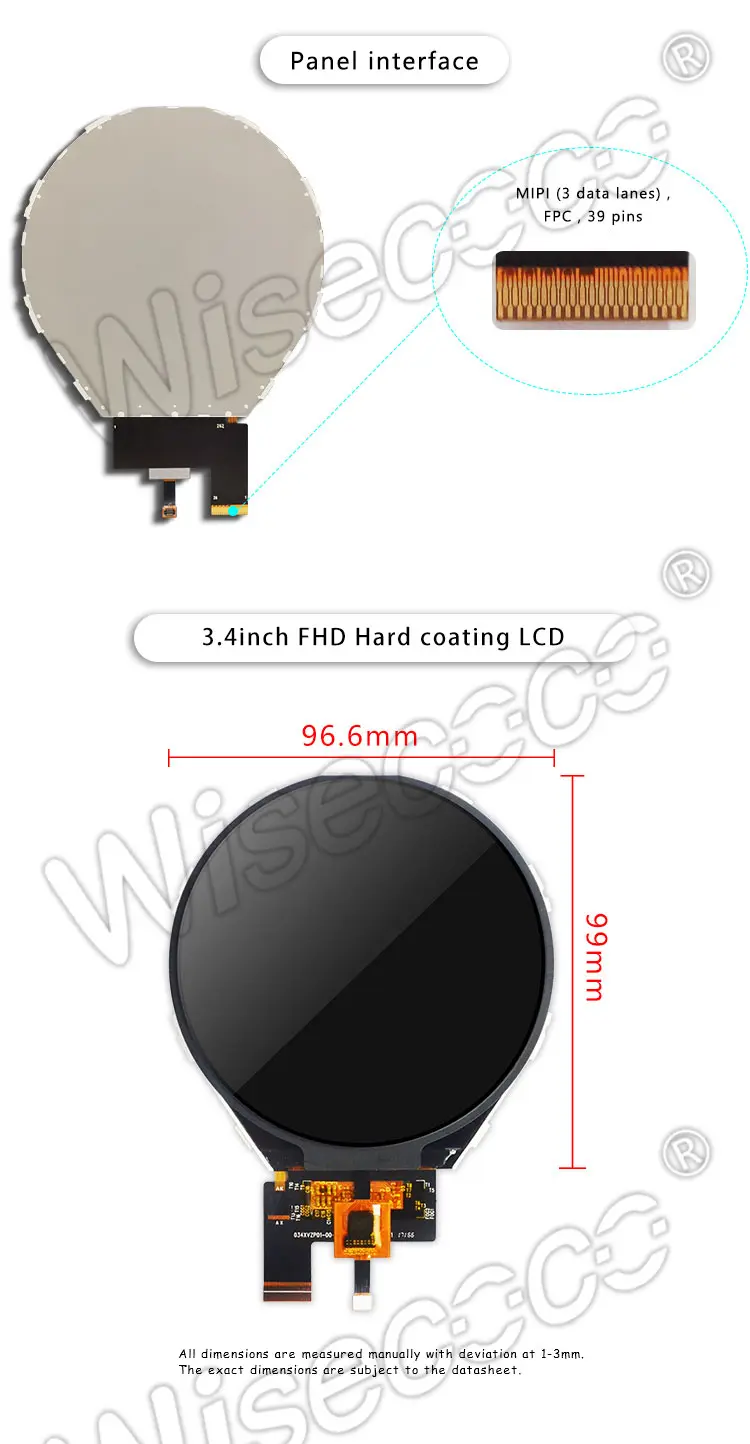

Outline Dim.
|
99(W)*96.6(H)mm
|
|
Bezel Area
|
88.6(W)*88.6(H) mm
|
Treatment
|
Hard coating (7H)
|
|
Luminance
|
350 cd/m² (Typ.)
|
Contrast Ratio
|
800:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
25 (Typ.)(Tr+Td)
|
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥10)
|
Operating Mode
|
SFT, Normally Black, Transmissive
|
|
Support Color
|
16.7M 70% (CIE1931)
|
Light Source
|
WLED [2S4P] , 30K hours , W/O Driver
|
|
Weight
|
TBD
|
Designed For
|
Industrial Application; meter; Raspbery Pi
|
|
Frame Rate
|
–
|
Touch Panel
|
PCAP
|
|

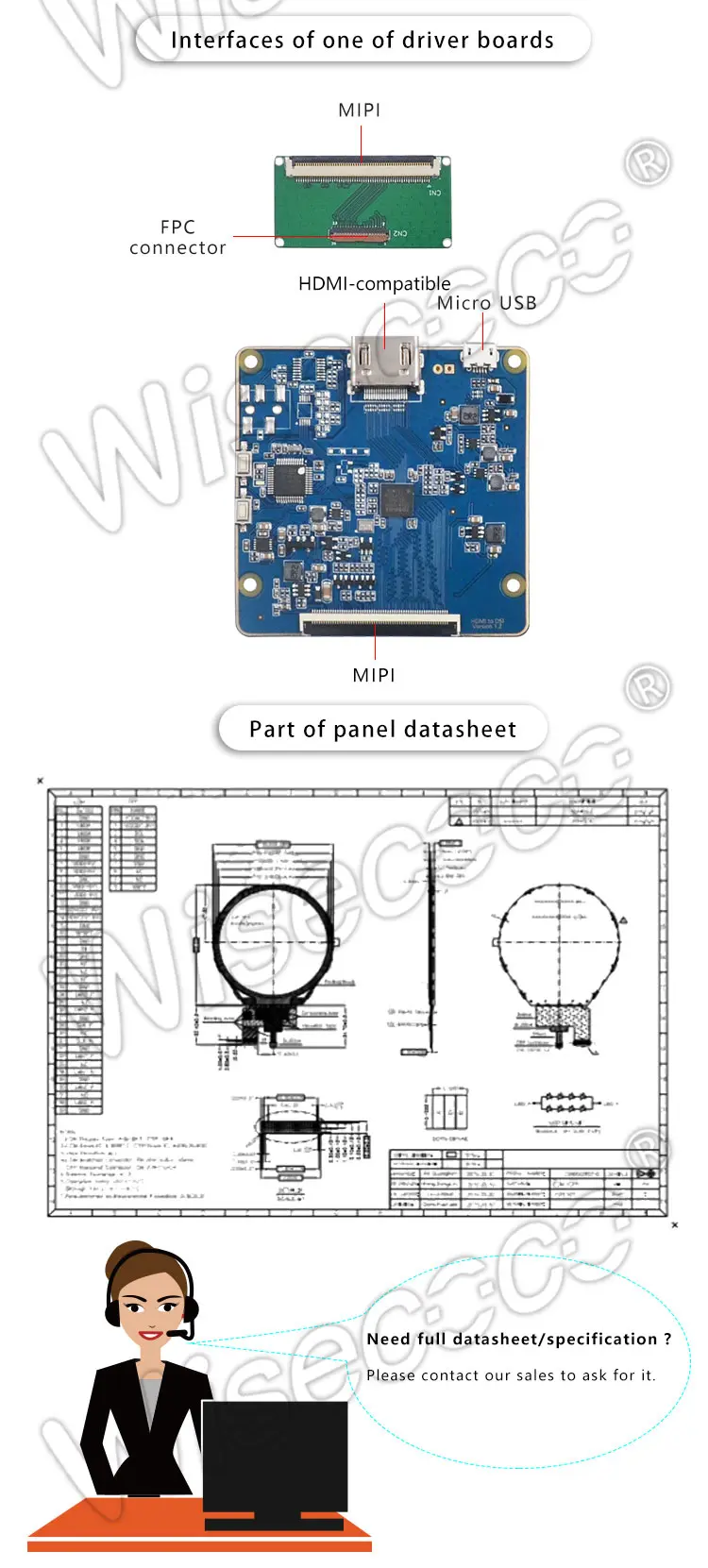

Interface Type
|

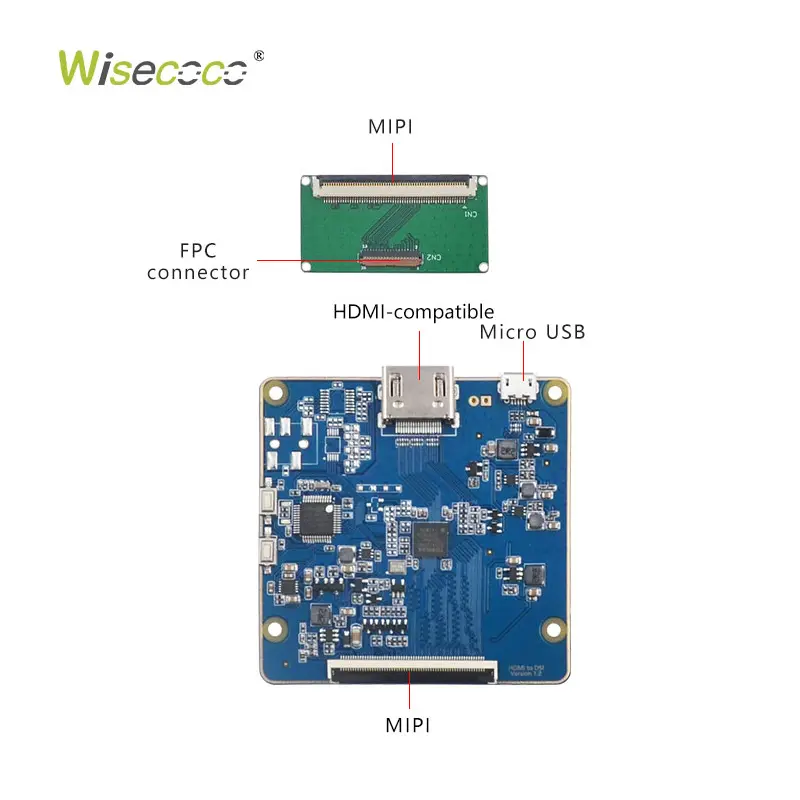

39 pins MIPI (3 data lanes) , FPC
|
|
Power Supply
|
1.8/5.0/-5.0V (Typ.)(IOVCC/VDD/-VDD)
|
|
Environment
|
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
|
Features:
- 800×800 Square Resolution — Equal horizontal and vertical pixel count. Ideal for round-bezel meter displays, instrument panels, and square embedded screens.
- 80/80/80/80° Wide Viewing Angle — Consistent image quality from any position. Clear readability for operators viewing instruments at various angles.
- 7H Hard Coating Surface — Exceptionally scratch-resistant 7H hardness — harder than most smartphone screen protectors. Protects against keys, tools, and sharp objects in industrial meter and instrument environments. Extends panel service life significantly.
- PCAP Capacitive Touch — Projected capacitive touch for smooth, responsive multi-finger interaction. Suitable for gloved operation in industrial environments. No additional touch overlay needed.
