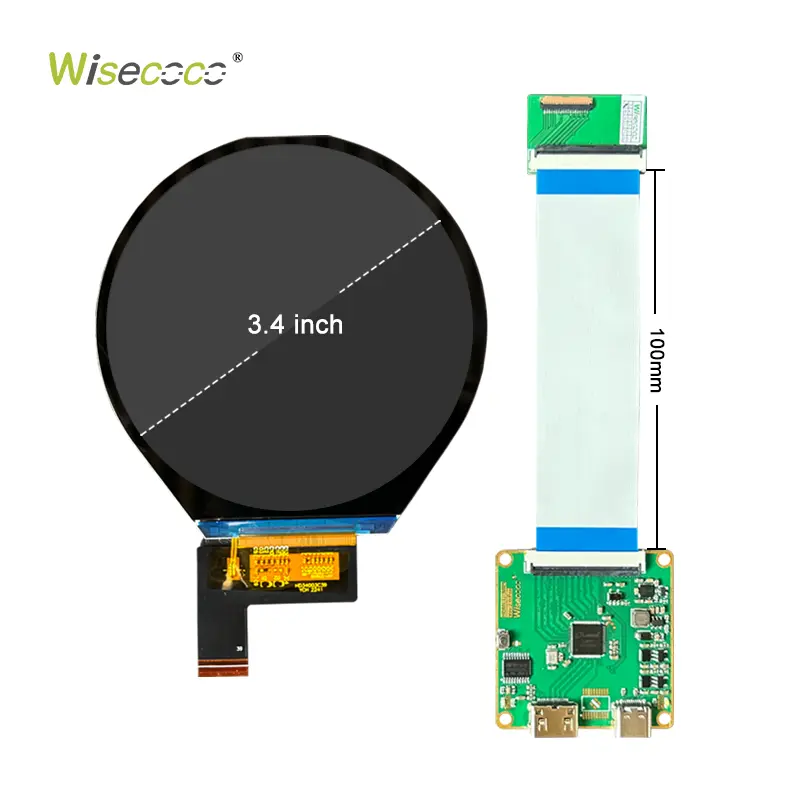

3.4″ IPS Round LCD Display — 800×800 | Brightness Adjustable | Raspberry Pi & Industrial
3.4-inch Round IPS TFT LCD Display with 800*800 high definition,full viewing angle, and brightness adjustable. Designed for industrial instruments, meters, smart home appliances, and Raspberry Pi applications
|
Diagonal Size
|
3.4 inch
|
Type
|
a-Si TFT-LCD, LCM
|
|
Pixel Format
|
800(RGB)×800
|
Configuration
|
RGB Vertical Stripe
|
|

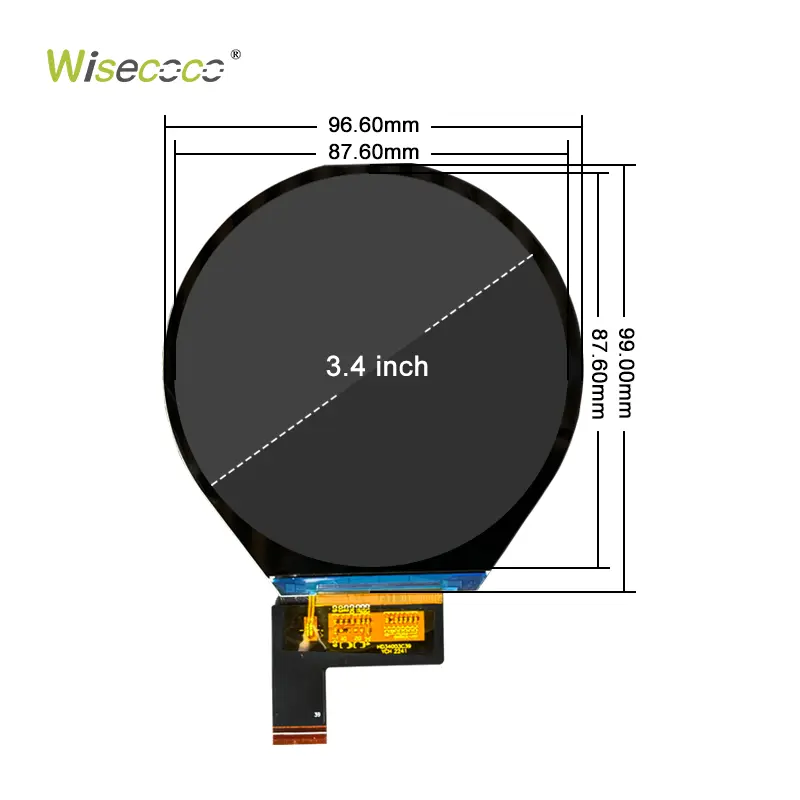

Active Area
|
87.6(H)×87.6(V) mm
|

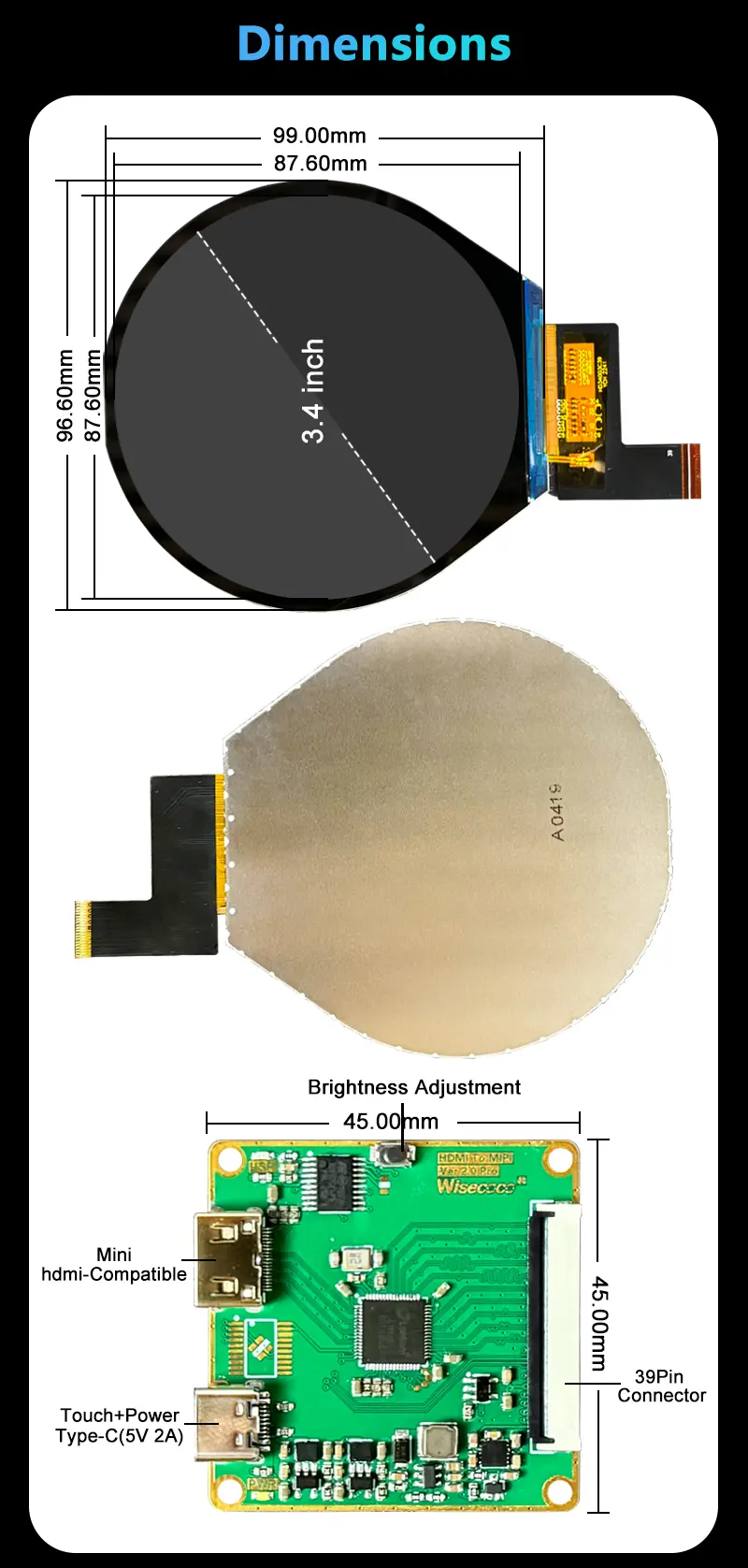

Outline Dim.
|
99(H)×96.6(V) mm
|
|
Bezel Area
|
–
|
Treatment
|
Hard coating (7H)
|
|
Luminance
|
350 cd/m² (Typ.)
|
Contrast Ratio
|
1200:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
25 (Typ.)(Tr+Td)
|
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥10)
|
Operating Mode
|
SFT, Normally Black, Transmissive
|
|
Support Color
|
16.7M 70% (CIE1931)
|
Light Source
|
WLED [2S4P] , 30K hours , W/O Driver
|
|
Weight
|
TBD
|
Touch Panel
|
Optional
|
|
Designed For
|

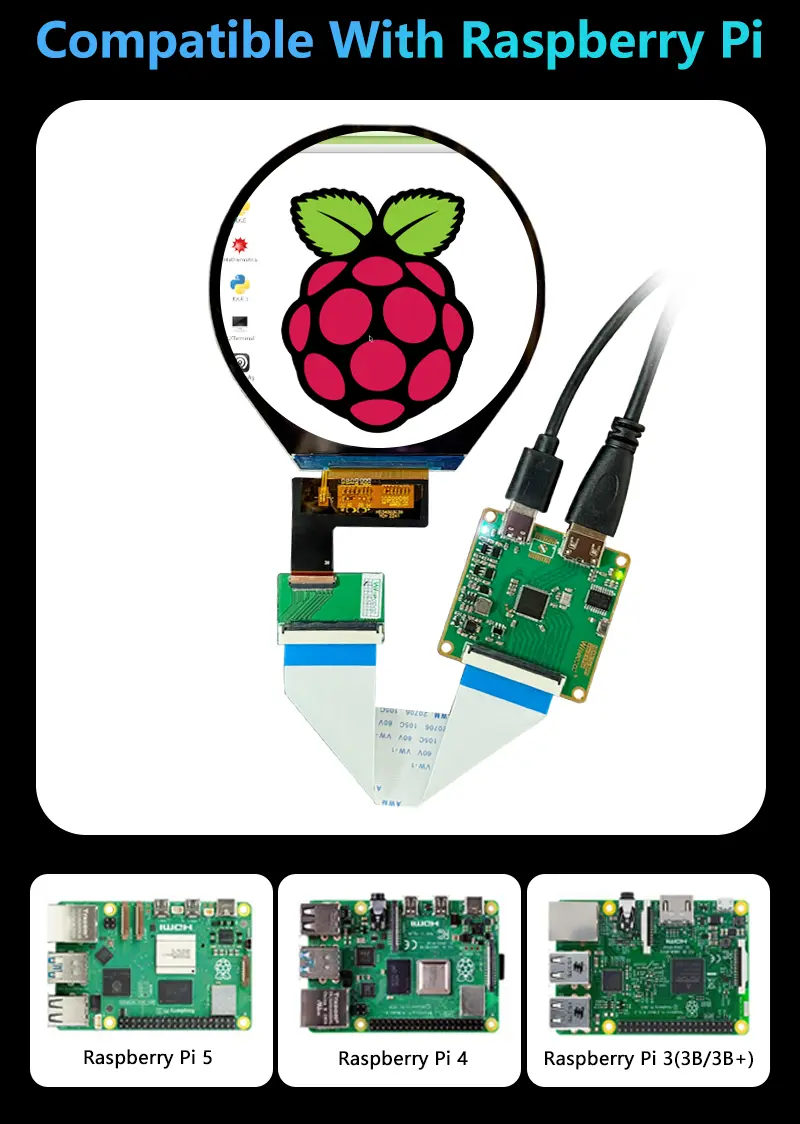

Industrial Application,meter, Smart wearable , Raspbery Pi
|
|
Interface Type
|
39 pins MIPI (3 data lanes) , FPC
|
|
Power Supply
|
1.8/5.0/-5.0V (Typ.)(IOVCC/VDD/-VDD)
|
|
Environment
|
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
|
Features:

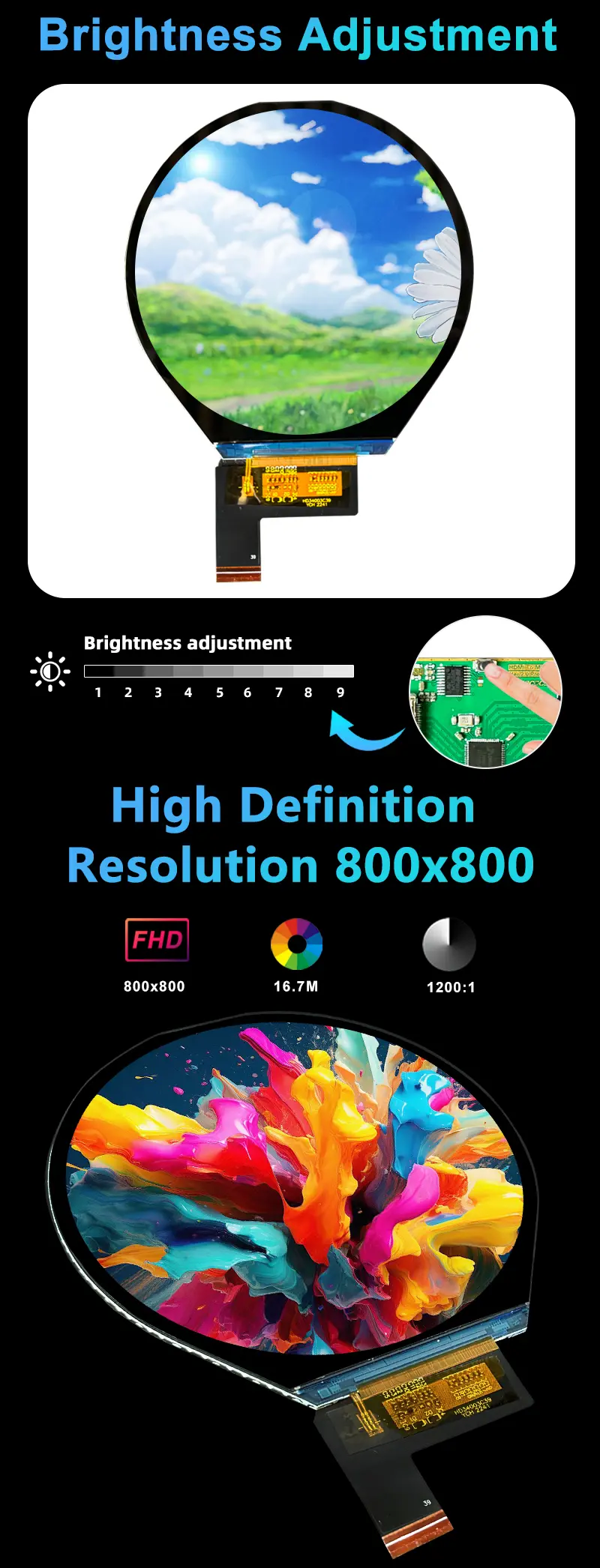

- 800×800 Resolution — Equal horizontal and vertical pixel count. Ideal for round-bezel meter displays, instrument panels, and square embedded screens.
- 80/80/80/80° Wide Viewing Angle — Consistent image quality from any position. Clear readability for operators viewing instruments at various angles.
- 16.7M Colors, 80% NTSC — Full color depth with good gamut coverage. Natural, accurate color rendering for imaging and UI content.
- Wide Operating Temperature (-20 ~ 70°C) — Reliable across industrial thermal range. Suitable for outdoor meters, factory equipment, and embedded industrial devices.
