High Brightness 10.1″ IPS TFT LCD Display 1280×720 750cd/m² Sunlight Readable Landscape Type LCD Module

$75.00

  • Size:10.1 inch
  • Resolution:1280×720
  • Panel Interface:LVDS (1 ch, 6/8-bit)

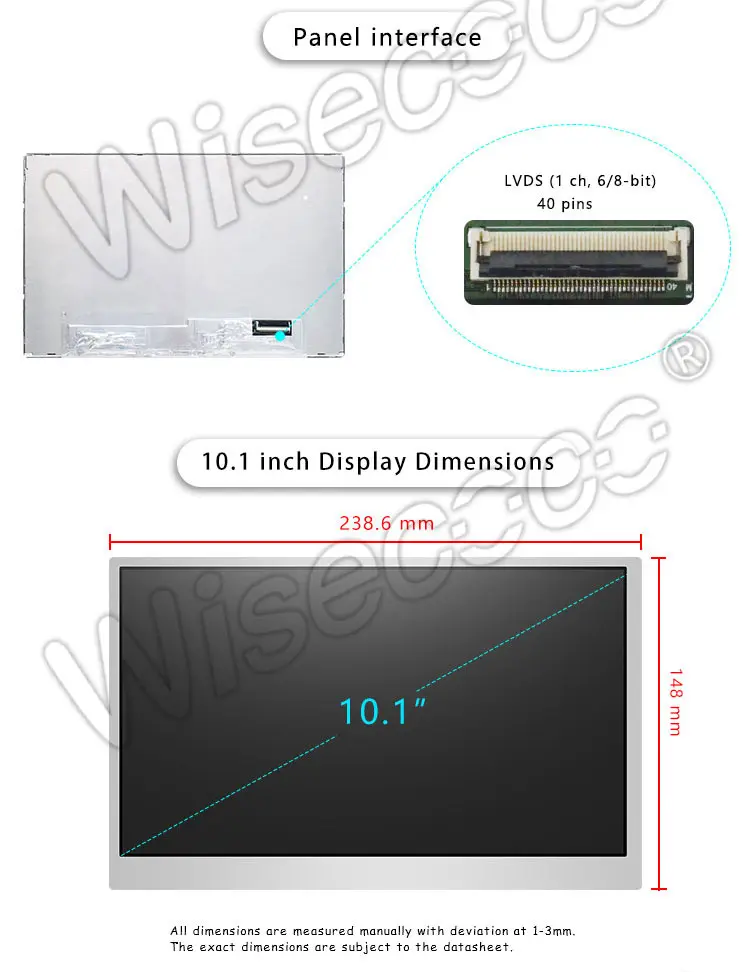

  • Active Area:223.68(H)x125.82(V) mm
  • Outline Dimension:238.6(H)x148(V)x9.7(D) mm
  • Viewing Angle:85/85/85/85 (Typ.)(CR≥10)
  • Brightness:750cd/m²(Typ.)
  • Operation / Storage Temp:-30~85°C / -40~90°C

>Get a Quote

10.1″ IPS LCD Display — 1280×720 | 750 cd/m² | 1000:1 Contrast

10.1″ IPS LCD Display is a high-brightness panel featuring 1280×720 resolution, 750 cd/m² brightness, and full 85/85/85/85 viewing angle. The display connects via a 40-pin LVDS interface with a wide -30~85°C operating temperature range, designed for automotive, industrial, and Pad/Tablet applications.

Diagonal Size
10.1 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
1280(RGB)*720 [WXGA]
Configuration
RGB Vertical Stripe
Active Area
223.68(H)*125.82(V) mm
Outline Dim.
238.6(H)*148(V)*9.7(D) mm
Bezel Area
226.68(H)*128.82(V) mm
Treatment
Antiglare
Luminance
750 Cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
10/15 (Typ.)(Tr/Td)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
AAS, Normally Black, Transmissive
Support Color
262K/16.7M 70% NTSC
Light Source
WLED , 20K hours , W/O Driver
Weight
360g (Max.)
Designed For
Automotive Display&Industrial&Pad&Tablet
Frame Rate
60Hz
Touch Panel
Optional
Interface Type
LVDS (1 ch, 6/8-bit) , 40 pins , Connector
Power Supply
3.3V (Typ.)
Environment
Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C

Features:

  • 1280×720 WXGA Resolution — Provides clear and detailed visual content for interfaces, controls, and graphical applications.
  • 750 cd/m² High Brightness — Improves screen visibility in bright operating environments and demanding application conditions.
  • 85/85/85/85 Wide Viewing Angle — Maintains consistent image visibility from different viewing directions.
  • 60Hz Refresh Rate — Supports smooth display performance for dynamic graphical content.
  • Anti-Glare Treatment — Helps reduce distracting reflections and improves screen readability.

Ideal for: Automotive Displays · Industrial Equipment · Industrial HMI · Tablets · Portable Devices

Contact Wisecoco for custom display solutions
