- Size:5 inch
- Resolution:960×544
- Panel Interface:MIPI (2 data lanes) , 40 pins Connector
- Contrast Ratio:6500:1
- Viewing Angle:80/80/80/80 (Typ.)(CR≥200)
- Display Color:16.7M 98% NTSC
- Operation Temp./Storage Temp.:-20 ~ 70 °C/-30 ~ 85 °C

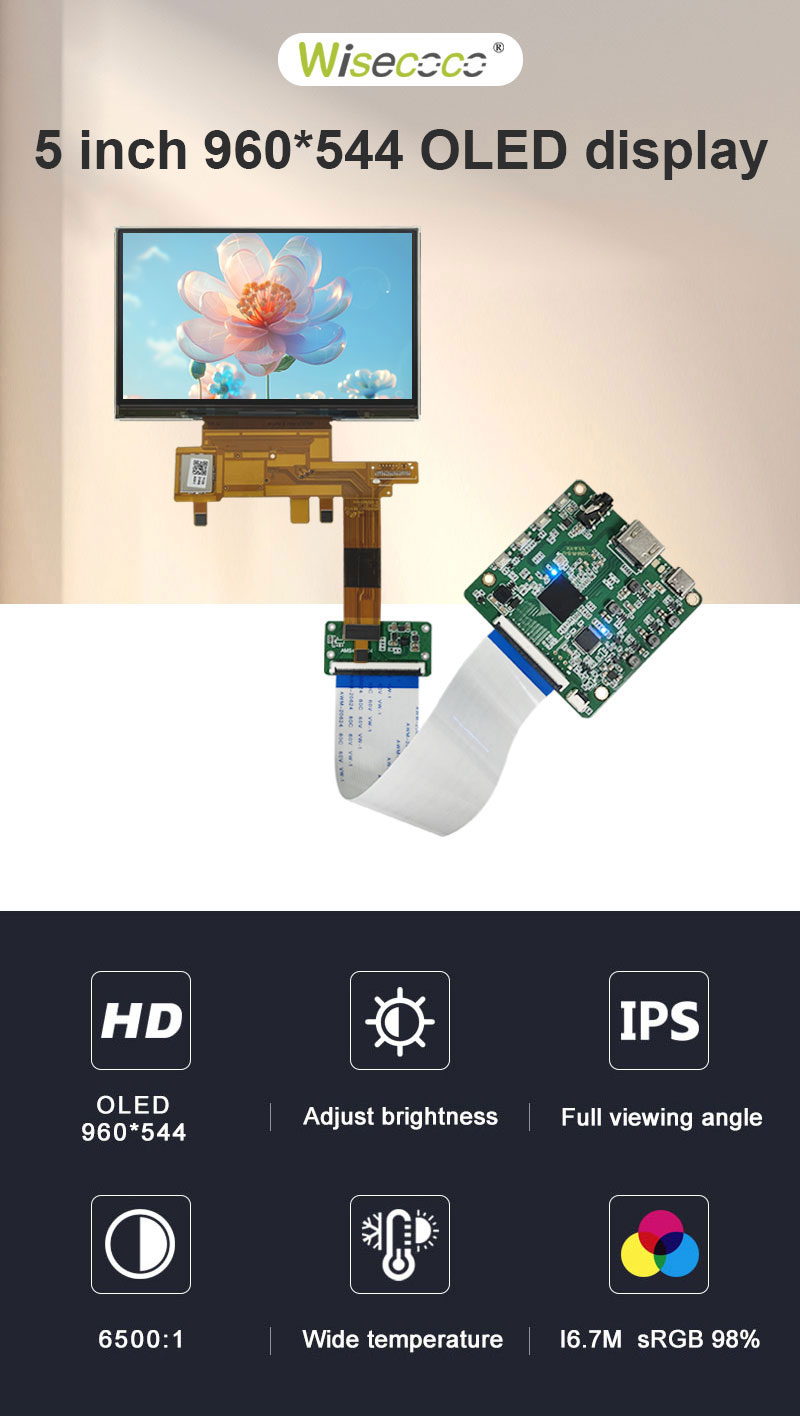

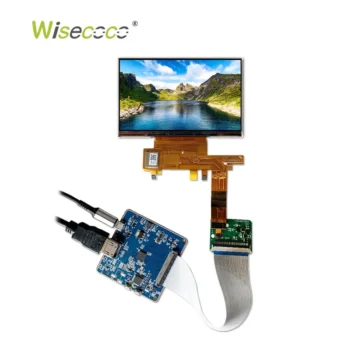

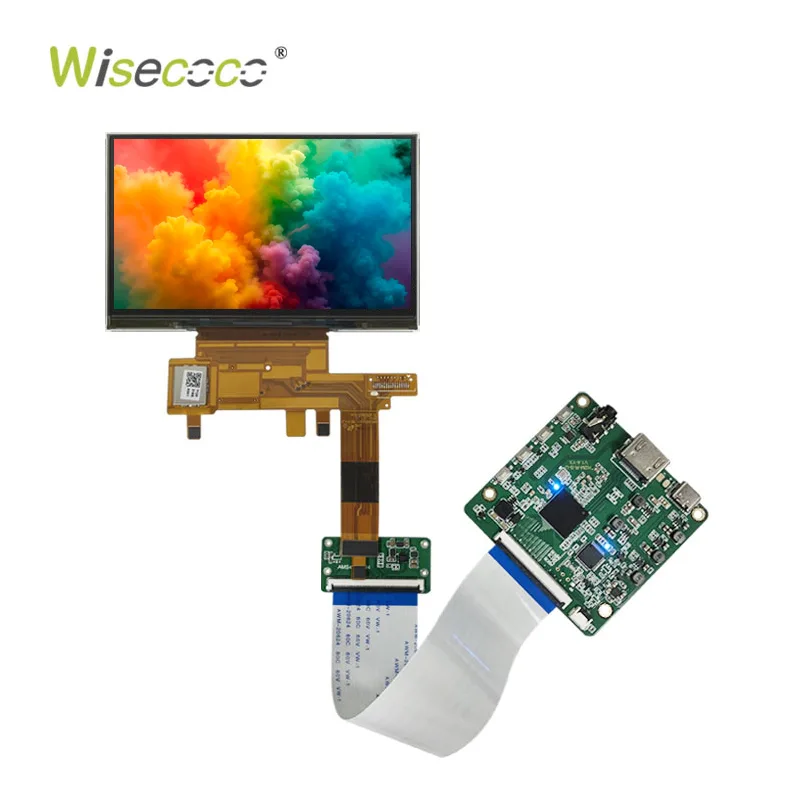

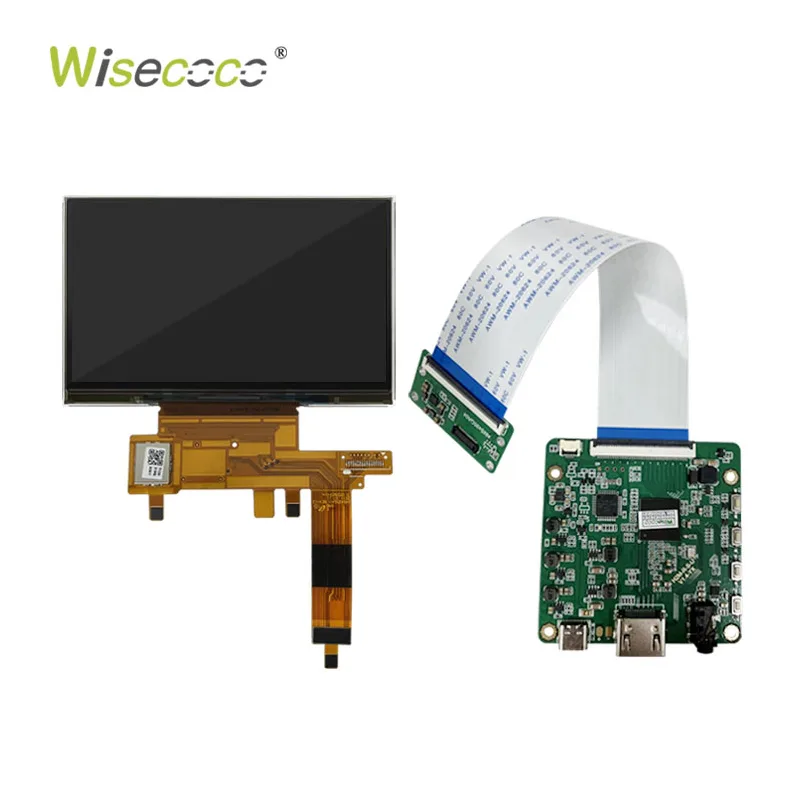

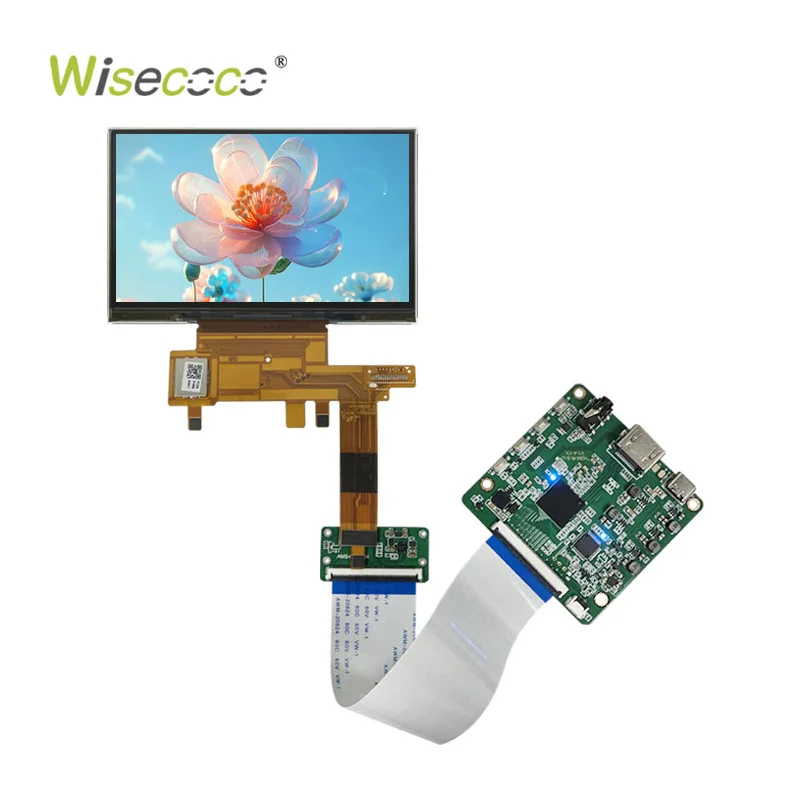

4.95 Inch QHD 960×544 AMOLED Screen 5 Inch IPS OLED Display Panel With Driver Board
$95.00
|
Screen Size
|
5 inch
|
Screen Type
|
Am-oled OLED
|
|
Resolution
|
960(RGB)×544
|

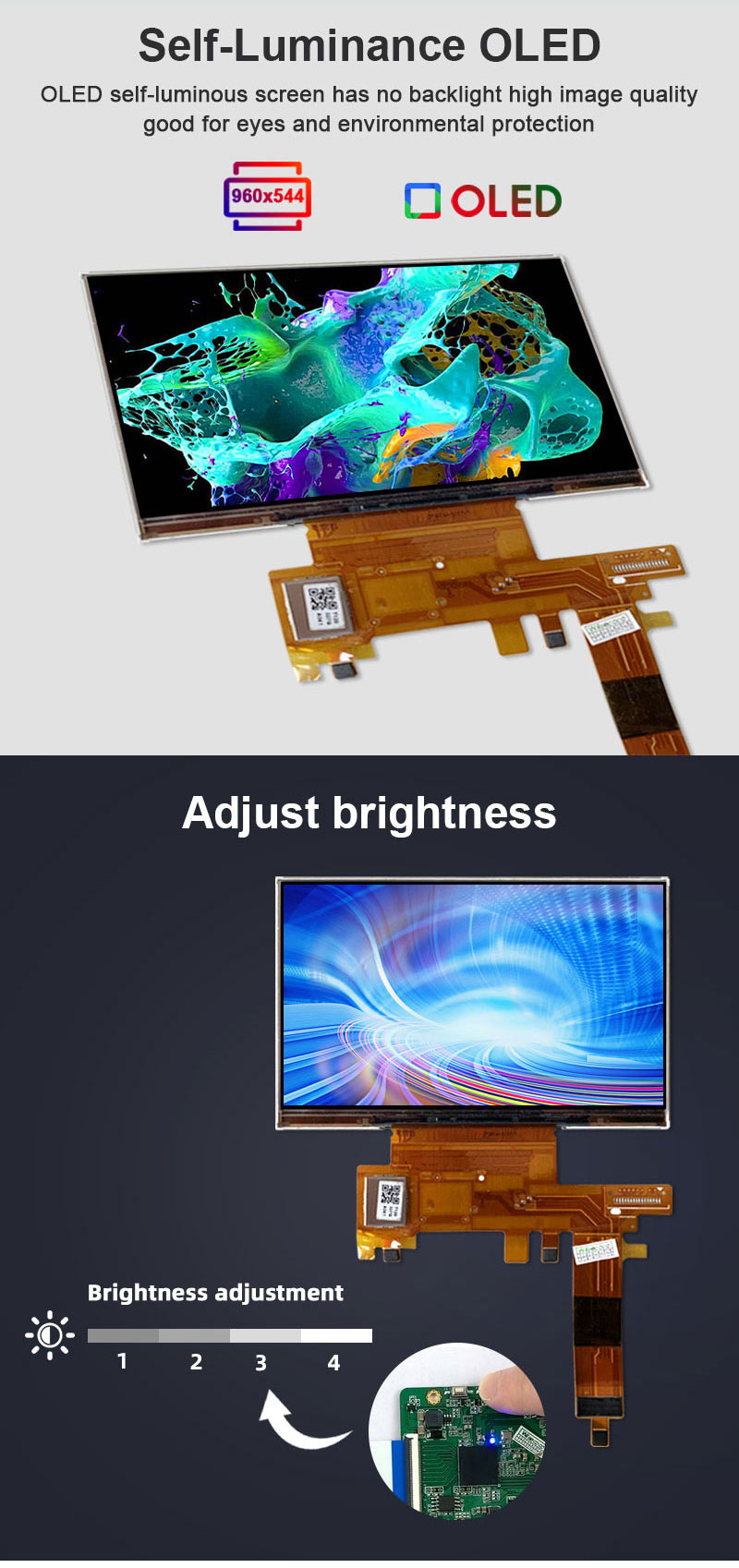

Brightness
|
140 cd/m²
|
|
Color Depth
|
16.7M 98% NTSC
|
Contrast Ratio
|
6500:1
|
|

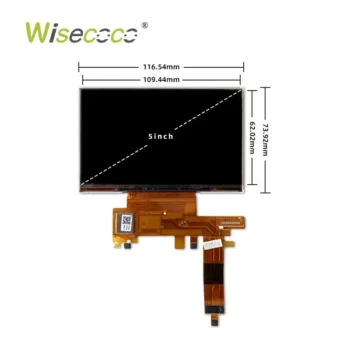

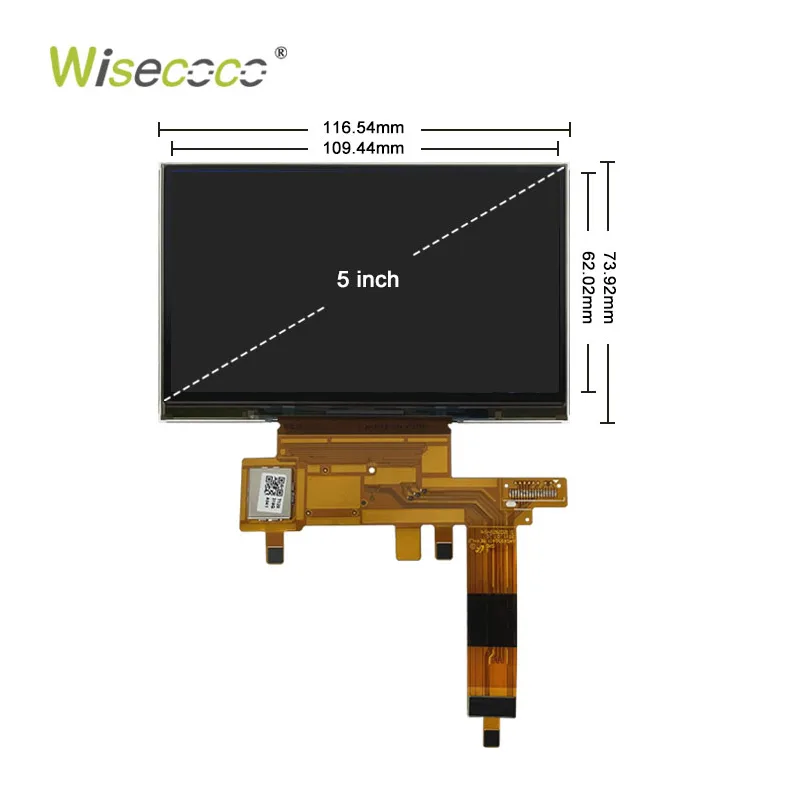

Outline Dimension(mm)
|
116.54(H) × 73.92(V)
|
Active Area(mm)
|
109.44(H) × 62.02(V)
|
|
Pixel Pitch(mm)
|
0.114×0.114 (H×V)
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥200)
|
|
Response Time
|
1.0 (Max.) ms
|
Power Supply
|
1.8/3.0/V (Typ.)(VDD/VCI/ELVDD/ELVSS)
|
|
Operation Temp.
|
-20 ~ 70 °C
|
Storage Temp.
|
-30 ~ 85 °C
|
|

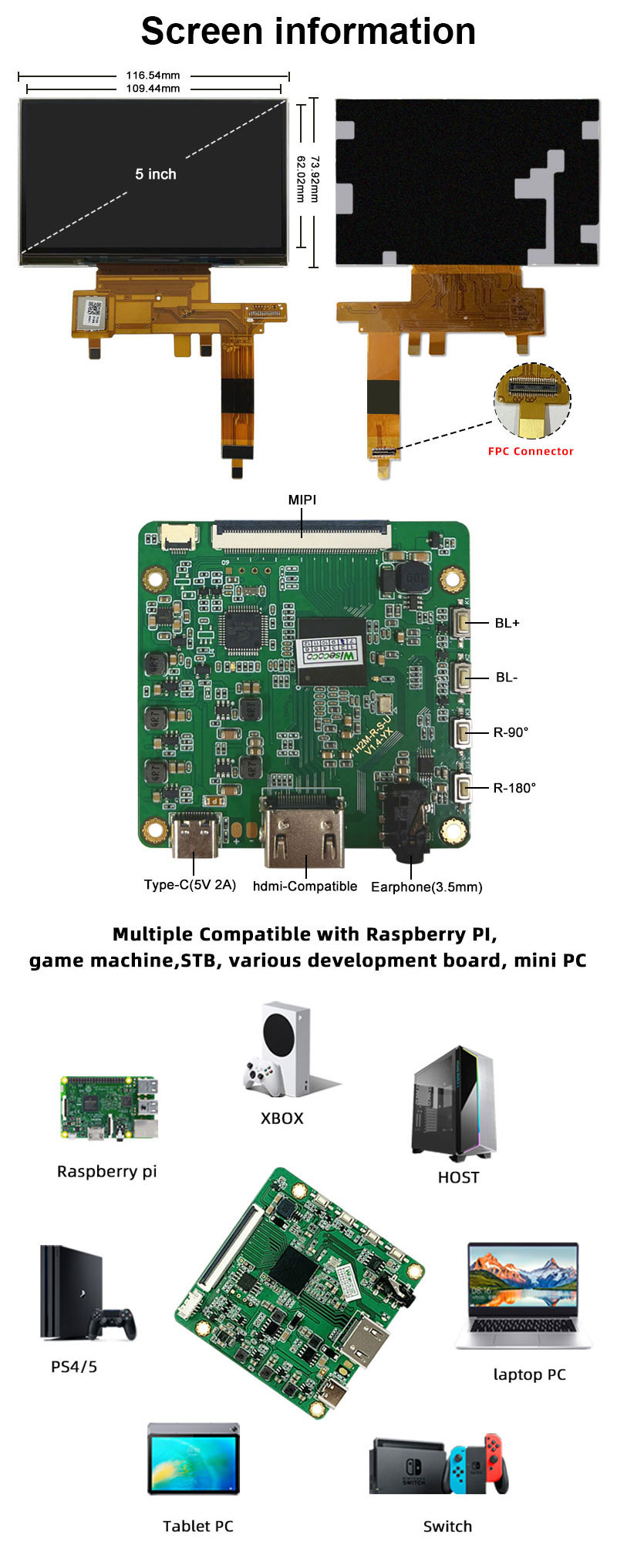

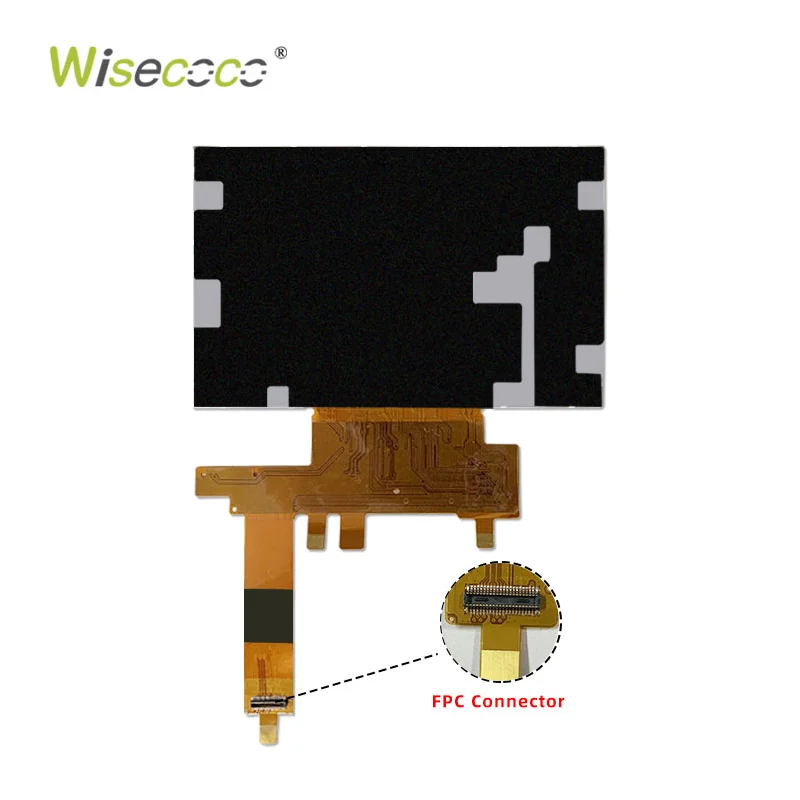

Interface
|
40 pins MIPI (2 data lanes)
|
Applications
|
Gaming Device, Industrial Screen
|
Add a review
Be the first to review “4.95 Inch QHD 960×544 AMOLED Screen 5 Inch IPS OLED Display Panel With Driver Board”
Related products
-

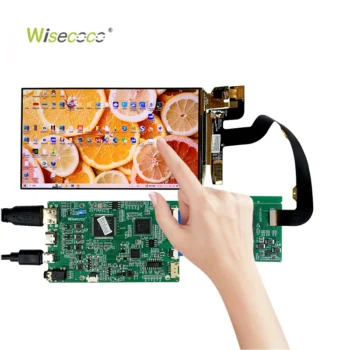

Wisecoco 7 Inch 1920×1080 165hz 850nits OLED AMOLED High Brightness IPS Screen Display On-cell Touch Panel
