- Size:5.5 inch
- Resolution:1080×1920
- Panel Interface:MIPI (2 data lanes) 40 pins Connector
- Viewing Angle L/R/U/D:80/80/80/80 (Typ.)
- Brightness :350cd/m²(Typ.)
- Operation / Storage Temp:-20~70°C / -30~80°C
- Touch:Optional

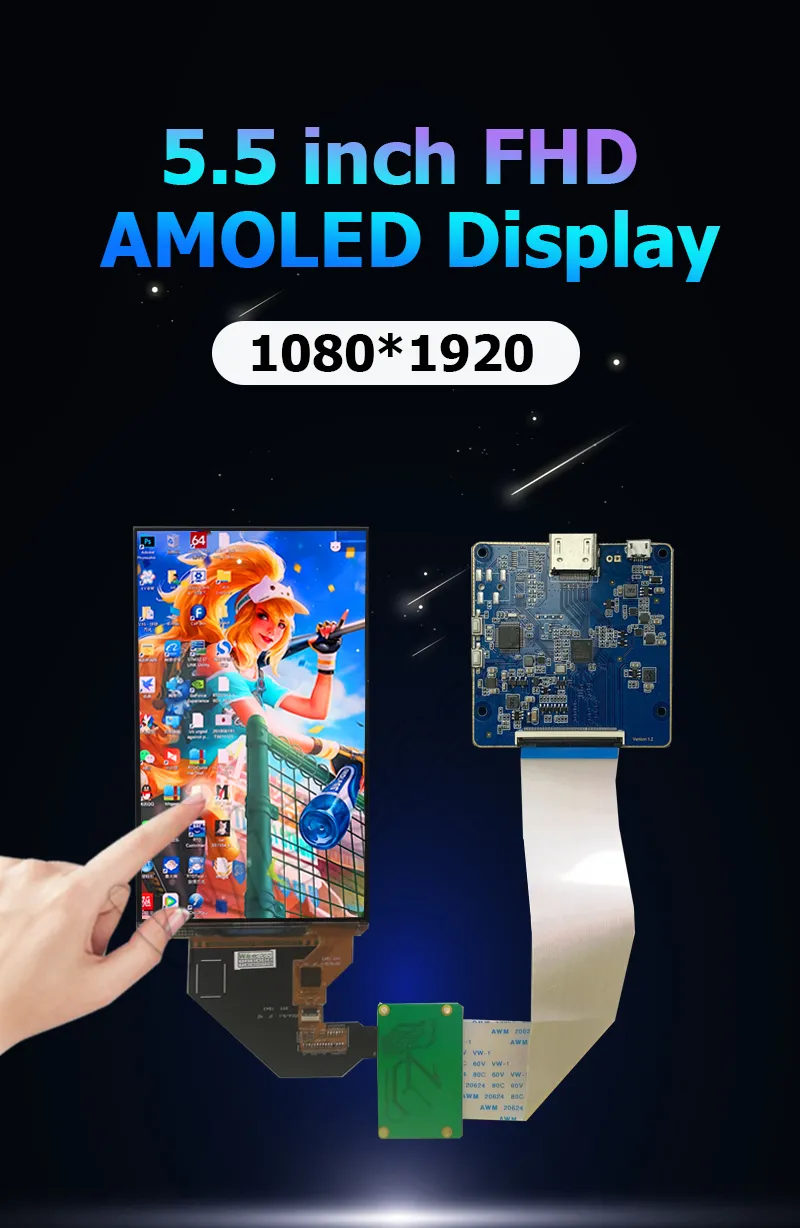

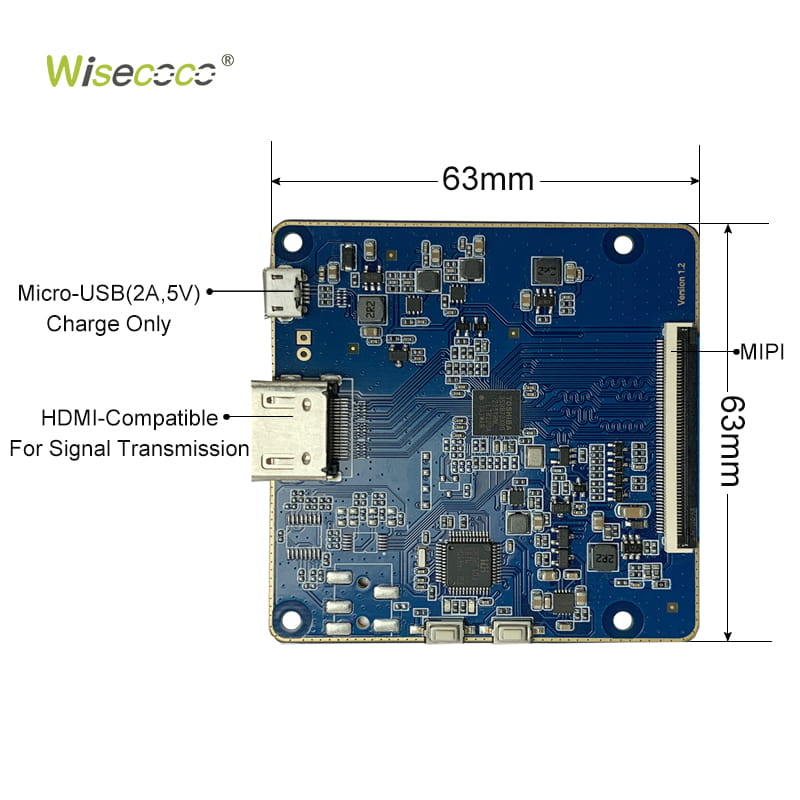

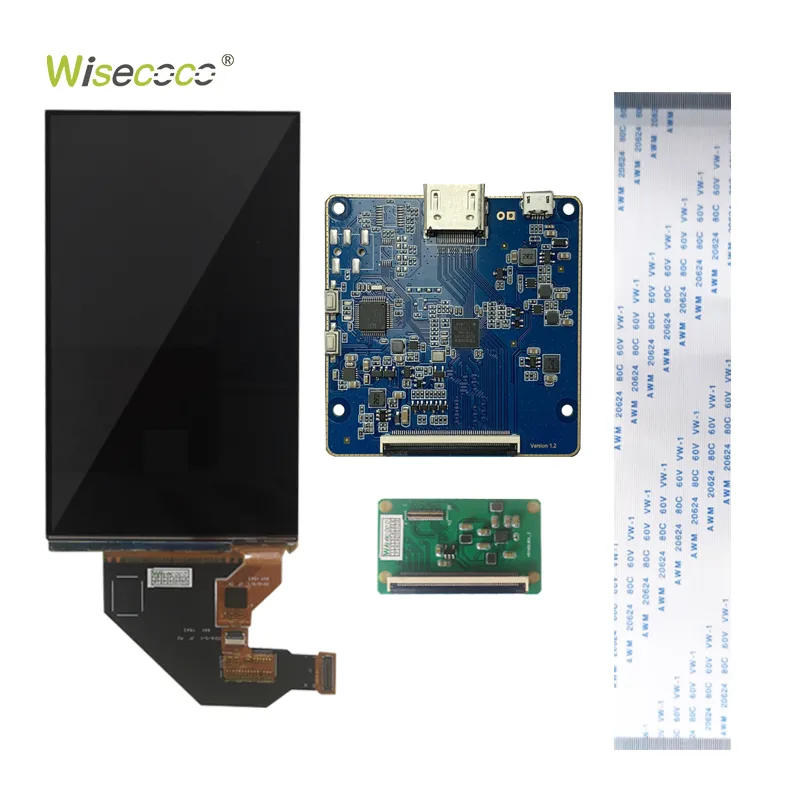

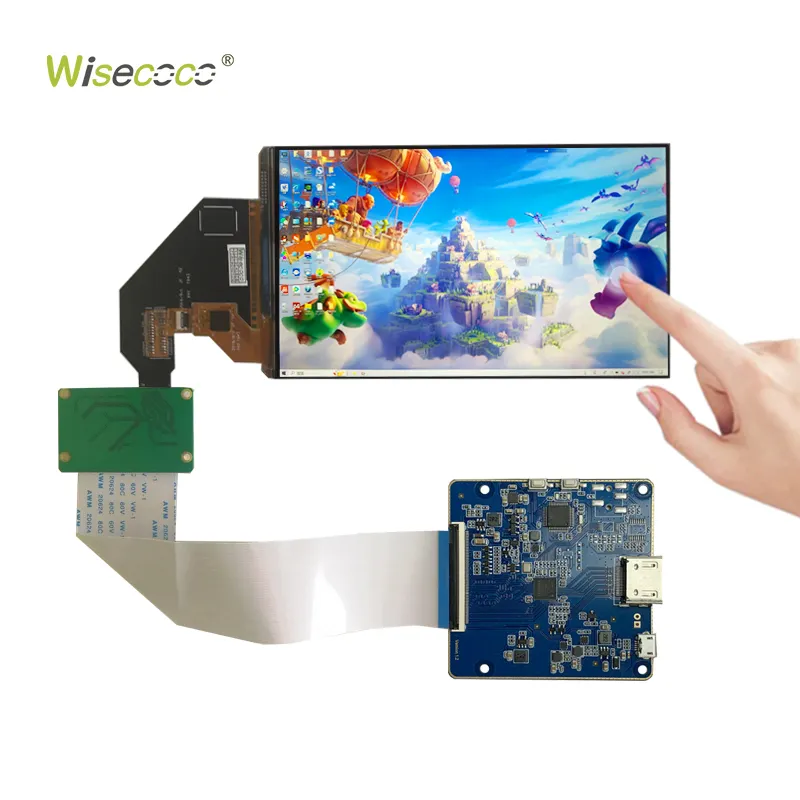

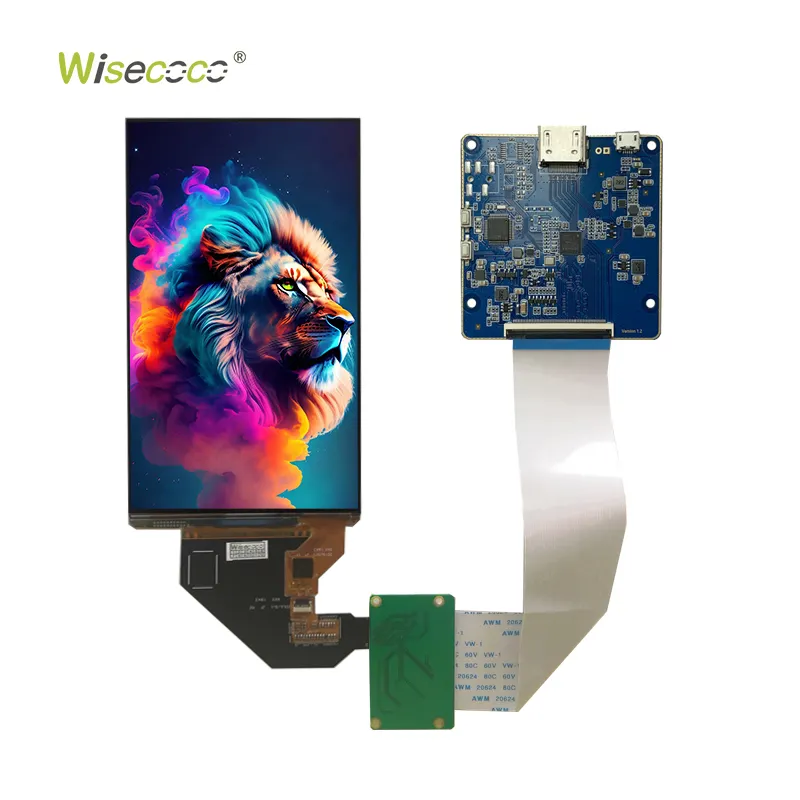

5.5 Inch OLED Display 1080×1920 FHD MIPI IPS Touch AMOLED Display With Driver Board
$89.00
|
Screen Size
|
5.5 inch
|
Type
|
AM-OLED, OLED
|
|
Pixel Number
|
1080(RGB)*1920 (FHD)
|
Configuration
|
RGB Vertical Stripe
|
|

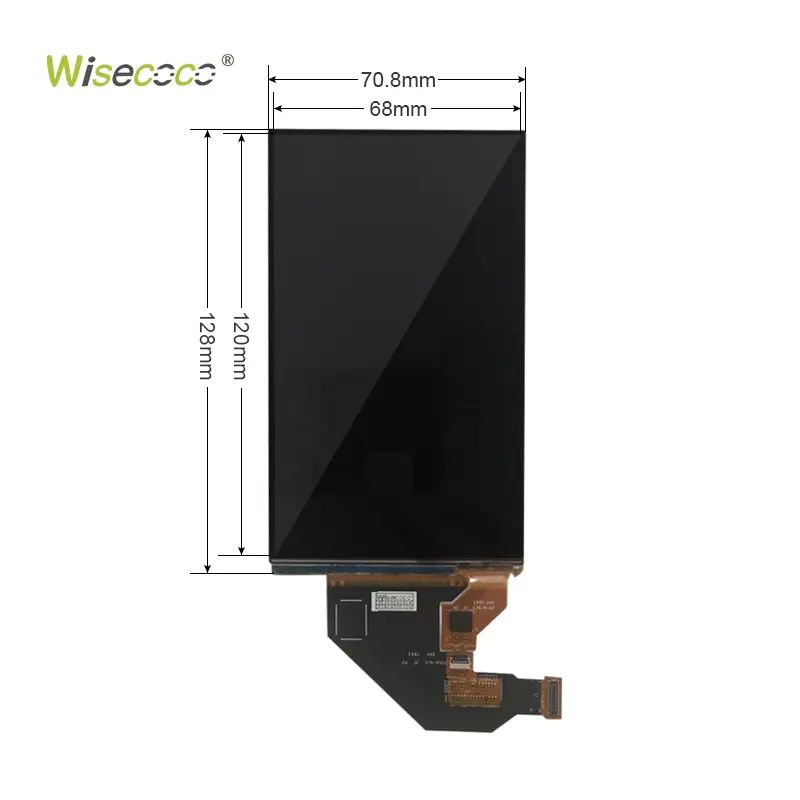

Active Area(mm)
|
68.04(H)8120.96(V) mm
|

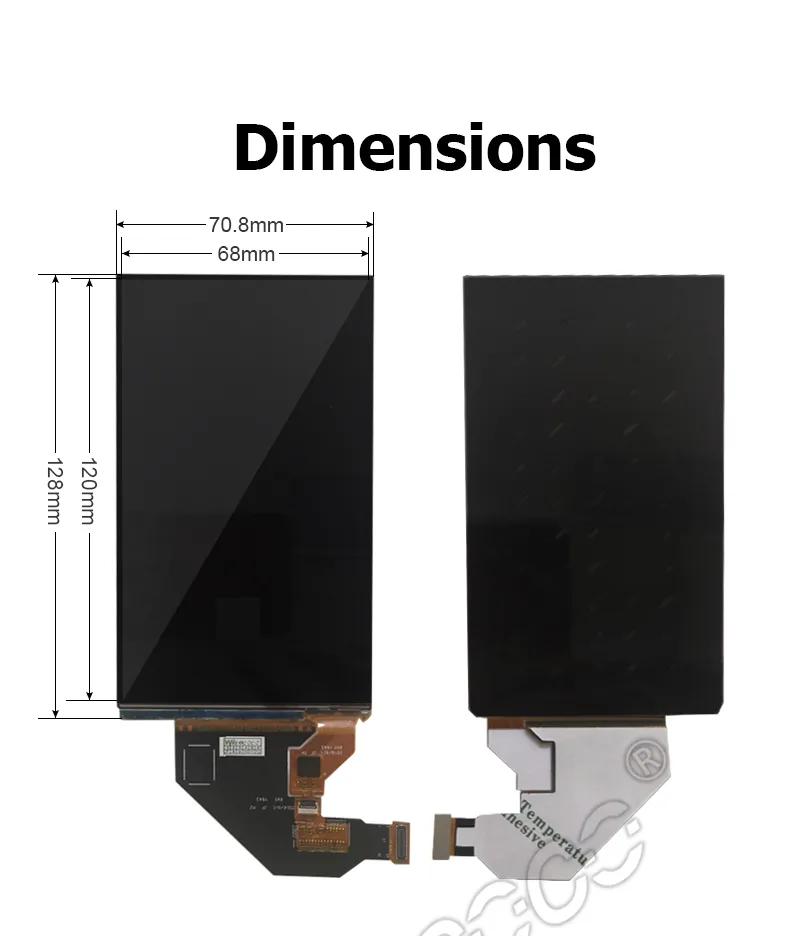

Outline(mm)
|
70.84(H)*128.01(V)*1.03(D) mm
|
|
Bezel Area(mm)
|
–
|
Treatment
|
Hard coating (3H)
|
|
Luminance
|
350 Cd/m² (Typ.)
|
Contrast Ratio
|
10000:1 (Min.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
–
|
|
Viewing Angle
|
80/80/80/80 (Min.)(CR≥1600)
|
Operating Mode
|
–
|
|
Support Color
|
16.7M 103% NTSC
|
Light Source
|
self
|
|
Outline Shape
|
–
|
Used for
|
Raspberry Pi, Medical equipments,
|
|
Refresh Rate
|
60Hz
|
Touch screen
|
Optional
|
|
D-IC Detail
|
COG Built-in RM69070
|
Interface Type
|

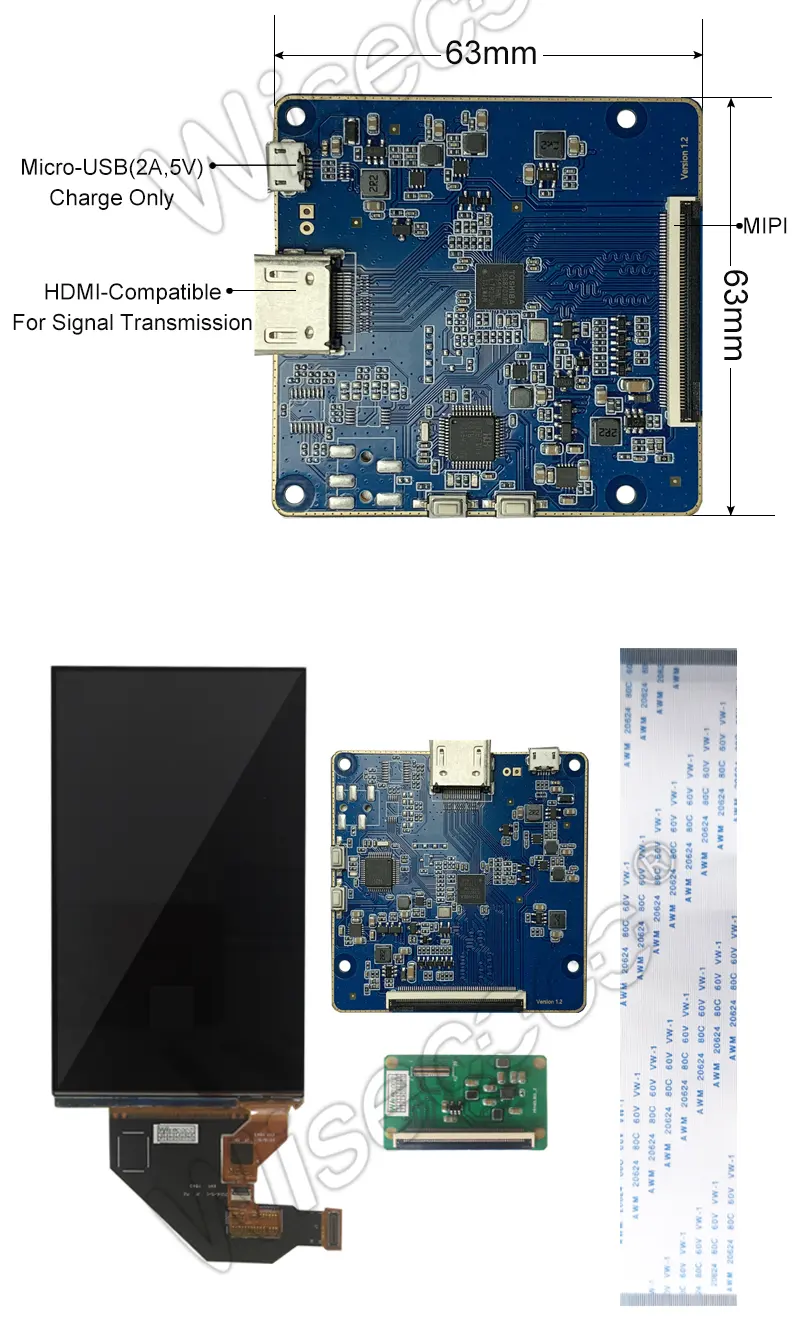

MIPI (2 data lanes) 40 pins Connector
|
|
Voltage Supply
|
1.8/3.0/4.6/7.6V (Typ.)(IOVCC/VCI/OVDD/AVDD)
|
||
|
Environment
|
· Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
|
||
