- Size:1.39 inch
- Resolution:400×400
- Panel Interface:MIPI
- Outline Dimension:38.6(H)x40.5(V)x0.7(T) mm (Typ.)
- Active Area:35.4 x35.4 mm
- Viewing Angle :80/80/80/80 (Min.)(CR≥1600)
- Brightness(cd/m2):300cd/m²(Typ.)
- Contrast Ratio:10000:1 (Typ.)
-13%

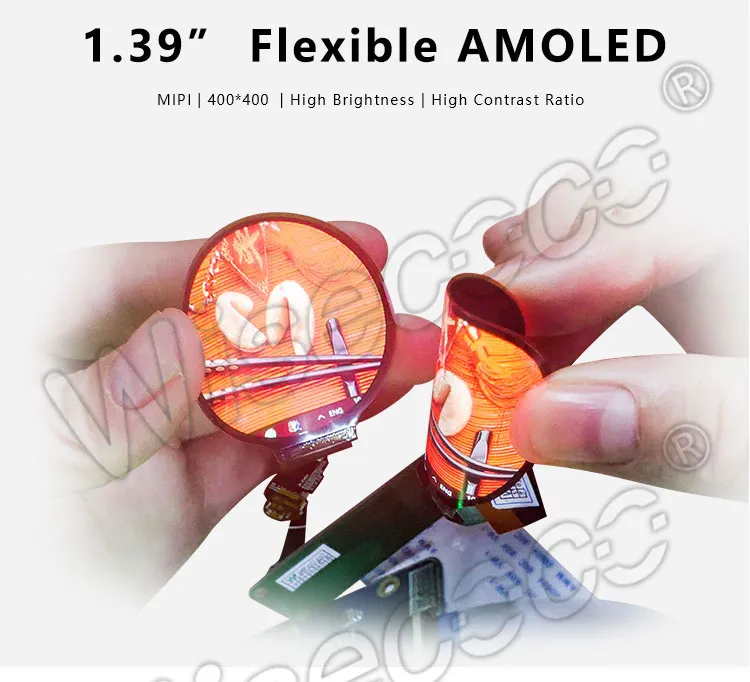

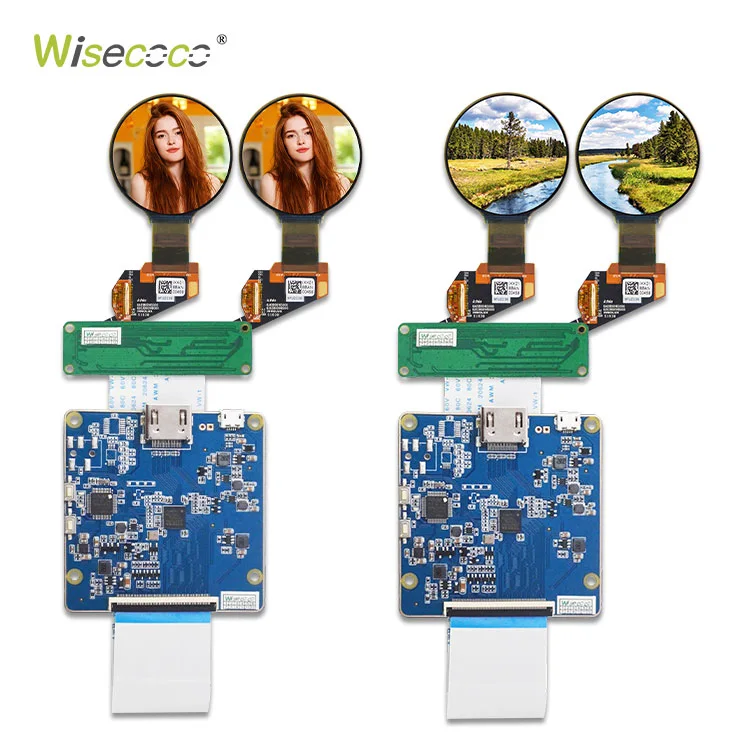

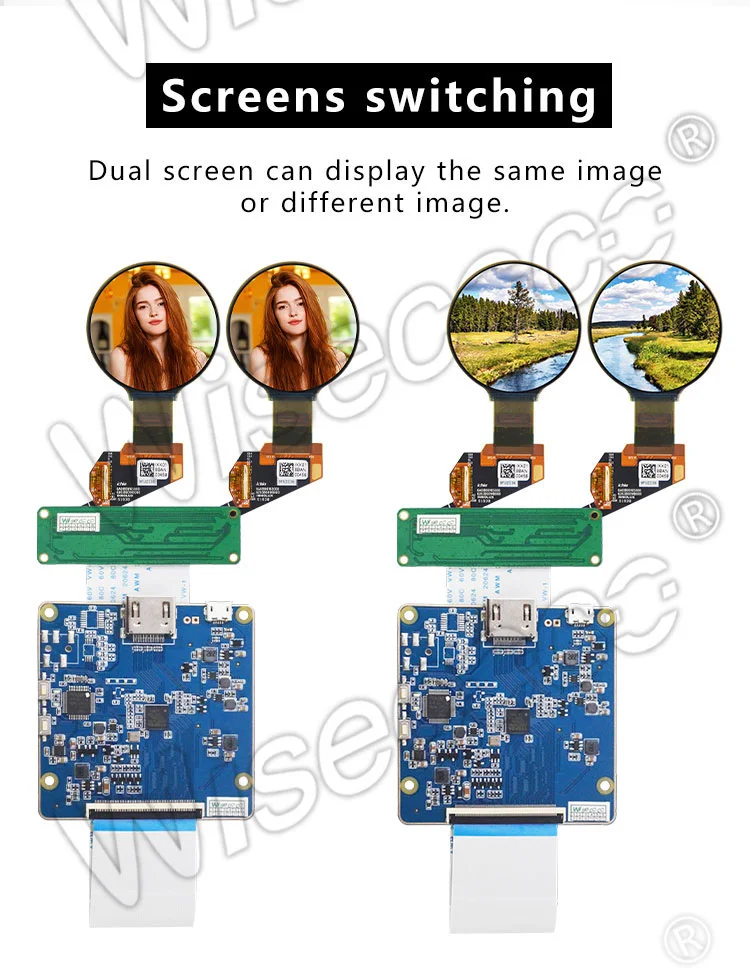

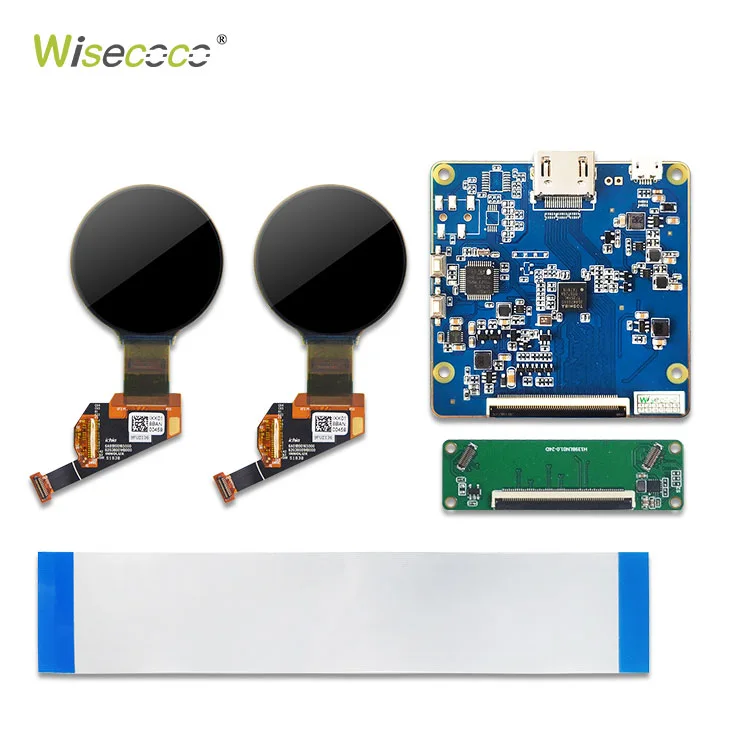

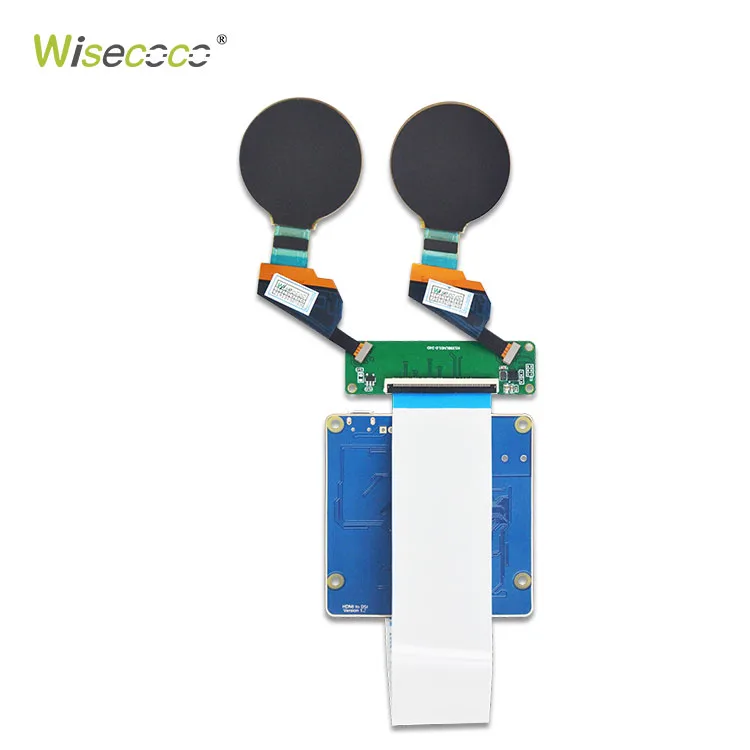

1.39 Inch 400*400 Small Thin Raspberry Pi Round Flexible Oled For Robot Eyes Circular AMOLED Dual Kit Display
Original price was: $160.00.$140.00Current price is: $140.00.
| General Features | |||
| Panel Size | 1.39 inch | Panel Type | LTPS Color AM-OLED, Assembly |
| Resolution | 400(H) RGB*400(V), Circle | Pixel Format | RGB-SBS |
| Display Area | 35.4 mm (Diameter) | Bezel Opening | – |

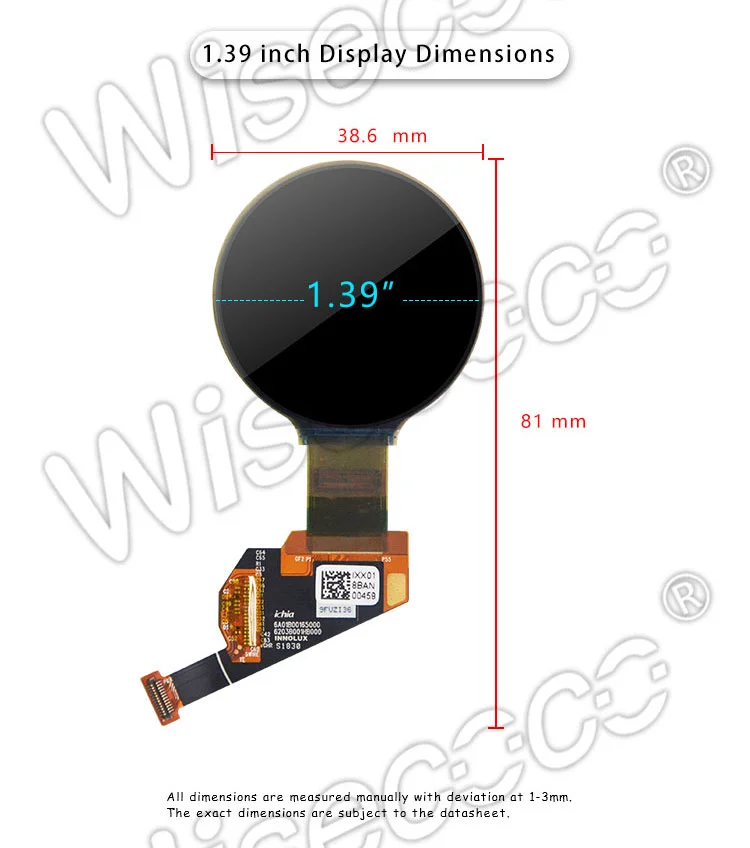

| Outline Size | 38.6(H)*40.5(V)*0.7(T) mm (Typ.), w/o FPCa | Contrast Ratio | 10000:1 (Typ.) |
| Brightness | 300 Cd/m2 (Typ.) | Response Time | <4 ms (Typ.)(Tr+Tf) |
| View Direction | Symmetry | Support Color | 16.7M 100% (Typ.)NTSC |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥1600) | Light Source | Self |
| Frequency | 60 Hz | Touch Screen | Optional |
| Weight | 1.5g (Typ.) | Surface | 3H Hard coat treating(Glare) |
| Power Supply | 2.8/1.8/4.6/-2.4V (Typ.)(VCI/VDDIO/ELVDD/ELVSS) | Application | Smart products |

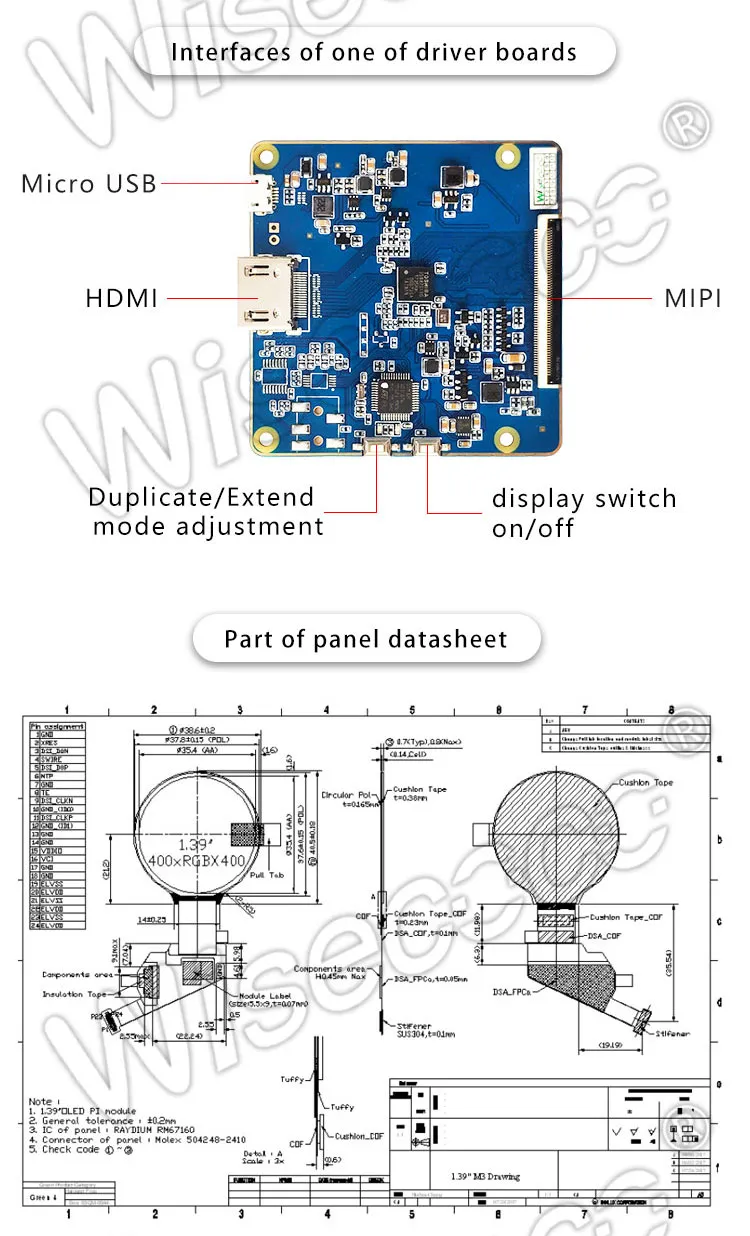

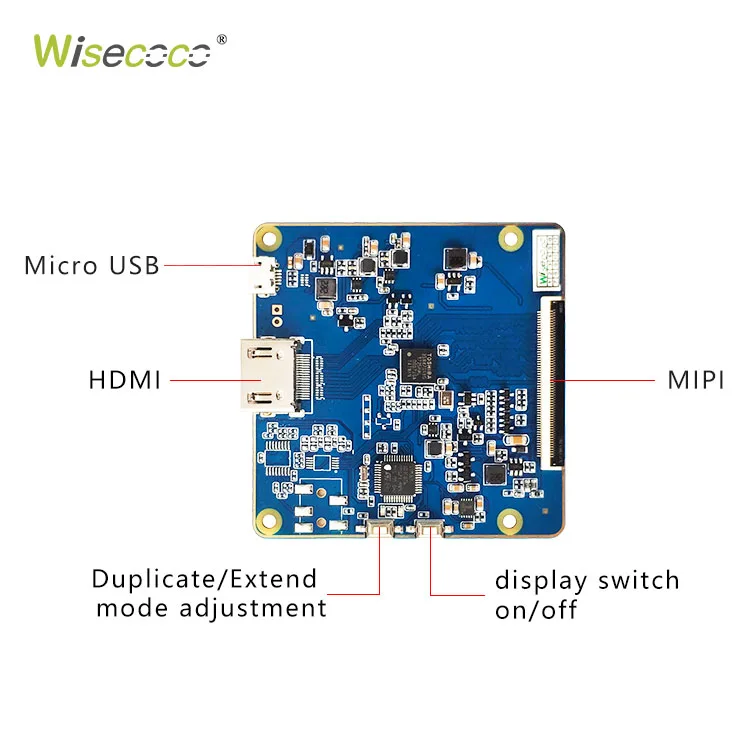

| Interface Type | MIPI, 24 pin BTB Connector, PFC | ||
| Environment | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C | ||

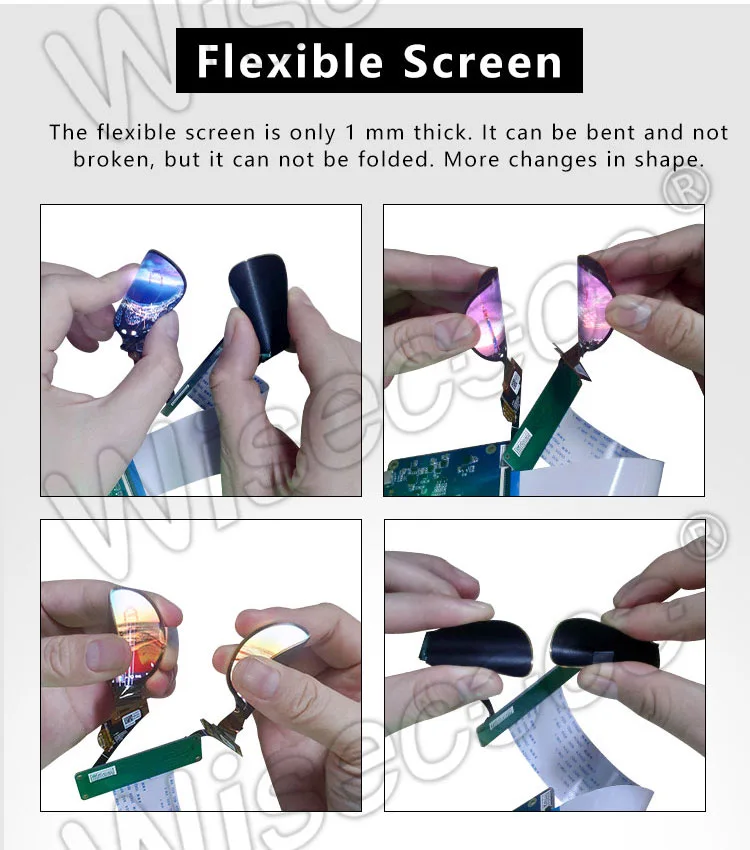

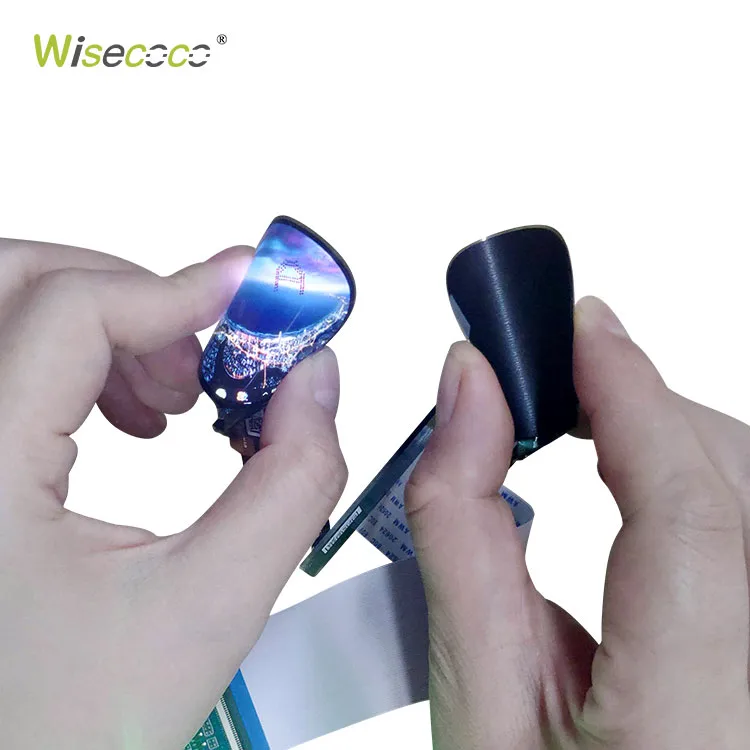

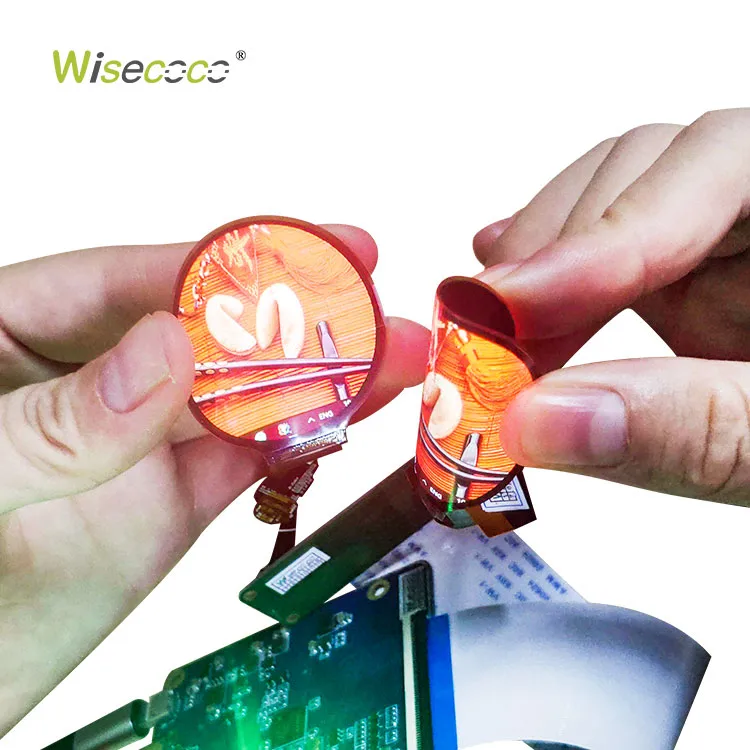

This module has a diameter of 1.39 inches and a resolution of 400×400, capable of displaying vibrant images with 16.7 million colors and a brightness of up to 300 nits. It enables efficient data transmission via a MIPI interface. It is a high-performance circular flexible AMOLED display designed specifically for high-end wearable devices and small-form-factor devices.
| Color | Brown |
|---|
Add a review
Be the first to review “1.39 Inch 400*400 Small Thin Raspberry Pi Round Flexible Oled For Robot Eyes Circular AMOLED Dual Kit Display”
Related products
-
Wisecoco New Ultra Thin 6 Inch 2880*1440 Resolution Landscape By Default MIPI-DSI 4 Lanes Flexible Amoled Display Module
Original price was: $259.00.$239.00Current price is: $239.00. -

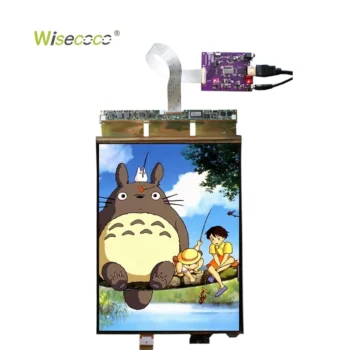

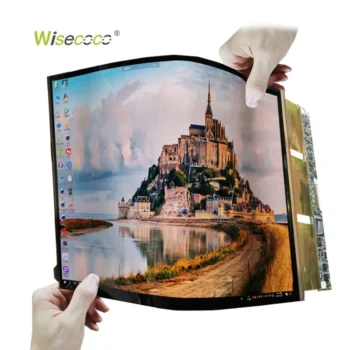

Wisecoco 13.3 Inch 2048*1536 Flexible Amoled Screen Module With Driver Board Advertising Panel Super Thin Bendable OLED Display
