- Size:2.8 inch
- Resolution:240(RGB)×320
- Panel Interface:61 pins RGB
- Active Area:43.2(W)×57.6(H) mm
- Outline Dimension:44.4(W)×58.8(H) mm
- Viewing Angle:85/85/85/85 (Typ.)(CR≥10)
- Brightness:200 cd/m² (Typ.)
- Operation / Storage Temp:-20 ~ 60 °C / -40 ~ 80 °C

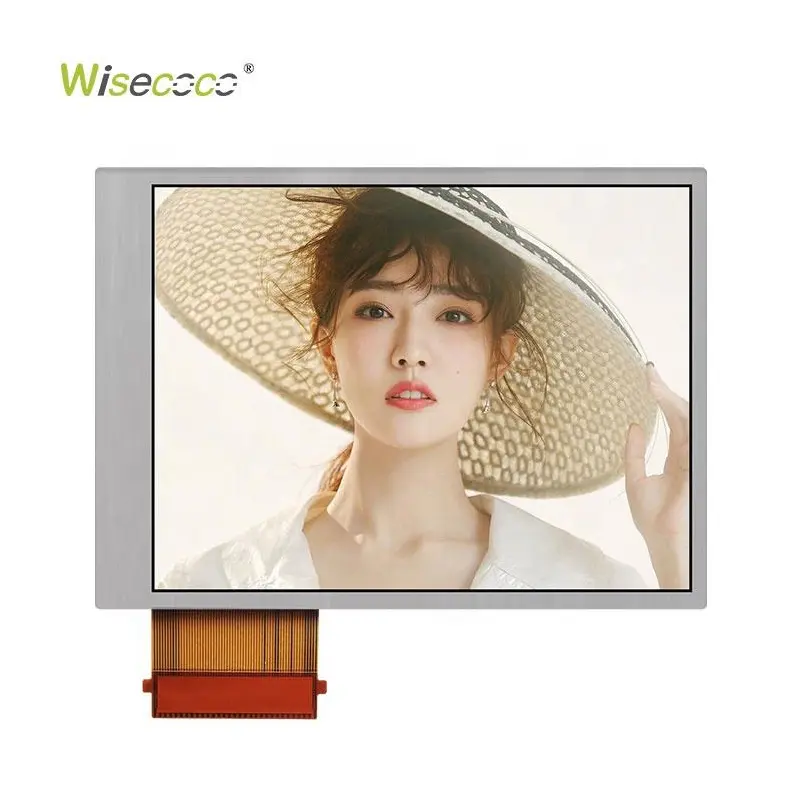

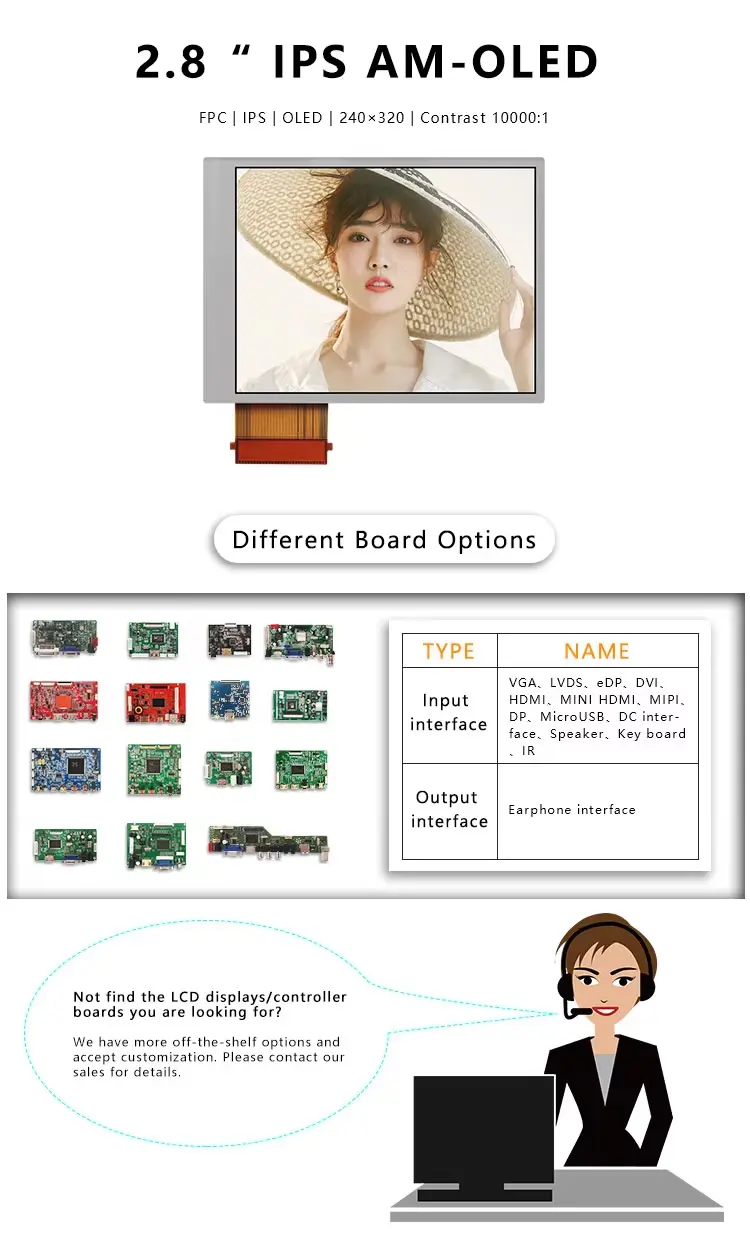

2.8 Inch IPS Amoled Display 240×320 High Contrast Ratio FPC Interface RGB OLED Display Module
$85.00
2.8 Inch Amoled Display— 240×320 | IPS | Contrast Ratio 10000:1
2.8-inch AM-OLED display delivering 240×320 QVGA resolution with self-emissive OLED technology and symmetrical wide viewing angle (85/85/85/85). Featuring hard coating (7H) surface treatment, and 73% NTSC color gamut, this compact display is built for portable and instrument-panel applications.
|
Diagonal Size
|
2.8 inch
|
Type
|
AM-OLED , OLED
|
|
Pixel Format
|
240(RGB)×320 , QVGA
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
43.2(W)×57.6(H) mm
|
Outline Dim.
|
44.4(W)×58.8(H) mm
|
|
Bezel Area
|
–
|
Treatment
|
Hard coating (7H)
|
|
Luminance
|
200 cd/m² (Typ.)
|
Contrast Ratio
|
1000:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
0.05/0.05 (Max.)(Tr/Td)
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR≥10)
|
Operating Mode
|
_
|
|
Support Color
|
65K/262K 73% (CIE1931)
|
Light Source
|
self , 30K hours
|
|
Frame Rate
|
–
|
Touch Panel
|
Without
|
|
Interface Type
|

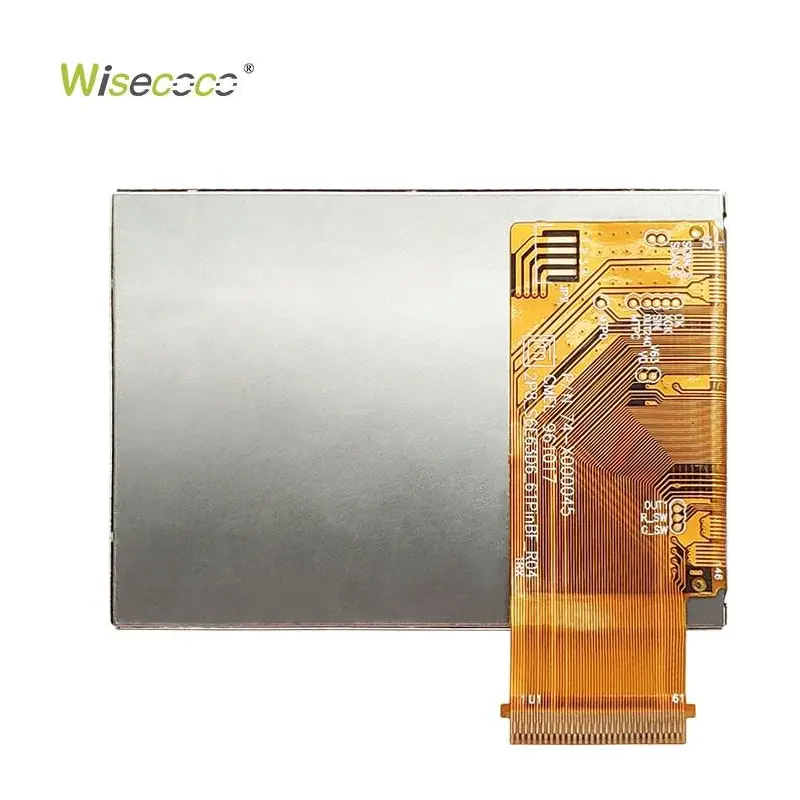

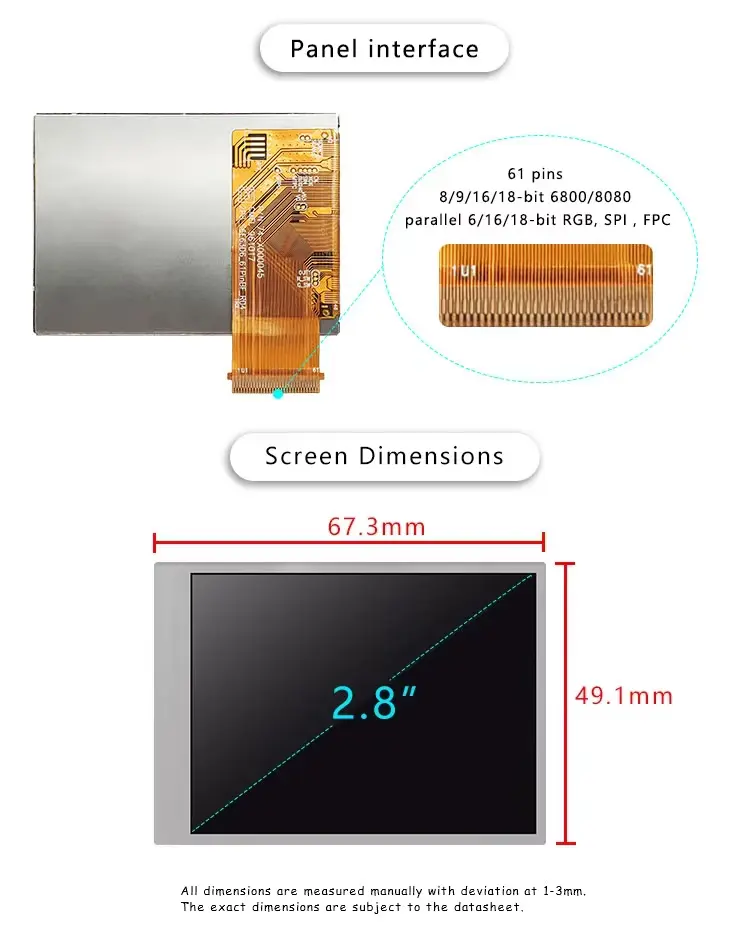

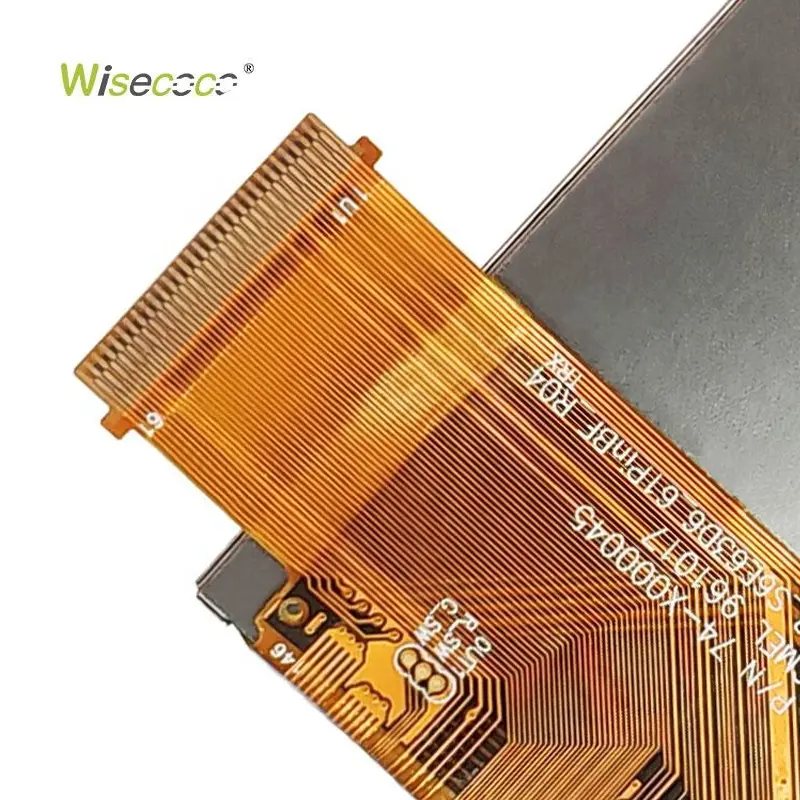

61 pins RGB , FPC
|
||
|
Power Supply
|
2.8/1.8V (Typ.)(VCI/VDD3)
|
||
|
Environment
|
Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -40 ~ 80 °C
|
||
- 240×320 QVGA Resolution — Sharp, self-emissive AM-OLED panel delivers crisp detail for icons, text, and graphical interfaces.
- 1000:1 Contrast Ratio — Deep blacks and vibrant highlights for clear, well-defined imagery.
- Wide Viewing Angle (85/85/85/85, CR≥10) — Consistent color and brightness maintained from virtually any angle.
- 65K/262K Colors, 73% NTSC (CIE1931) — Rich, accurate color reproduction for vivid, true-to-life visuals.
- Hard Coating (7H) Surface Treatment — Scratch-resistant surface for extended durability in handheld use.
Ideal for: Handheld instruments · Portable consumer electronics · Industrial control panels · Wearable devices · Compact embedded HMI applications
Wisecoco offers One-step customized display solutions.
