- Size:15.6 inch
- Resolution:1920×1080
- Panel Interface:eDP (2 Lanes)
- Active Area:344.16*193.59 (H*V)mm

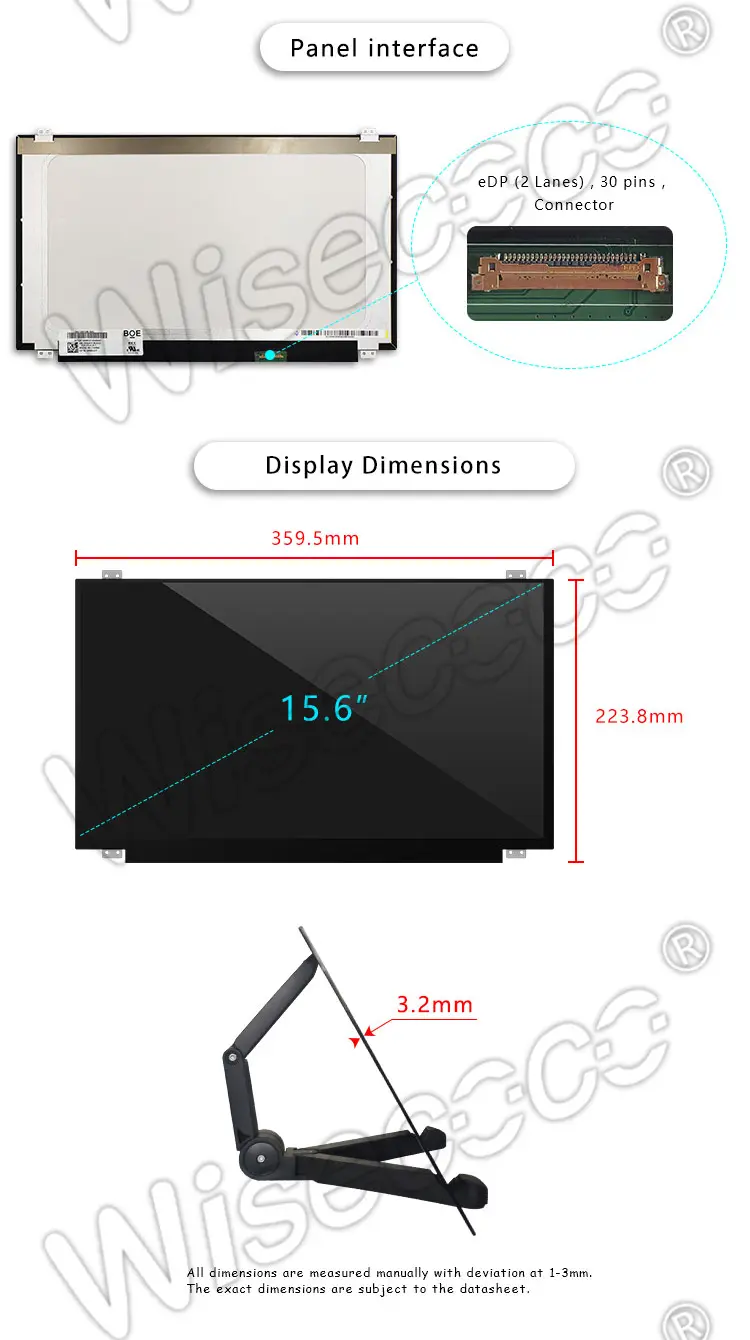

- Outline Dimension:359.5*223.8*3.2 (H*V*D)mm
- Viewing Angle :85/85/85/85 (Typ.)(CR≥10)
- Brightness :250 cd/m² (Typ.)
- Operation / Storage Temp:0~50°C / -20~60°C

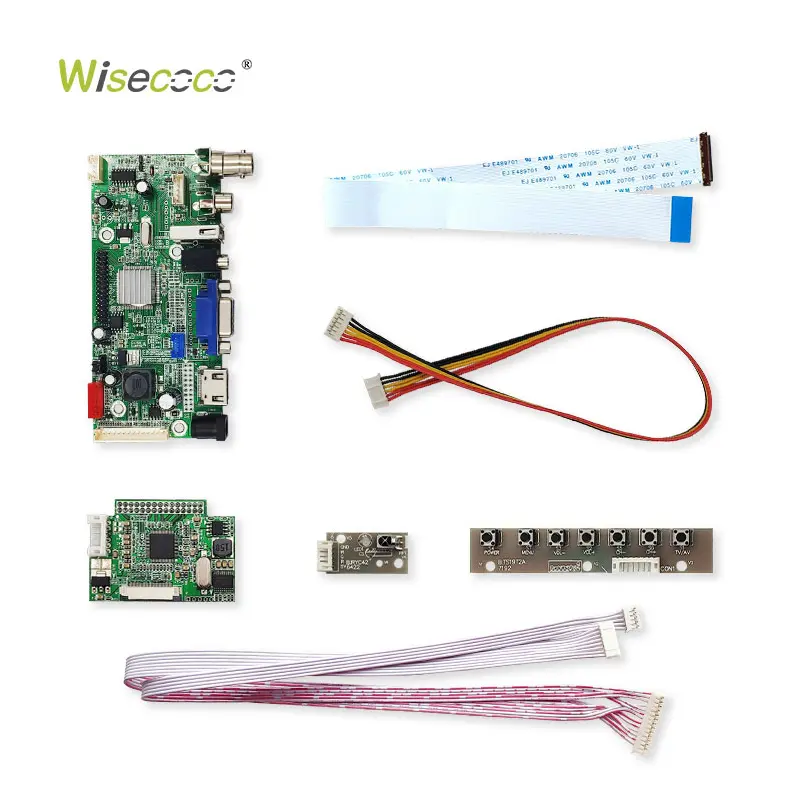

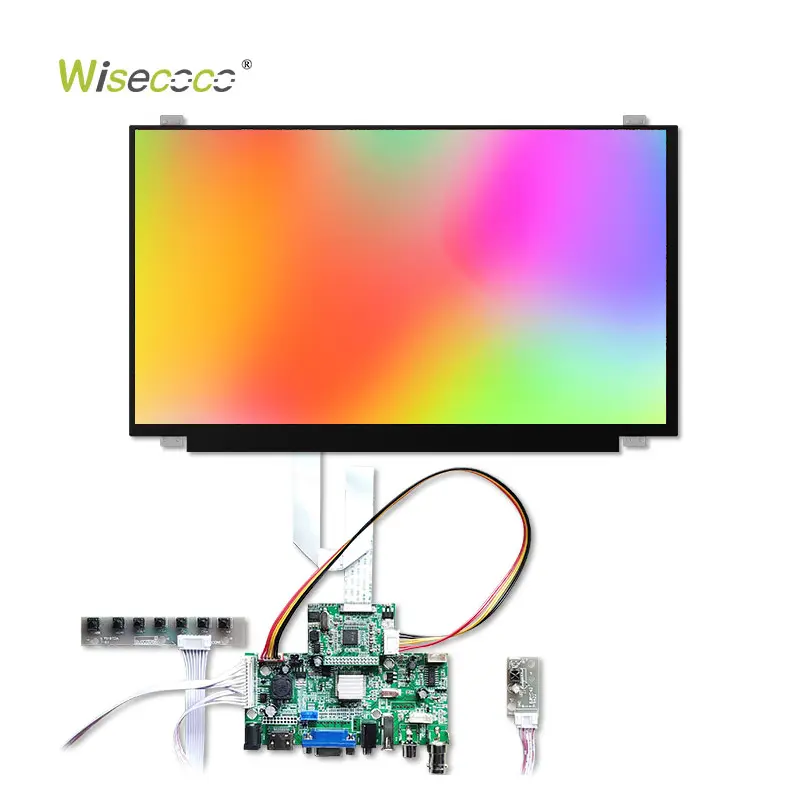

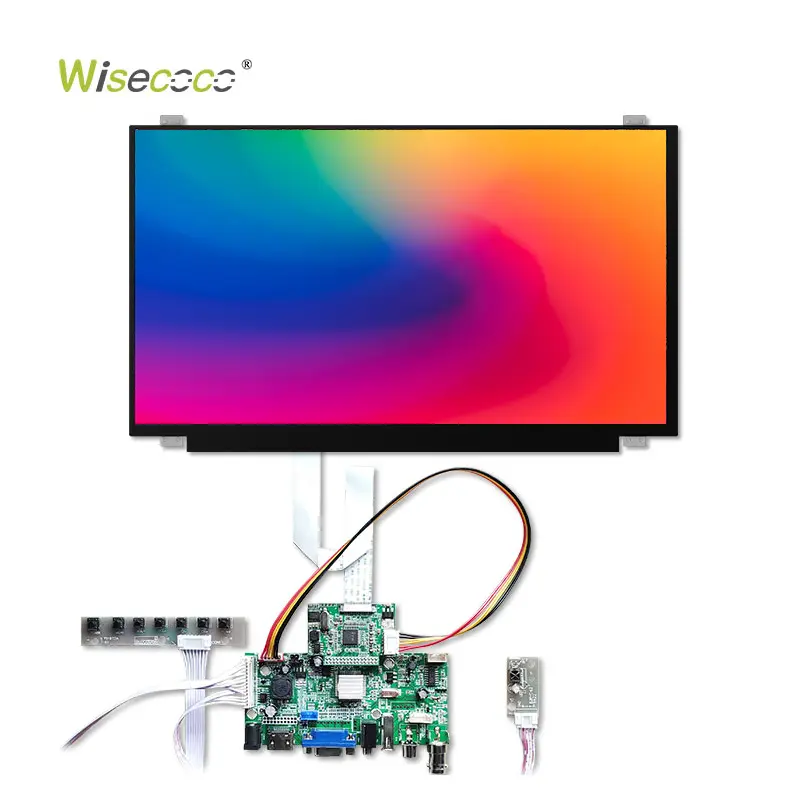

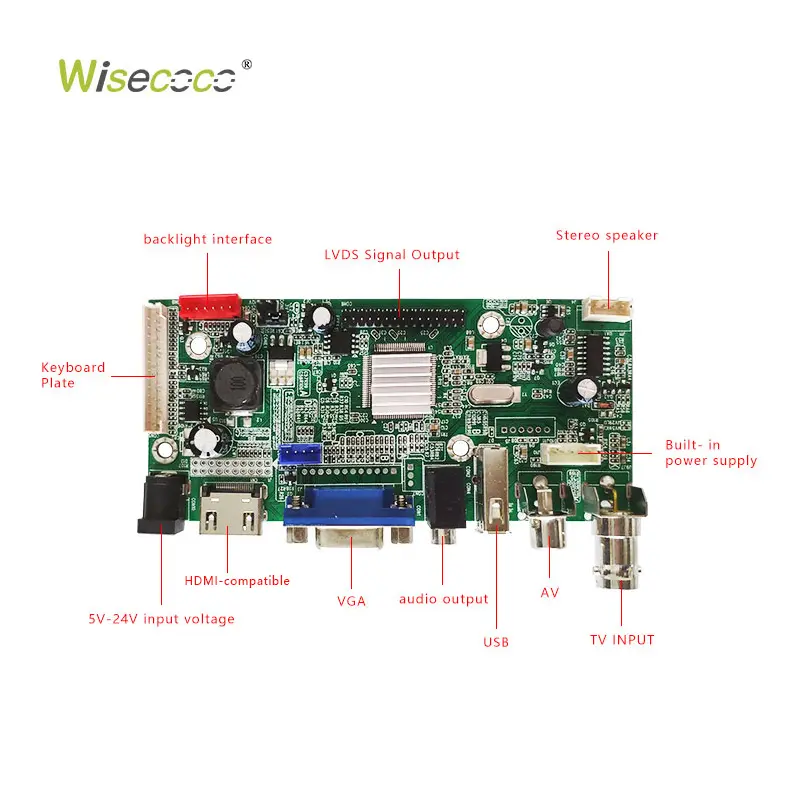

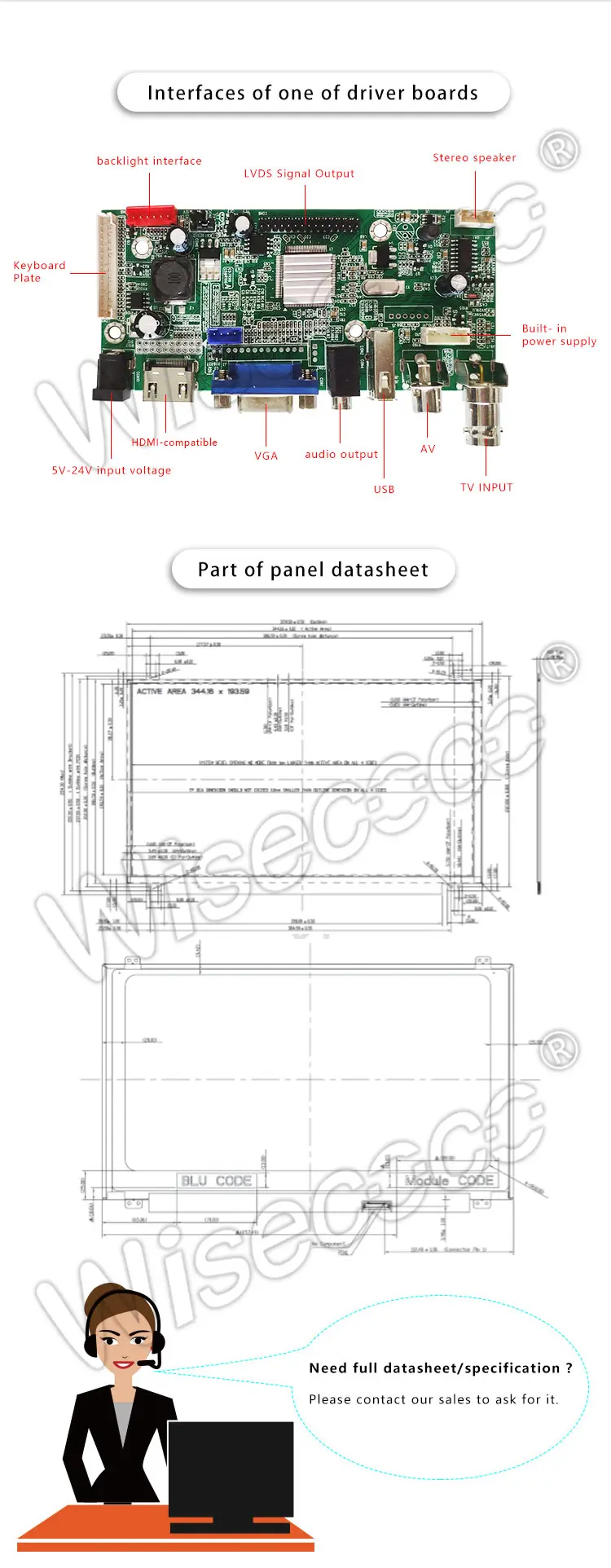

15.6 Inch IPS TFT LCD Module 1920*1080 30 PIN EDP Interface Laptop LCD Panel Display with Controller Board
$89.00
15.6″ IPS LCD Display — 1920×1080 FHD | eDP | Glare + Hard Coating (3H)

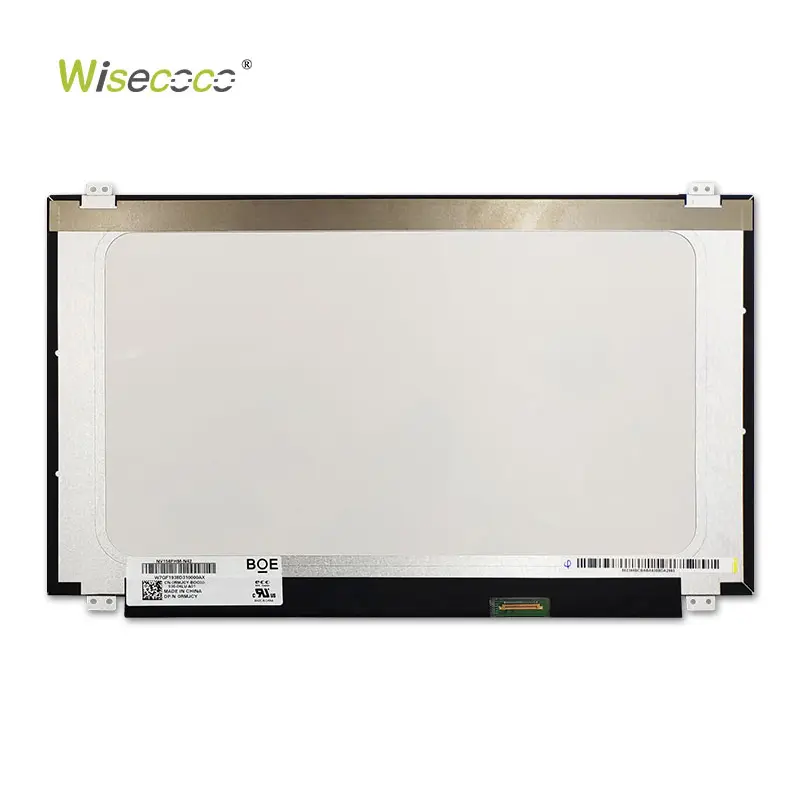

15.6-inch IPS TFT-LCD display delivering sharp 1920(RGB)×1080 FHD resolution with symmetrical wide viewing angle (85/85/85/85) and hard coating (3H) surface treatment. Featuring 250cd/m² luminance, an eDP 2-lane 30-pin interface, and a 15,000-hour WLED backlight with integrated LED driver.
|
General Features
|
|||
|
Diagonal Size
|
15.6 inch
|
Type
|
a-Si TFT-LCD , LCM
|
|
Pixel Format
|
1920(RGB)*1080 (FHD)
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
344.16*193.59 (H*V)mm
|
Outline Dim.
|
359.5*223.8*3.2 (H*V*D)mm
|
|
Bezel Area
|
–
|
Treatment
|
Glare (Haze 0%), Hard coating (3H)
|
|
Luminance
|
250 cd/m² (Typ.)
|
Contrast Ratio
|
800:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
30 (Typ.)(Tr+Td)
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR≥10)
|
Operating Mode
|
ADS, Normally Black, Transmissive
|
|
Support Color
|
262K 45% (CIE1931)
|
Light Source
|
10S4P WLED , 15K hours , With LED Driver
|
|
Weight
|
–
|
Designed For
|
Laptop,and so on.
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
Without
|
|
Interface Type
|
eDP (2 Lanes) , Connector , 30 pins
|
||
|
Power Supply
|
3.3V (Typ.)
|
||
|
Environment
|
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
|
||
Features:
- 1920×1080 FHD Resolution — Sharp, high-definition IPS imagery suited for laptop and everyday computing use.
- IPS Wide Viewing Angle (85/85/85/85) — Consistent color and brightness maintained from virtually any angle, avoiding shift and contrast loss.
- Hard Coating (3H) Surface Treatment — Scratch-resistant coating for enhanced durability.
- 800:1 Contrast Ratio — Reliable dynamic range for clear, well-defined imagery.
- 262K Colors, 45% NTSC (CIE1931) — Accurate color reproduction suited for standard computing applications.
- 250cd/m² Luminance — Consistent brightness across varied ambient lighting conditions.
Ideal for: Laptop & notebook displays · Replacement laptop screens · Portable computing devices · Business & consumer notebooks · Custom embedded computing projects
Wisecoco offers One-step customized display module solutions.
