- Size:10.3 inch
- Resolution:1920×720
- Panel Interface:LVDS (2 ch, 8-bit)
- Active Area:243.648(W)×91.368(H) mm
- Outline Dimension:259.8(W)×112(H) ×15.7(D) mm
- Viewing Angle:85/85/85/85 (Typ.)(CR≥10)
- Brightness :850 cd/m² (Typ.)
- Operation / Storage Temp:-30 ~ 85 °C/ -30 ~ 85 °C
High Brightness Screen 10.3 Inch Stretched Bar LCD Modules 1920×720 Resolution 850 Nits TFT LCD Display
$95.00
High Brightness Screen 10.3 Inch Stretched Bar LCD Modules
Description:
The 10.3-inch stretched bar IPS display purpose-built for automotive and outdoor applications demanding extreme brightness and temperature resilience. With 850+ cd/m² luminance and a -30°C to 85°C operating range, this panel stays clearly readable in direct sunlight and performs reliably across the harshest seasonal extremes.
- 850+ cd/m² High Brightness —It can ensure clear visibility even under intense direct sunlight – perfect for dashboards and outdoor-facing displays.
- Wide Operating Temperature (-30°C ~ 85°C) — Engineered to perform in extreme cold and heat alike, with storage tolerance down to -40°C, making it suitable for unconditioned vehicle cabins and outdoor enclosures
- IPS Full Viewing Angle — Consistent color and contrast from any position, with no shift or washout even at sharp side angles
- 16.7M Colors — Rich, accurate color reproduction for maps, media, and high-detail UI overlays

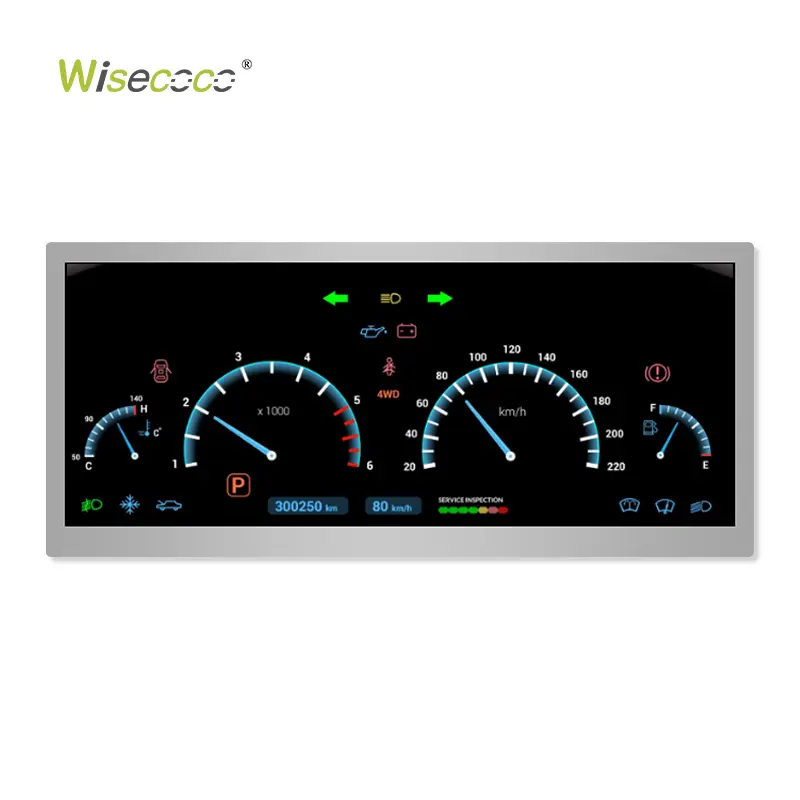

Ideal for: Automotive center consoles & dashboards · Electric vehicle instrument clusters · Outdoor stretched signage displays
|
Diagonal Size
|
10.3 inch
|
Panel Type
|
a-Si TFT-LCD , LCM
|
|
Resolution
|
1920(RGB)×720
|
Pixel Format
|
RGB Vertical Stripe
|
|
Display Area
|
243.648(W)×91.368(H) mm
|
Bezel Opening
|
246.05(W)×93.77(H) mm
|
|
Outline Size
|
259.8(W)×112(H) ×15.7(D) mm
|
Surface
|
Anti-glare, Hard coating (3H)
|
|
Brightness
|
850 cd/m² (Typ.)
|
Contrast Ratio
|
1000:1 (Typ.) (TM)
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR≥10)
|
Display Mode
|
IPS Pro, Normally Black, Transmissive
|
|
Best View on
|
Symmetry
|
Response Time
|
35 (Max.)(Tr+Td)
|
|
Display Colors
|
16.7M
|
Lamp Type
|
9S4P WLED , 20K hours , Without Driver
|
|
Frequency
|
60Hz
|
Touch Panel
|
Without
|
|
Panel Weight
|
360g (Typ.)
|
Application
|
Outdoor Advertising;Automotive Display
|
|
Signal Interface
|
LVDS (2 ch, 8-bit) , 50 pins , Connector
|
||
|
Input Voltage
|
3.3V (Typ.)
|
||
|
Environment
|
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²)
|
||
