- Size:6 inch
- Resolution:1440×2560
- Panel Interface:MIPI (2 ch, 4 data lanes)
- Active Area:74.52*132.48 (H*V)mm
- Outline Dimension:76.92*140.13*1.54 (H*V*D)mm
- Viewing Angle:80/80/80/80 (Typ.)(CR≥10)
- Brightness:420 cd/m² (Typ.)
- Operation / Storage Temp:-20~60°C / -30~70°C

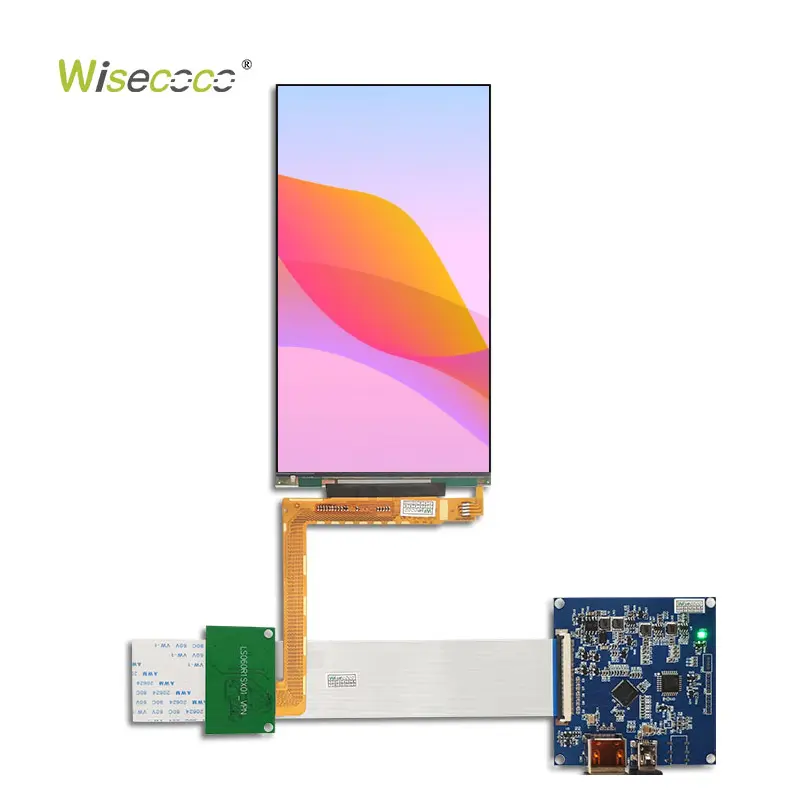

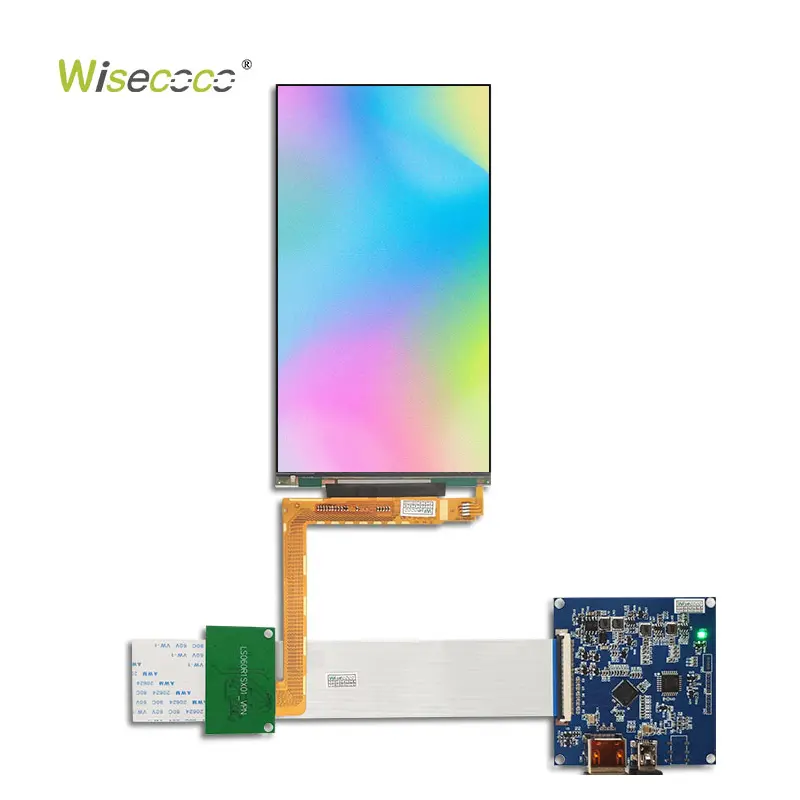

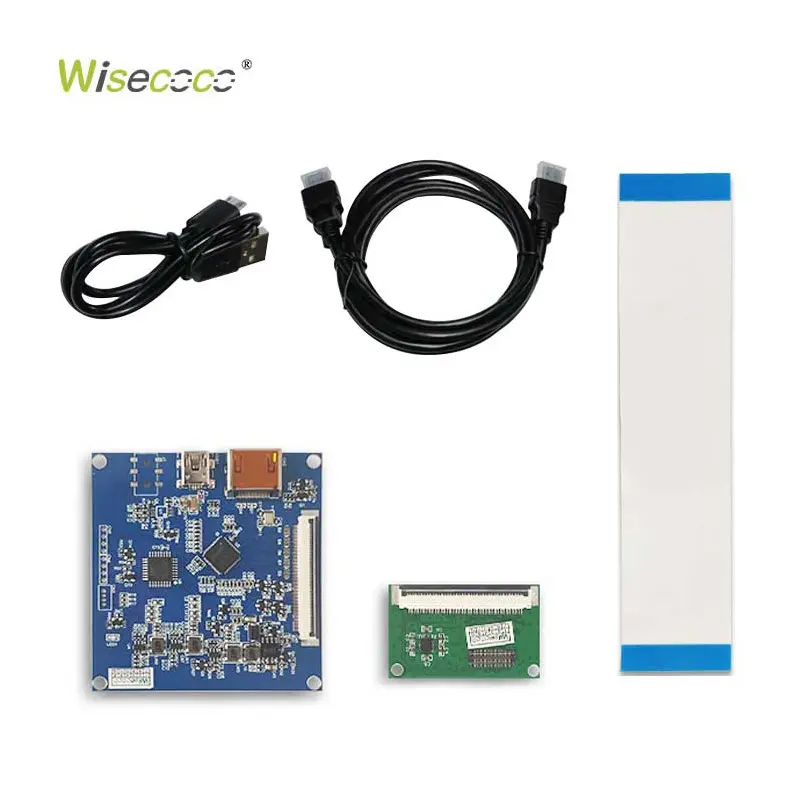

6 Inch 2K 1440P IPS TFT LCD Screen Panel with Mipi Driver Board Removale Backlight
$85.00
6 Inch 2K LCD Display — 1440×2560 | MIPI | Portrait Type | Removable Backlight
6-inch IPS 2K display delivering sharp 1440(RGB)×2560 Quad-HD resolution with CG-Silicon LCM technology and symmetrical wide viewing angle (80/80/80/80). Featuring a 1300:1 contrast ratio, 420cd/m² brightness, and a portrait-type form factor purpose-built for VR and 3D printing applications.
|
General Features
|
|||
|
Diagonal Size
|
6 inch
|
Type
|
LCM, CG-Silicon
|
|
Pixel Format
|
1440(RGB)*2560 (Quad-HD)
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
74.52*132.48 (H*V)mm
|
Outline Dim.
|
76.92*140.13*1.54 (H*V*D)mm
|
|
Bezel Area
|
75.02*133.21 (H*V)mm
|
Treatment
|
–
|
|
Luminance
|
420 cd/m² (Typ.)
|
Contrast Ratio
|
1300 : 1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
35 (Max.)(Tr+Td)
|
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥10)
|
Operating Mode
|
New Mode2, Normally Black, Transmissive
|
|
Support Color
|
16.7M 70% (CIE1931)
|
Light Source
|
8S2P WLED , No Driver
|
|
Weight
|
Designed For
|
VR 3D printer,Raspberry PI
|
|
|
Interface Type
|

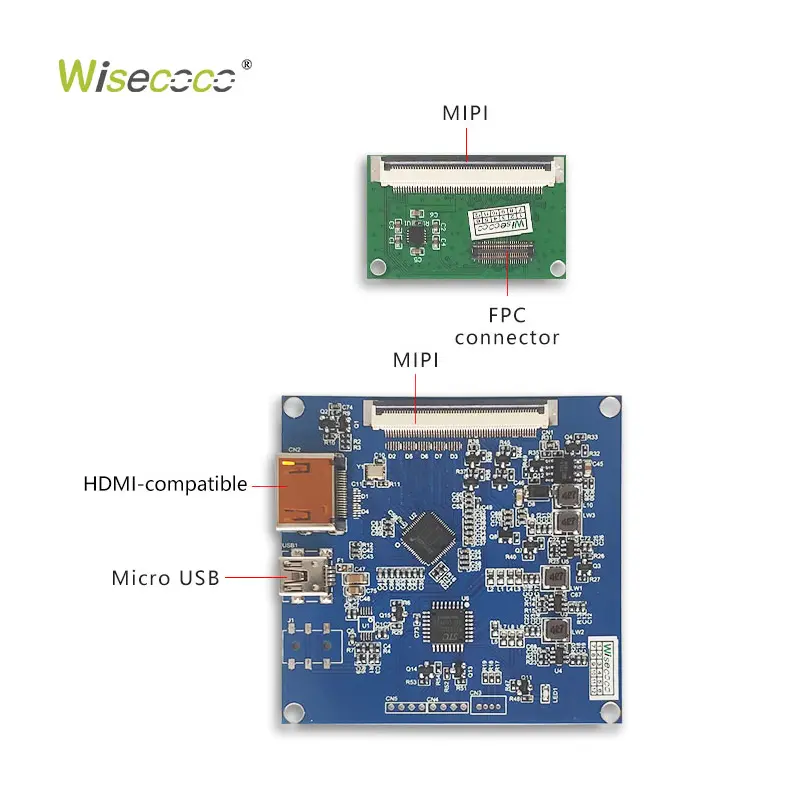

MIPI (2 ch, 4 data lanes) , Connector , 50 pins
|
||
|
Power Supply
|
1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)
|
||
|
Environment
|
Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C
|
||
Features:
- 1440×2560 Quad-HD Resolution — Sharp CG-Silicon IPS panel delivers crisp, high-density detail for icons, text, and graphical interfaces.
- Wide Viewing Angle (80/80/80/80, CR≥10) — Consistent color and brightness maintained from virtually any angle, avoiding shift and contrast loss.
- 1300:1 Contrast Ratio — Enhanced dynamic range for clear, well-defined imagery.
- 16.7M Colors, 70% NTSC (CIE1931) — Rich, accurate color reproduction for vivid, true-to-life visuals.
- 420cd/m² Brightness — Bright, clear display readable across varied lighting conditions.
Ideal for: VR headsets & near-eye displays · 3D printer control screens · Raspberry Pi & DIY builds · Portrait-orientation embedded displays · Maker & prototyping projects
Wisecoco offers One-step customized LCD display solutions.
