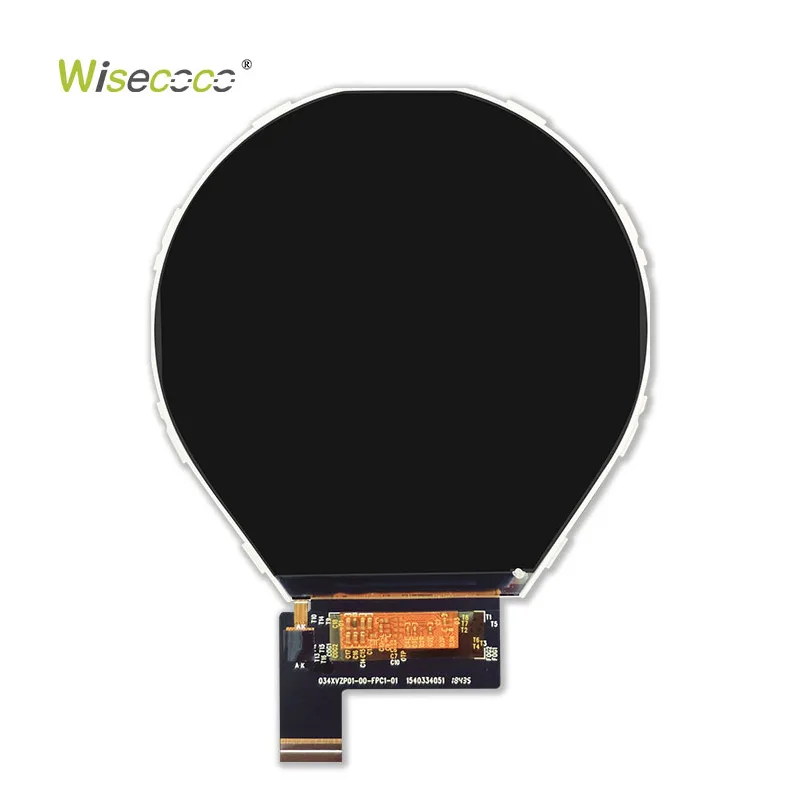

- Size:3.4 inch
- Resolution:800×800

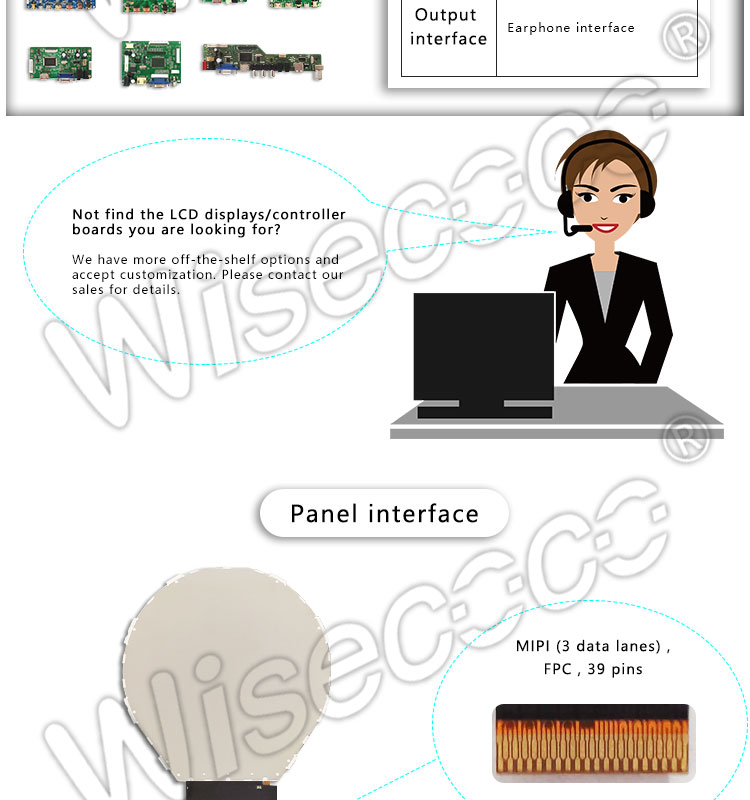

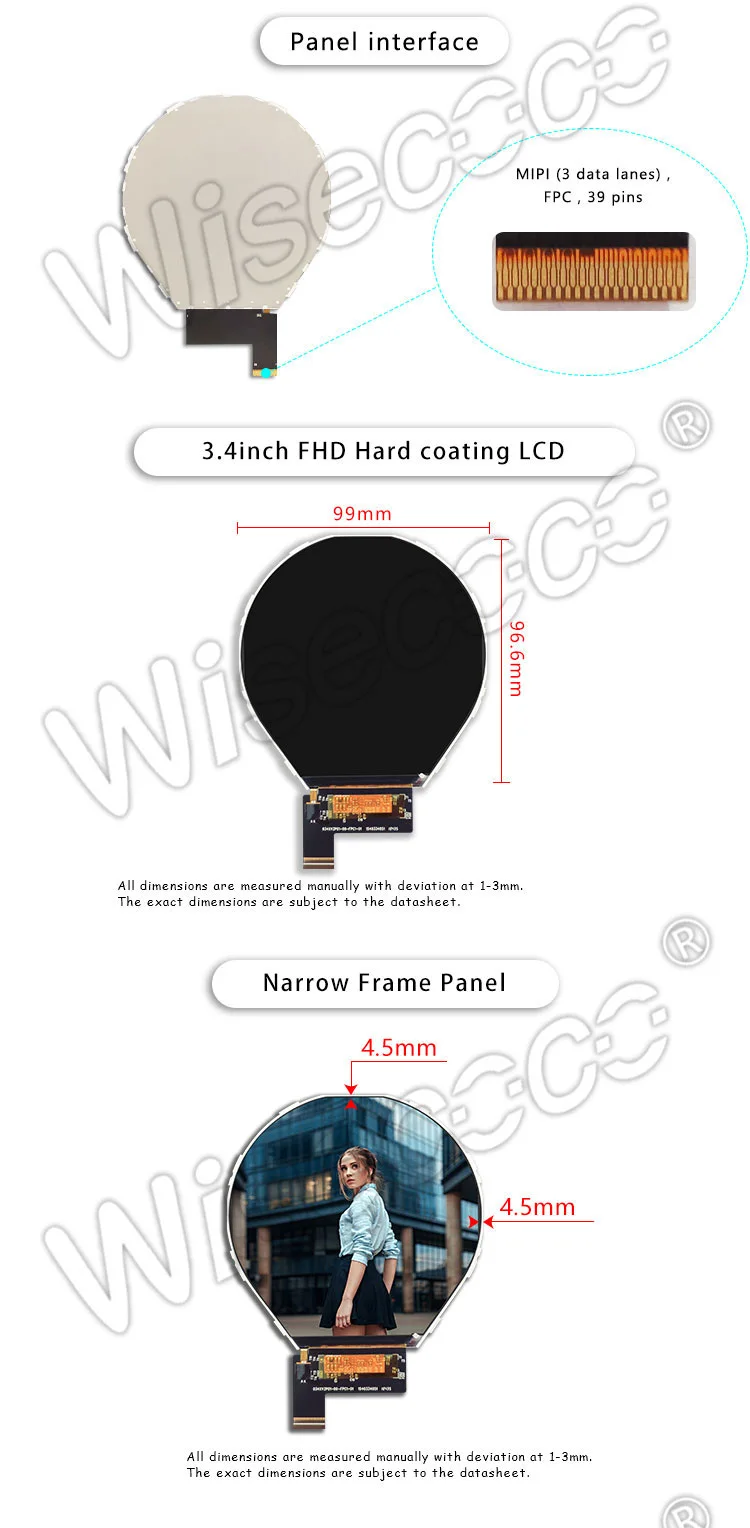

- Panel Interface:MIPI
- Active Area:87.6(H)×87.6(V) mm

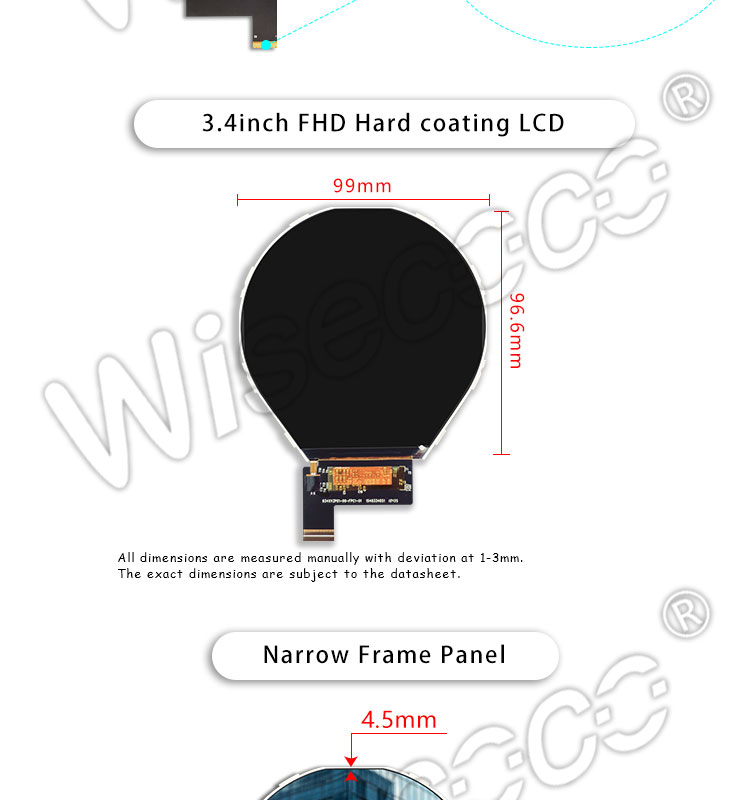

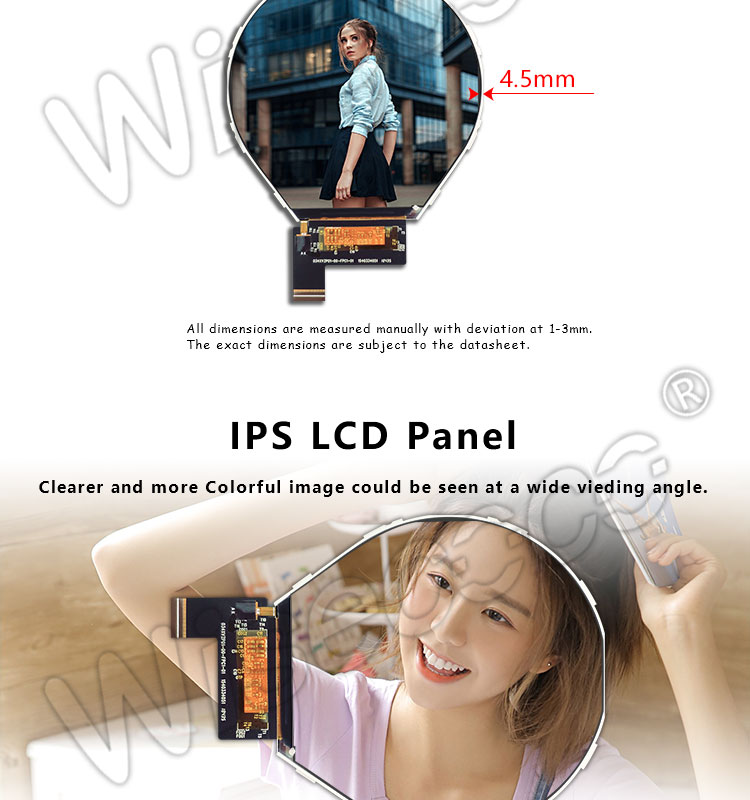

- Outline Dimension:99(H)×96.6(V)mm
- Viewing Angle :80/80/80/80 (Typ.)(CR≥10)
- Brightness :350 cd/m² (Typ.)
- Operation / Storage Temp:-20~70°C / -30~80°C
-24%

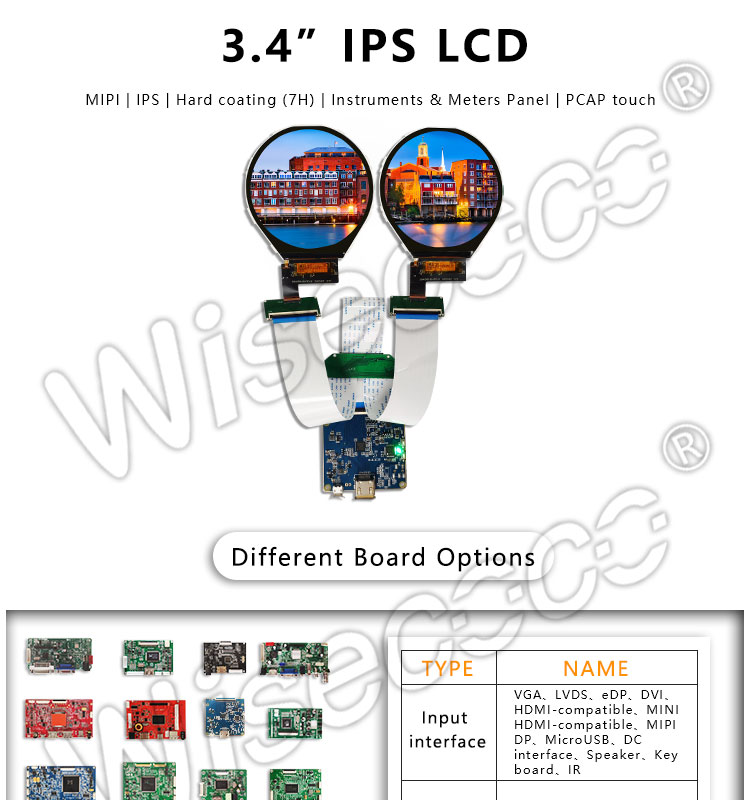

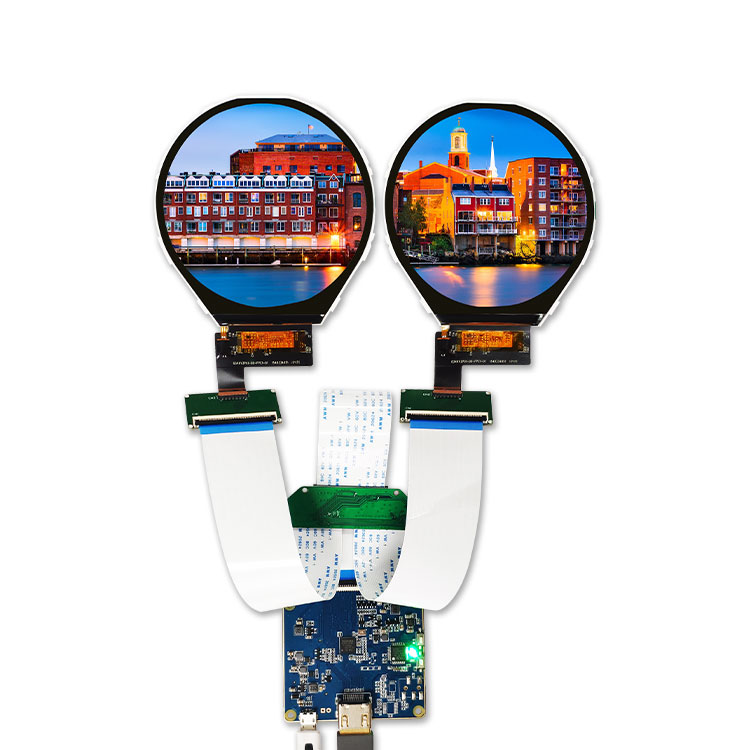

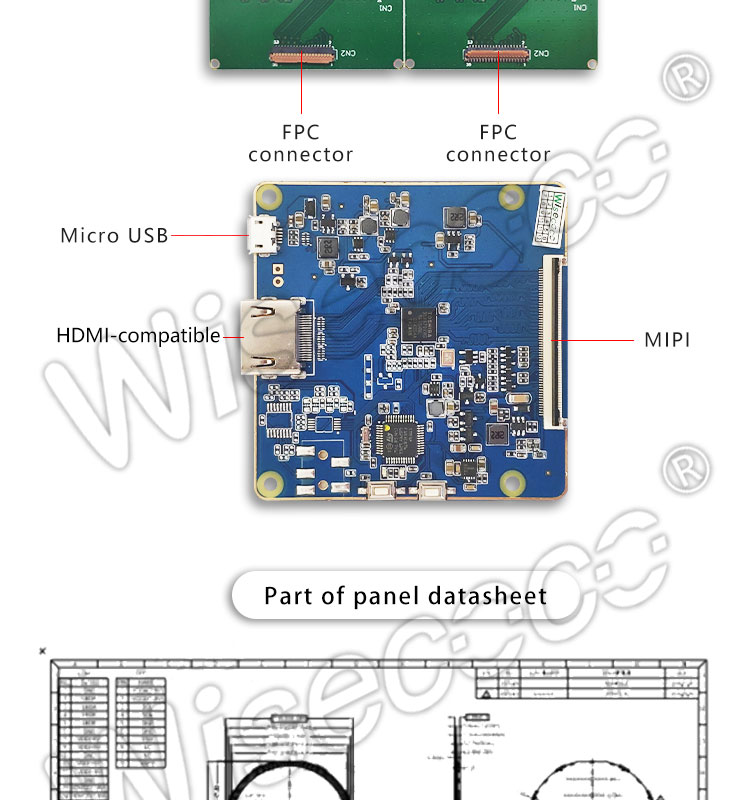

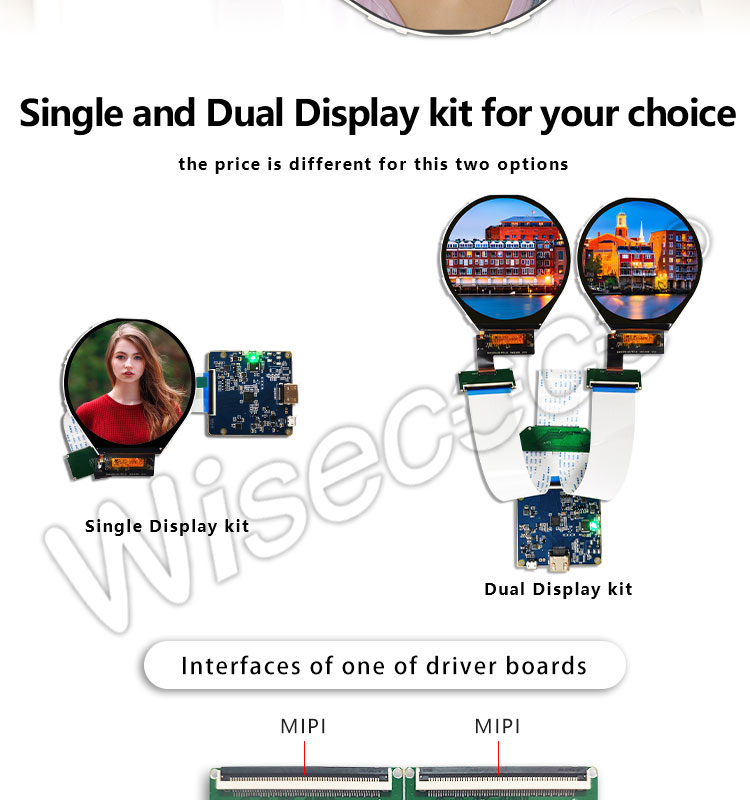

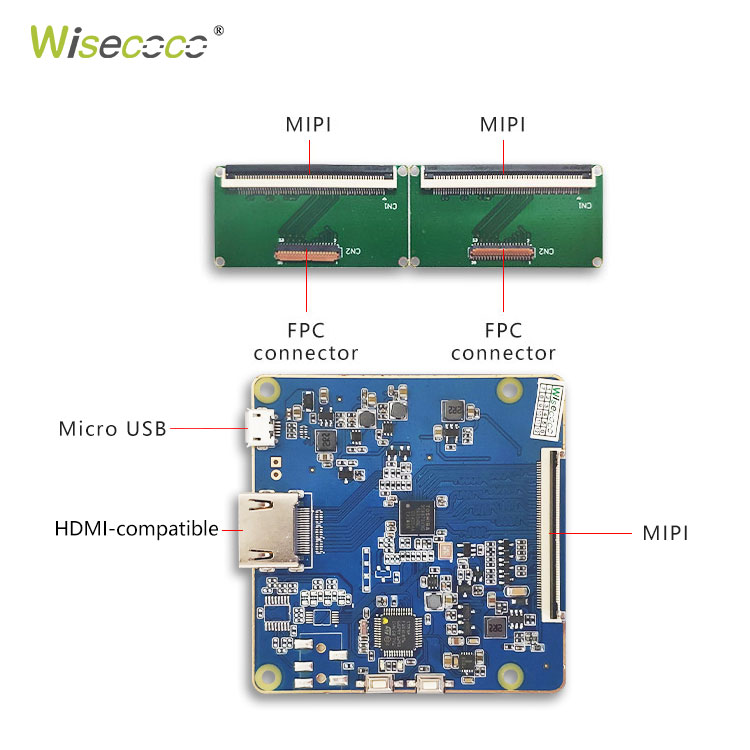

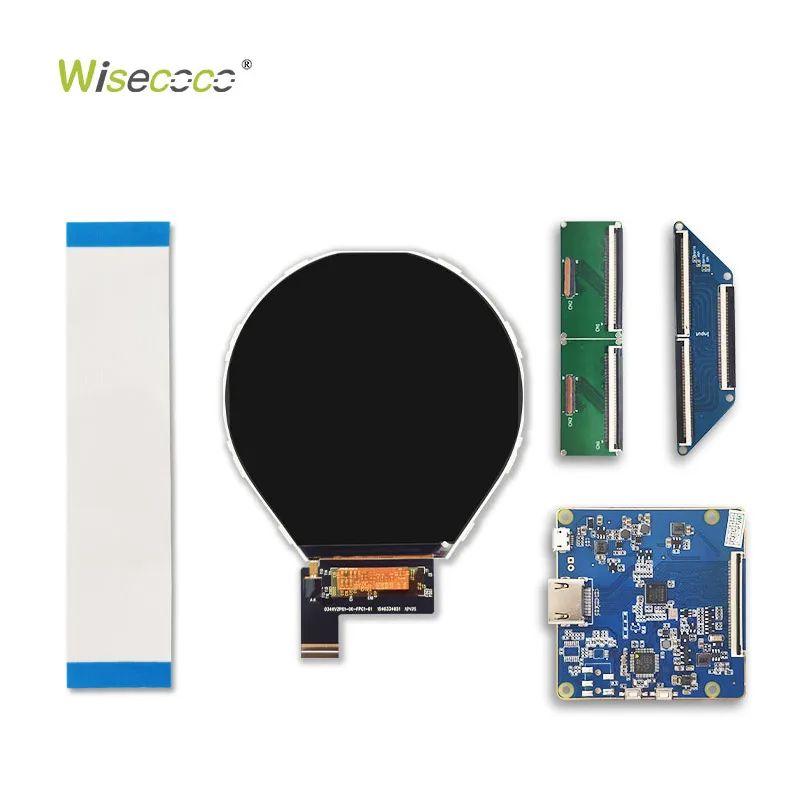

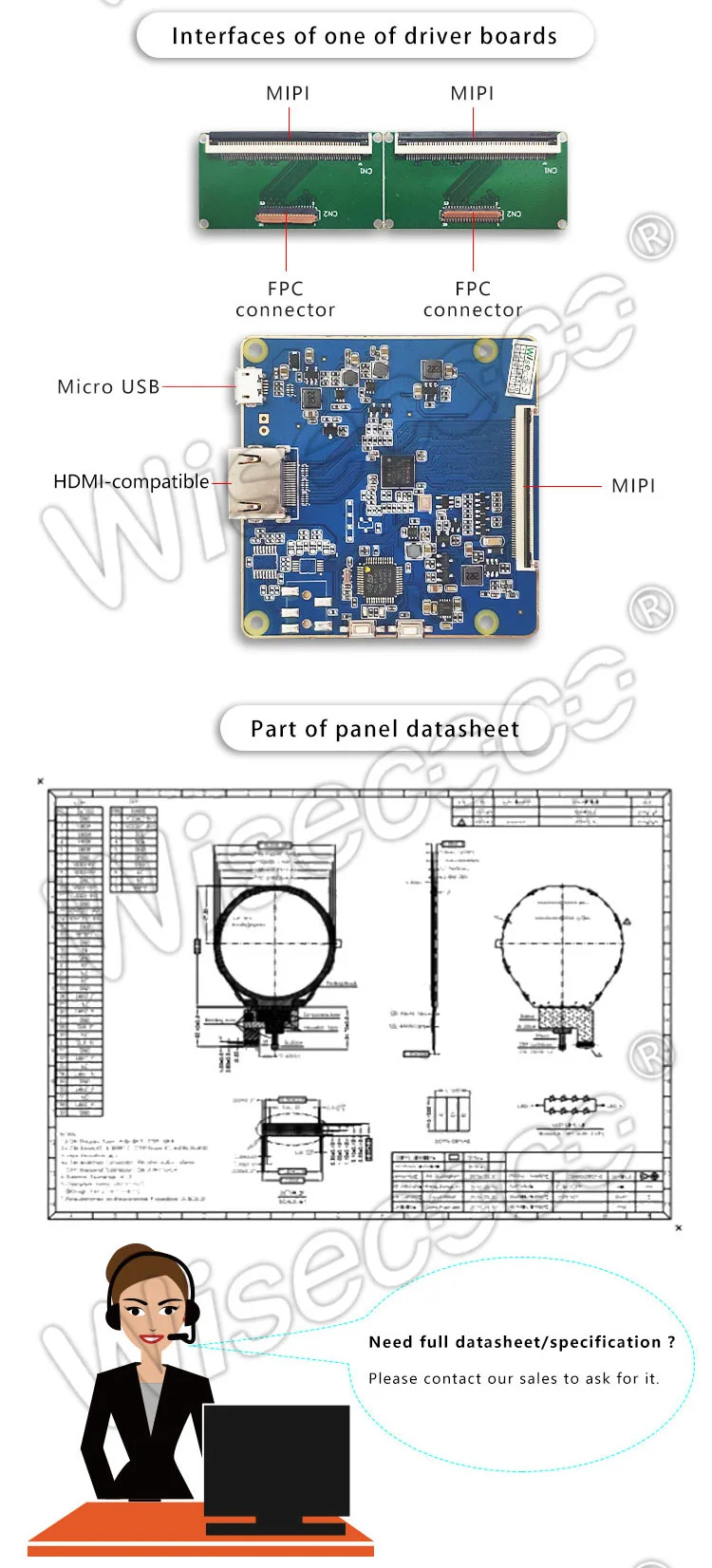

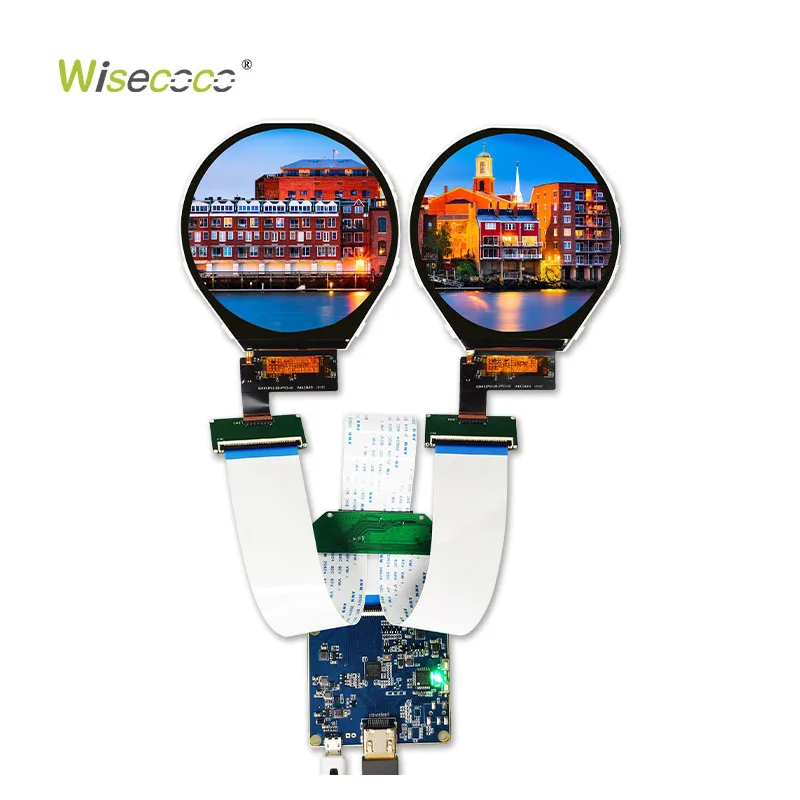

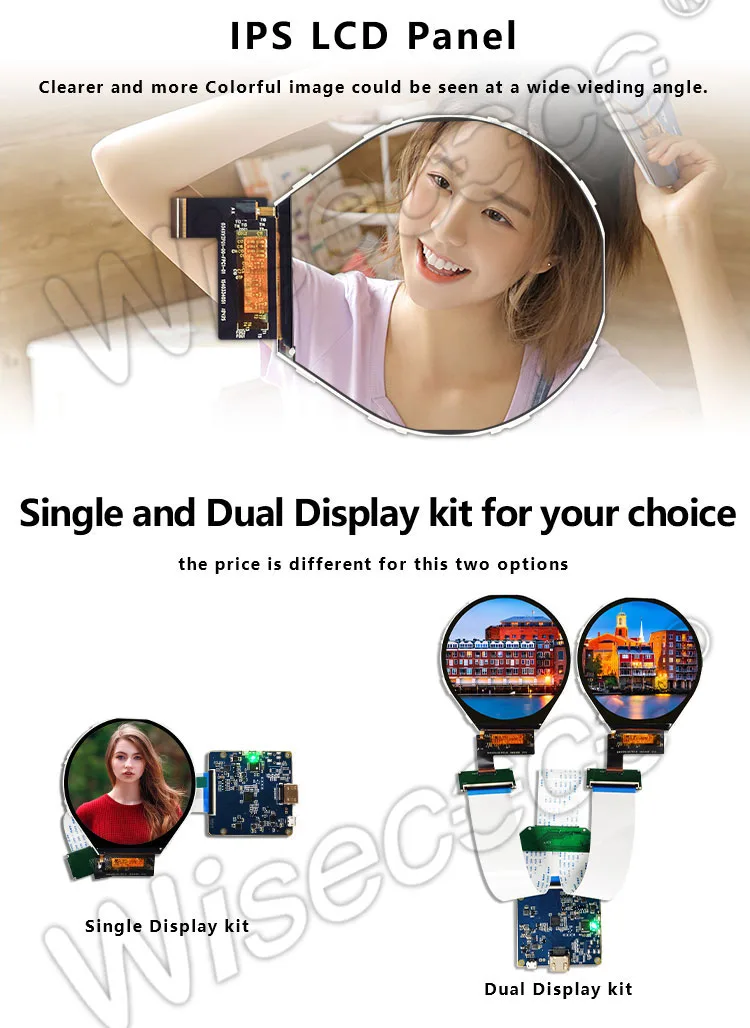

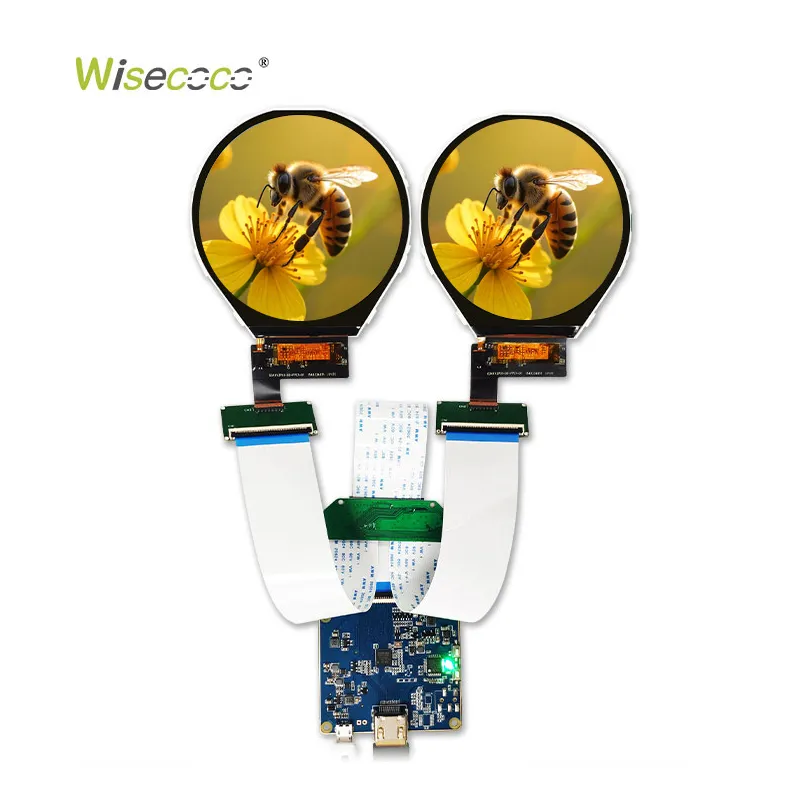

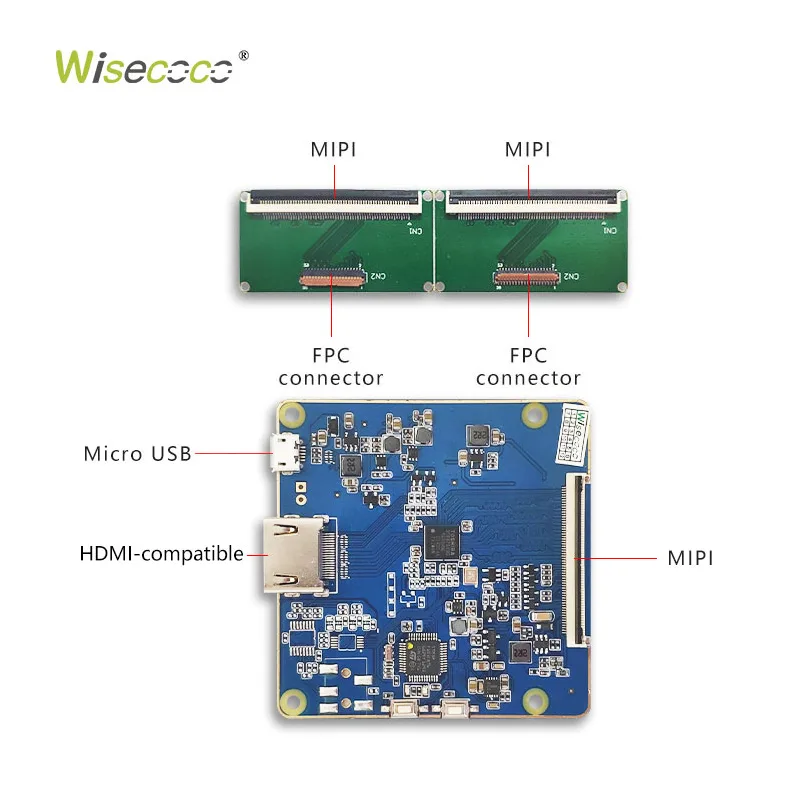

3.4 Inch 800×800 Circular LCD Display Round Screen Dual Panel MIPI 60Hz Driver Board
Original price was: $185.00.$140.00Current price is: $140.00.

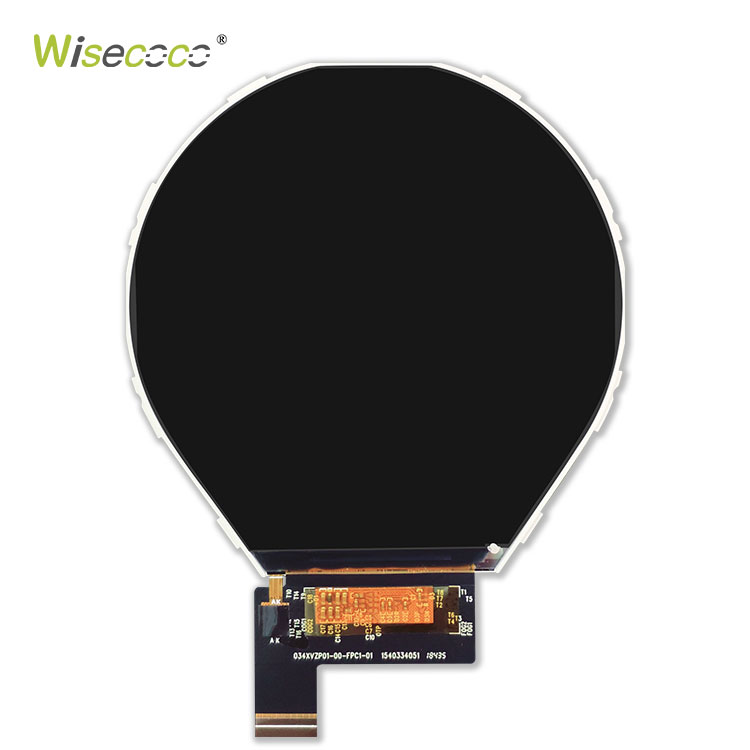

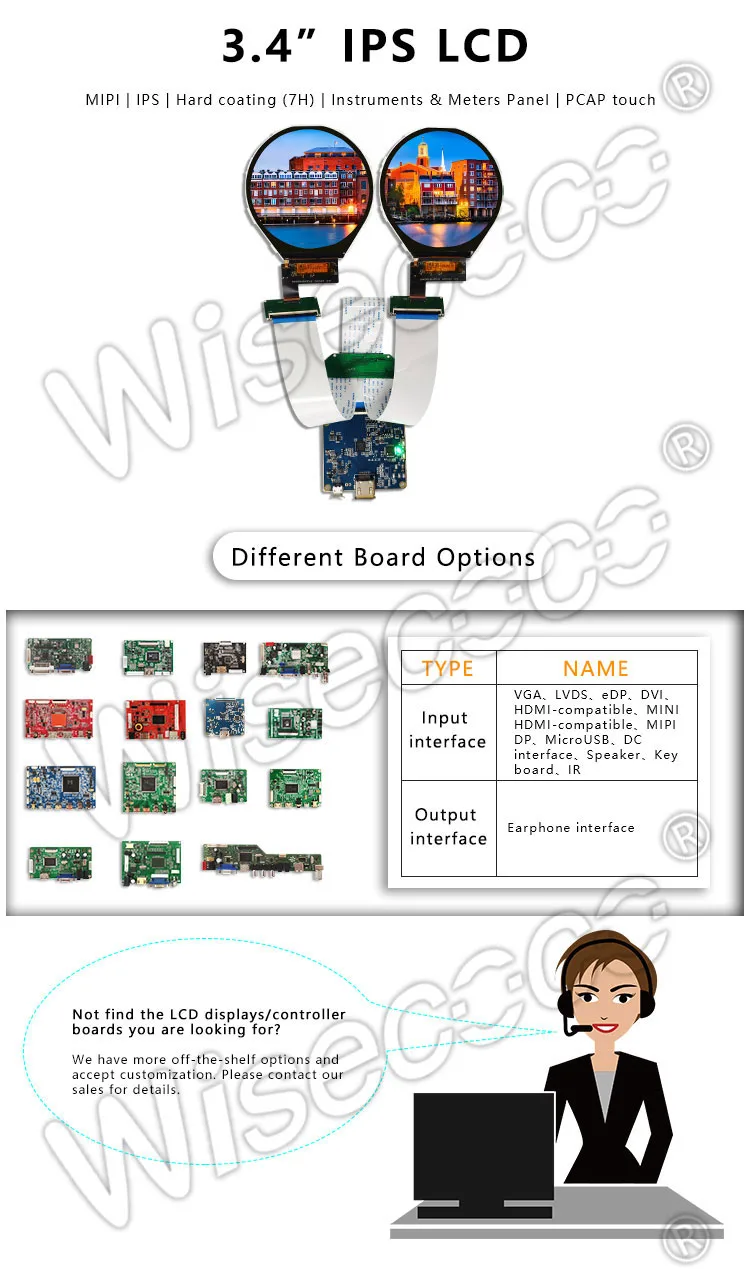

3.4 Inch IPS Dual Circular Display — 800×800 | MIPI | PCAP Touch | Hard Coating (7H)
3.4-inch IPS Circular LCD display delivering sharp 800(RGB)×800 resolution with symmetrical wide viewing angle (80/80/80/80) and PCAP touch integration. Featuring hard coating (7H) surface treatment, 350cd/m² brightness, and a compact MIPI interface, this display is purpose-built for smartwatches, instrument panels, and industrial meter applications.
Features:
- 800×800 Resolution — Sharp IPS panel delivers crisp, detailed imagery ideal for gauge, meter, and dial-style interfaces.
- Wide Viewing Angle (80/80/80/80, CR≥10) — Consistent color and brightness maintained from virtually any angle, avoiding shift and contrast loss.
- PCAP Touch Panel — Projected capacitive touch enables responsive, accurate interaction.
- Hard Coating (7H) Surface Treatment — Scratch-resistant surface for extended durability in handheld and industrial use.
Ideal for: Smartwatches & wearable devices · Industrial meters & instrument panels · Raspberry Pi & DIY builds · Round dashboard & gauge displays · Custom embedded HMI applications
Wisecoco offers One-step customized display module solutions.
