- Size:2.9 inch
- Resolution:1440×1440
- Panel Interface:MIPI (2 ch, 4 data lanes)
- Brightness（cd/m2）:300cd/m²(Typ.)
- Outline Dimension:54.24(W)x59.32(H)mm
- Active Area:51.84(W)x51.84(H)mm
- Viewing Angle L/R/U/D:80/80/80/80 (Min.)(CR≥10)
-6%

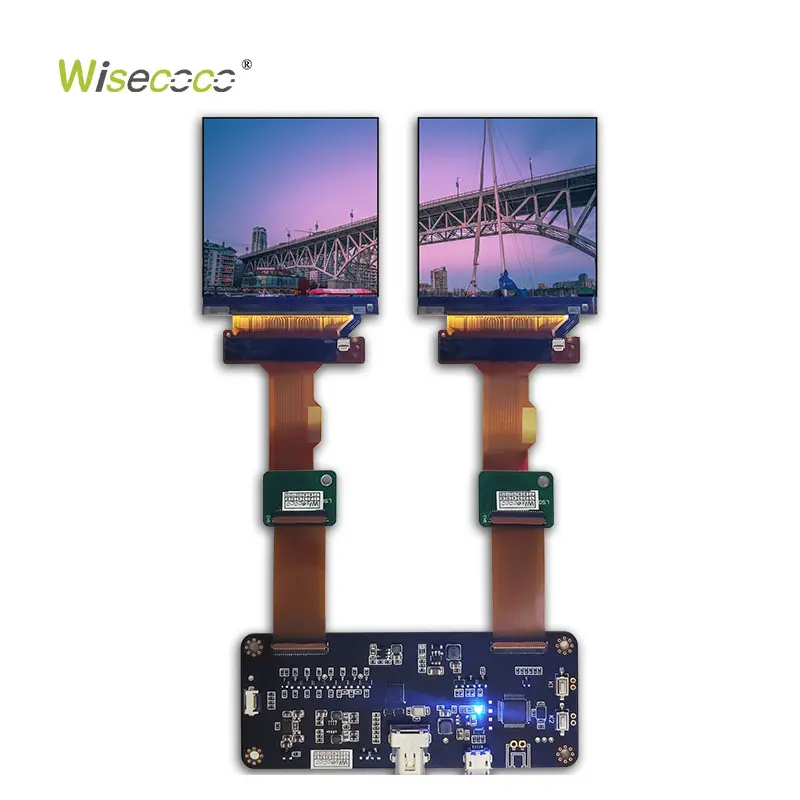

120Hz 2.9 inch 2880*1440 2k Dual Square LCD Displays For VR Headset HMD Panel DP MIPI Driver Board
Original price was: $175.00.$165.00Current price is: $165.00.
2.9″ Dual Square IPS LCD Display — 1440×1440 | 120HZ | Wide Viewing Angle
2.9-inch dual square IPS high-definition display purpose-built for VR, AR, and HMD (Head-Mounted Display) devices. Built with CG-Silicon LCM technology, it combines an ultra-high 1440×1440 resolution with a 120Hz refresh rate to deliver exceptionally sharp and fluid visuals. The RGB Vertical Stripe pixel configuration, paired with symmetrical wide-angle viewing, ensures consistent, high-quality image reproduction from any angle.
|
Diagonal Size
|
2.9 inch
|
Type
|
LCM, CG-Silicon
|
|
Pixel Format
|
1440(RGB)×1440
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
51.84 × 51.84 (H×V)
|
Outline Dim.
|
54.24 × 59.02 × 1.51 (H×V×D)
|
|
Bezel Area
|
Treatment
|
Hard coating
|
|
|
Luminance
|
300 cd/m² (Typ.)
|
Contrast Ratio
|
1100:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
10 (Typ.)(Tr+Td)
|
|
Viewing Angle
|
80/80/80/80 (Min.)(CR≥10)
|
Operating Mode
|
IPS, Normally Black, Transmissive
|
|
Support Color
|
16.7M 75% (CIE1931)
|
Light Source
|
4S2P WLED , No Driver
|
|
Weight
|
Designed For
|
HMD VR AR
|
|
|
Frame Rate
|
120Hz
|
Touch Panel
|
Without
|
|
Interface Type
|
Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C
|
||
|
Power Supply
|
1.8/5.5/-5.5V (Typ.)(VDDI/VSP/VSN)
|
||
|
Environment
|
Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C
|
||
Features:
- Ultra-High Resolution: 1440(RGB)×1440, packed into a compact 2.9-inch panel for exceptionally crisp, high-PPI imagery
-
120Hz Refresh Rate: A 120Hz refresh rate ensures smooth and fluid motion, reducing motion blur and improving the overall visual quality for a more realistic VR experience.
-
IPS Display Mode: The IPS display mode offers wide viewing angles and accurate color reproduction, ensuring consistent and reliable image quality from various perspectives.
Applications ：VR Headsets | AR Glasses | MR Mixed Reality Devices | Near-Eye Displays | Smart Wearable Devices
