- Size:15.6 inch
- Resolution:1920×1080
- Panel Interface:LVDS (2 ch, 8-bit)
- Active Area:344.16(H)x193.59(V)mm
- Outline Dimension:363.7(H)×215.7(V) mm
- Viewing Angle :Full viewing angle
- Brightness :1200cd/m²
- Operation / Storage Temp:-30~85°C / -40~90°C
- Touch Panel:Optional CTP
-5%

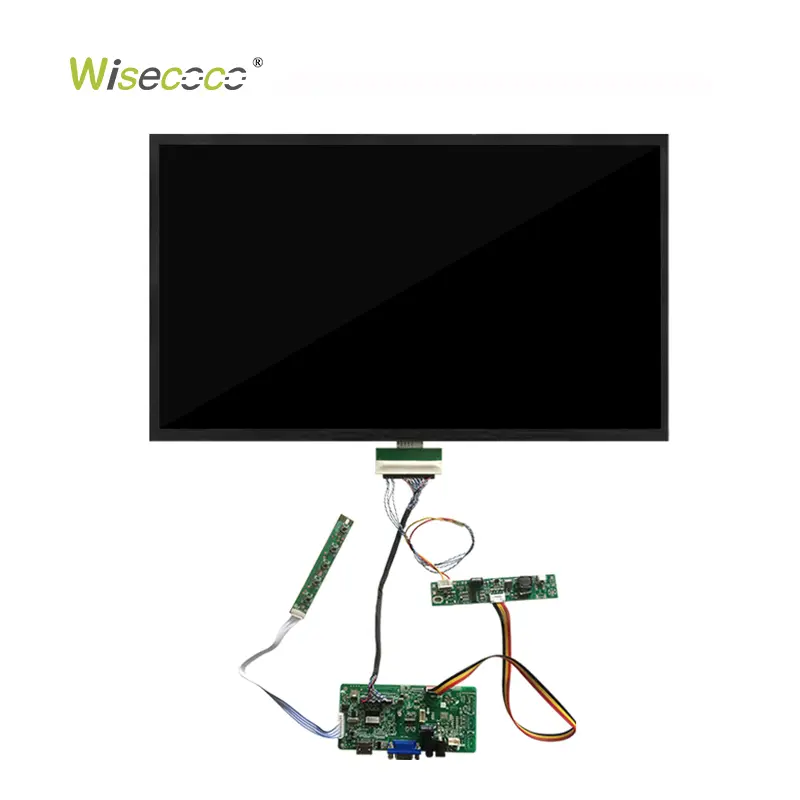

15.6 Inch FHD 1920×1080 1200 Nits High Brightness Sunlight Readable Display Wide Temperature Automotive Outdoor Display
Original price was: $190.00.$180.00Current price is: $180.00.

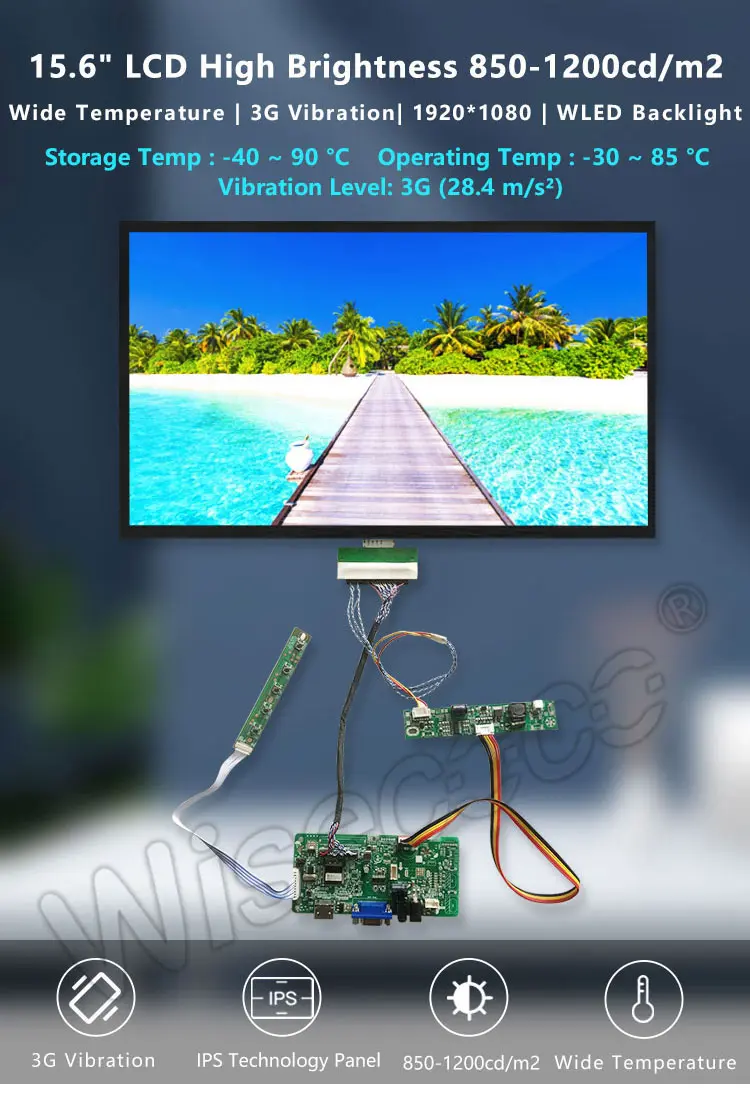

15.6″ LCD High Brightness Display — 1920×1080 | 850-1200cd/m² | 3G Vibration Resistant
15.6-inch IPS LCD display delivering sharp 1920×1080 resolution with exceptionally high 850-1200cd/m² brightness for outdoor and high-ambient-light applications. Featuring robust 3G vibration resistance, extreme wide temperature tolerance, and a WLED backlight, this display is built for the most demanding industrial and outdoor environments.
|

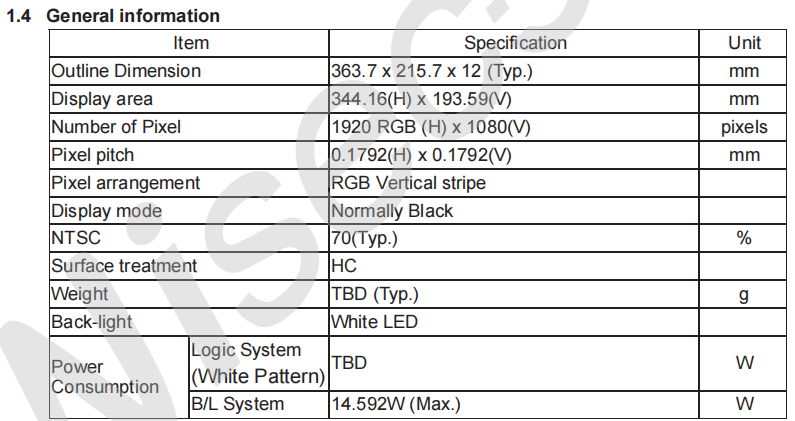

General Features
|
|||
|
Diagonal Size
|
15.6 inch
|
Type
|
LCM , a-Si TFT-LCD
|
|
Pixel Format
|
1920(RGB)*1080 [FHD] 141PPI
|
Configuration
|
RGB Vertical Stripe
|
|

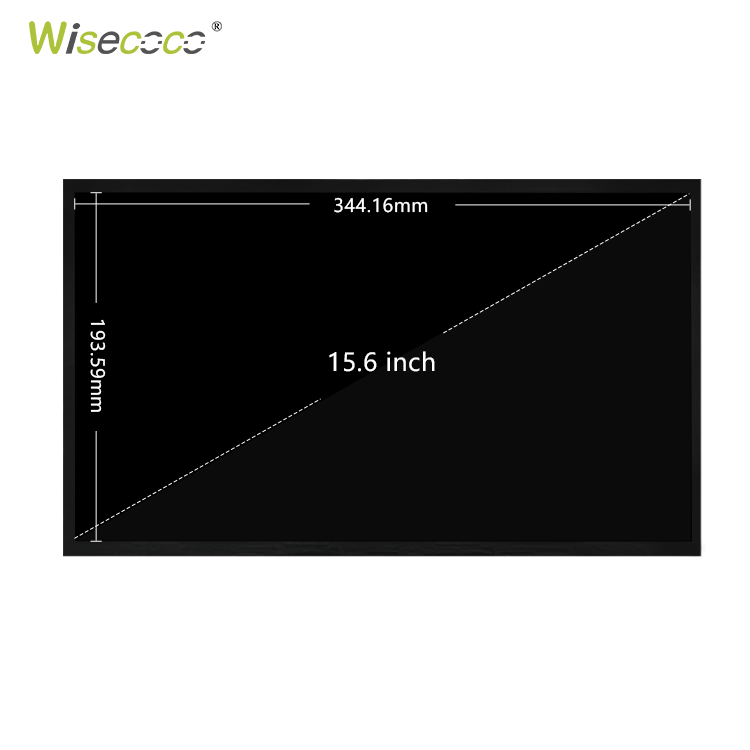

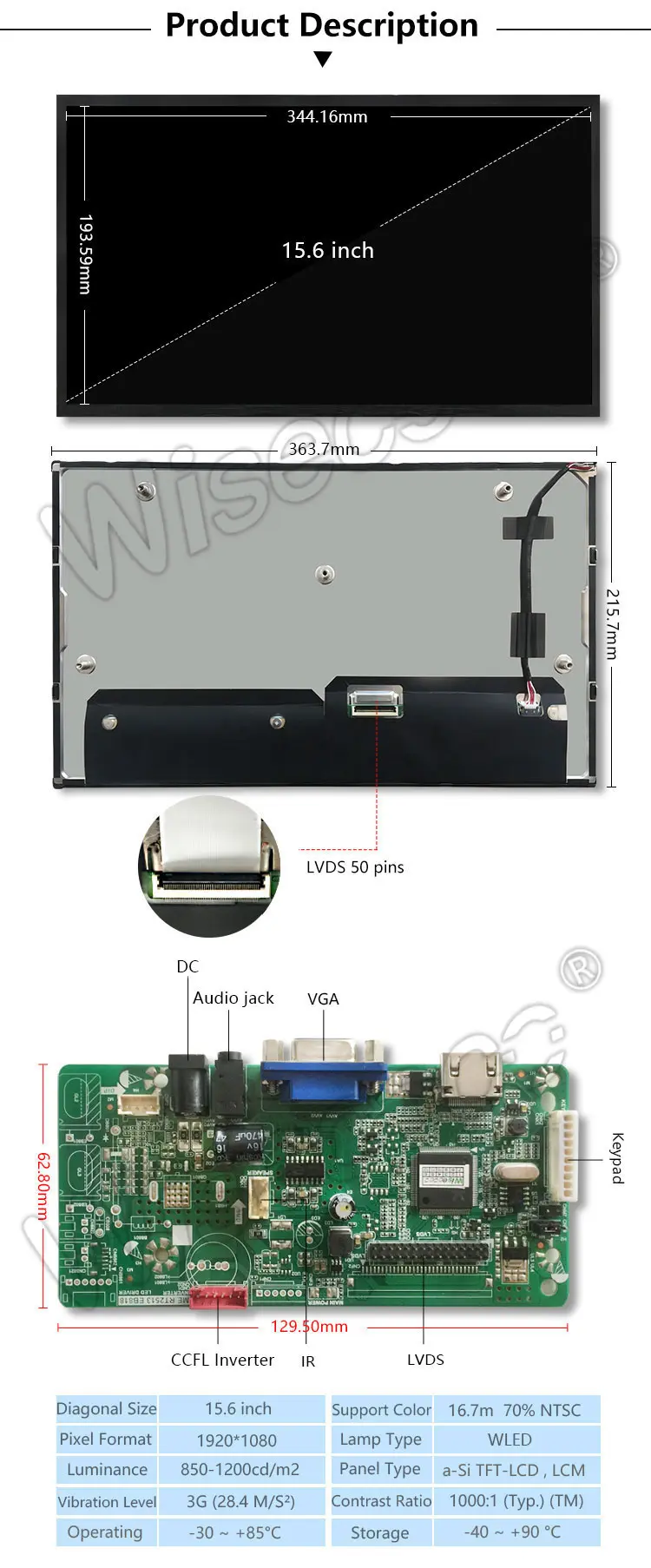

Active Area
|
344.16(H)*193.59(V)mm
|
Treatment
|
Hard coating
|
|

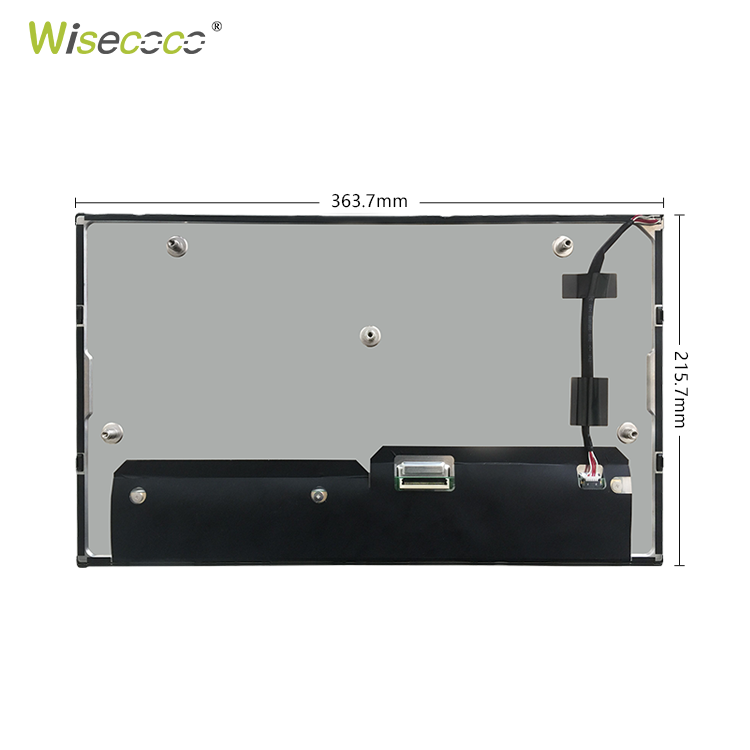

Outline Dim.
|
363.7(H)×215.7(V) mm
|
Contrast Ratio
|
1000:1 (Typ.) (TM)
|
|
Luminance
|
850~1200 cd/m²
|
Response Time
|
15/15 (Max.)(Tr+Td)
|
|
View Direction
|
Symmetry
|
Operating
|
IPS Pro, Normally Black, Transmissive
|
|
Viewing Angle
|
full viewing angle
|
Lamp Type
|
WLED [4 strings] , 30K hours , W/O Driver
|
|
Support Color
|
16.7M 70%
|
Designed For
|
Automotive display, Industrial grade display, Outdoor high brightness Advertising display
|
|
Weight
|
–
|
Touch Panel
|
optional CTP
|
|

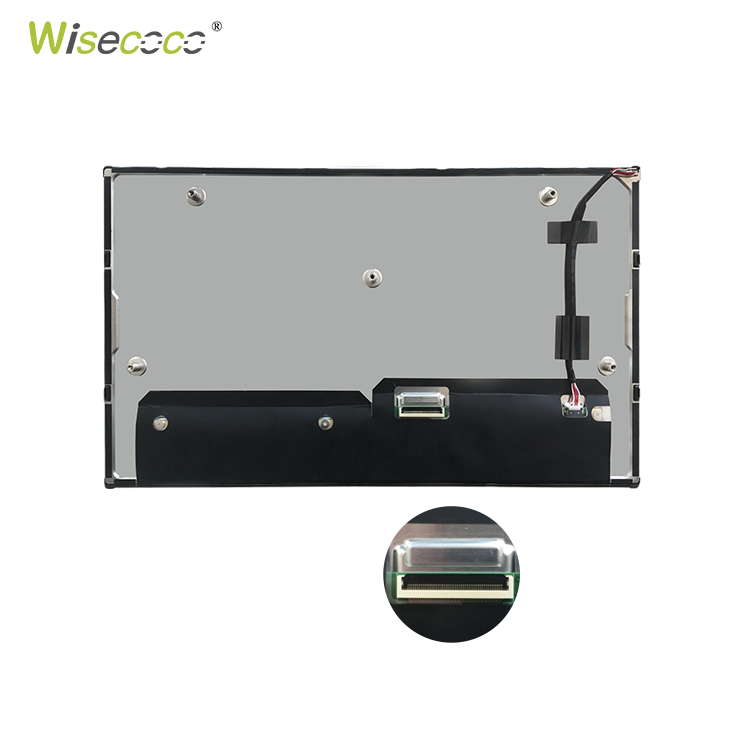

Interface Type
|
LVDS (2 ch, 8-bit) , 50 pins Connector
|
||
|
Voltage Supply
|
5.0V (Typ.)
|
||
|
Environment
|
Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C | ||
Features:
- 1920×1080 FHD Resolution — Sharp IPS panel delivers crisp detail for icons, video, and graphical interfaces.
- 850-1200cd/m² Ultra-High Brightness — Exceptional outdoor-readable brightness, ensuring visibility even in direct sunlight.
- IPS Technology Panel — Genuine IPS wide-viewing technology ensures consistent color and brightness from virtually any angle.

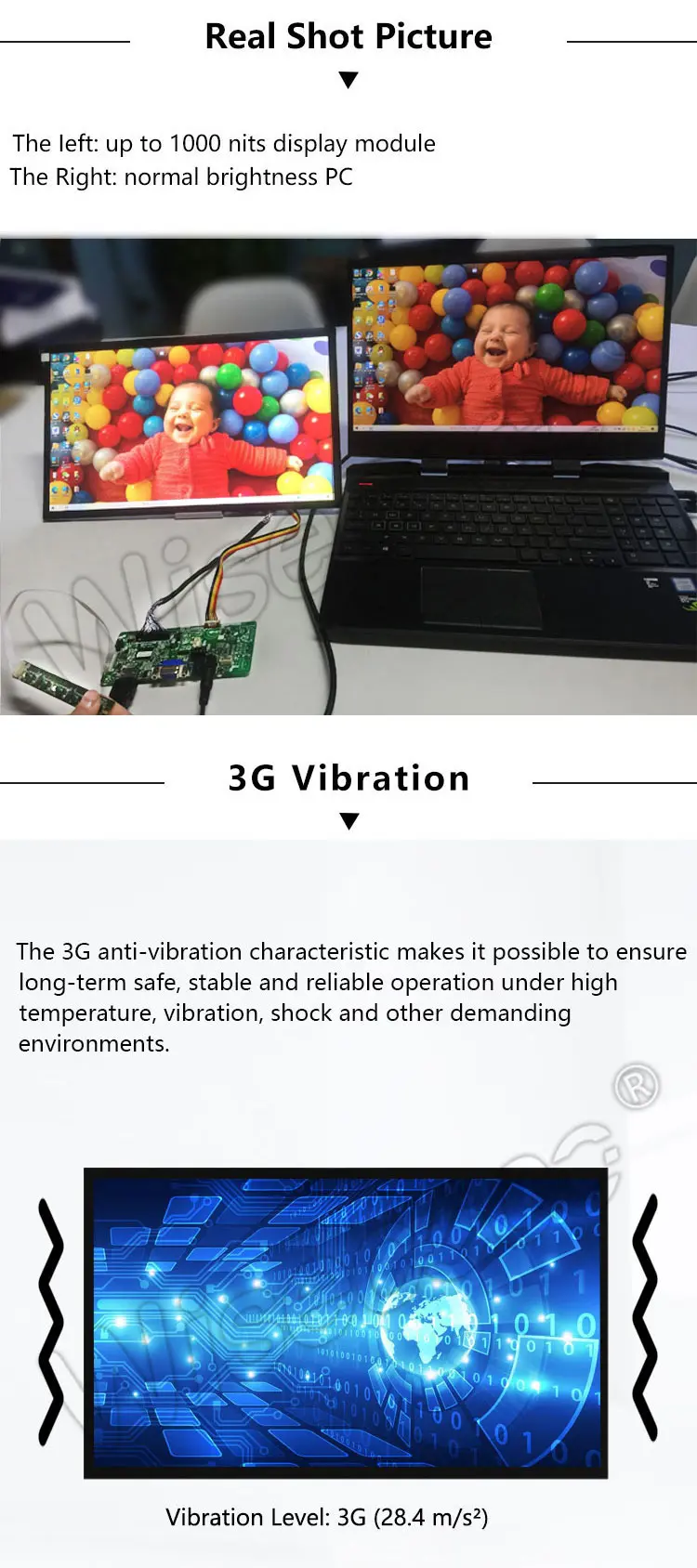

- 3G Vibration Resistance (28.4 m/s²) — Rugged construction withstands significant mechanical stress, ideal for vehicle-mounted and industrial applications.
- Extreme Wide Operating Temperature Range — Operating -30~85°C, storage -40~90°C, reliable across the most demanding environments.

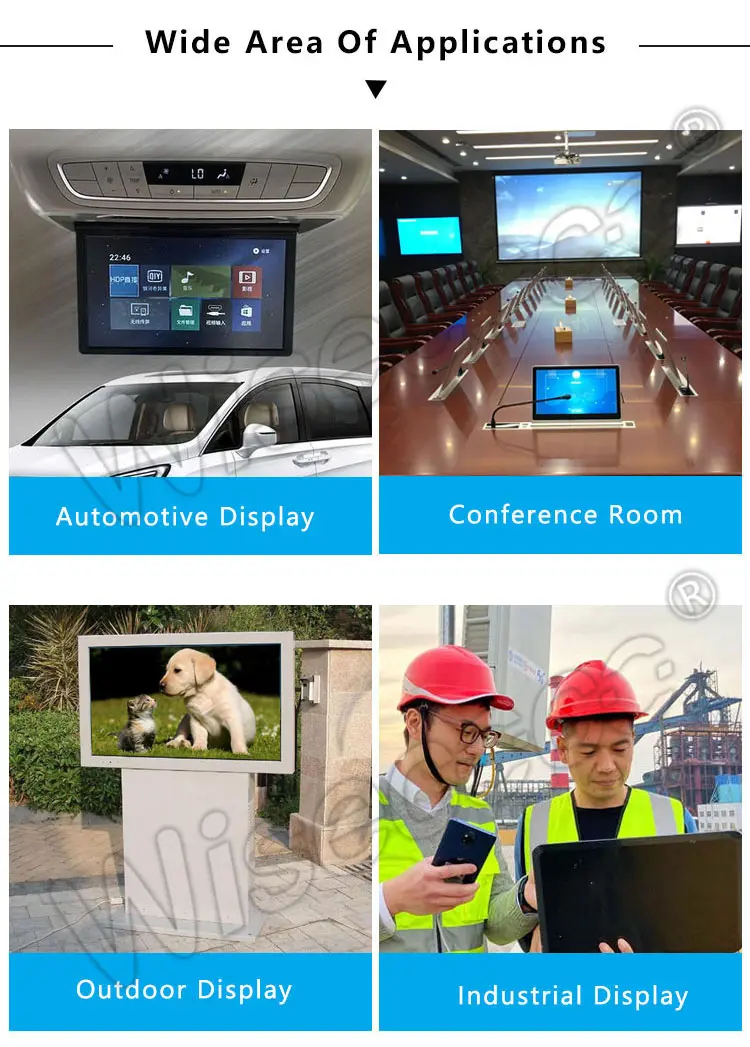

Ideal for: Vehicle-mounted & marine displays · Outdoor equipment displays · Industrial control panels in extreme environments · Military & rugged applications · Custom embedded display integration
Wisecoco offers One-step customized display module solutions.
