- Size:13.3 inch
- Resolution:2048×1536
- Panel Interface:eDP
- Brightness :450 Cd/m2
- Contrast Ratio:1000000:1
- Touch:In-cell Capacitive Touch
$999.00

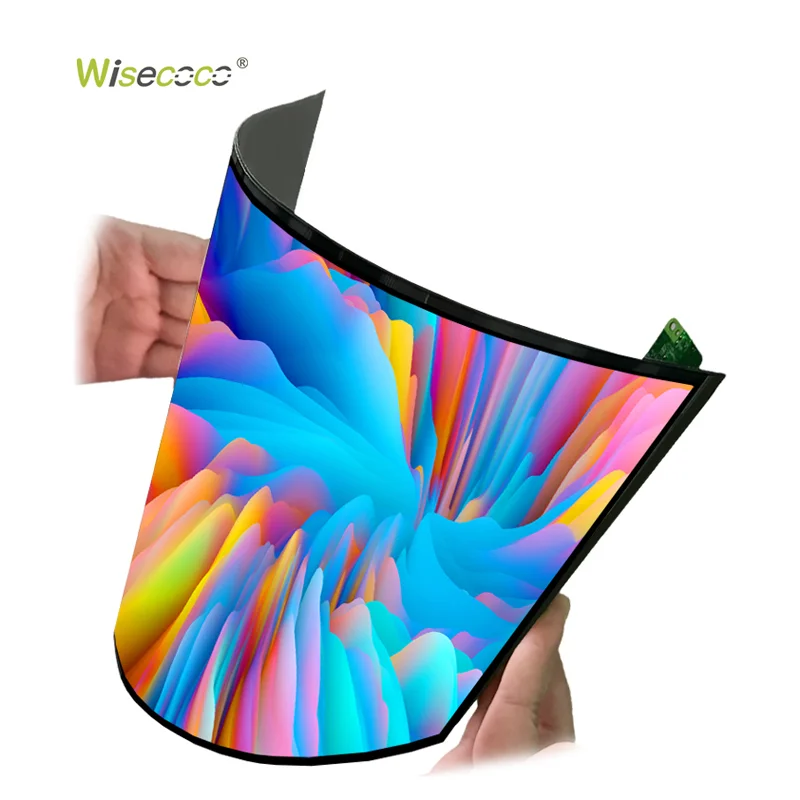

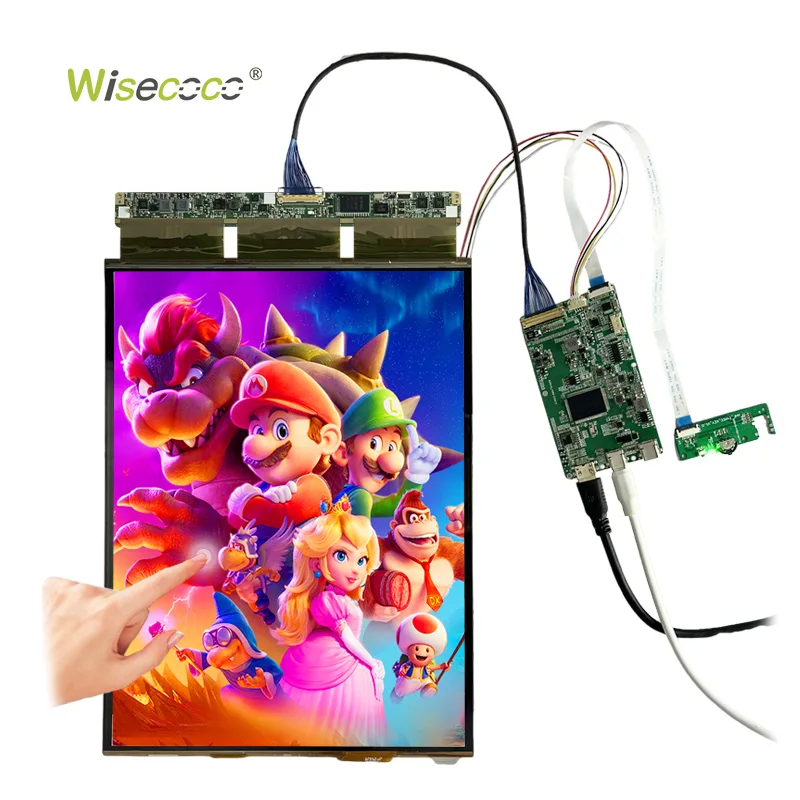

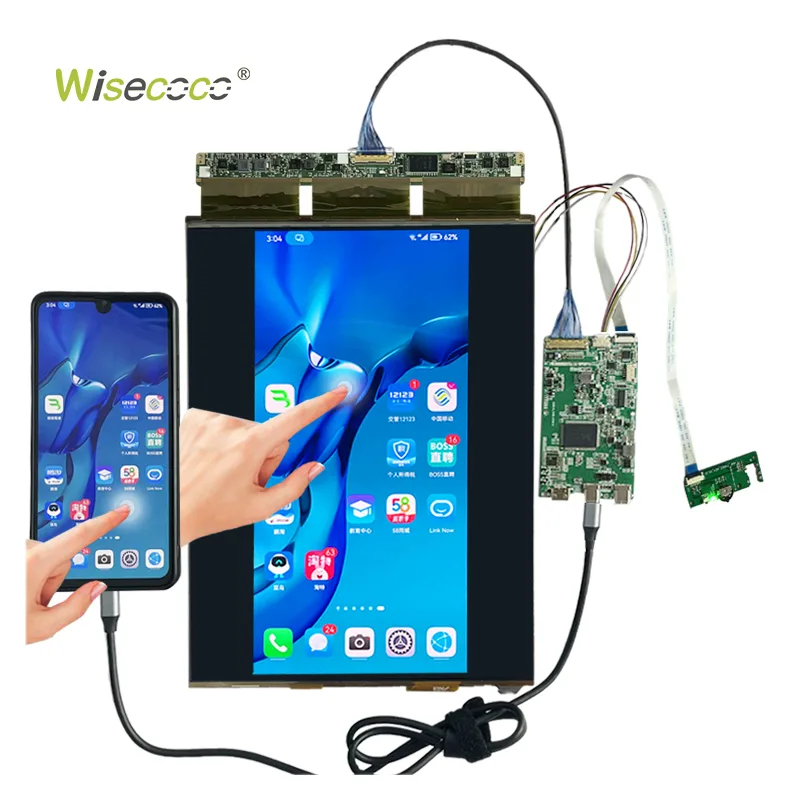

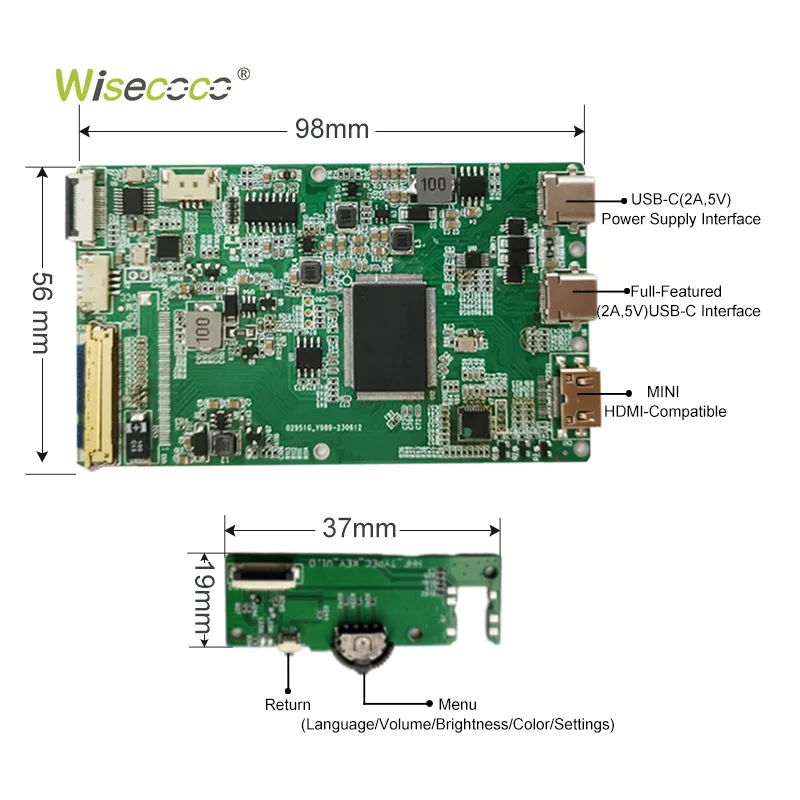

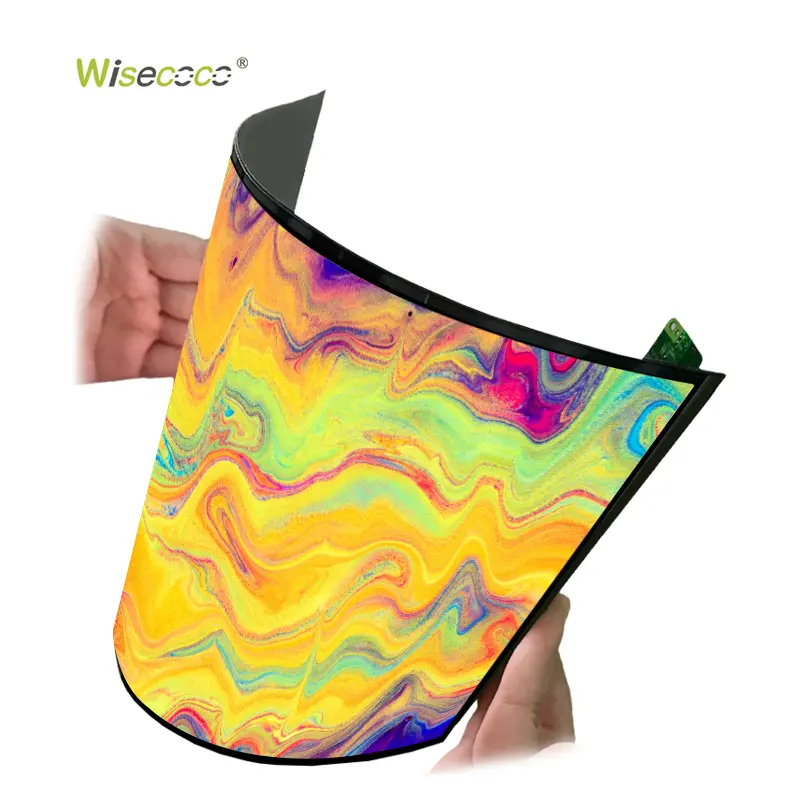

13.3-inch flexible AMOLED screen,features with On-cell 10-point Capaciitve Touch,2480×1536 resolution,Full Viewing Angle,High Contrast Ratio and eDP Interface Driver Board.Suitable for engineering projects requiring thin and lightweight AMOLED panels, such as flexible display designs, curved human-machine interface(HMI) concepts, robotic interaction interfaces, and portable display prototypes.
|
Product Name
|
Amoled flexible screen
|
|
Screen Size
|
13.3 Inch
|
|
Screen Type
|
AM-OLED, OLED
|
|
Resolution
|
2048*1536
|
|
Interface
|
EDP
|
|
Brightness
|
300 Cd/m^2
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR 10)
|
|

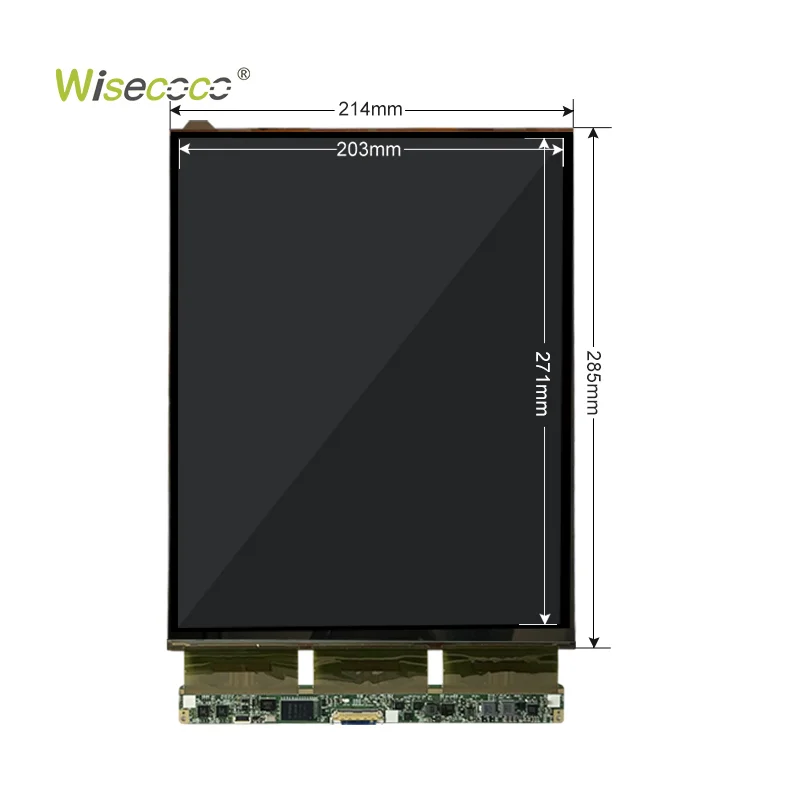

Active Area
|
271.00(H) x 203.00(W)mm
|
|

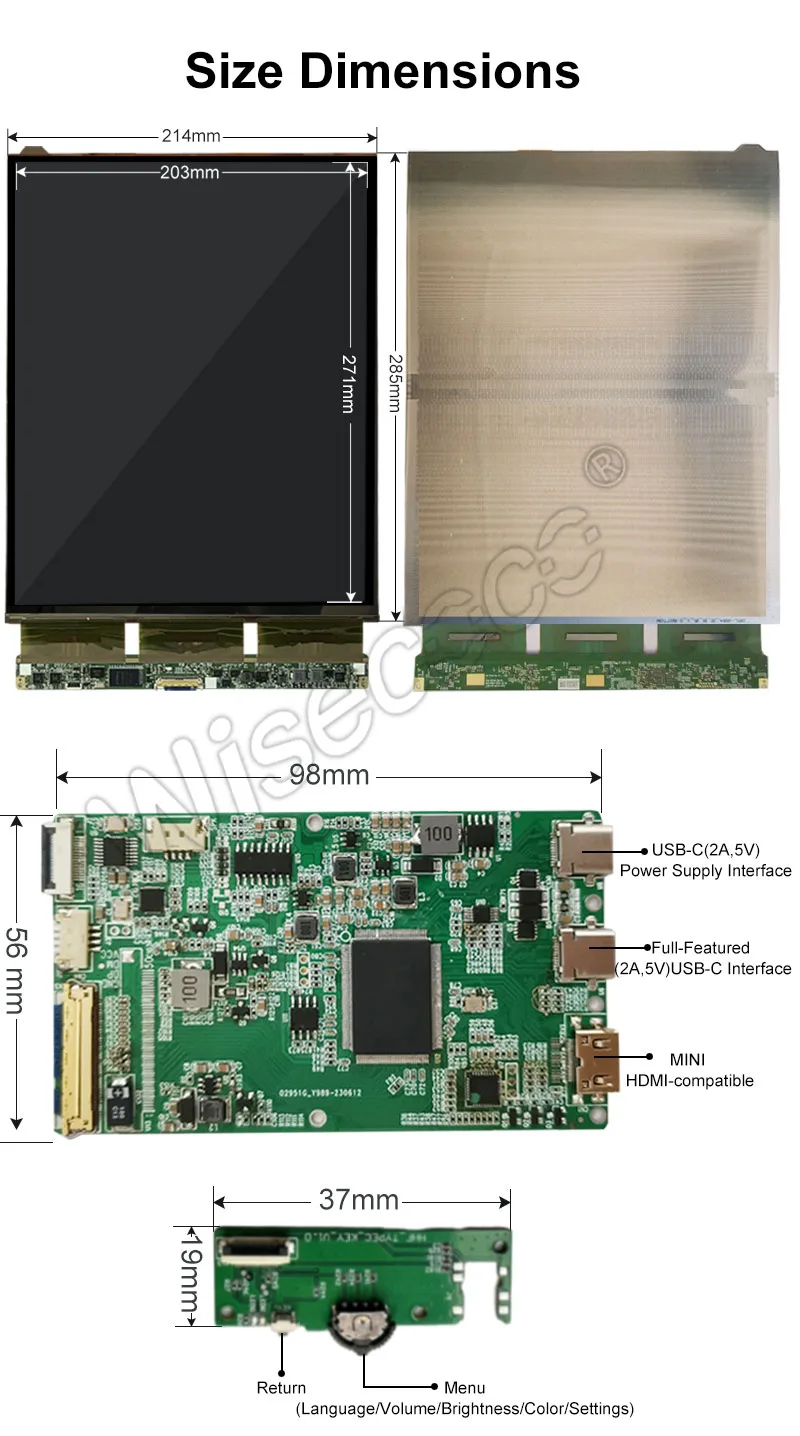

Outline Dimension
|
213.80 (H, typ.) x 284.80 (V, typ.) x 0.53 (D, typ) mm
|
|
Contrast Ratio
|
1000000:1
|
|
Color Depth
|
8-bit, 16.7M colors
|
|
Surface Treatment
|
Glare, Hard coat (6H Cover Window Only) and Anti Fingerprint
|
|
Environment
|
Operating Temperature: 0~50℃;
Storage Temperaturer: -20~60℃
|
Wisecoco offers One-step customized AMOLED display module solutions.
