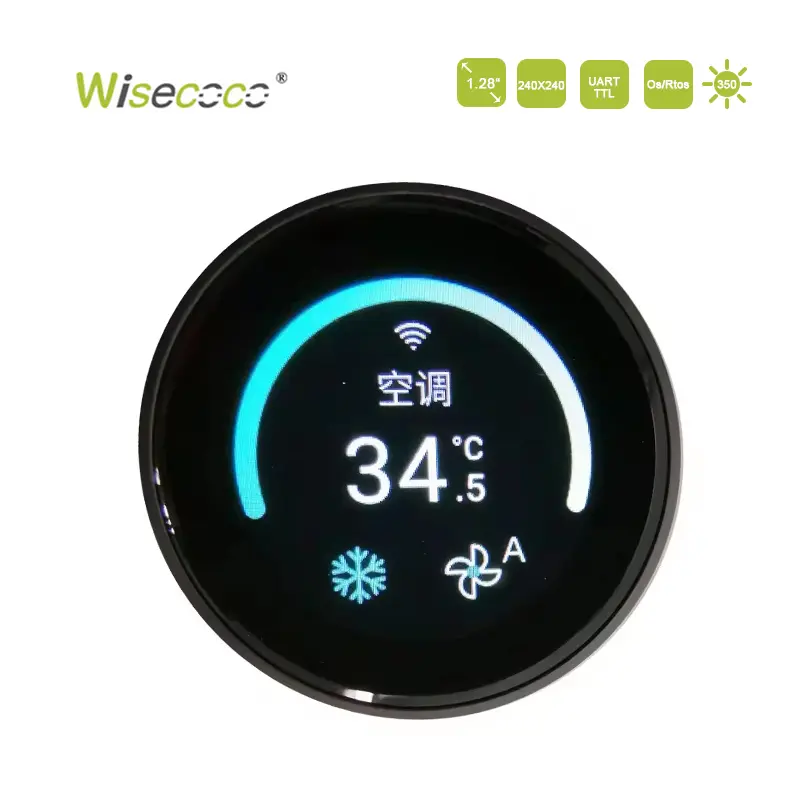

- Size:1.28 inch
- Resolution:240×240
- Interface:UART TTL
- Brightness:350cd/㎡
- Active Area:32.4mm
- Outline Dimension:47mm
- Provide UI design,UART, CANBUS 485 232 and other communication protocols to support secondary development
-44%

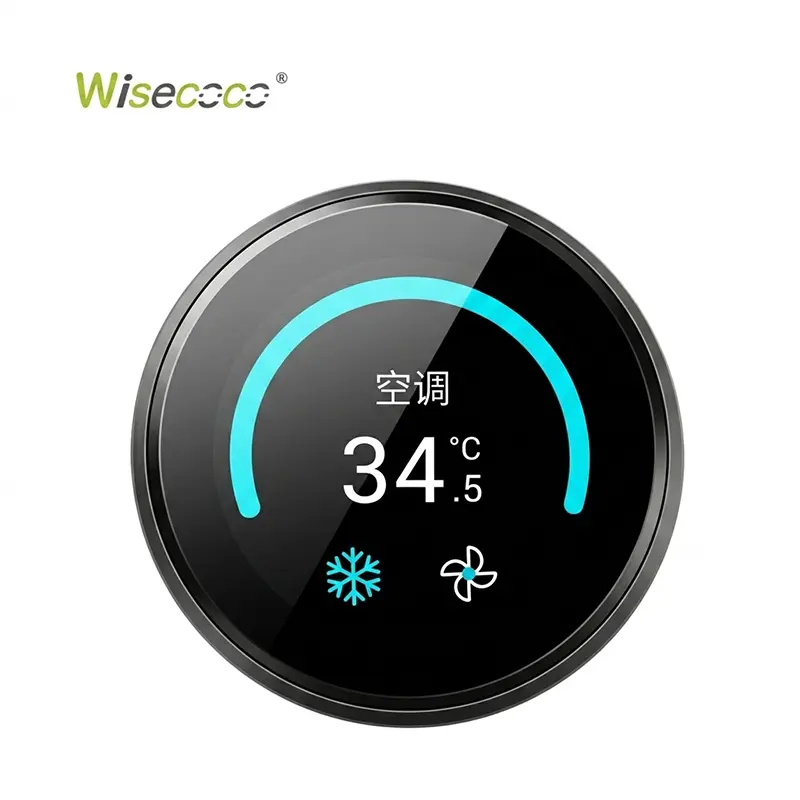

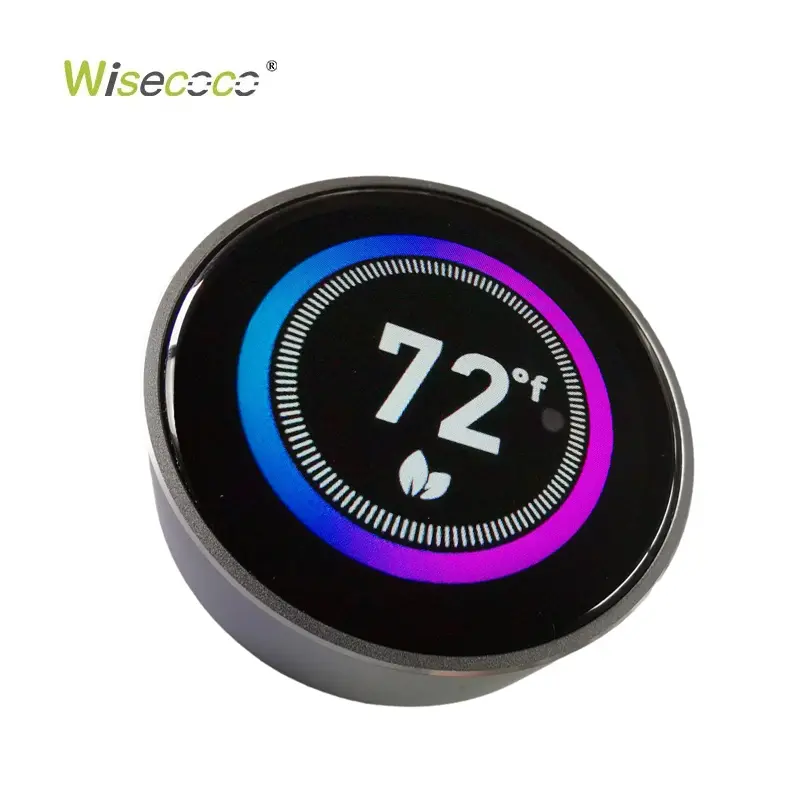

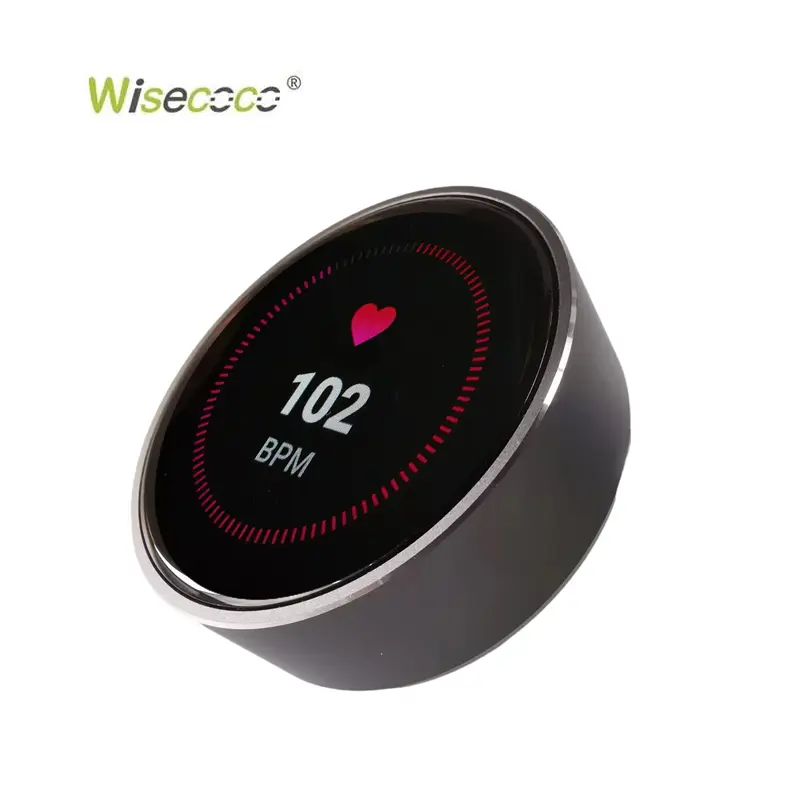

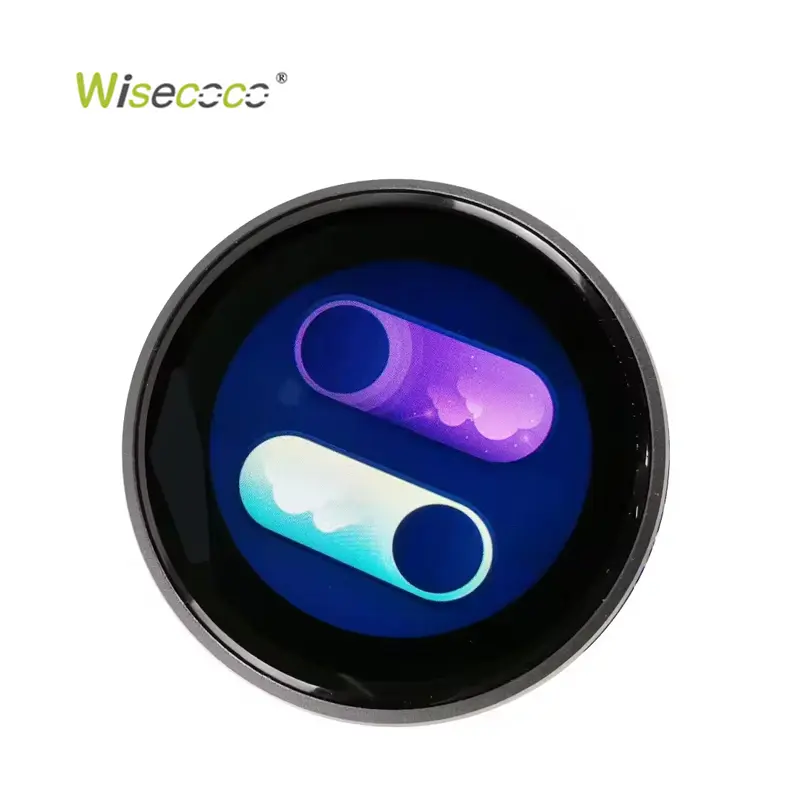

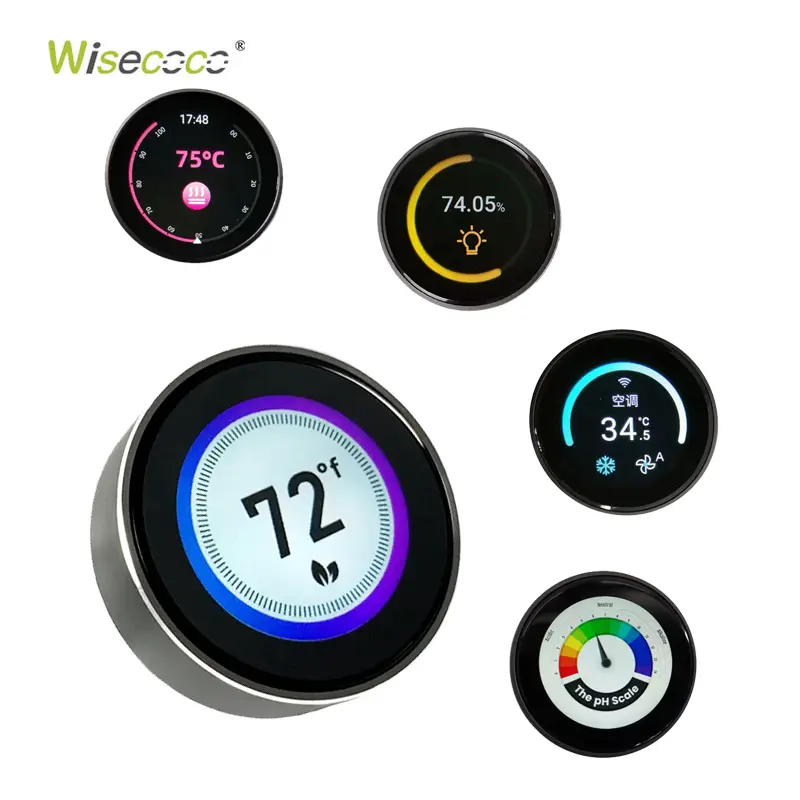

1.28 Inch Ips Circular Rotary Knob Display Hmi Round Switch Screen Module for Smart Home Air Conditioner
Original price was: $39.00.$22.00Current price is: $22.00.
1.28″ Round Rotary Knob Display — 240×240 | UART | 350 Nits
Wisecoco Rotary Knob Display module combines a precision rotary encoder with a high-resolution display, delivering instant visual feedback, intuitive control, and a premium user experience for every product it’s built into.This compact HMI control module is purpose-built for smart home and secondary development applications.
|
Product Name
|
Smart Rotary Knob Screen
|
|
Display Area Size
|
1.28 inches
|
|
Resolution
|
240 x 240
|
|
Screen Brightness
|
350cd/㎡
|
|
Display Area
|
32.4mm
|
|
Outer Diameter
|
47mm
|
|
Interface Type
|
UART TTL Serial Port
|
|
Operating Voltage
|
USB 5V
|
|
Operating Temperature
|
-20°C to 60°C
|
Features:
- Compact Circular Display — The 1.28-inch round display provides a compact visual interface for presenting operating modes, settings and status information within space-constrained products.

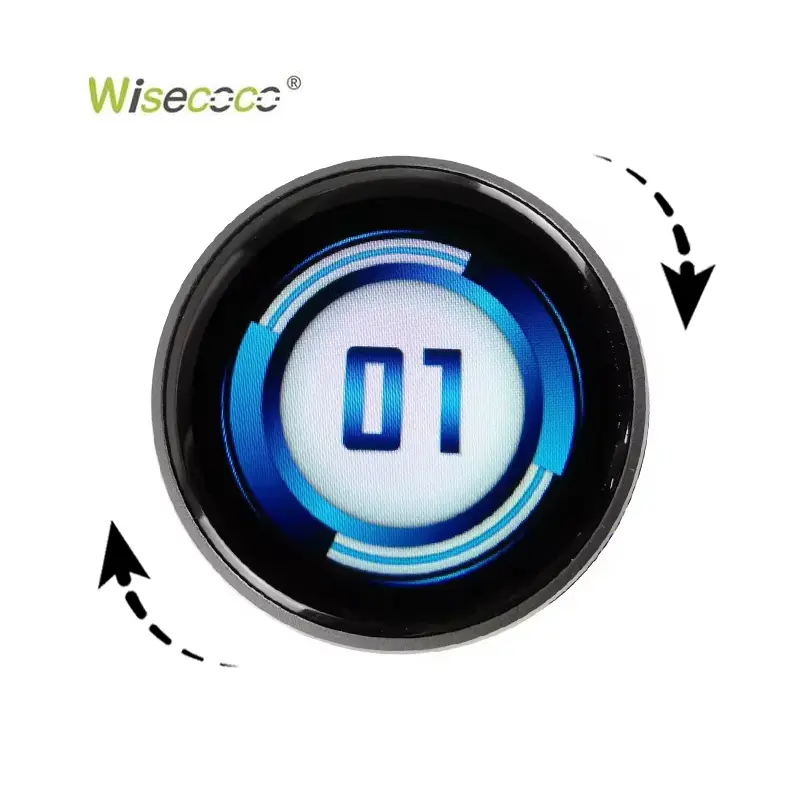

- Integrated Display + Rotary Encoder — Rotary interaction allows users to navigate settings and adjust parameters through a physical control interface. Press functionality depends on the selected configuration.
- IPS TFT LCD Technology — The IPS TFT LCD panel provides a visual platform for graphical user interfaces, icons, menus and device status information.
- Customizable UI & Interaction Design — The user interface can be designed around the product’s functions and operating logic. UI customization and software integration requirements can be evaluated for each project.
Applications:
- Smart Home Controls: Temperature adjustment, lighting control and smart home interfaces.
- Home Appliances: User interfaces for air conditioners, air purifiers, coffee machines and other appliances, subject to system integration requirements.
- Industrial Equipment: Compact control interfaces for equipment requiring visual feedback and rotary input.
- Consumer Electronics: Interactive control panels for connected and embedded devices.
- Environmental Control Systems: Interfaces for adjusting operating modes and settings.
From display selection and UI development to hardware customization and mass production,
WISECOCO provides complete display solutions tailored to your product requirements.
Looking for a Custom Rotary Knob Display?
Discuss your display specifications, rotary control requirements and integration needs with Wisecoco.
