- Size:2.1 inch
- Resolution:480×480
- Panel Interface:SPI RGB
- Active Area:53.28×53.28 mm
- Outline Dimension:56.18×59.71×2.3mm
- Brightness :300cd/m²(Typ.)
- Touch Panel: Capacitive touch
-41%

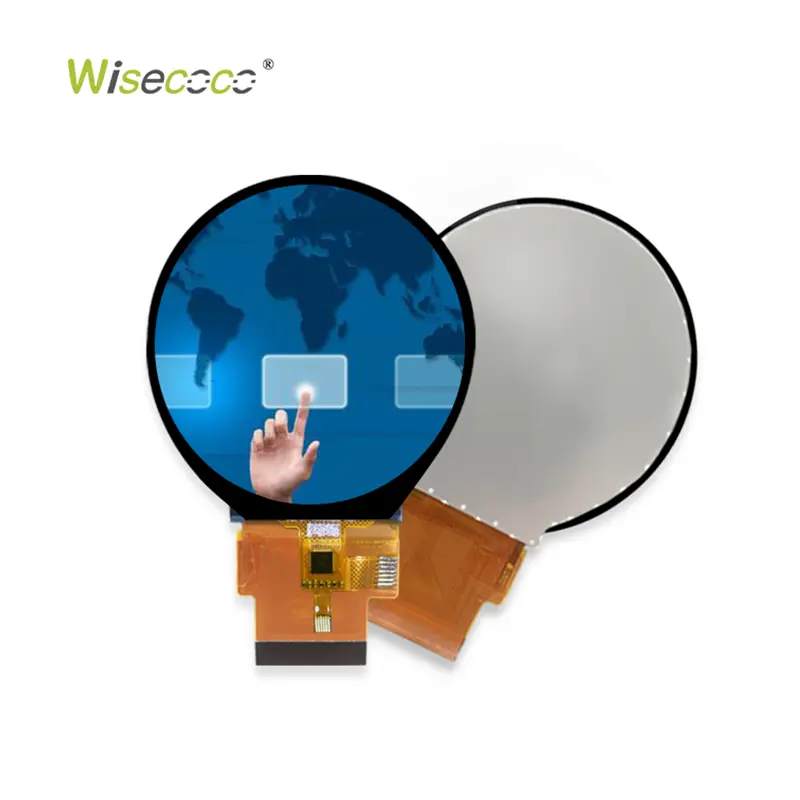

2.1 Inch Circular TFT LCD Display 480×480 IPS Touch Screen Round LCD Display Panel For Smart Home Robot
Original price was: $85.00.$50.00Current price is: $50.00.
2.1″ Circular IPS LCD Display — 480×480 | 40-Pin FPC SPI RGB | Multi-Touch
2.1-inch circular IPS LCD display delivering 480×480 resolution with true IPS wide-viewing technology and 99% sRGB color coverage. Featuring multi-touch capability, a 40-pin FPC SPI/RGB interface, and 300cd/m² brightness, this compact round display is purpose-built for smart control panels and dial-style interfaces.
| Display Specifications | LCD type | 2.1 inch |
| Resolution (H*V) | 480(RGB)×480 | |
| Technology Type | a-Si TFT | |
| Pixel Configuration | R.G.B. Vertical Stripe | |
| Display Mode | Normally Black | |
| Viewing Direction | ALL | |
| Touch screen | capacitive touch screen assembled | |

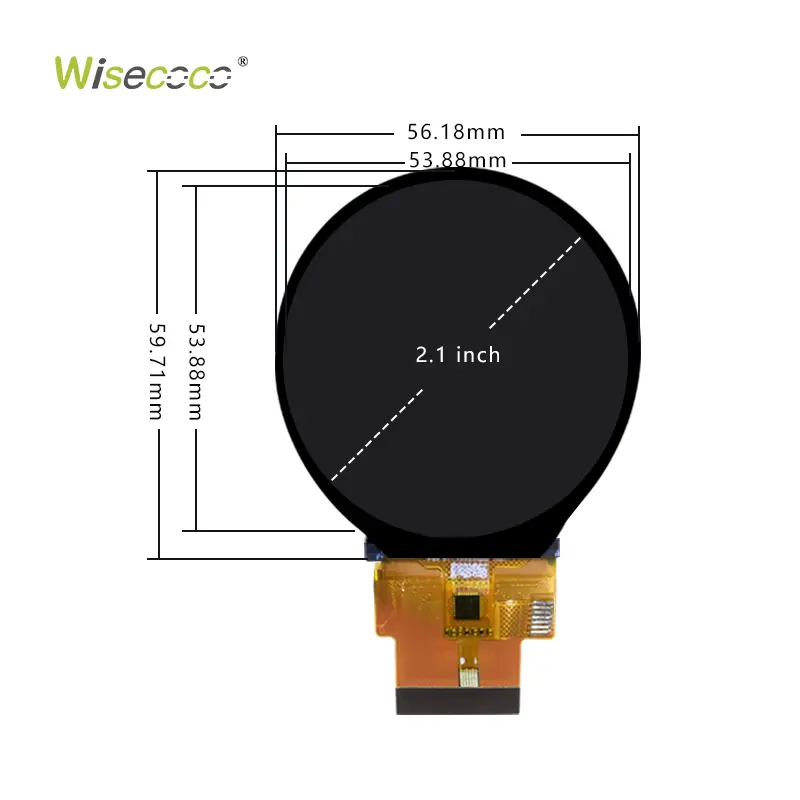

| Mechanical Characteristics | OutlineDimensions (W x Hx T)(mm) | 56.18*59.71*2.3 |
| Active Area(mm) | 53.28*53.28 | |
| CTP capacitive touch screen | Optional | |
| Connector Type | 0.5 PITCH 40PIN | |
| Backlight Type | LED |
Features:
- 480×480 Round Resolution — Sharp, symmetrical display optimized for circular UI graphics and dial-style interfaces.
- IPS Technology Panel — Genuine IPS wide-viewing technology ensures consistent color and brightness from virtually any angle.
- Multi-Touch Support — Responsive capacitive touch enables intuitive, smooth interaction and gesture control.
- 99% sRGB Color Gamut — Rich, accurate color reproduction for vivid, true-to-life visuals.
- 300cd/m² Brightness — Clear, readable display across varied ambient lighting conditions.
Ideal for: Smart home control panels · Wearable device displays · Industrial equipment dials · Round dashboard & gauge builds · Maker & prototyping projects
Wisecoco offers One-step customized display solutions.
